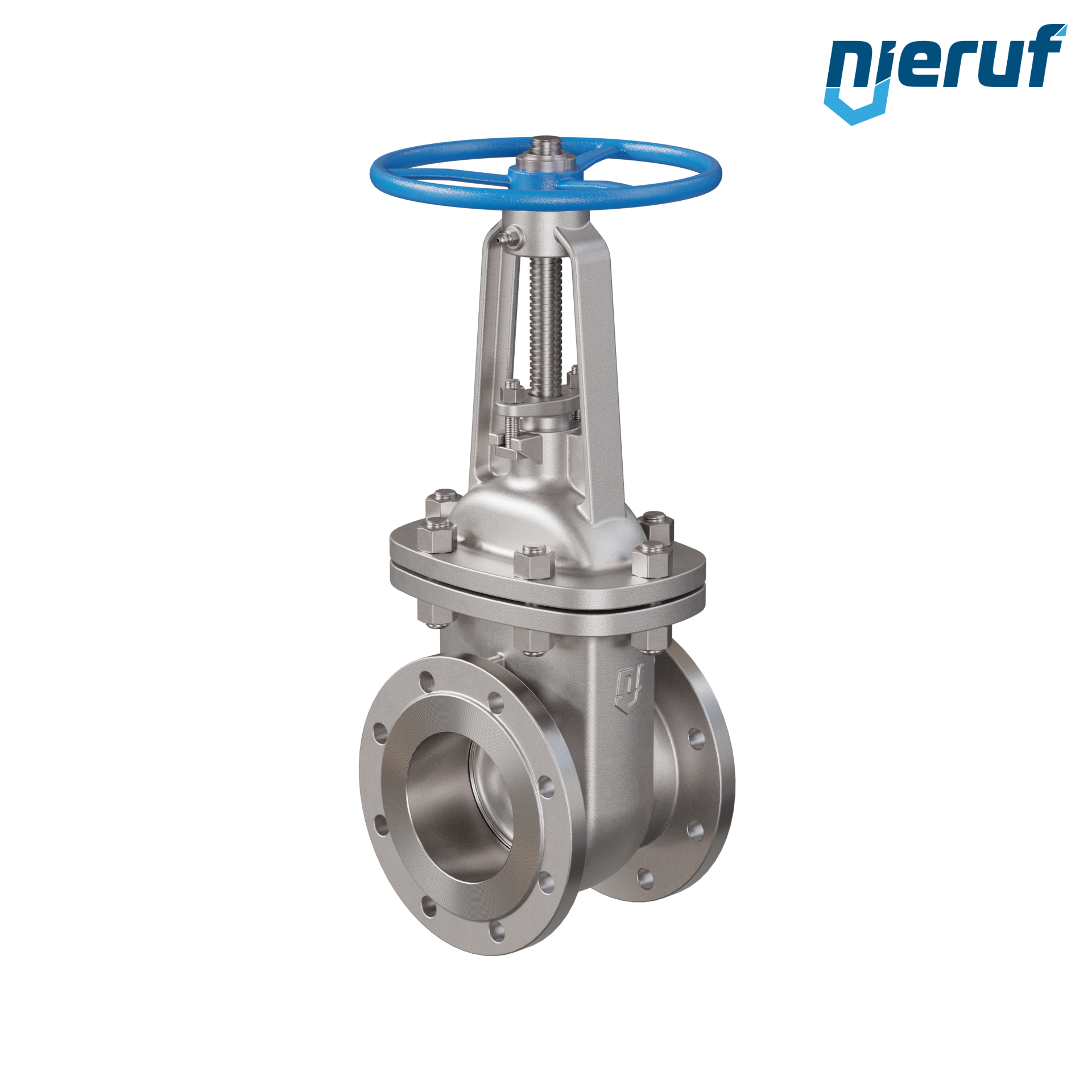

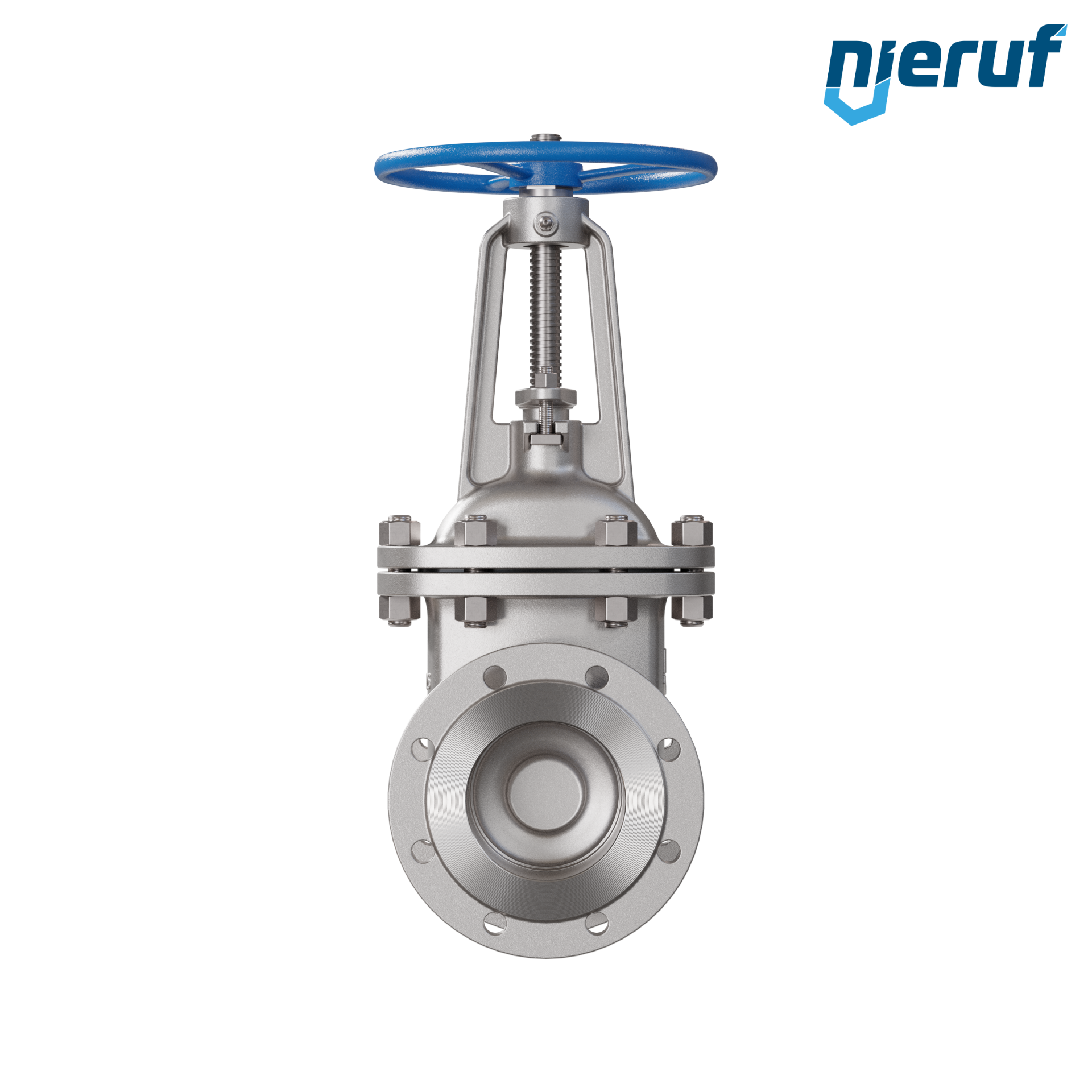

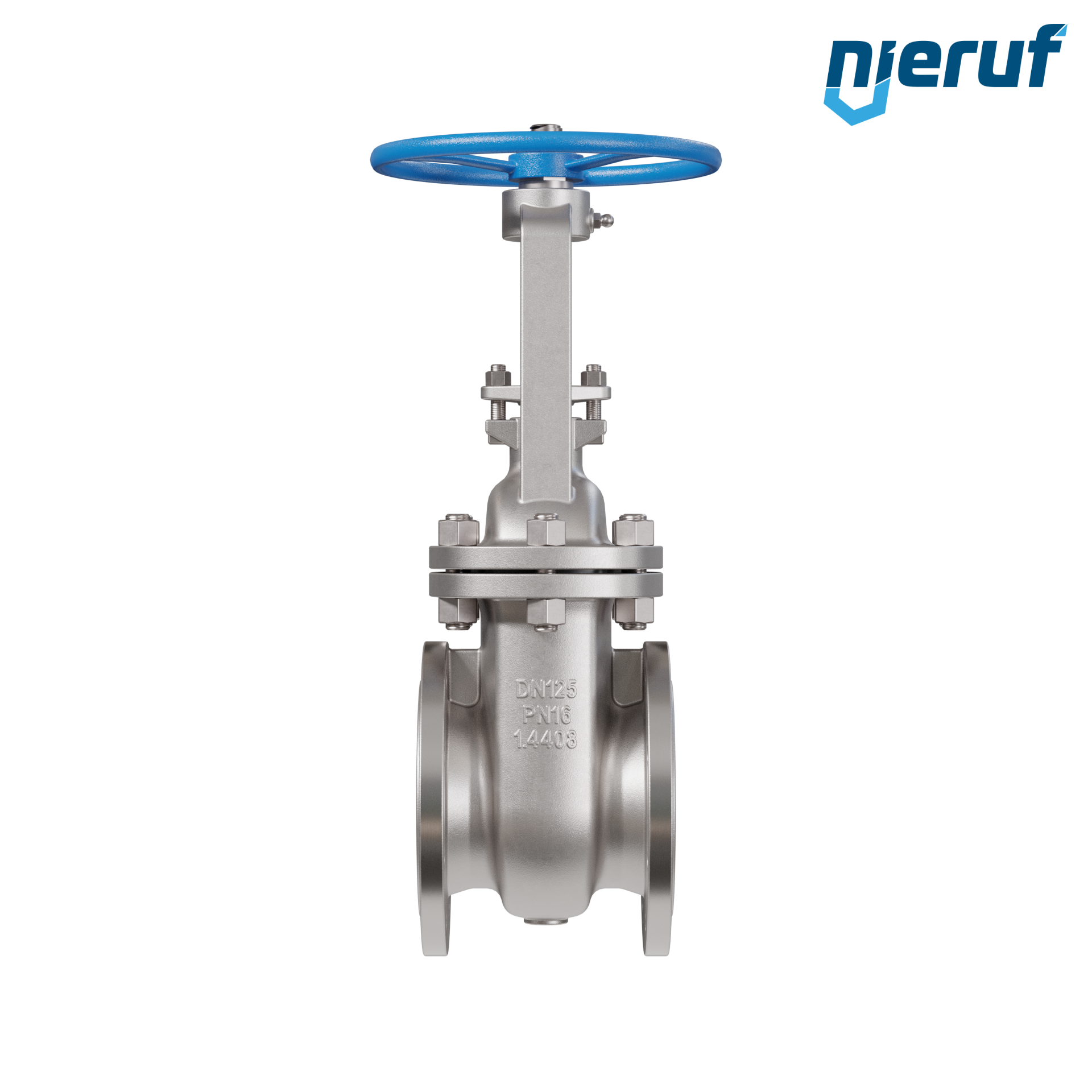

Wedge Gate Valve (flat form) AS03 in straightway form, DN125 PN16, with flange according to DIN EN 1092, material stainless steel CF8M
| Product | Wedge Gate Valve (flat form) |
|---|---|
| Type | AS03 |
| Manufacturer | NieRuf |
| Nominal diameter | DN125 |
| Flange | flange according to DIN EN 1092 |
| Pressure rating | PN16 |
| Seal | metal |
| Medium | liquid and gaseous media |
| Temperature | -10°C to +400°C - depending on operating pressure |
| Pressure range | 0 to 16 bar - depending on temperature |
| Design | straightway form |
| Body material | stainless steel CF8M / AISI CF8M |
| Yoke bonnet material | stainless steel CF8M / AISI CF8M |
| Handwheel | carbon steel 1.0036 (non-rising) |
| Wedge | stainless steel CF8M / AISI CF8M |
| Face-to-face length | according to DIN EN 558 series 14 |
| Testing | final inspection according to DIN EN 12266 |
| Approval | TA-Luft 2021, ATEX 2014/34/EU |
| Installation position | any, spindle preferably vertical |
| Standard | DIN EN 1984: 2110-10 |
| Product feature | Wedge Gate Valve (flat form) in straightway form with flange connection and rising spindle, with non-rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU certification. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Wedge Gate Valve (flat form) made of stainless steel CF8M AS03 DN125 PN16
Article no.
: AS03010012
Product:
Wedge Gate Valve (flat form)
Type:
AS03
Manufacturer:
NieRuf
Nominal diameter:
DN125
Flange:
flange according to DIN EN 1092
Pressure rating:
PN16
Seal:
metal
Medium:
liquid and gaseous media
Temperature:
-10°C to +400°C - depending on operating pressure
Pressure range:
0 to 16 bar - depending on temperature
Design:
straightway form
Body material:
stainless steel CF8M / AISI CF8M
Yoke bonnet material:
stainless steel CF8M / AISI CF8M
Handwheel:
carbon steel 1.0036 (non-rising)
Wedge:
stainless steel CF8M / AISI CF8M
Face-to-face length:
according to DIN EN 558 series 14
Testing:
final inspection according to DIN EN 12266
Approval:
TA-Luft 2021, ATEX 2014/34/EU
Installation position:
any, spindle preferably vertical
Standard:
DIN EN 1984: 2110-10
Product feature:
Wedge Gate Valve (flat form) in straightway form with flange connection and rising spindle, with non-rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU certification.
