reducing nipple

Reducing nipple in many nominal widths, made from brass, PVC or stainless steel

The reducing nipple is a frequently used and very important component in pipe construction. It is used wherever there has to be change from a large nominal width to a small nominal width or vice versa. This means the nipple an outer thread on one side, which is larger than the outer thread on the other side of the nipple. As a result, planning errors, wrongly ordered fittings or structural problems can still be overcome, resolved or installed. The nipple is made from high quality stainless steel 316, brass or the plastic PVC-U. A reduction is possible, for example, from 1/4“ to 1/8“ inches or from 2“ to 1“ inches, which increases flexibility in pipe construction. In a 2“-system, a fitting, for example, a needle valve or solenoid valve with a 1“ internal thread can be installed. This saves costs, of course, as a smaller plastic solenoid valve costs considerably less money (please note the flow volumes and pressure ranges of the fittings).

Reducing nipple in many nominal widths, made from brass, PVC or stainless steel

The reducing nipple is a frequently used and very important component in pipe construction. It is used wherever there has to be change from a large nominal width to a small nominal width or vice versa. This means the nipple an outer thread on one side, which is larger than the outer thread on the other side of the nipple. As a result, planning errors, wrongly ordered fittings or structural problems can still be overcome, resolved or installed. The nipple is made from high quality stainless steel 316, brass or the plastic PVC-U. A reduction is possible, for example, from 1/4“ to 1/8“ inches or from 2“ to 1“ inches, which increases flexibility in pipe construction. In a 2“-system, a fitting, for example, a needle valve or solenoid valve with a 1“ internal thread can be installed. This saves costs, of course, as a smaller plastic solenoid valve costs considerably less money (please note the flow volumes and pressure ranges of the fittings).

Filter

Product finder

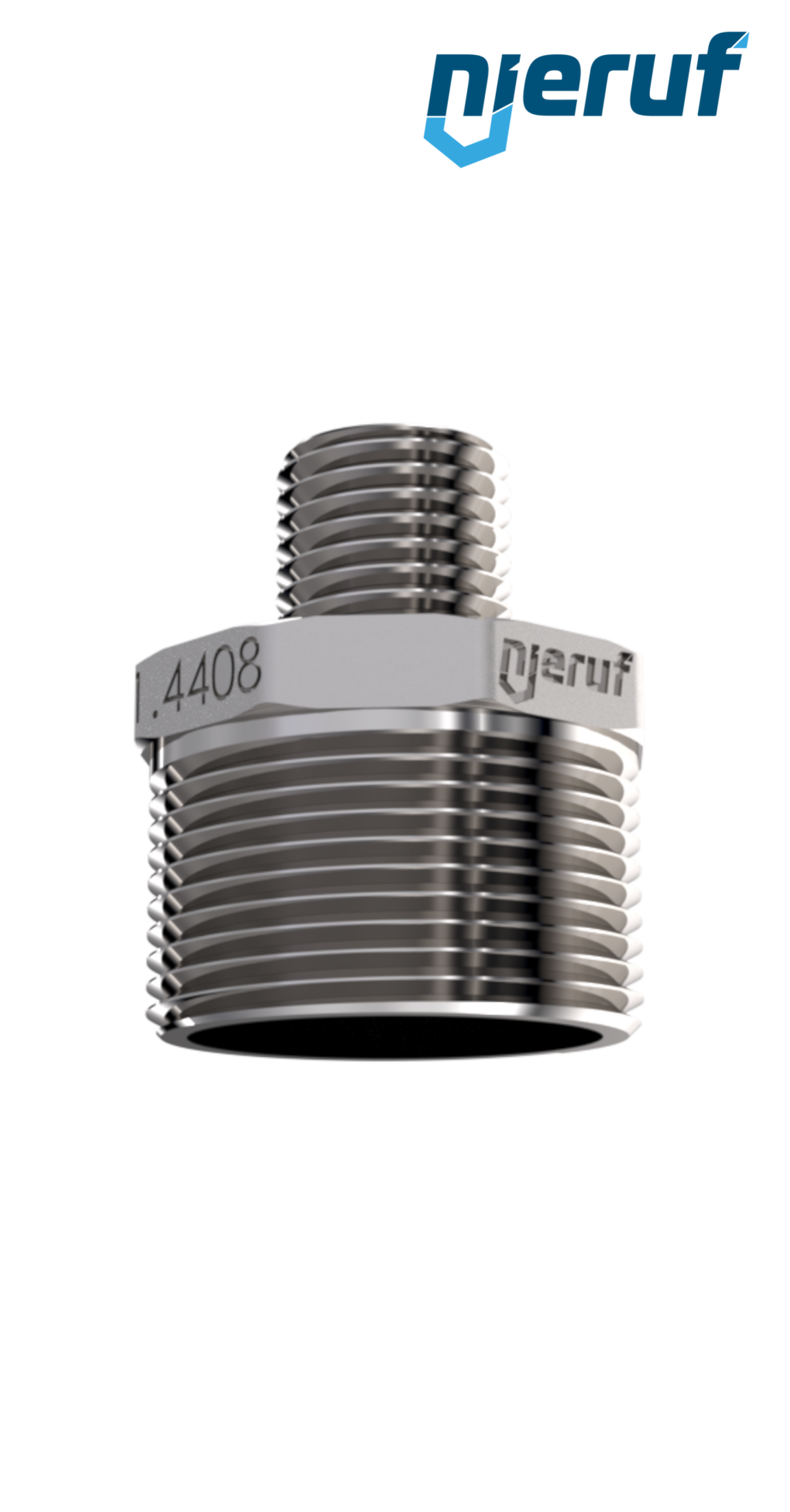

reducing nipple 3/4" x 1/4" inch male stainless steel 316

GF01200006

reducing nipple 3/4" x 1/4" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 3/4" x 1/4" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 3/4" x 1/4" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€3.20*

€3.81 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 3" x 2" inch male stainless steel 316

GF01200024

reducing nipple 3" x 2" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 3" x 2" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 3" x 2" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€35.70*

€42.48 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 3/4" x 3/8" inch male PVC-U

GF03200007

reducing nipple 3/4" x 3/8" inch male PVC-U

reducing nipple GF03-2 mit male thread 3/4" x 3/8" inch made of PVC-U for liquid and gaseous media

Technical features

  • diameter 3/4" x 3/8" inch
  • connection male thread
  • material PVC-U
  • max. working pressure PN10

€3.10*

€3.69 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 1 1/2" x 1" inch male stainless steel 316

GF01200016

reducing nipple 1 1/2" x 1" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 1 1/2" x 1" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 1 1/2" x 1" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€8.00*

€9.52 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 1 1/2" x 3/4" inch male stainless steel 316

GF01200015

reducing nipple 1 1/2" x 3/4" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 1 1/2" x 3/4" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 1 1/2" x 3/4" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€7.90*

€9.40 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 3/8" x 1/4" inch male stainless steel 316

GF01200002

reducing nipple 3/8" x 1/4" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 3/8" x 1/4" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 3/8" x 1/4" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€1.90*

€2.26 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 1/2" x 1/8" inch male stainless steel 316

GF01200003

reducing nipple 1/2" x 1/8" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 1/2" x 1/8" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 1/2" x 1/8" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€2.20*

€2.62 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet

reducing nipple 1" x 3/4" inch male stainless steel 316

GF01200011

reducing nipple 1" x 3/4" inch male stainless steel 316

reducing nipple GF01-2 mit male thread 1" x 3/4" inch made of stainless steel 316 for liquid and gaseous media

Technical features

  • diameter 1" x 3/4" inch
  • connection male thread
  • material stainless steel 316
  • max. working pressure 20 bar at +20°C
  • thread acc. to DIN EN 10226-1

€4.60*

€5.47 VAT included.

Lead time
in stock
Express delivery*
Datasheet Datasheet
