Fitting
hexagon nipple GF01-3 with male thread 1/2" inch made of stainless steel 316 for liquid and gaseous media
product:
hexagon nipple
diameter:
DN15 - 1/2" inch
connection:
male thread
material:
stainless steel 316
hexagon nipple GF01-3 with male thread 3/4" inch made of stainless steel 316 for liquid and gaseous media
product:
hexagon nipple
diameter:
DN20 - 3/4" inch
connection:
male thread
material:
stainless steel 316
hexagon nipple GF01-3 with male thread 3/8" inch made of stainless steel 316 for liquid and gaseous media
product:
hexagon nipple
diameter:
DN10 - 3/8" inch
connection:
male thread
material:
stainless steel 316
welding nipple GF01-7 with male thread DN32 - 1 1/4" inch made of stainless steel 316 L for liquid and gaseous media
product:
welding nipple
diameter:
DN32 - 1 1/4" inch
connection:
male thread
material:
stainless steel 316 L
hose nozzle 1/8" 7.0 mm stainless steel 1.4408, Hose barb as connection between threads and tubes, ideal for pneumatics- and ceompressed air industry.
product:
hose nozzle
elbow GF01-0 female thread 3/8" inch made of stainless steel 316 90° angle for liquid and gaseous media
product:
elbow
diameter:
DN10 - 3/8" inch
connection:
female thread
material:
stainless steel 316
running nipple 1" inch stainless steel 316 L male thread with a length of 35.0 mm for liquid and gaseous media
product:
running nipple
diameter:
DN25 - 1" inch
connection:
male thread
material:
stainless steel 316 L
hexagon nipple GF03-3 with male thread 1/2" inch made of PVC-U for liquid and gaseous media
product:
hexagon nipple
diameter:
DN15 - 1/2" inch
connection:
male thread
material:
PVC-U
hexagon nipple GF03-3 with male thread 3/8" inch made of PVC-U for liquid and gaseous media
product:
hexagon nipple
diameter:
DN10 - 3/8" inch
connection:
male thread
material:
PVC-U
socket GF03-3 with female thread 1/4" inch made of PVC-U for liquid and gaseous media
product:
socket
diameter:
DN8 - 1/4" inch
connection:
female thread
material:
PVC-U
welding nipple GF01-7 with male thread DN10 - 3/8" inch made of stainless steel 316 L for liquid and gaseous media
product:
welding nipple
diameter:
DN10 - 3/8" inch
connection:
male thread
material:
stainless steel 316 L
elbow GF01-0 female thread 3/8" inch made of stainless steel 316 45° angle for liquid and gaseous media
product:
elbow
diameter:
DN10 - 3/8" inch
connection:
female thread
material:
stainless steel 316
hexagon nipple GF01-3 with male thread 1/4" inch made of stainless steel 316 for liquid and gaseous media
product:
hexagon nipple
diameter:
DN8 - 1/4" inch
connection:
male thread
material:
stainless steel 316
hexagon nipple GF03-3 with male thread 3/4" inch made of PVC-U for liquid and gaseous media
product:
hexagon nipple
diameter:
DN20 - 3/4" inch
connection:
male thread
material:
PVC-U
cross GF01-1 female thread 1/4" inch made of stainless steel 316 90° angle for liquid and gaseous media
product:
cross
diameter:
DN8 - 1/4" inch
connection:
female thread
material:
stainless steel 316

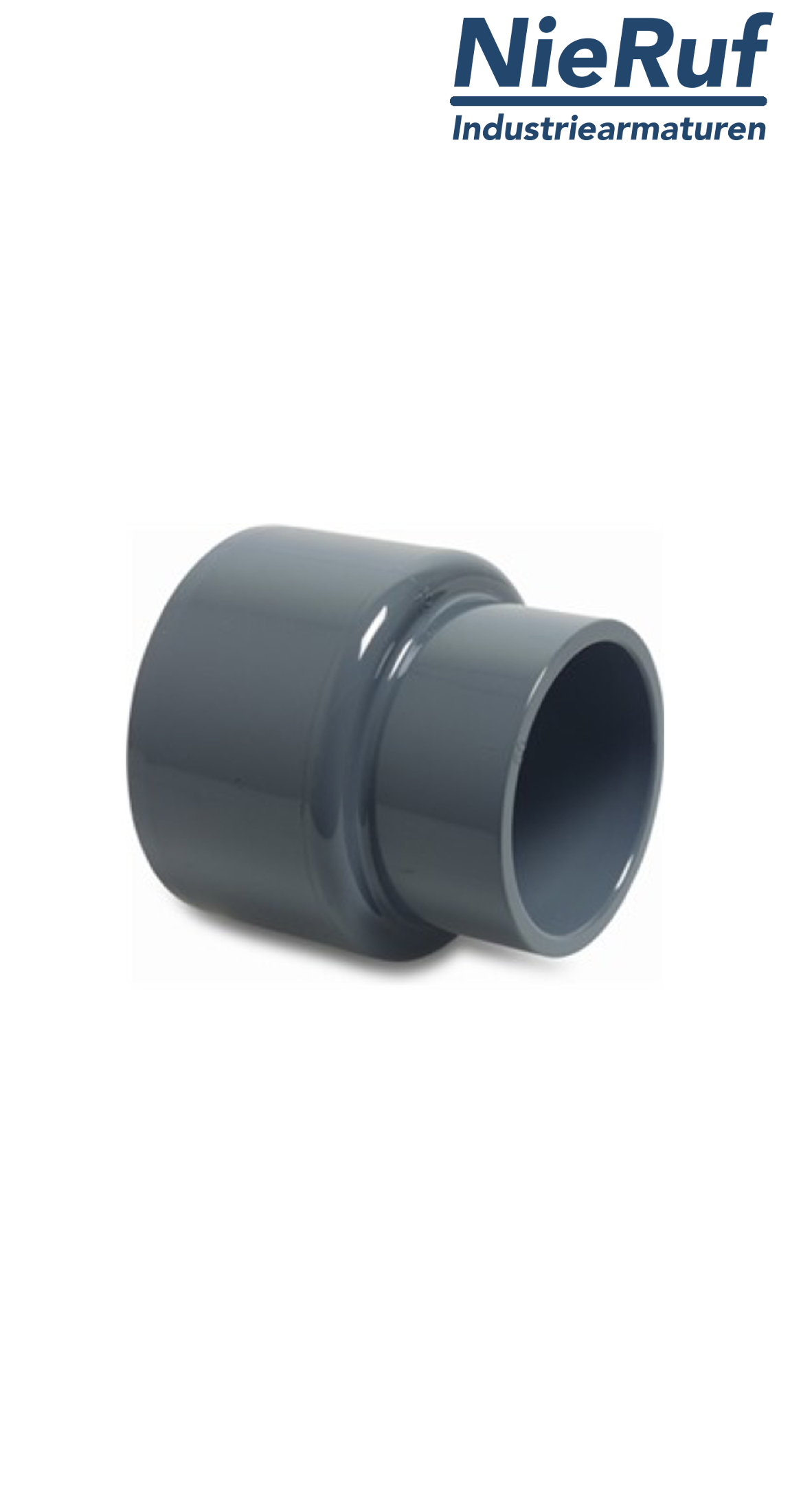

reducing socket GF03-7 with adhesive connection d 75 x d 50 made of PVC-U
product:
reducing socket
diameter:
d 75 x d 50
connection:
adhesive connection
material:
PVC-U
hexagon nipple GF01-3 with male thread 1" inch made of stainless steel 316 for liquid and gaseous media
product:
hexagon nipple
diameter:
DN25 - 1" inch
connection:
male thread
material:
stainless steel 316
hose nozzle 1" 25.4 mm stainless steel 1.4408, Hose barb as connection between threads and tubes, ideal for pneumatics- and ceompressed air industry.
product:
hose nozzle
running nipple 1 1/4" inch stainless steel 316 L male thread with a length of 38.0 mm for liquid and gaseous media
product:
running nipple
diameter:
DN32 - 1 1/4" inch
connection:
male thread
material:
stainless steel 316 L
reducing bush GF01-6 male thread x female thread 1/4" x 1/8" inch made of stainless steel 316 for liquid and gaseous media
product:
reducing bush
diameter:
1/4" x 1/8" inch
connection:
female x male thread
material:
stainless steel 316
elbow GF01-0 female thread 3/4" inch made of stainless steel 316 45° angle for liquid and gaseous media
product:
elbow
diameter:
DN20 - 3/4" inch
connection:
female thread
material:
stainless steel 316
elbow GF01-0 female thread 1 1/4" inch made of stainless steel 316 45° angle for liquid and gaseous media
product:
elbow
diameter:
DN32 - 1 1/4" inch
connection:
female x male thread
material:
stainless steel 316
running nipple 3/8" inch stainless steel 316 L male thread with a length of 22.0 mm for liquid and gaseous media
product:
running nipple
diameter:
DN10 - 3/8" inch
connection:
male thread
material:
stainless steel 316 L
hose nozzle 2" 50.8 mm stainless steel 1.4408, Hose barb as connection between threads and tubes, ideal for pneumatics- and ceompressed air industry.
product:
hose nozzle

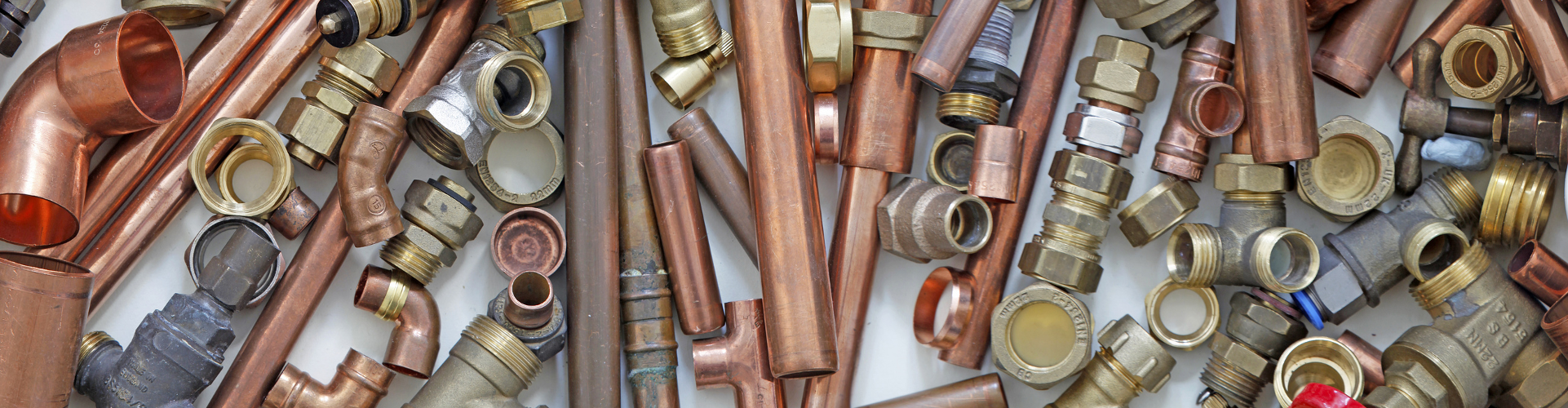

Threaded or bonded socket joint fittings
In pipe construction, the term ‘fittings’ refers to connecting elements or other accessories. They are available in dozens of different varieties. As a rule, all of these parts are used for connecting one or more pipes or for installing fittings or components used for metering. The only exception is the stopper. This serves as a closure for a pipe. Apart from this, there are connectors as well as and screw connection and angle pieces. The term ‘nipple’ is used for simple connecting elements with external threads. Examples include double nipples, reduction nipples and pipe nipples. The term ‘piece’ generally refers to connections with internal threads or bonded socket joints such as tees, crosspieces and reducers. Reducers, however, are equipped with an internal thread on one side only. Angles and screw connections also come under the category of ‘pieces’. The complete range of pipe fittings is, of course, available not only with threaded connections but also with bonded socket joints. In such cases, the plastic fittings are glued to the pipes or fittings. Other connecting elements, in addition to threaded fittings or bonded fittings, include flanges.
Pipe fittings for gas, water and swimming pool pipes and for the chemical industry
Perhaps you are planning to install a externally threaded stainless steel ball valve or an internally threaded plastic solenoid valve within in a pipeline system? Or you want to connect a series of plastic or stainless steel pipes? If so, then NieRuf is your ideal partner. We have a variety of different pipe connection fittings available in stainless steel, brass and PVC-U plastic. Our threaded fittings can help you to quickly, easily and safely install pipe elements or fittings such as safety valves, overflow valves and metering components in heating systems, gas pipes or drinking water pipes, for example. Our threaded or bonded socket joint PVC fittings also work perfectly when connecting pool pipes in swimming pool systems or integrating PVC ball valves into chemical industry systems.
Threaded fittings made from stainless steel, brass or PVC
Depending on the requirements involved, our pipe fittings are available in stainless steel (316), brass or plastic (PVC-U) versions. The choice of material will depend on the type of fluid flowing through the pipes and the material from which the pipes are made. To protect workers from injury and to avoid damage to components, machinery and pumps, the pipe connection elements should only be installed when the systems have been shut down. In addition, the pipes should be free of any fluid. In order to ensure that installed threaded fittings remain leak-proof, additional sealing tape or Teflon tape should be used. Any PVC bonded socket joints can be made leak-proof by means of a 360° application of the adhesive around the pipe or the fitting. We would be happy to advise you on your selection of the correct pipe fittings for your application and provide you with a customised quotation. Alternatively, you can purchase suitable threaded or bonded socket joint fittings directly from our online shop.
