Brass ball valves for trade and industry

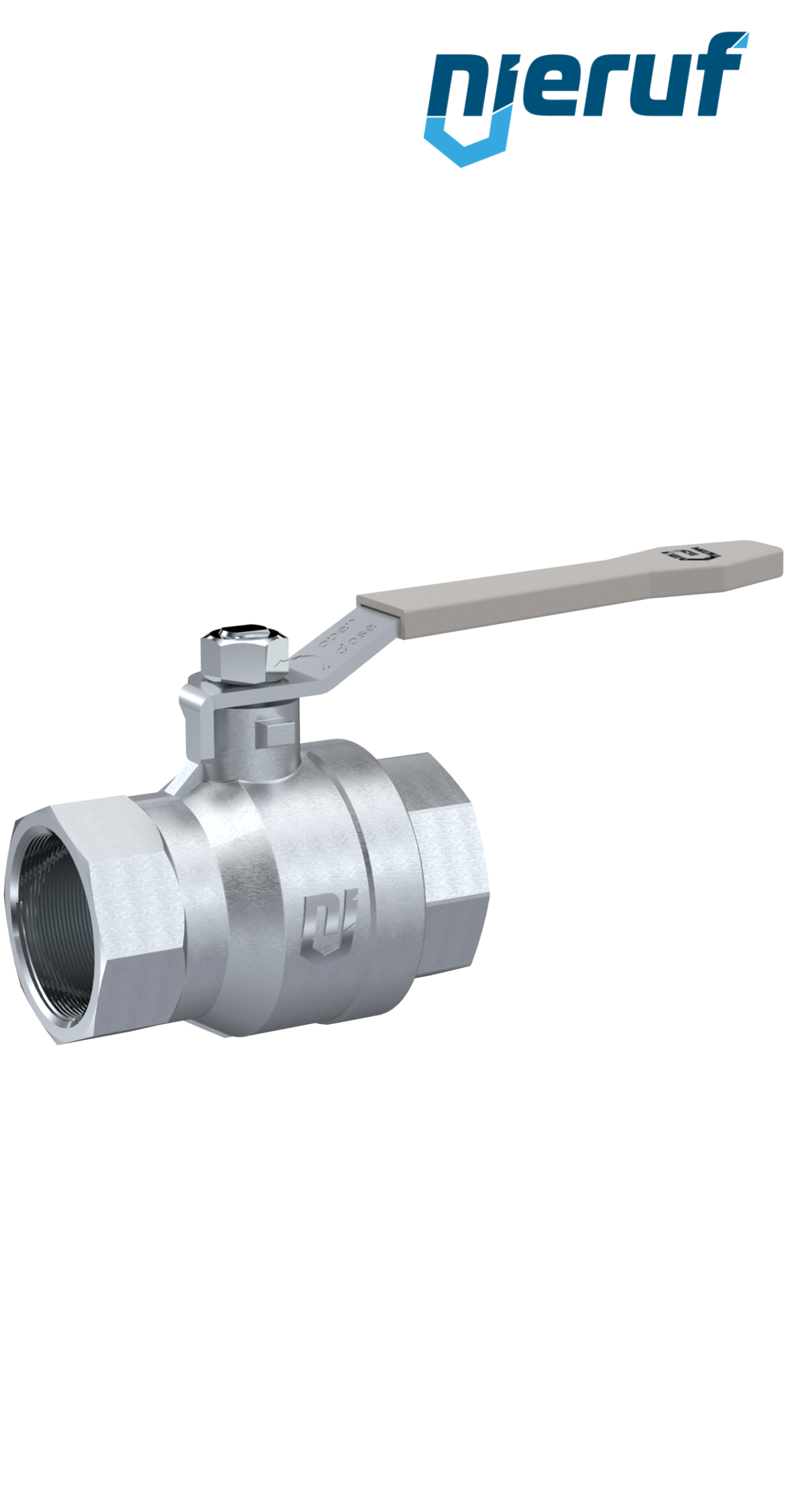

Brass shut-off valves are frequently used in industrial applications and in trade. Thanks to the robust and secure design and the low price, this is a much-sold shut-off valve. Alternatively, this is available with internal thread or external thread. The external thread variant is available in the nominal widths 1/4", 3/8", 1/2", 3/4"... - 2" inches. The variant with the BSP thread is available in the connection sizes 1/4"... - 1", 1 1/4", 1 1/2", 2", 2 1/2", 3" and 4" inches. Depending on the design, these have a DVGW Gas or Drinking water approval. Ball valves with thread extension, electric or pneumatic drive, but also spring reset or as a 3-way shut-off valve are also available. CAD Step files are available on request or as a download from the article details page.
ball valve made of brass DN32 - 1 1/4" inch full port design seal made of 2xO-ring FKM for liquid and gaseous media
diameter:
DN32 - 1 1/4" inch
connection:
female / male thread
media:
liquid and gaseous media
body material:
CW617N chrome plated
ball valve made of brass DN8 - 1/4" inch full port design seal made of 2xO-ring FKM for liquid and gaseous media
diameter:
DN8 - 1/4" inch
connection:
female / male thread
media:
liquid and gaseous media
body material:
CW617N chrome plated

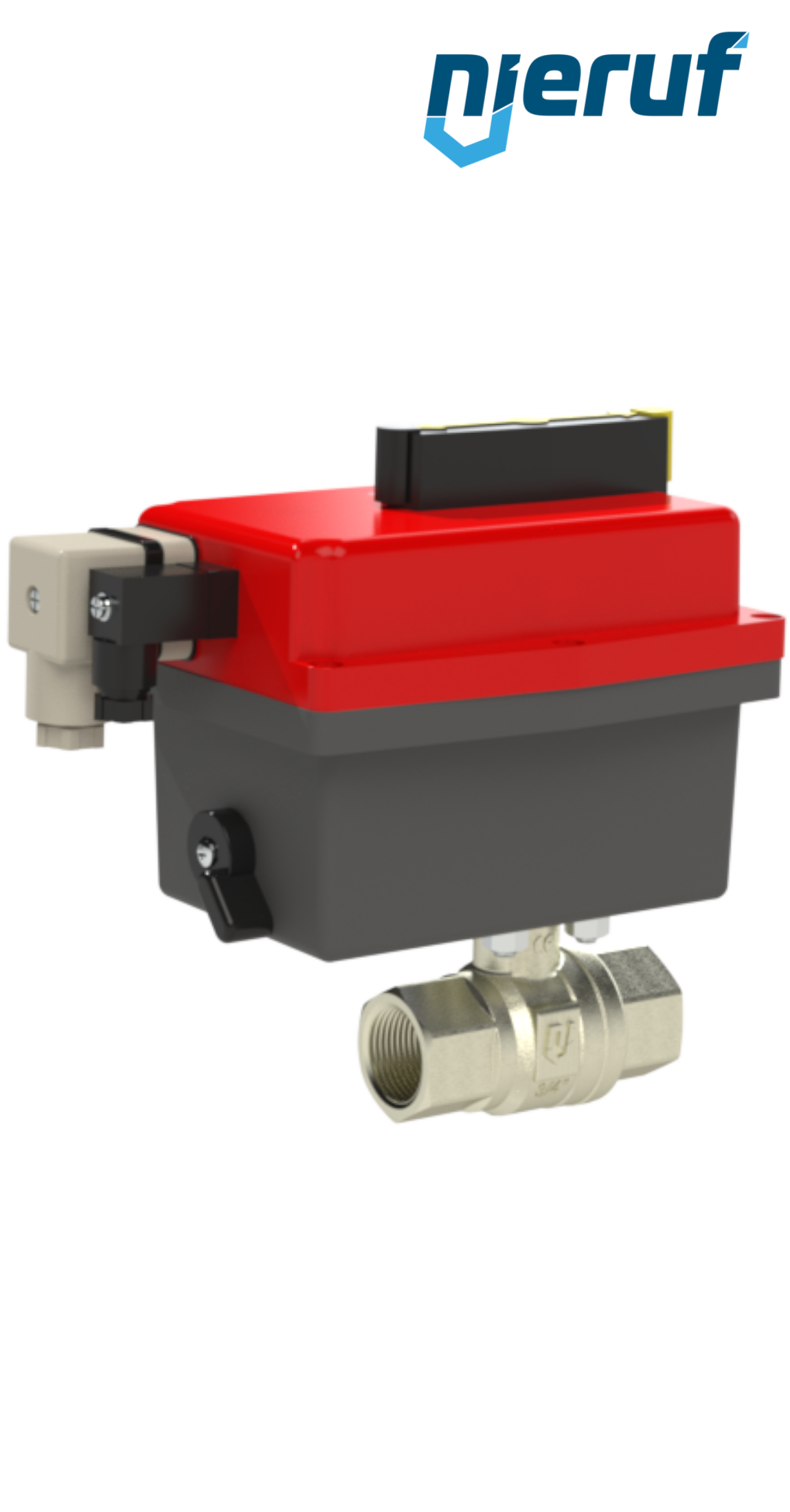

Automatic-ball valves DN15 - 1/2" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 110-240V AC+DC
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated

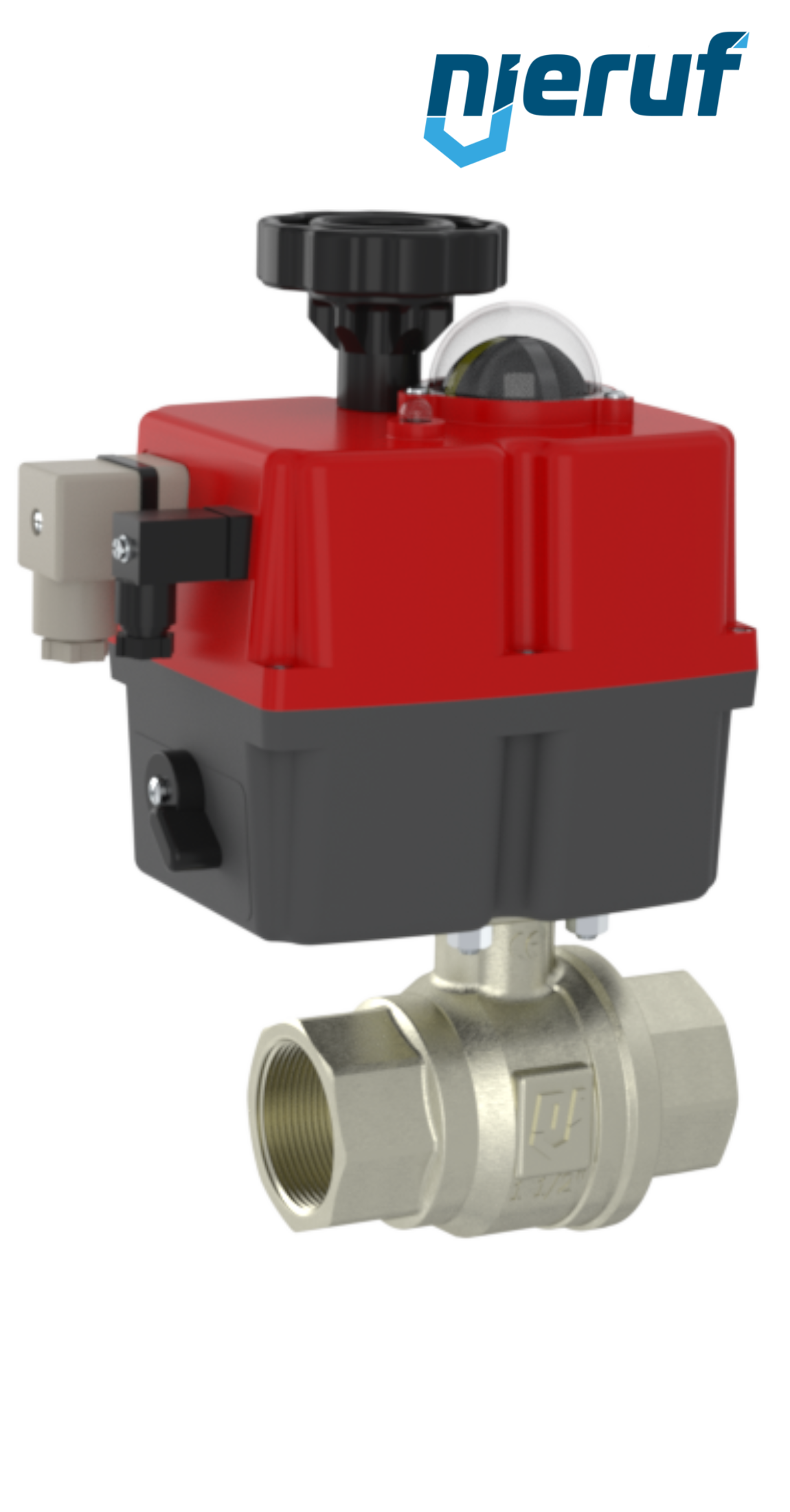

Automatic-ball valves DN50 - 2" inch brass CW617N nickel plated EK01 electronic actuator S35 - series S for 24-240V AC/DC
diameter:
DN50 - 2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
