Siphon

Siphons: reliable protection for measuring instruments

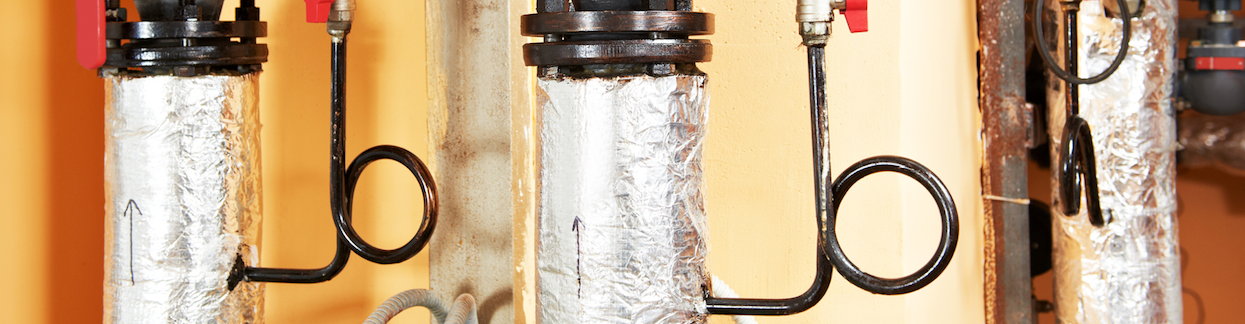

A siphon is a pipe shaped circular or in u-shape, so the medium, whether liquid, gaseous or even steam, can settle within the pipe. Due to its shape, the pipe has a large surface area, which is being cooled down by the ambient temperature. This in turn cools down the medium within the pipe. A manometer shut-off valve can be mounted behind the siphon, which allows you to add a manometer or any other measuring instrument. The siphon protects the measuring instrument reliably from pressure surges or too high temperatures of the media. As a result, the manometer can measure the pressure precisely.

Filter

Product finder

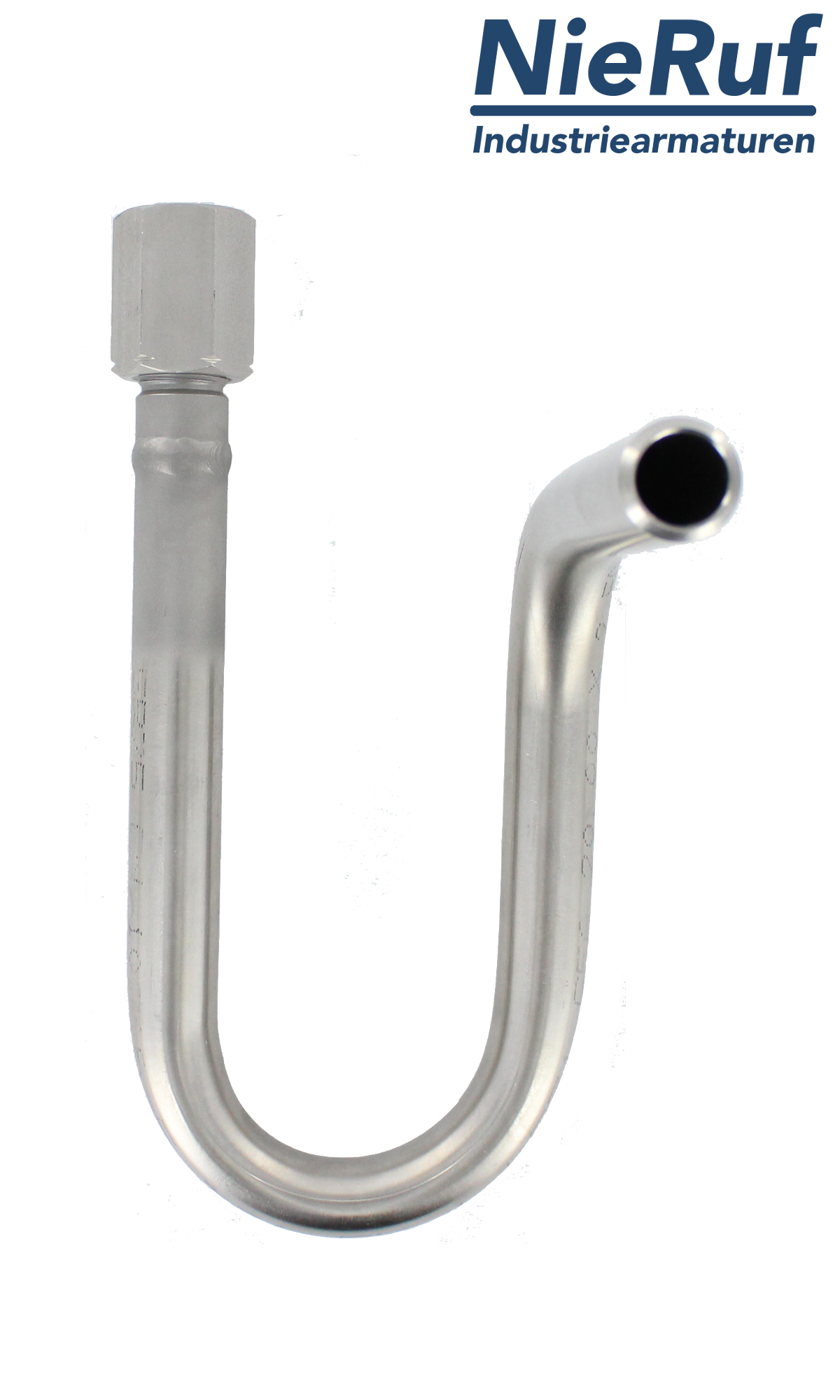

siphon pressure connection horizontal 1/2" with welding end x sleeve in U-shape flat siphon for cooling of media

media:

liquids, gas and steams

design:

welding end x sleeve

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€101.60*

€120.90 VAT included.

Delivery time: 3 - 5 working days

siphon in circular made of stainless steel 1.4571 1/2" Inch with male thread x sleeve for liquids, gas and steams

media:

liquids, gas and steams

design:

male thread x sleeve

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€116.10*

€138.16 VAT included.

Delivery time: 3 - 5 working days

siphon made of stainless steel 1.4571 1/2" Inch with male thread x sleeve in U-shape flat for liquids, gas and steams

media:

liquids, gas and steams

design:

male thread x sleeve

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€118.50*

€141.02 VAT included.

Delivery time: 3 - 5 working days

siphon with welding end x welding end made of steel St35.8 1/2" Inch in U-shape for DIN 16282 - form F

media:

liquids, gas and steams

design:

welding end x welding end

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€20.90*

€24.87 VAT included.

Delivery time: 3 - 5 working days

siphon made of stainless steel 1.4571 1/2" Inch with welding end x welding end in circular for liquids, gas and steams

media:

liquids, gas and steams

design:

welding end x welding end

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€67.70*

€80.56 VAT included.

Delivery time: 3 - 5 working days

siphon 1/2" Inch made of steel St35.8 with welding end x sleeve in U-shape flat for liquids, gas and steams

media:

liquids, gas and steams

design:

welding end x sleeve

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€23.70*

€28.20 VAT included.

Delivery time: 3 - 5 working days

siphon DIN 16282 - form B 1/2" Inch with welding end x sleeve in U-shape stainless steel 1.4571

media:

liquids, gas and steams

design:

welding end x sleeve

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€101.60*

€120.90 VAT included.

Delivery time: 3 - 5 working days

siphon made of stainless steel 1.4571 1/2" Inch with welding end x welding end in U-shape for liquids, gas and steams

media:

liquids, gas and steams

design:

welding end x welding end

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€70.20*

€83.54 VAT included.

Delivery time: 3 - 5 working days

siphon welding end x sleeve made of steel St35.8 1/2" Inch in U-shape

media:

liquids, gas and steams

design:

welding end x sleeve

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€23.70*

€28.20 VAT included.

Delivery time: 3 - 5 working days

siphon made of steel St35.8 1/2" Inch with male thread x sleeve in circular for liquids, gas and steams

media:

liquids, gas and steams

design:

male thread x sleeve

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€22.80*

€27.13 VAT included.

Delivery time: 3 - 5 working days

siphon made of steel St35.8 1/2" Inch with male thread x sleeve in U-shape for liquids, gas and steams

media:

liquids, gas and steams

design:

male thread x sleeve

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€23.70*

€28.20 VAT included.

Delivery time: 3 - 5 working days

siphon made of steel St35.8 1/2" Inch with welding end x welding end in circular for DIN 16282 - form G

media:

liquids, gas and steams

design:

welding end x welding end

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€19.10*

€22.73 VAT included.

Delivery time: 3 - 5 working days

siphon in U-shape made of stainless steel 1.4571 1/2" Inch with male thread x sleeve for liquids, gas and steams

media:

liquids, gas and steams

design:

male thread x sleeve

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€116.10*

€138.16 VAT included.

Delivery time: 3 - 5 working days

siphon pressure connection vertical 1/2" Inch with welding end x sleeve in circular DIN 16282 - form D

media:

liquids, gas and steams

design:

welding end x sleeve

diameter:

1/2"

material:

stainless steel 1.4571

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€101.60*

€120.90 VAT included.

Delivery time: 3 - 5 working days

siphon with male thread x sleeve made of steel St35.8 1/2" Inch in U-shape flat for liquids, gas and steams

media:

liquids, gas and steams

design:

male thread x sleeve

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€27.40*

€32.61 VAT included.

Delivery time: 3 - 5 working days

siphon made of steel St35.8 1/2" Inch with welding end x sleeve in circular for liquids, gas and steams

media:

liquids, gas and steams

design:

welding end x sleeve

diameter:

1/2"

material:

steel St35.8

max. working pressure:

max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C

€27.40*

€32.61 VAT included.

Delivery time: 3 - 5 working days

Siphons made of steel or stainless steel acc.to DIN 16828

To ensure longevity of the siphons, they are made exclusively of stainless steel 1.4571 or steel. Additionally, they are produced out of a single piece of pipe, in order to prevent predetermined breaking points. The connection is a ½“ thread. All siphons are being manufactured according to DIN 16828. You can find detailed information such as measurements and temperature range in the data sheets available on the article detail page. NieRuf offers siphons in three designs and three different shapes: tap x union nut, welding end x union nut and welding end x welding end. All designs can be produced circular, in a u- or in a flat u-shape. The u-shape helps to reduce pressure horizontally whereas the circular shape helps to reduce pressure vertically. Please keep in mind that installation and removal of siphons require a pressureless system, or else the medium could leak uncontrollably and become a hazard for both workers and the machine itself. A t-piece or a welded thread can be used to connect the siphon within the pipeline.

Siphons: at low cost and with rapid delivery from NieRuf

You need your siphon urgently? No problem: We deliver your siphon within 1-2 working days to your business or directly to your construction site. Benefit from our rapid processing of our order through our web shop, or order via fax, email or mail. Our efficient filter helps you find the right siphon made of steel or stainless steel even faster. See all prices in our list or on the article detail page. There, you can also download the matching step-3D (stp) file to integrate into your CAD. Need help choosing the right siphon? Please feel free to contact our hotline for free: +49 800 0643783.
