Ball valves
2 way ball valve DN25 - 1" inch full port design seal made of PTFE for liquid and gaseous media
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass nickel plated (CW617N)
actuator:
lever handle made of steel zinc coated with red plastic cover
three-pieces 2-way ball valve made of stainless steel 1.4408 DN25 - 1" inch female thread for liquid and gaseous media
diameter:
DN25 - 1" inch
connection:
female thread BSP
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever with red plastic cover
3-way ball valve DN15 - 1/2" inch L drilling seal made of PTFE in stainless steel for liquid and gaseous media
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever made of stainless steel with locking device
ball valve made of stainless steel DN25 - 1" inch full port design seal made of PTFE for liquid and gaseous media
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever made of stainless steel 1.4301 with plastic cover
ball valve made of stainless steel DN15 - 1/2" inch with butt weld full port design seal made of PTFE for liquid and gaseous media
diameter:
DN15 - 1/2" inch
connection:
with butt weld
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever made of stainless steel 1.4301 with plastic cover
ball valve made of stainless steel DN25 - 1" inch reduced port design seal made of PTFE for liquid and gaseous media
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with plastic cover and locking device
3-way ball valve DN8 - 1/4" inch L drilling seal made of PTFE in stainless steel for liquid and gaseous media
diameter:
DN8 - 1/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever made of stainless steel with locking device
ball valve made of stainless steel DN15 - 1/2" inch reduced port design seal made of PTFE for liquid and gaseous media
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with plastic cover and locking device

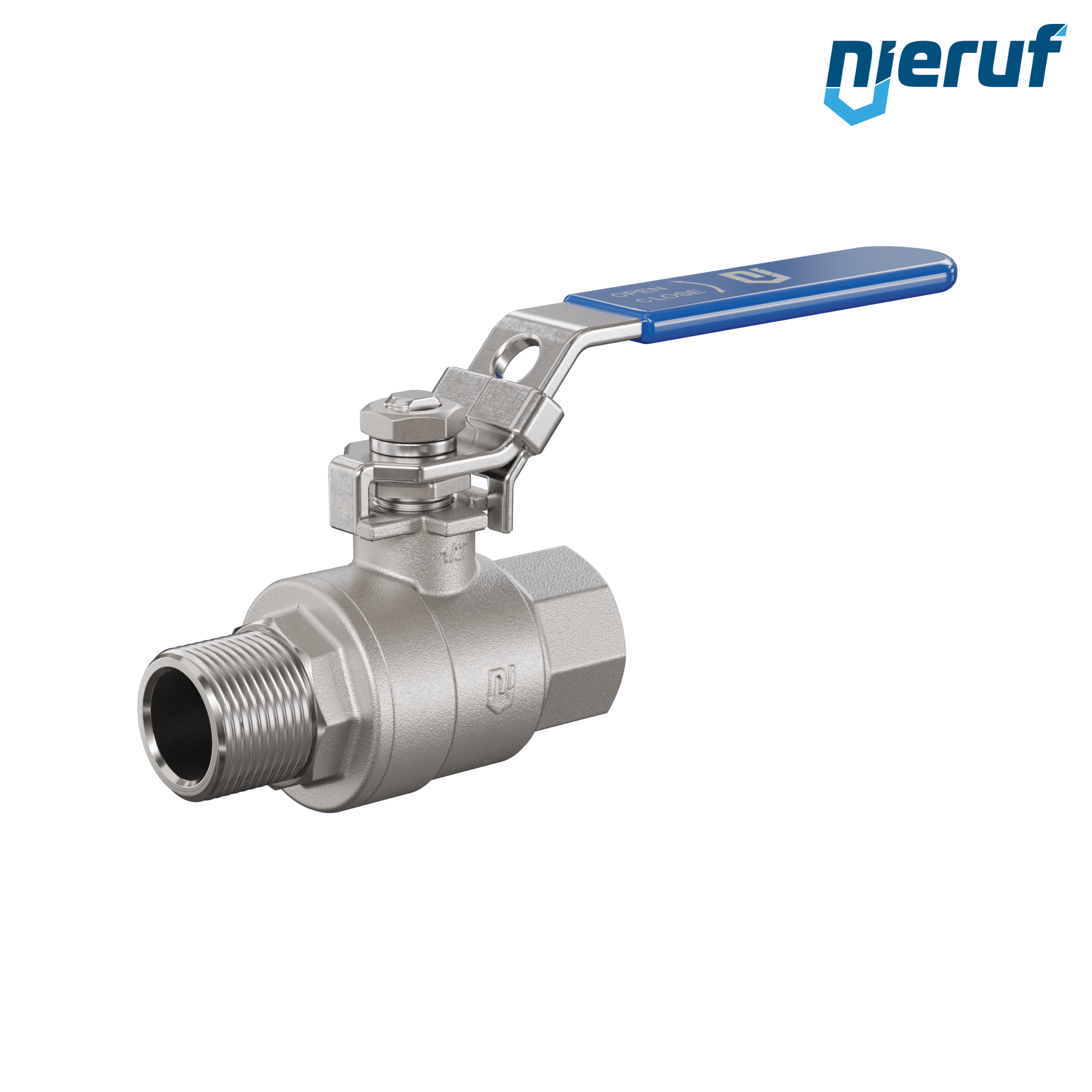

stainless-steel ball valve DN25 - 1" inch full port design seal made of PTFE for liquid and gaseous media male x female thread
diameter:
DN25 - 1" inch
connection:
female / male thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with blue plastic cover

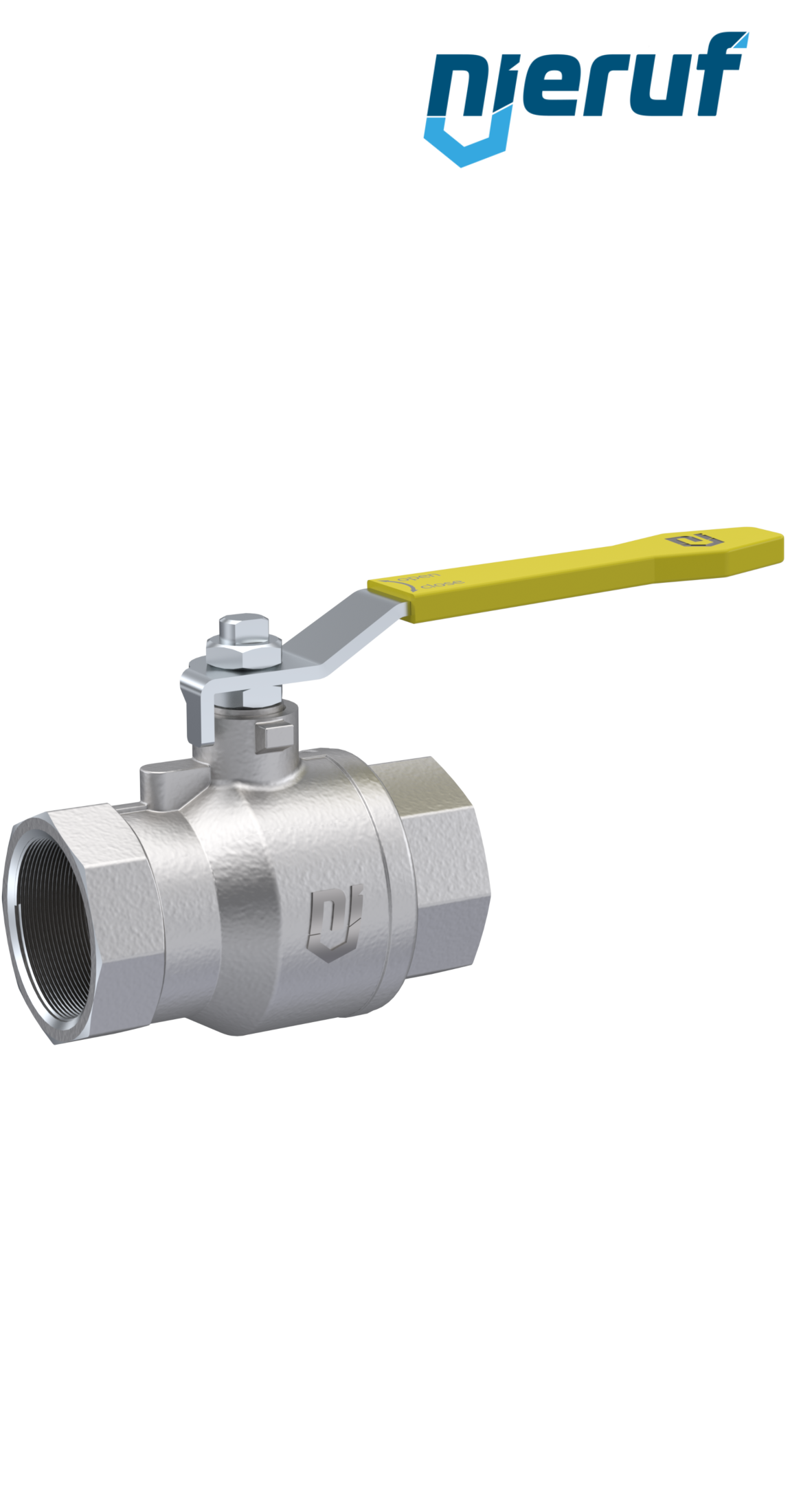

Gas ball valve stainless steel DN25 - 1" inch full port design seal made of PTFE / Viton for gas DVGW-Gas
diameter:
DN25 - 1" inch
connection:
female thread
media:
gaseous media, gas, DVGW-gas
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with yellow plastic cover
ball valve made of stainless steel DN40 - 1 1/2" inch reduced port design seal made of PTFE for liquid and gaseous media
diameter:
DN40 - 1 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with plastic cover and locking device
ball valve made of stainless steel DN20 - 3/4" inch reduced port design seal made of PTFE for liquid and gaseous media
diameter:
DN20 - 3/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with plastic cover and locking device
ball valve made of stainless steel DN25 - 1" inch with butt weld full port design seal made of PTFE for liquid and gaseous media
diameter:
DN25 - 1" inch
connection:
with butt weld
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever made of stainless steel 1.4301 with plastic cover
Gas ball valve stainless steel DN15 - 1/2" inch full port design seal made of PTFE / Viton for gas DVGW-Gas
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
gaseous media, gas, DVGW-gas
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with yellow plastic cover
pneumatic-ball valve DN25 - 1" inch stainless steel 1.4408 PK02 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting - normally closed)
three-pieces 2-way ball valve made of stainless steel 1.4408 DN10 - 3/8" inch female thread for liquid and gaseous media
diameter:
DN10 - 3/8" inch
connection:
female thread BSP
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
hand lever with red plastic cover
ball valve with spring reload DN15 - 1/2" inch full port design seal made of PTFE for liquid and gaseous media
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with blue plastic cover
flange ball valve DN15 PN40 FK06 body stainless steel 1.4408 ball stainless steel 1.4401 seal PTFE for liquid and gaseous media
diameter:
DN15
connection:
flange dimensions acc. to EN 1092-1 PN40 R.F.
media:
liquid and gaseous media
body material:
stainless steel 1.4408
actuator:
lever handle made of stainless steel with plastic cover
