GK02000001

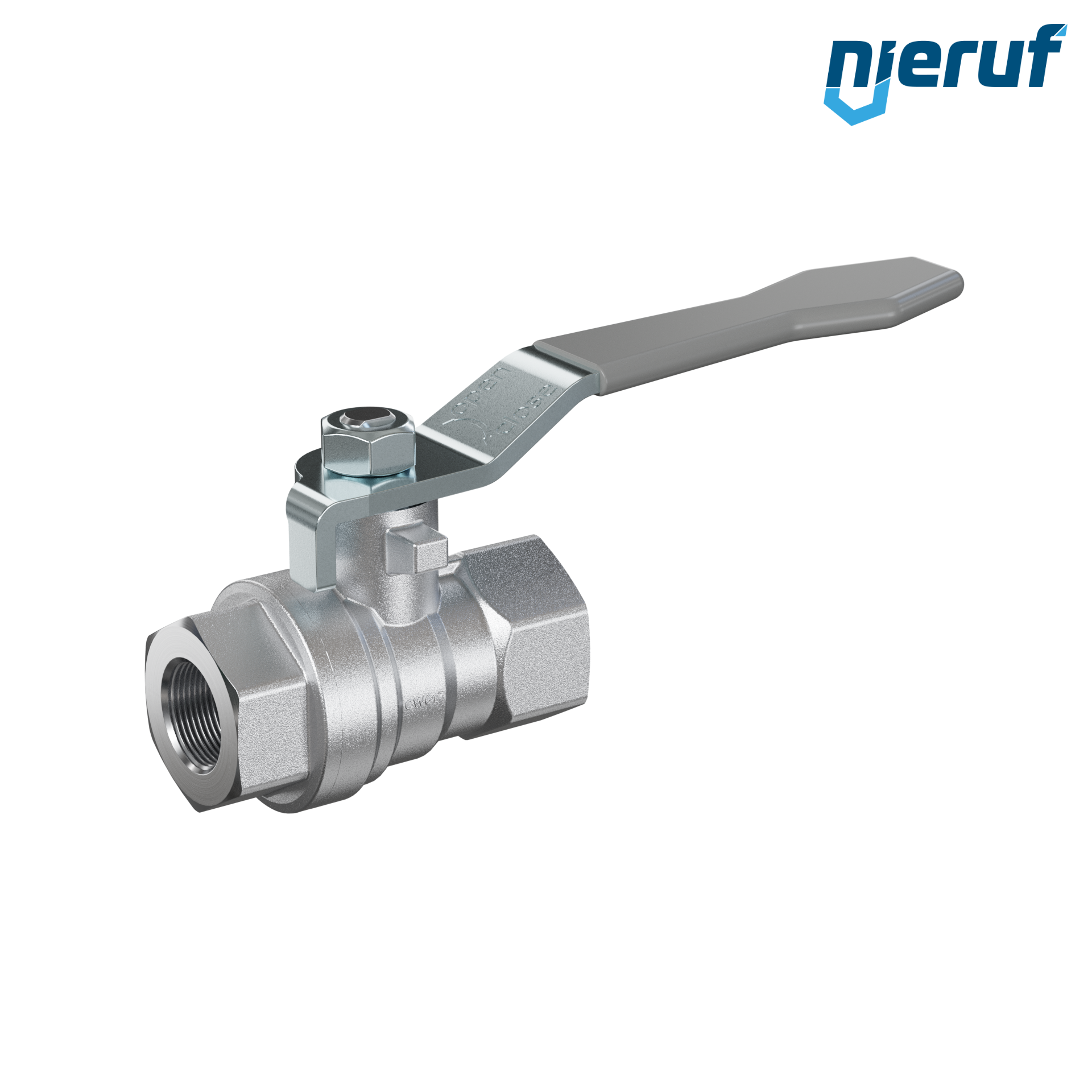

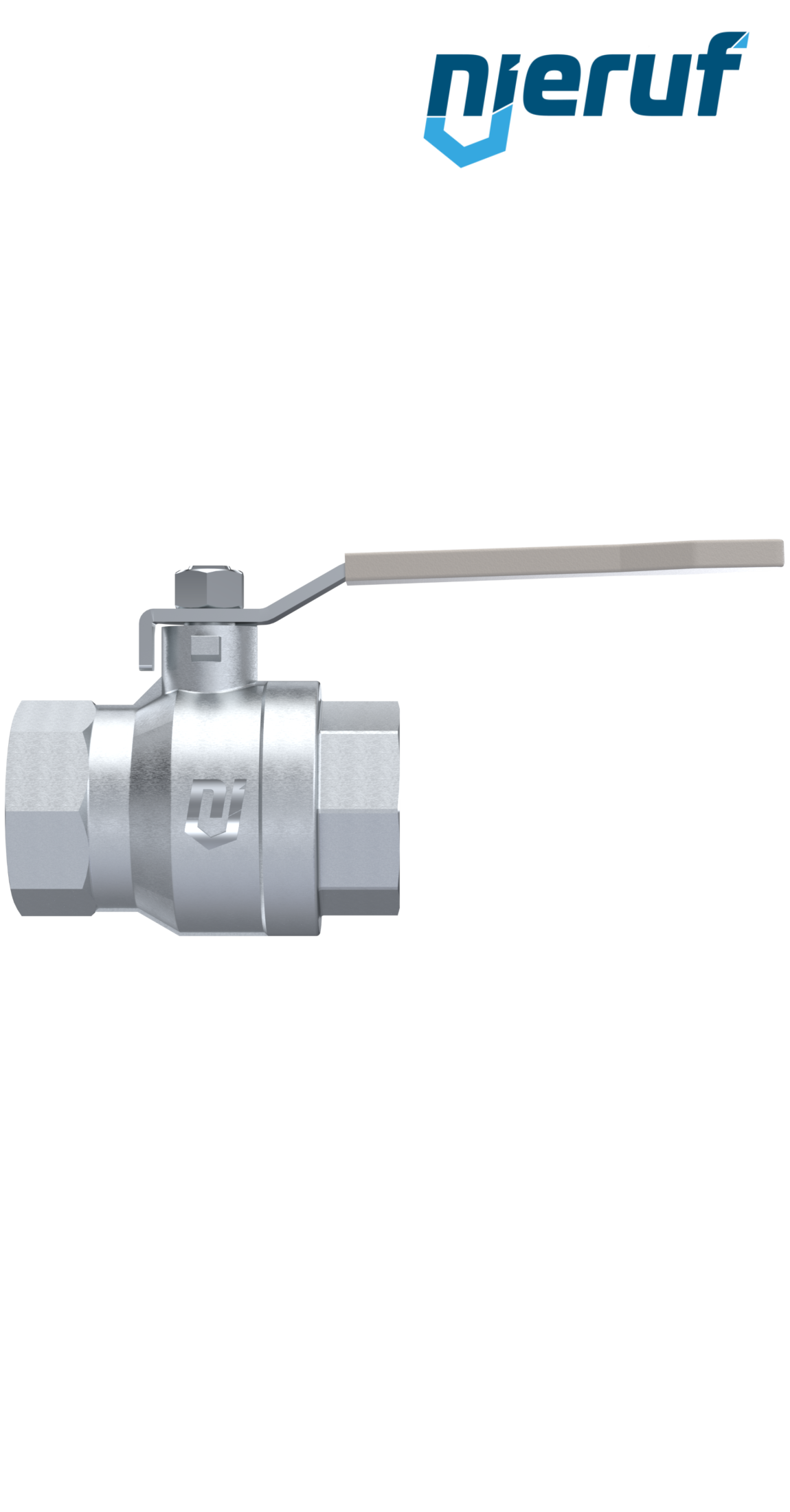

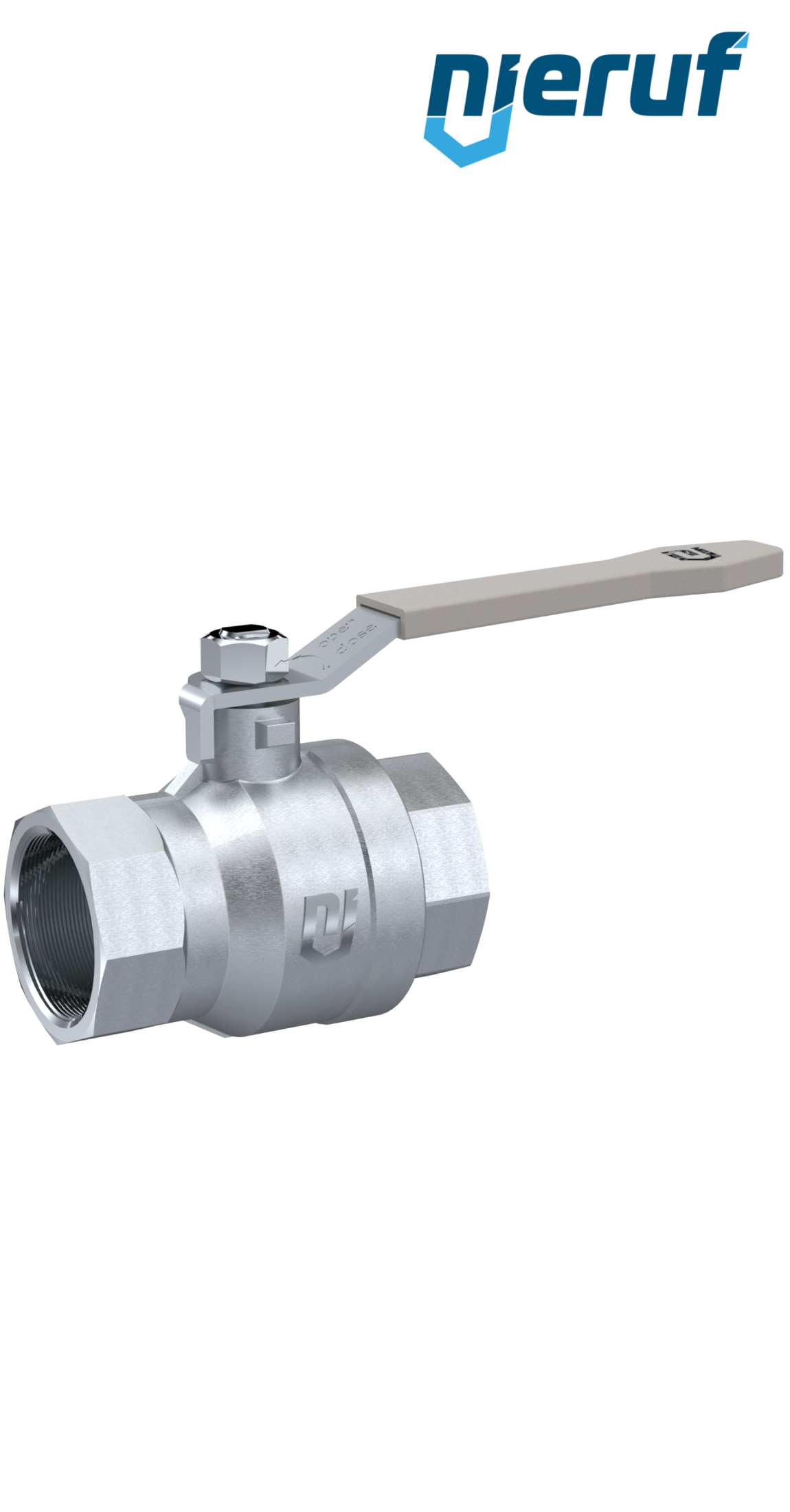

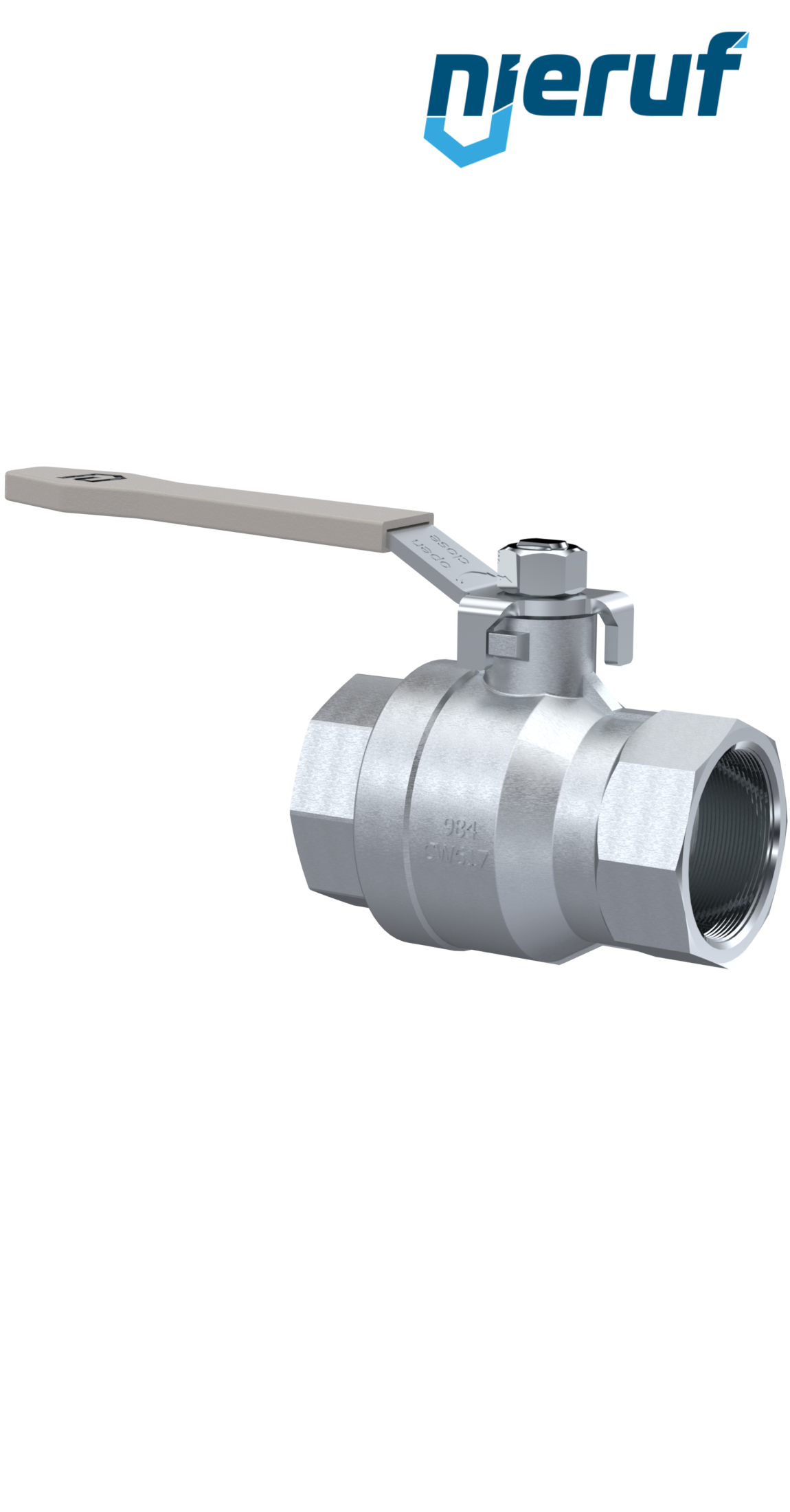

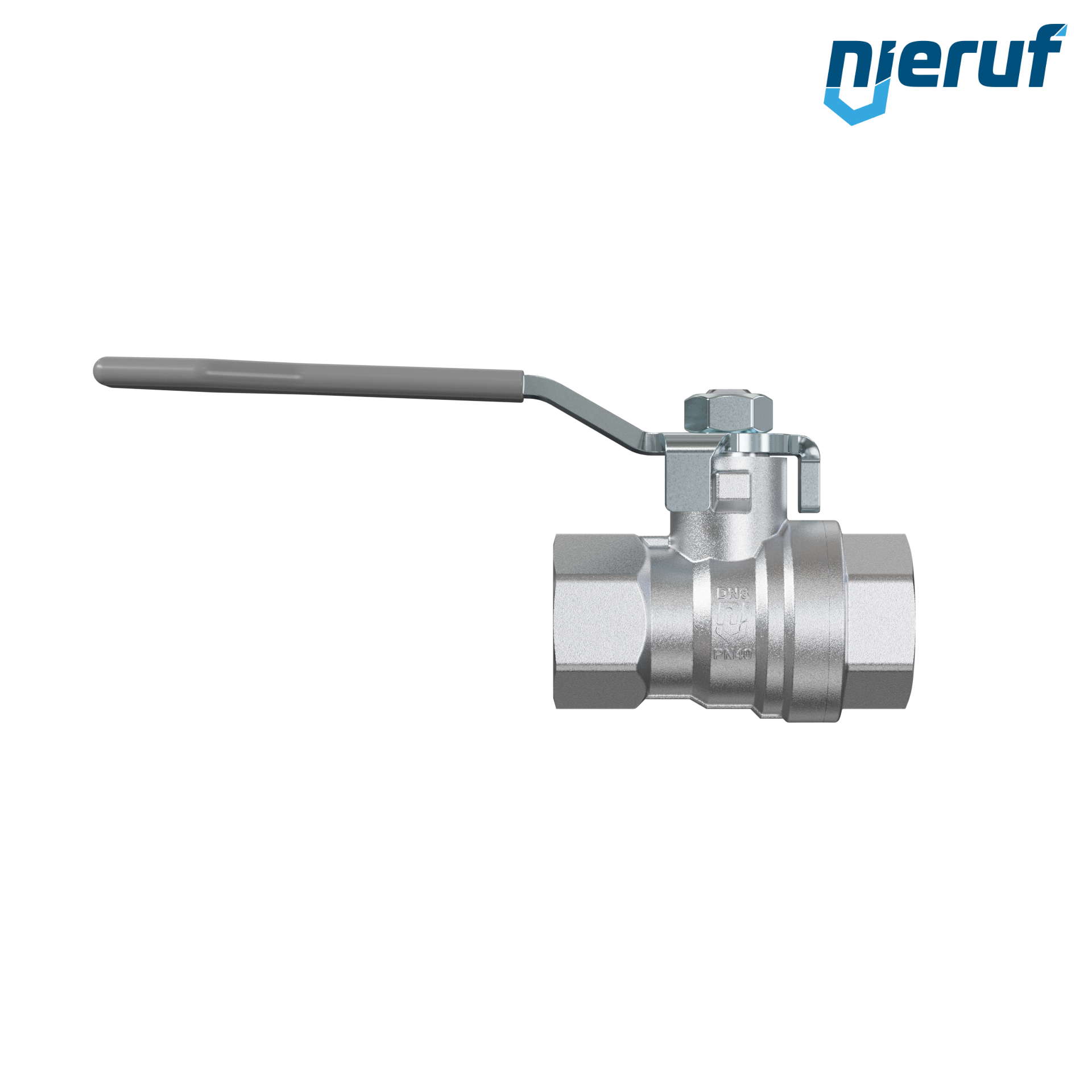

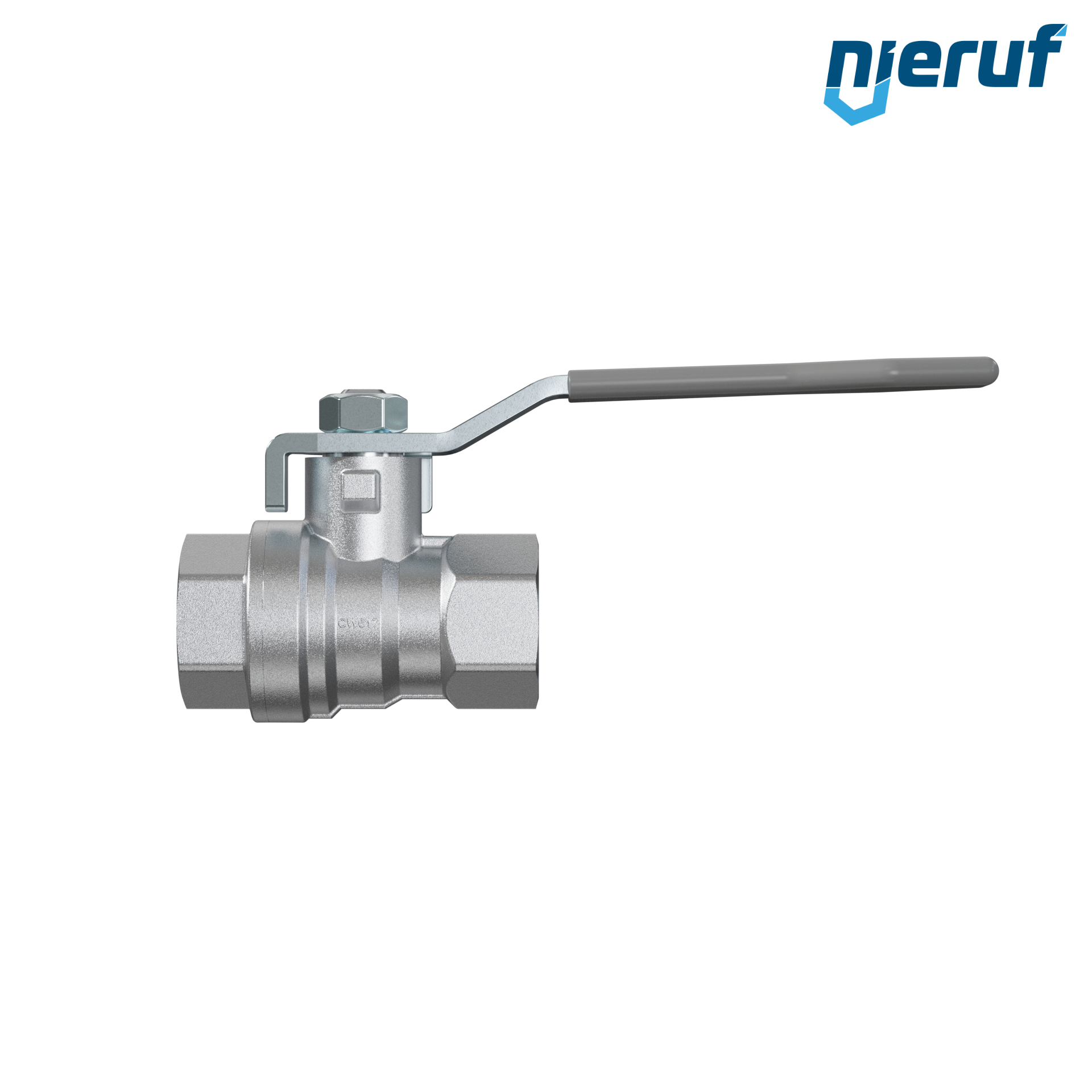

ball valve made of brass DN8 - 1/4" inch GK02 gas & water DVGW

€6.60*

€7.85 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Tuesday, 06. October

Guaranteed delivery until Wednesday, 07. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

ST01000001

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.50*

€1.79 VAT included.

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.30*

€1.55 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

24 months warranty

Certified

Downloads

3D model

Datasheet

ball valve made of brass DN8 - 1/4" inch GK02 gas & water DVGW

ball valve made of brass DN8 - 1/4" inch full port design seal made of 2xO-ring FKM for liquid and gaseous media authorization DVGW

product	ball valve made of brass
type	GK02
manufacturer	NieRuf
diameter	DN8 - 1/4" inch
connection	female thread
Seal steam	2xO-ring FKM
ball seal	PTFE
media	liquid and gaseous media
temperature	-20°C up to +170°C - depending on working pressure and media
max. pressure	PN40
design	full port design
body material	CW617N chrome plated
ball material	CW617N chrome plated
length	45mm
actuator	lever handle made of steel
installation position	any position
authorized for	DVGW-water, DVGW-Gas
product description	This high quality brass ball valve is suitable for drinking water and is authorized for DVGW-G and DVGW-W

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

ball valve made of brass DN8 - 1/4" inch GK02 gas & water DVGW

Article no. : GK02000001
product: ball valve made of brass
type: GK02
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: female thread
Seal steam: 2xO-ring FKM
ball seal: PTFE
media: liquid and gaseous media
temperature: -20°C up to +170°C - depending on working pressure and media
max. pressure: PN40
design: full port design
body material: CW617N chrome plated
ball material: CW617N chrome plated
length: 45mm
actuator: lever handle made of steel
installation position: any position
authorized for: DVGW-water, DVGW-Gas
product description: This high quality brass ball valve is suitable for drinking water and is authorized for DVGW-G and DVGW-W
