Flanges
Flanges, such as welding neck flanges, threaded flanges or blind flanges can be used either to connect pipelines, or to secure fittings and valves within the pipelines.

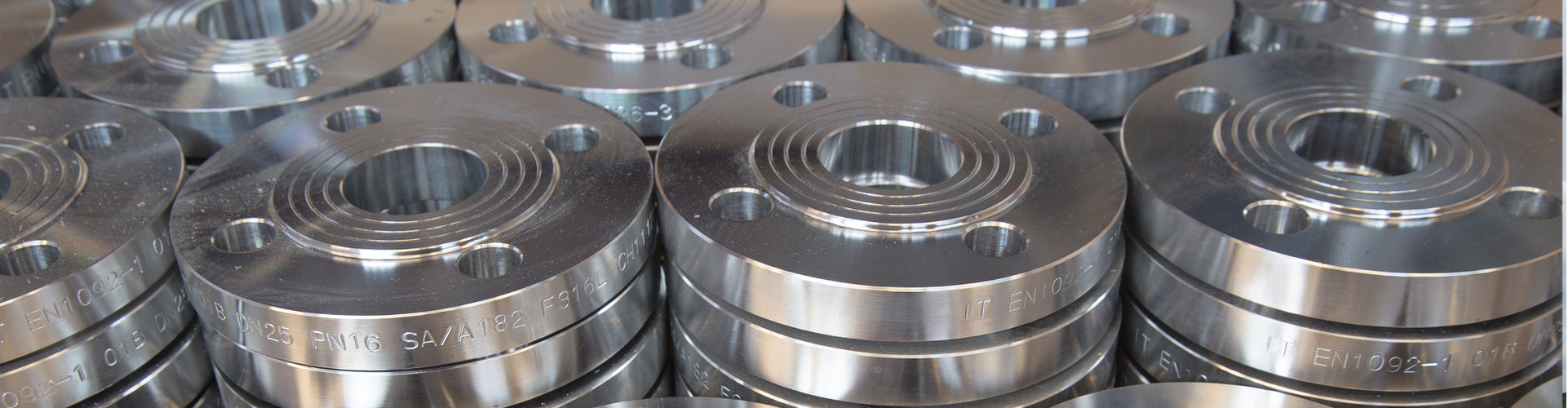

Flanges made of steel or stainless steel
Flanges can be made of steel C22.8, stainless steel 1.4541 or stainless steel 1.4571. Depending on the pressure ranges, flanges for a nominal pressure of PN10, PN16, PN25 and PN40 are available. All of our flanges are EN1092-1. The sealing surface is made according to B1 shape. The welding neck flanges are type 11, the blind flanges type 5 and our threaded flanges type 13.
Flat flange made of steel C22.8 / P250GH bare DN32 flange according DIN PN10/16/25/40 EN1092-1 Typ 01 A
diameter:
DN32
connection:
PN10/16/25/40
material:
steel
Flange made of steel C22.8 / P250GH bare DN80 flange according DIN PN10/16 EN1092-1 Typ 11 B1
diameter:
DN80
connection:
PN10/16
material:
steel
Threaded flange made of steel C22.8 / P250GH bare DN50 flange according DIN PN16 EN1092-1 Typ 13 B1
diameter:
DN50
connection:
PN16
material:
steel
Welding neck flange DN50 flange acc. DIN PN10/16 EN1092-1 Typ 11 B1 made of stainless steel 1.4541
diameter:
DN50
connection:
PN10/16
material:
stainless steel
