only for B2B-Customers

short delivery time

purchase on invoice

Technical advice +497143/96669-00

siphon circular acc. to DIN 16282 - form C made of stainless steel 1.4571 in male thread x sleeve 1/2"

WR03000103
Solenoid valve DN4,0 PTFE KV02 EPDM 24V DC 2
quantity (pcs.):
80.60€ * 95.91€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

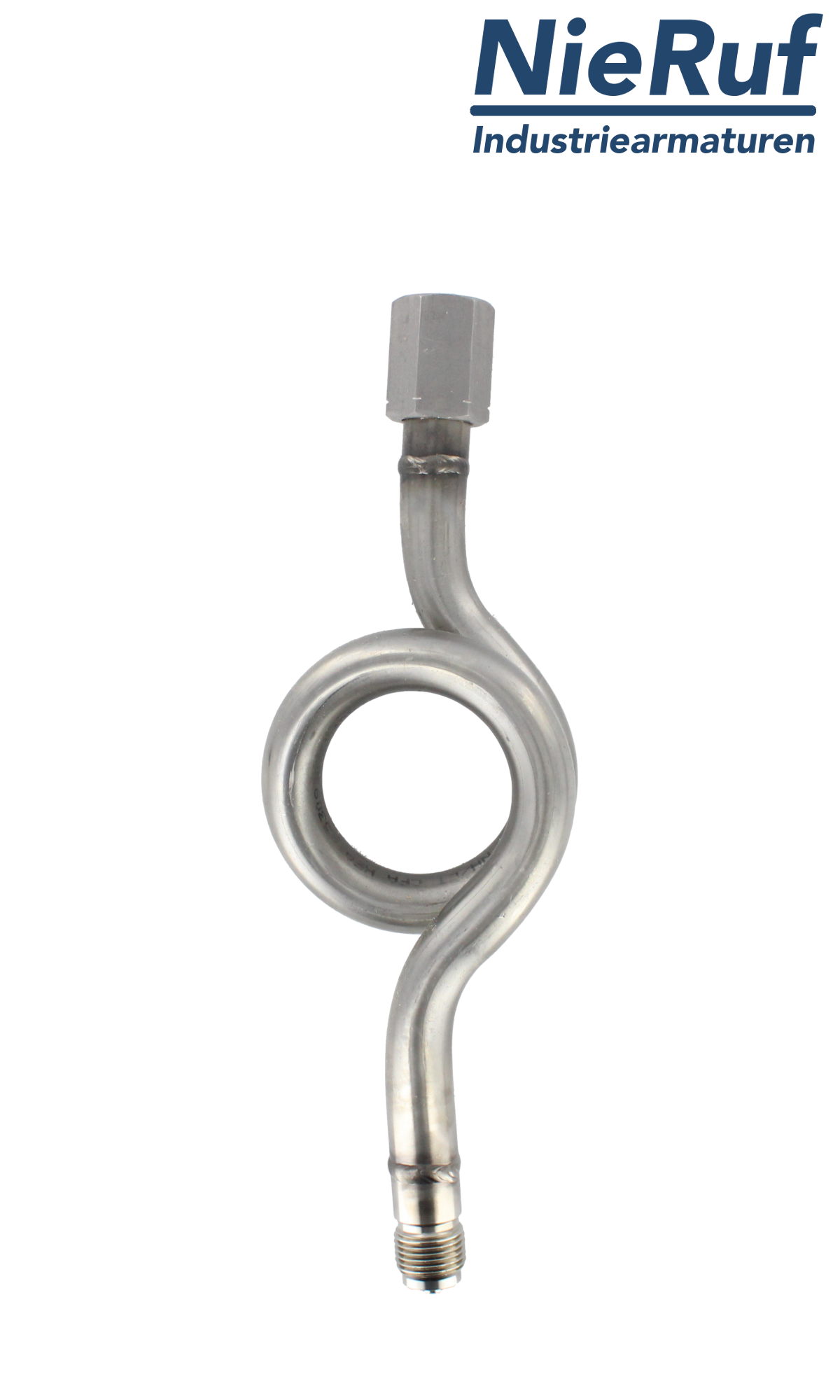

siphon circular acc. to DIN 16282 - form C made of stainless steel 1.4571 in male thread x sleeve 1/2"
siphon in circular made of stainless steel 1.4571 1/2" Inch with male thread x sleeve for liquids, gas and steams
diameter: 1/2"
design: male thread x sleeve
media: liquids, gas and steams
product feature: siphon for cooling of media
max. working pressure: max. 160 bar at 120°C, max. 120 bar at 300°C, max. 100 bar at 400°C
form: circular
pressure connection: vertical
requirements: DIN 16282 - form C
material: stainless steel 1.4571
siphon circular acc. to DIN 16282 - form C made of stainless steel 1.4571 in male thread x sleeve 1/2"

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

siphon circular acc. to DIN 16282 - form C made of stainless steel 1.4571 in male thread x sleeve 1/2"
