Strainers-GG25

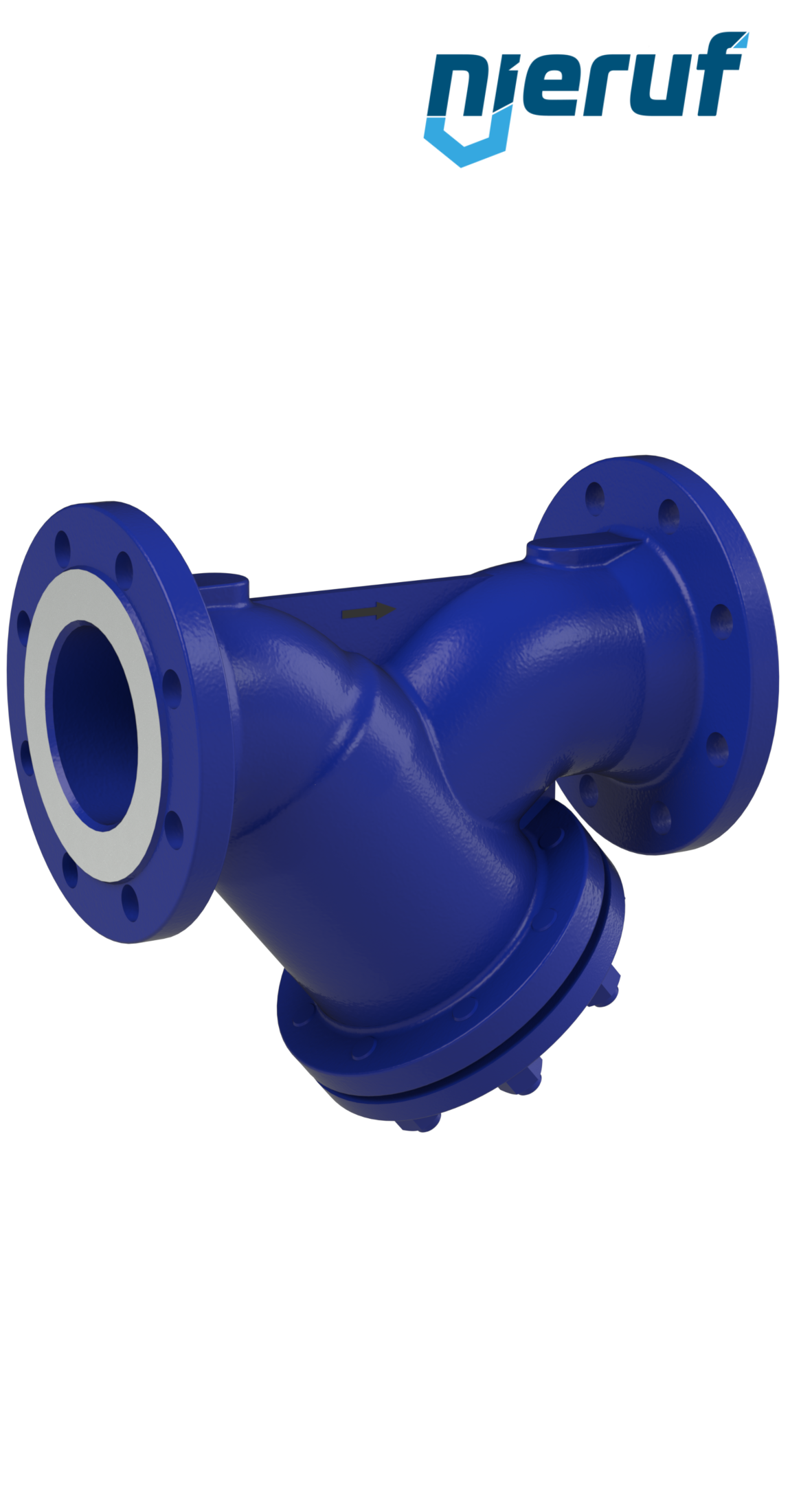

The Y-type strainers-GG25 have a PN10/PN16 flange as per EN 1092-2. The flange is available with the nominal diameter DN40 and DN300. The casing is made of grey cast iron-GG25 with blue epoxy coating. The screen, cap and thread connections, on the other hand, consist of stainless steel 1.4301. The seals are made of high-quality EPDM.
strainer DN32 made of cast iron (blue painting) for steam flange PN10/16 temperature up to +300°C 1 mm mesh
diameter:
DN32
connection:
flange acc. DIN EN 1029-2
seal:
graphite
design:
Y-strainer with draining cap
flange strainer made of cast iron GG25 epoxyd painting DN50 PN16 with EPDM-seal for water from -10°C up to +80°C
diameter:
DN50
connection:
flange
seal:
EPDM
design:
Y-strainer with draining cap
strainer DN150 made of cast iron (blue painting) for steam flange PN10/16 temperature up to +300°C 1 mm mesh
diameter:
DN150
connection:
flange acc. DIN EN 1029-2
seal:
graphite
design:
Y-strainer with draining cap
flange-strainer DN65 made of cast iron (blue painting) for steam PN10/16 temperature up to +300°C 1 mm mesh
diameter:
DN65
connection:
flange acc. DIN EN 1029-2
seal:
graphite
design:
Y-strainer with draining cap
