Sight glass fitting

sight-glass-fitting as rectangular or circular container sight glass

A sight-glass-fitting can be used to observe and check tanks like silos, storage tanks or pressure vessels. The exceptionally pressure and temperature resistant glasses allow you to see the inside of the tank for visual inspection. The container sight glasses from NieRuf come in two models: as rectangular or circular sight glasses. The rectangular sight-glass has one long side and two shorter ones. Thus it is often welded onto the tank in a vertical way, which allows you to keep an eye on the filling level. The circular sight-glass is used in silos or boilers. The round glass allows for a larger field of view. After welding the mounting flange, you should check whether the sealing area has moved. In this case, reworking might be required. The operating pressure is valid not only for the base frame and needs to be checked with the pressure device according to technical bulletin AD B9. Please contact us if you need further information.

Filter

Product finder

sight flow indicator DN80 - 3" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN80 - 3" Inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€132.80*

€158.03 VAT included.

Delivery time: 3 - 5 working days

sight flow indicator DN65 - 2 1/2" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN65 - 2 1/2" Inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€99.10*

€117.93 VAT included.

Delivery time: in stock

Express delivery:

sight flow indicator DN50 - 2" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN50 - 2" Inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€87.80*

€104.48 VAT included.

Delivery time: in stock

Express delivery:

Sight glass fitting DN50 - 2" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 2,5bar

diameter:

DN50 - 2" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

2,5bar

NieRuf-Exchange
€232.20*

€276.32 VAT included.

Delivery time: in stock

Express delivery:

Sight glass fitting DN80 - 3" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 2,5bar

diameter:

DN80 - 3" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

2,5bar

NieRuf-Exchange
€302.40*

€359.86 VAT included.

Delivery time: in stock

Express delivery:

Sight glass fitting DN200 - 8" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 0,0 bar pressureless

diameter:

DN200 - 8" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

0,0 bar

NieRuf-Exchange
€664.20*

€790.40 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting L=220mm aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass, reflex

diameter:

L=220mm

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

€522.00*

€621.18 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN200 - 8" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 2,5bar

diameter:

DN200 - 8" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

2,5bar

NieRuf-Exchange
€810.00*

€963.90 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN150 - 6" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass

diameter:

DN150 - 6" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

NieRuf-Exchange
€1,116.00*

€1,328.04 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN80 - 3" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 0,0 bar pressureless

diameter:

DN80 - 3" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

0,0 bar

NieRuf-Exchange
€279.00*

€332.01 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting L=930mm aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass, reflex

diameter:

L=930mm

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

€1,692.00*

€2,013.48 VAT included.

Delivery time: 3 - 5 working days

sight flow indicator DN100 - 4" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN100 - 4" Inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€171.90*

€204.56 VAT included.

Delivery time: 3 - 5 working days

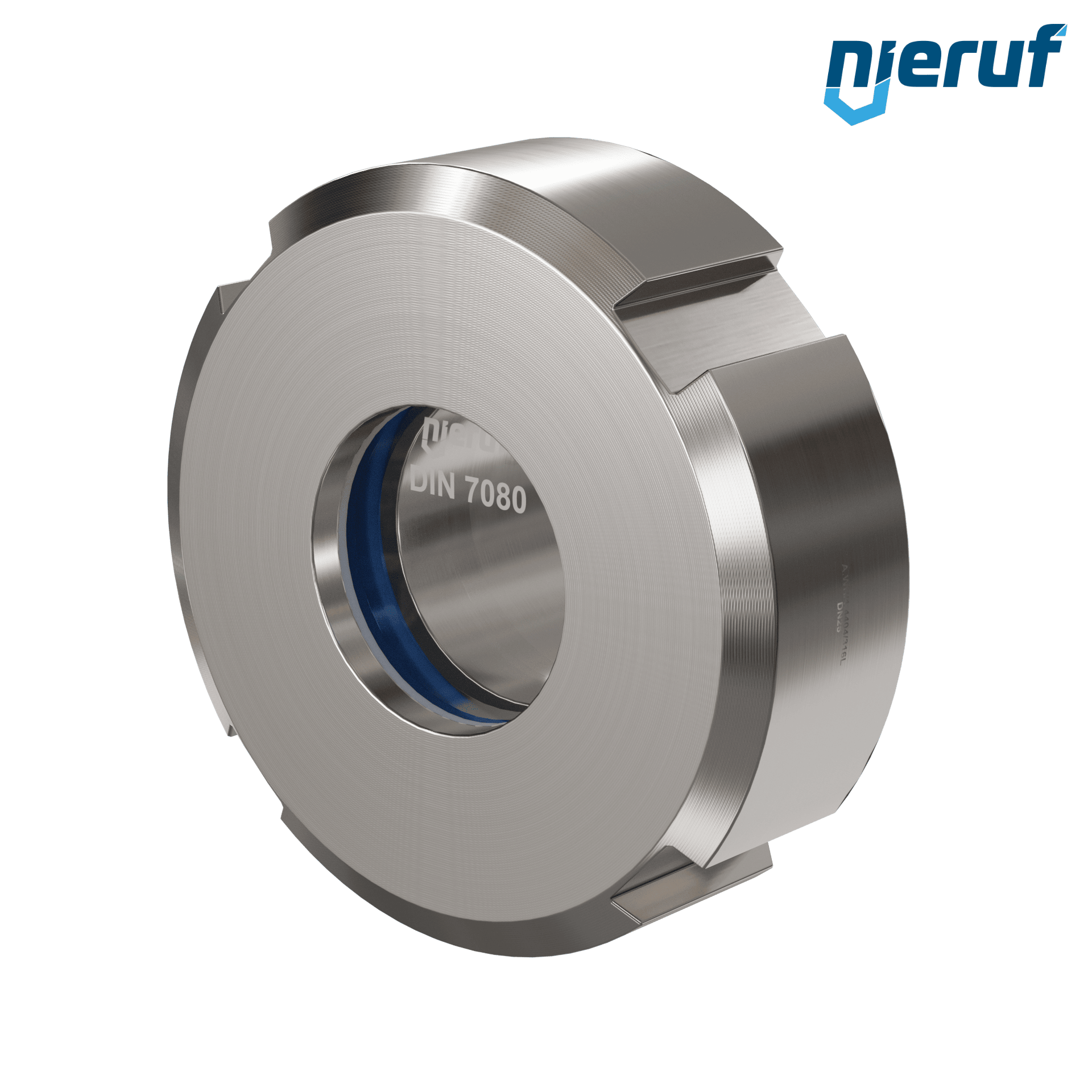

sight flow indicator DN25 - 1" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN25 - 1" Inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€70.10*

€83.42 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting L=250mm aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass, reflex

diameter:

L=250mm

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

€554.40*

€659.74 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN125 - 5" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 2,5bar

diameter:

DN125 - 5" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

2,5bar

NieRuf-Exchange
€455.40*

€541.93 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting L=620mm aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass, reflex

diameter:

L=620mm

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

€1,152.00*

€1,370.88 VAT included.

Delivery time: 3 - 5 working days

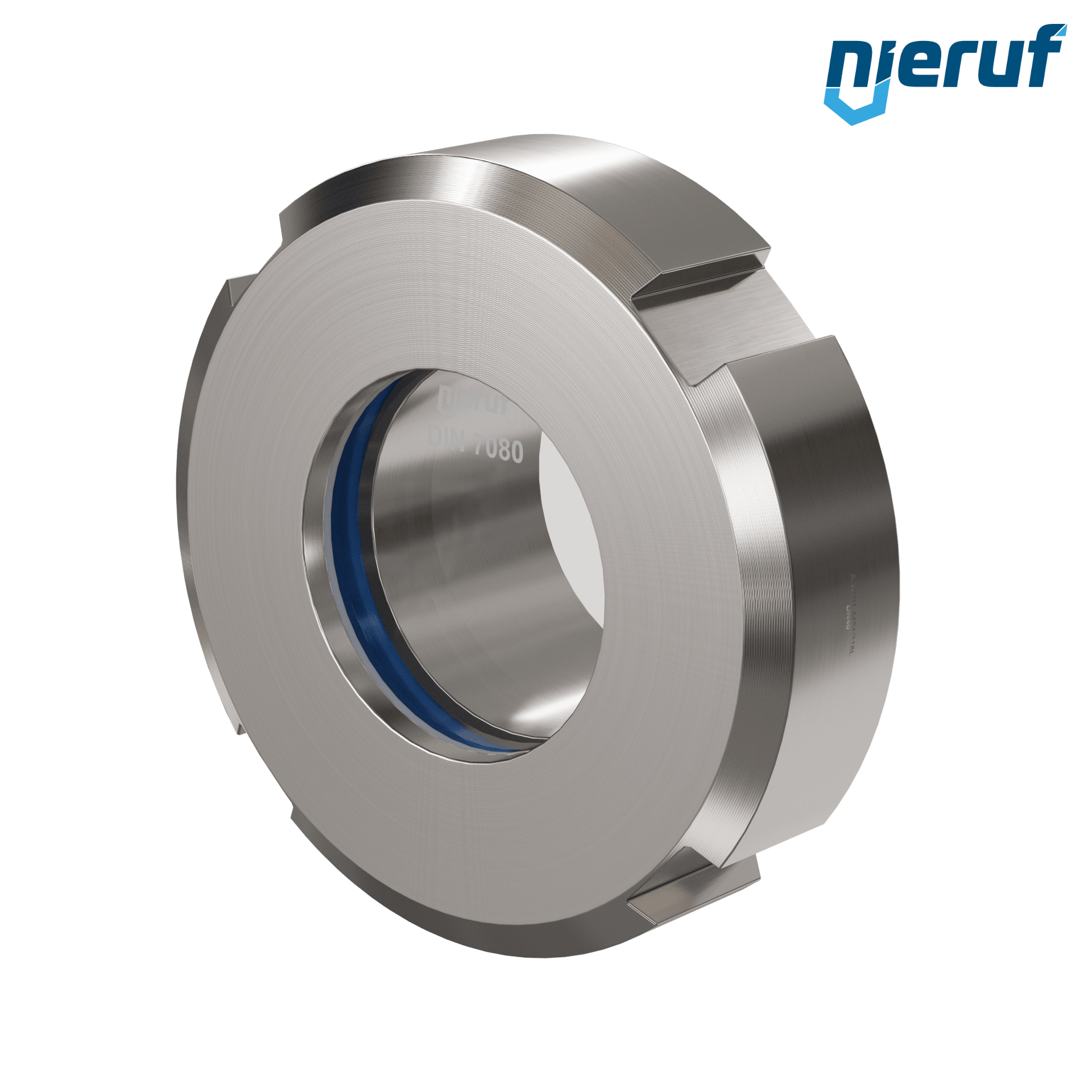

sight flow indicator DN40 - 1 1/2" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN40 - 1 1/2" Inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€80.30*

€95.56 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN150 - 6" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 2,5bar

diameter:

DN150 - 6" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

2,5bar

NieRuf-Exchange
€563.40*

€670.45 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN125 - 5" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass

diameter:

DN125 - 5" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

NieRuf-Exchange
€669.60*

€796.82 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN50 - 2" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass

diameter:

DN50 - 2" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

NieRuf-Exchange
€309.60*

€368.42 VAT included.

Delivery time: 3 - 5 working days

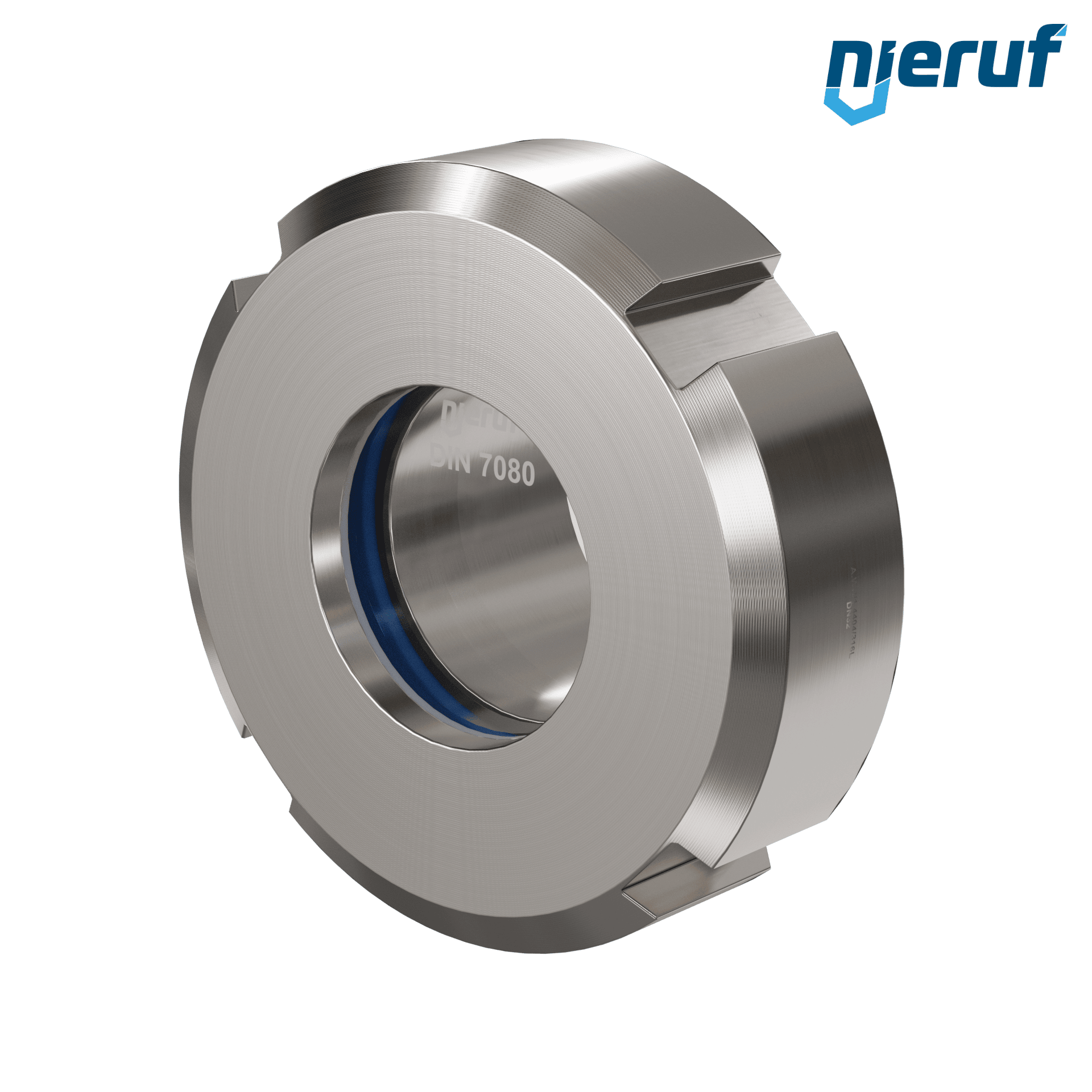

sight flow indicator DN32 - 1 1/4" inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar

diameter:

DN32 - 1 1/4" inch

connection:

to be welded directly to tank acc. DIN 11851

seal:

NBR

design:

for welding

max. working pressure:

10,0 bar

NieRuf-Exchange
€76.90*

€91.51 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting L=500mm aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass, reflex

diameter:

L=500mm

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

€1,026.00*

€1,220.94 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN100 - 4" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass

diameter:

DN100 - 4" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

16bar

NieRuf-Exchange
€585.00*

€696.15 VAT included.

Delivery time: 3 - 5 working days

Sight glass fitting DN100 - 4" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 0,0 bar pressureless

diameter:

DN100 - 4" Inch

connection:

to be welded directly to tank

seal:

C4400

design:

to be welded directly to tank

max. working pressure:

0,0 bar

NieRuf-Exchange
€295.20*

€351.29 VAT included.

Delivery time: 3 - 5 working days

Container sight-glass in different models: resistant due to high quality materials

The container sight-glass fitting comes with a high quality borosilicate glass DIN7081. This glass, including a C4400-Klingersil-seal, is flanged between mounting and cover flange using screws and nuts. Mounting and cover flange are made of high quality V4A stainless steel 1.4571 and 1.4541. The flange of circular sight-glasses can be made in nominal sizes DN25 to DN200. The rectangular sight-glasses-fitting can range from a length of 170mm to 930mm. Our container sight glasses can be used with liquid and gaseous media, feel free to contact us if you have questions about additional compatibility. With aggressive media and steam, mica disks should be used to protect the glass. The container sight glass valves can be used in temperatures from 0° to 280°C. Depending on the model, they can be used in pressure vessels and pipelines with a maximum pressure of up to 16 bar (please check technical bulletin AD B9).
