Bends made from galvanized malleable cast iron
The bend is integrated into a pipe system. It creates an angle of 45° or 90°. The pipe bend is available in all common width and has a female thread or a female x male thread.

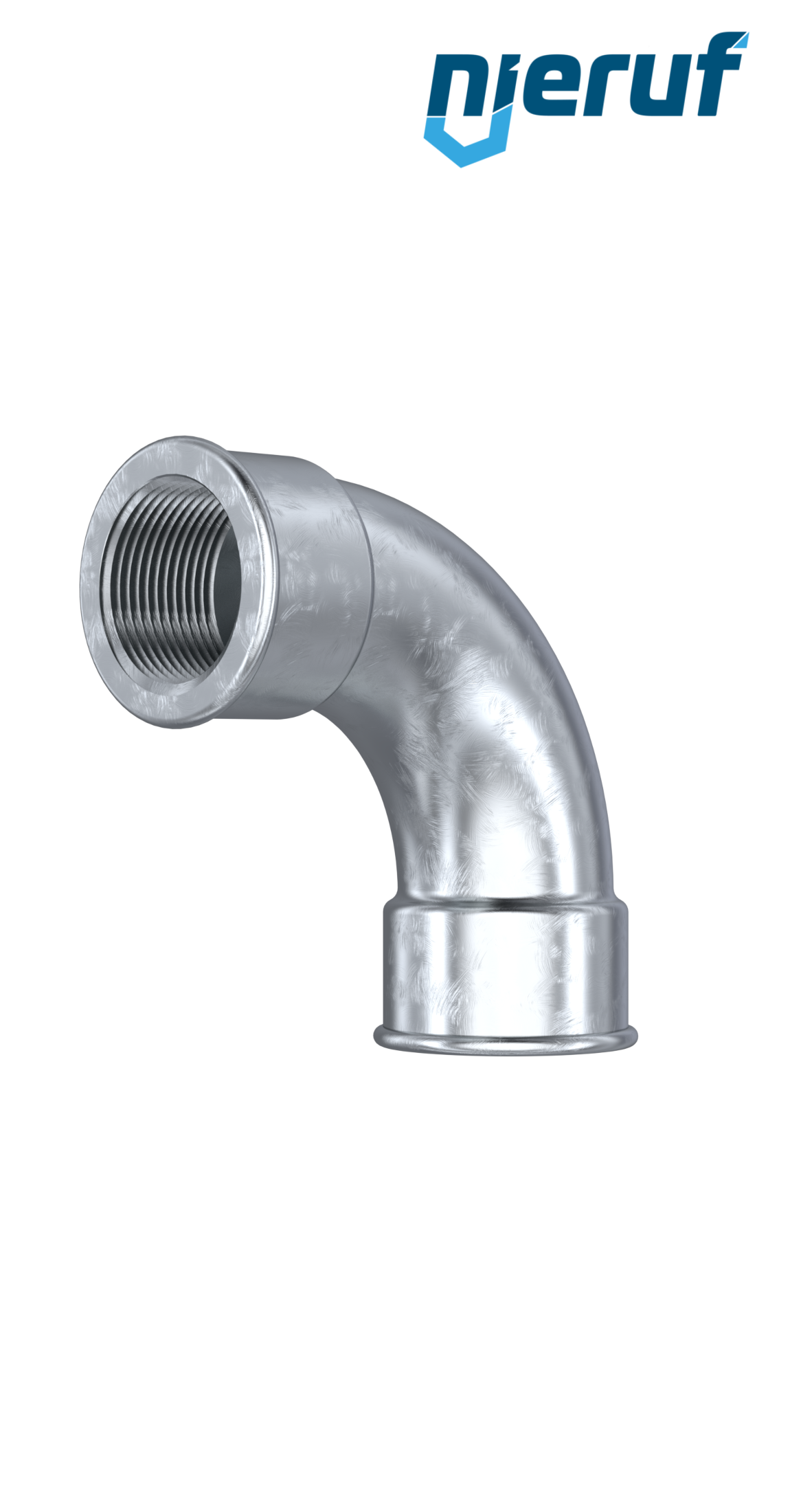

short bend no. 2a with female thread DN20 - 3/4" inch malleable cast iron galvanized for liquid & gaseous media
product:
short bend
diameter:
DN20 - 3/4" inch
connection:
female thread
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized

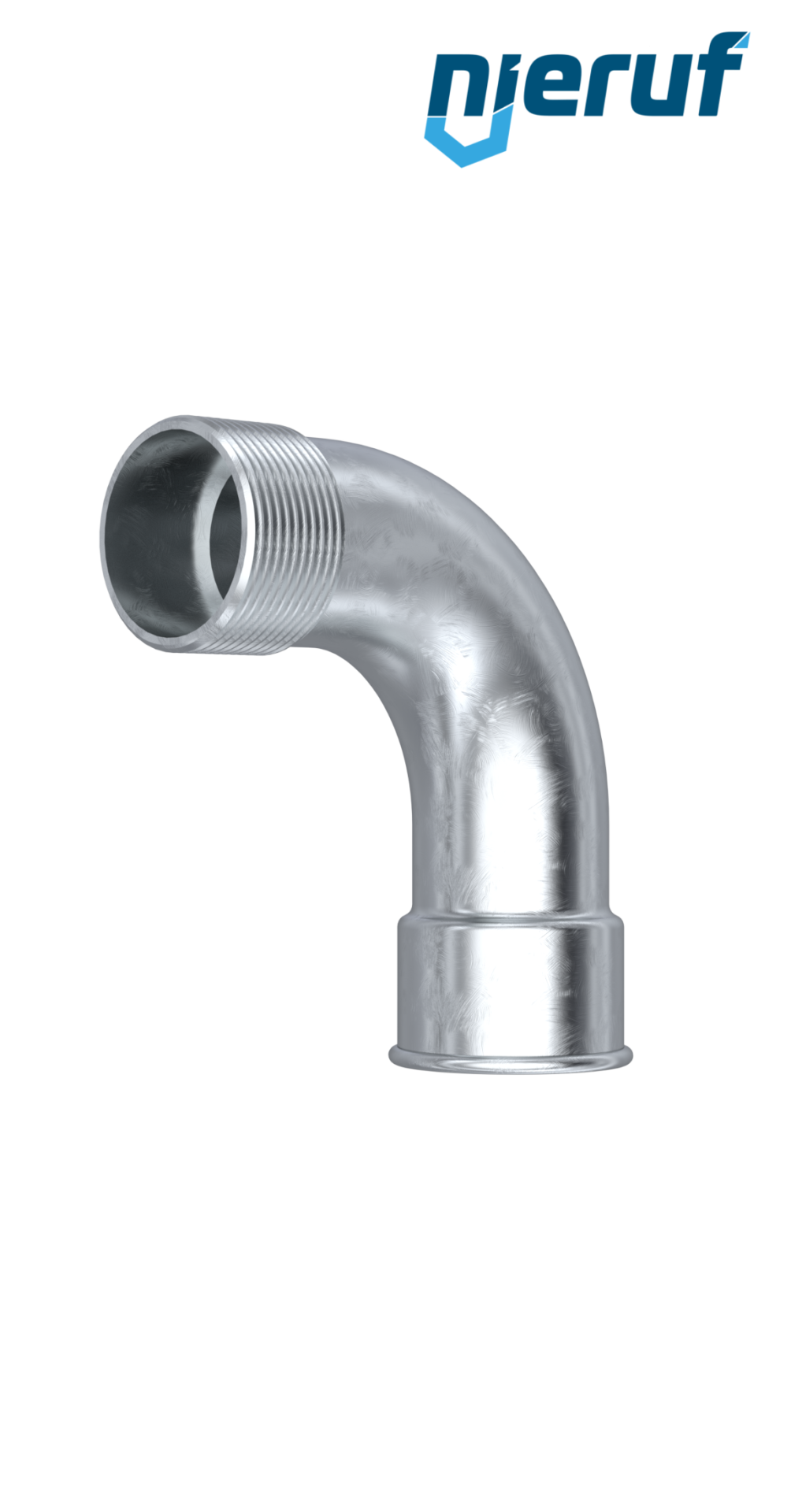

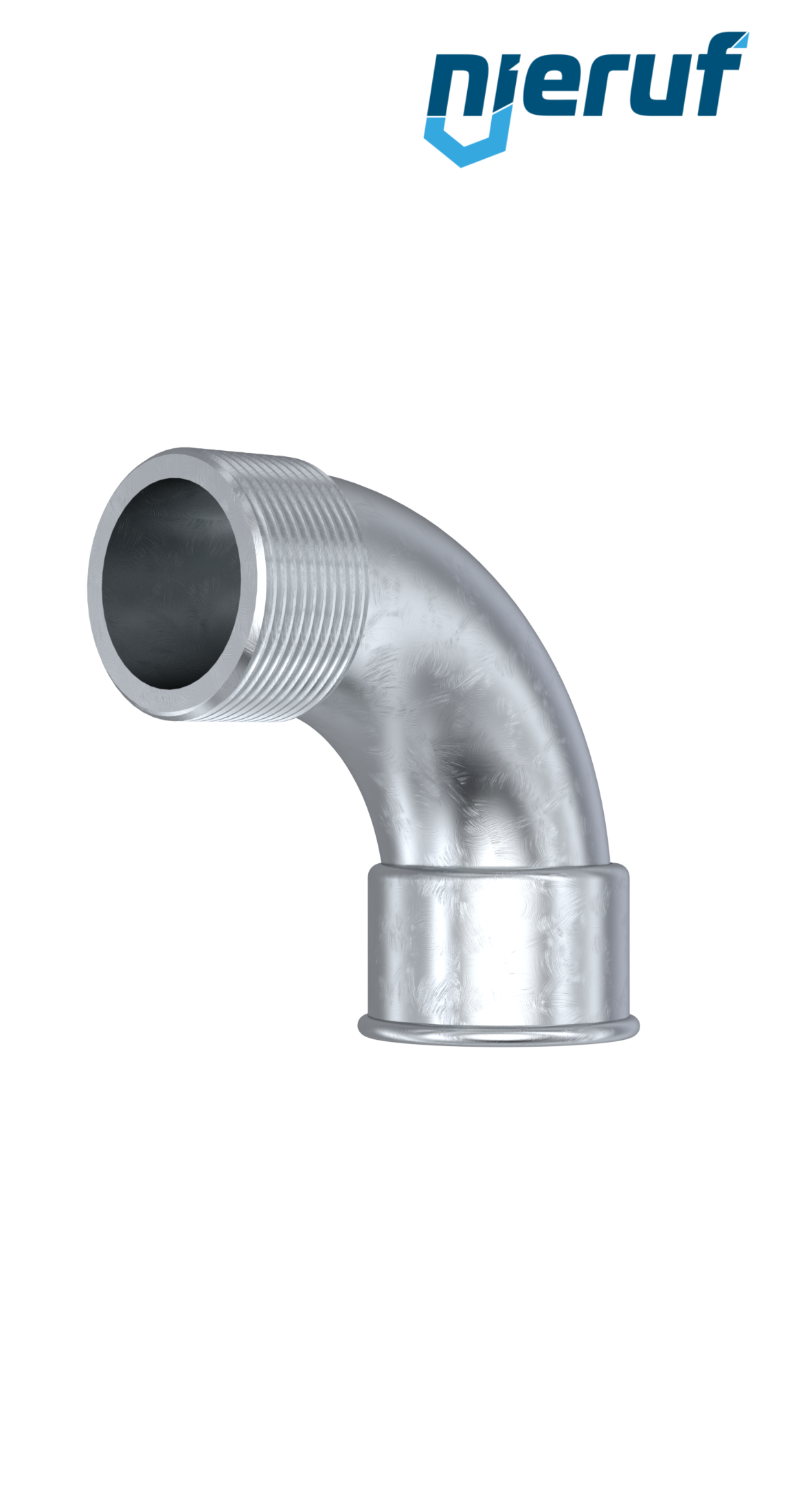

short bend no. 1a with female x male thread DN15 - 1/2" inch malleable cast iron galvanized for liquid & gaseous media
product:
short bend
diameter:
DN15 - 1/2" inch
connection:
female x male thread
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized

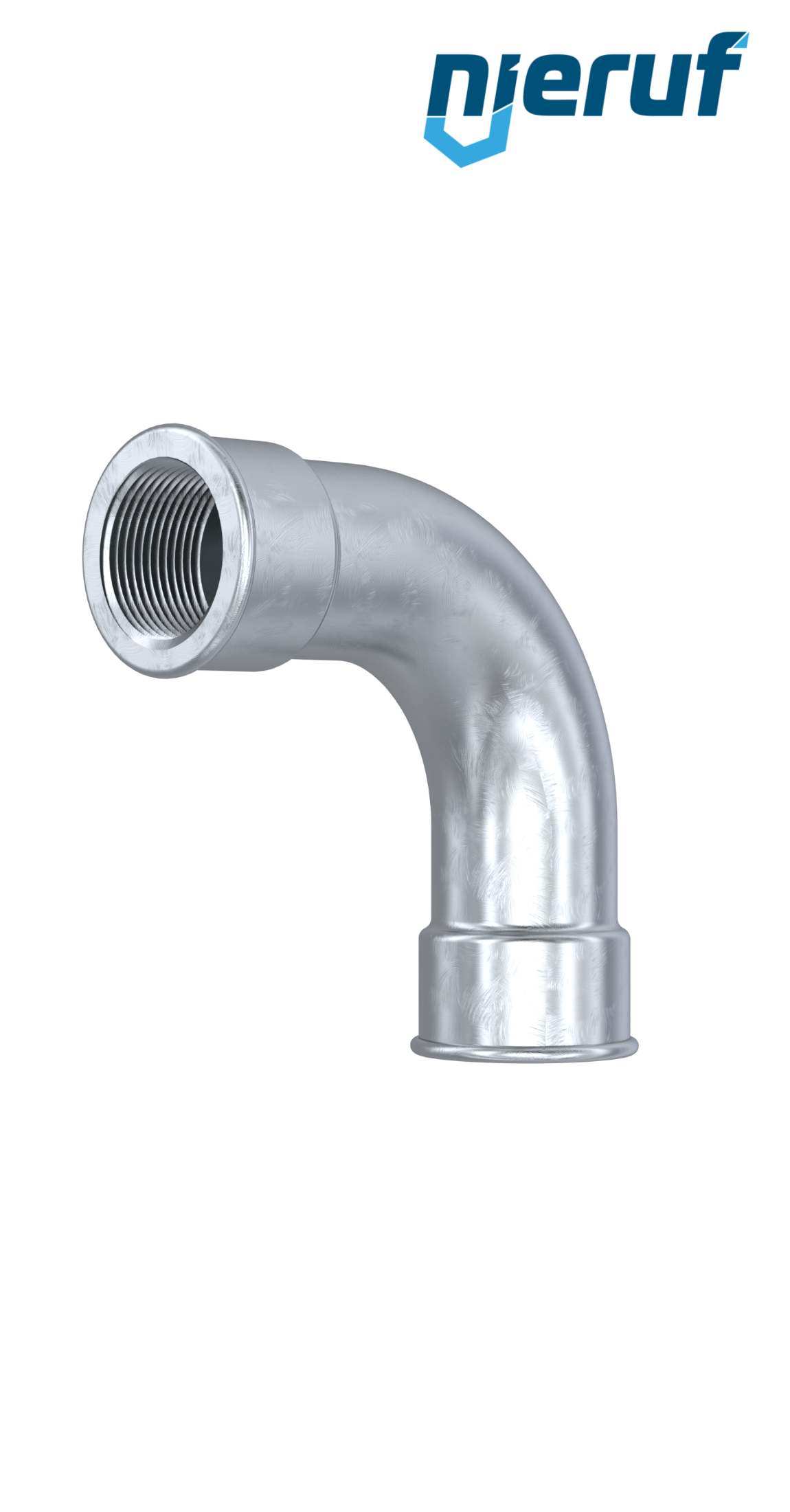

bend no. 2 with female thread DN10 - 3/8" inch malleable cast iron galvanized for liquid & gaseous media
product:
bend
diameter:
DN10 - 3/8" inch
connection:
female thread
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
bend no. 41 with female thread DN40 - 1 1/2" inch malleable cast iron galvanized for liquid & gaseous media
product:
bend
diameter:
DN40 - 1 1/2" inch
connection:
female thread
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
