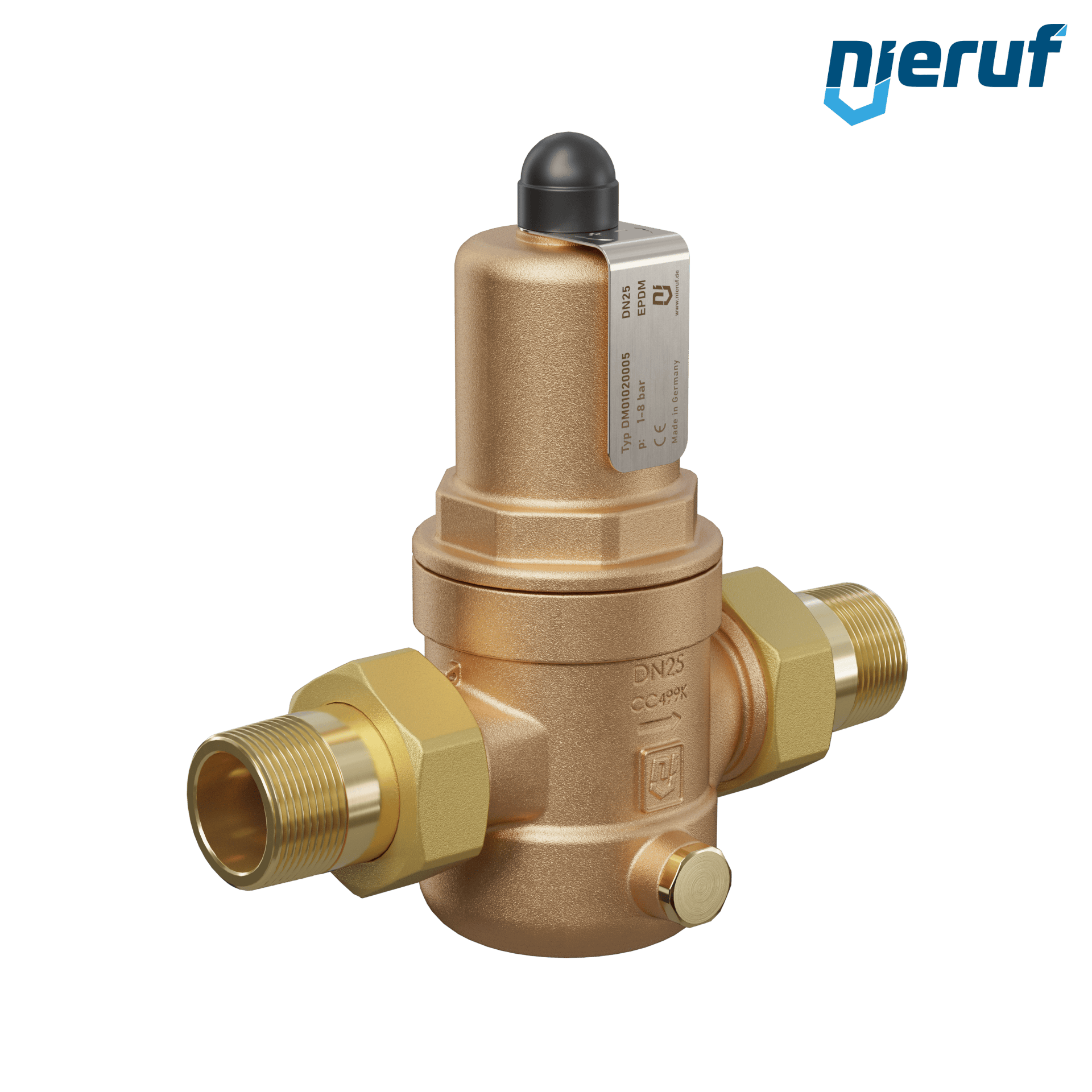

pressure reducing valve 1" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM

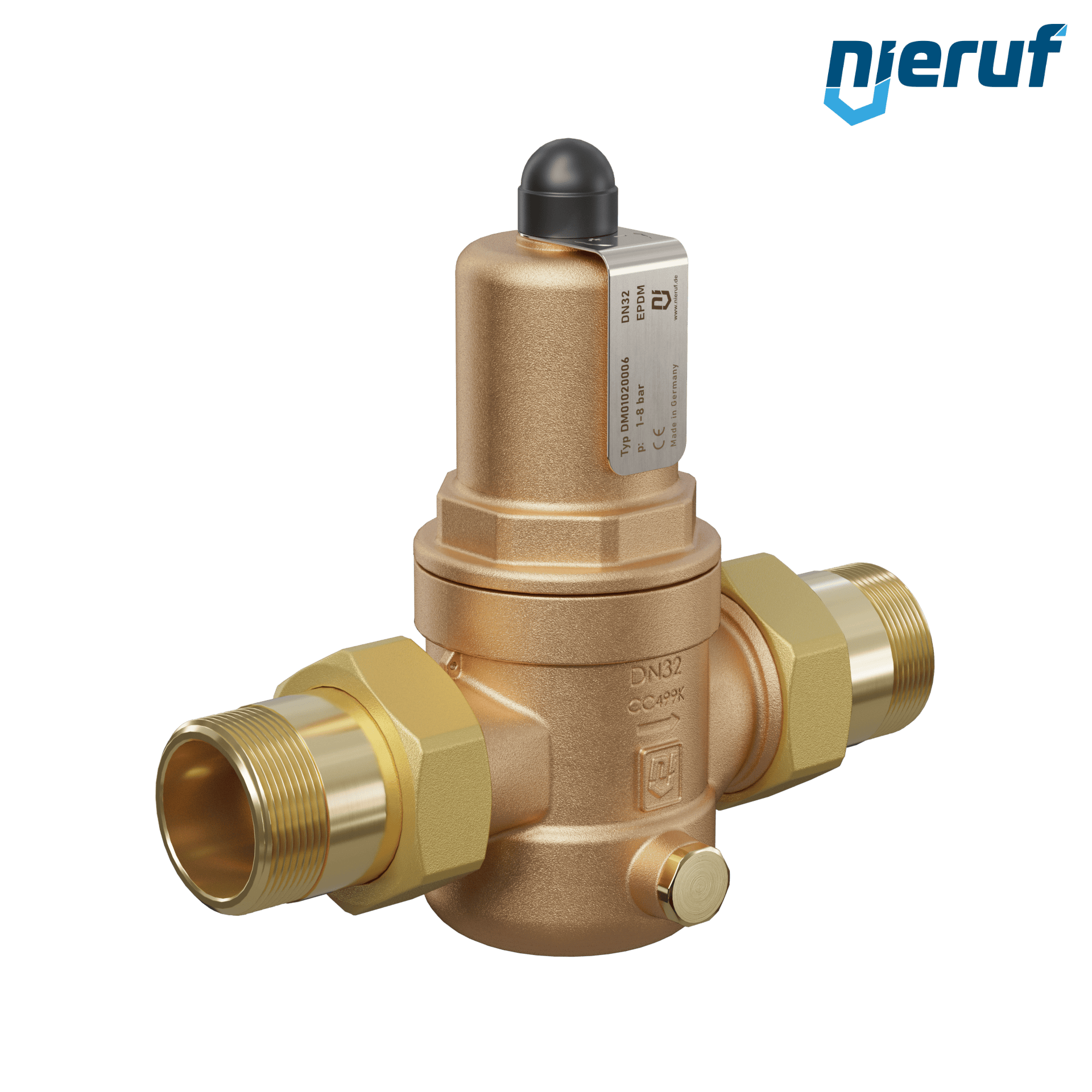

pressure reducing valve 1 1/4" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1 1/4" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 2" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
2" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1 1/2" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1 1/2" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1" inch male thread male thread BSP-T made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1 1/2" inch male thread made of gunmetal seal EPDM for water, set pressure 1.5 - 6.0 bar
diameter:
1 1/2" inch
connection:
male thread
media:
water
range of adjustment:
1.5 - 6.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 40 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 40 PN40
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1 1/2" inch male thread male thread BSP-T made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1 1/2" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1/2" inch male thread male thread BSP-T made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1/2" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 2 1/2" inch male thread made of gunmetal seal EPDM for water, set pressure 1.5 - 6.0 bar
diameter:
2 1/2" inch
connection:
male thread
media:
water
range of adjustment:
1.5 - 6.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 15 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 15 PN40
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 3/4" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
3/4" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 40 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 40 PN16
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 2" inch male thread male thread BSP-T made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
2" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1 1/4" Inch male thread made of gunmetal seal EPDM for water, set pressure 1.5 - 6.0 bar
diameter:
1 1/4" Inch
connection:
male thread
media:
water
range of adjustment:
1.5 - 6.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 25 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 25 PN40
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1" Inch male thread made of gunmetal seal EPDM for water, set pressure 1.5 - 6.0 bar
diameter:
1" Inch
connection:
male thread
media:
water
range of adjustment:
1.5 - 6.0 bar
seal:
EPDM
pressure reducing valve 1 1/4" inch male thread male thread BSP-T made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1 1/4" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 20 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 20 PN40
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 3/4" inch male thread male thread BSP-T made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
3/4" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1/2" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1/2" inch male thread
connection:
male thread BSP-T
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 32 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 32 PN40
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
pressure reducing valve 1/2" Inch male thread made of gunmetal seal EPDM for water, set pressure 1.5 - 6.0 bar
diameter:
1/2" Inch
connection:
male thread
media:
water
range of adjustment:
1.5 - 6.0 bar
seal:
EPDM
Flange-pressure reducing valve DN 25 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
DN 25 PN16
connection:
flange acc. DIN EN 1092
media:
liquid and gaseous media (no steam)
range of adjustment:
1.0 - 8.0 bar
seal:
EPDM
Product overview: water-pressure-reducing-valves
Our water pressure reducing valves are all DVGW approved, as required for usage with water or drinking water. Additionally, when installed in buildings, water-pressure-reducing-valves should be sound tested. Our pressure regulators come with a high quality stainless steel sieve. When used in domestic water installations, according to DIN 1988 DVGW guideline, a flow rate of 2m/s should not be exceeded. If you need any help setting your pressure regulating valve for drinking water, please contact our staff for free and timely advice, or find all necessary information in our data sheets.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
