Sight flow indicator

Sight flow indicator for pipelines with thread or flange

Sight flow indicators can be used to monitor the flow and filling level in a pipeline. They are manufactured in a straightway form and have a window, which can be made of borosilicate glass DIN7080 or soda-lime-glass DIN8902. Which glass you choose depends on the medium in the pipeline and its resistance. Whenever you are dealing with a liquid or gaseous medium, a sight flow indicator should be used. This allows you to not only monitor the filling level in the pipes, but also to detect contamination which could damage the system. Additionally, it allows you to control the flow direction of the medium. Since some liquid and gaseous media are transparent, they are hard to monitor visually. That's why NieRuf offers three varieties of flow sight glasses. The standard model has a drip nozzle and can be used with liquid media such as water. The diameter of the drip nozzle is smaller than the diameter of the flow sight glass, which enables you to see detect the medium. But the sight flow indicator can also come with a rotor or a flap. The medium, whether it is a liquid or a gas, moves the rotor, thereby showing you the flow direction. In the sight flow indicator with flap, the medium must flow from bottom to top, otherwise the flap does not open. Once the medium flows through the pipeline, the movement of the flap indicates this.

Filter

Product finder

female thread sight flow indicator DN8 - 1/4" Inch Typ GS01 grey cast iron GG25 soda lime glass graphit max 16 bar

diameter:

DN8 - 1/4" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€103.70*

€123.40 VAT included.

Delivery time: in stock

Express delivery:

female thread sight flow indicator DN10 - 3/8" Inch Typ GS01 grey cast iron GG25 soda lime glass graphit max 16 bar

diameter:

DN10 - 3/8" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€103.70*

€123.40 VAT included.

Delivery time: in stock

Express delivery:

flow-through sight flow indicator 1 1/4" borosilicate glass Typ GS03 borosilicate glass graphit max 16 bar

diameter:

DN32 - 1 1/4" inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

NieRuf-Exchange
Certified
€468.00*

€556.92 VAT included.

Delivery time: in stock

Express delivery:

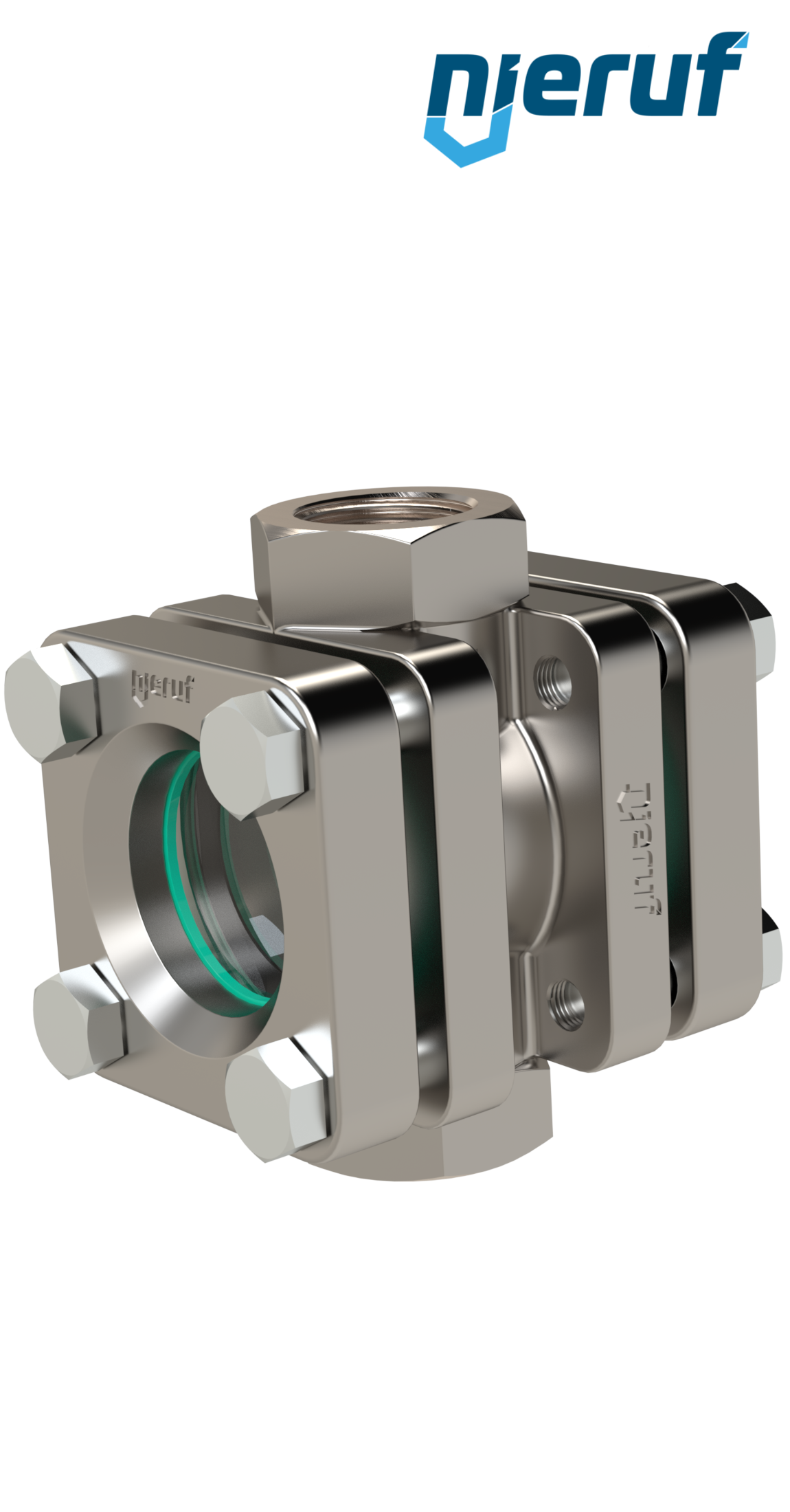

flow-through sight flow indicator DN8 - 1/4" Inch Typ GS03 stainless steel soda lime glass graphit max 16 bar

diameter:

DN8 - 1/4" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

NieRuf-Exchange
Certified
€198.80*

€236.57 VAT included.

Delivery time: in stock

Express delivery:

female thread sight flow indicator DN20 - 3/4" Inch Typ GS01 grey cast iron GG25 soda lime glass graphit max 16 bar

diameter:

DN20 - 3/4" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€138.30*

€164.58 VAT included.

Delivery time: in stock

Express delivery:

flow-through sight flow indicator DN50 - 2" Inch Typ GS03 stainless steel soda lime glass graphit max 16 bar

diameter:

DN50 - 2" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

NieRuf-Exchange
Certified
€1,005.20*

€1,196.19 VAT included.

Delivery time: in stock

Express delivery:

flow-through sight flow indicator DN10 - 3/8" Inch Typ GS03 stainless steel soda lime glass graphit max 16 bar

diameter:

DN10 - 3/8" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

NieRuf-Exchange
Certified
€198.80*

€236.57 VAT included.

Delivery time: in stock

Express delivery:

sight flow indicator 1 1/2" design with disc Typ GS02 borosilicate glass graphit max 16 bar

diameter:

DN40 - 1 1/2" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€456.50*

€543.24 VAT included.

Delivery time: 2 - 3 weeks

female thread sight flow indicator 2" grey cast iron GG25 Typ GS01 graphit max 16 bar design with PTFE-spinner

diameter:

DN50 - 2" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€401.80*

€478.14 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN200 soda lime glass Typ FS01 grey cast iron GG25 graphit max 10 bar design with PTFE-spinner

diameter:

DN200 - 8" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 10 bar

Certified
€2,491.20*

€2,964.53 VAT included.

Delivery time: 2 - 3 weeks

female thread sight flow indicator DN50 - 2" Inch grey cast iron GG25 Typ GS01 soda lime glass graphit max 16 bar design with disc

diameter:

DN50 - 2" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€332.70*

€395.91 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN200 design with disc Typ FS01 grey cast iron GG25 borosilicate glass graphit max 16 bar

diameter:

DN200 - 8" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€2,383.20*

€2,836.01 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN32 soda lime glass Typ FS01 grey cast iron GG25 graphit max 16 bar design with PTFE-spinner

diameter:

DN32 - 1 1/4" inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€324.00*

€385.56 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN150 casti iron disc Typ FS02 borosilicate glass max 16 bar

diameter:

DN150 - 6" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€2,232.00*

€2,656.08 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN32 Typ FS02 GS - C25 soda lime glass graphit max 16 bar

diameter:

DN32 - 1 1/4" inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€332.70*

€395.91 VAT included.

Delivery time: 2 - 3 weeks

female thread sight flow indicator 1" design with PTFE-spinner Typ GS01 grey cast iron GG25 borosilicate glass graphit max 16 bar

diameter:

DN25 - 1" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€283.70*

€337.60 VAT included.

Delivery time: 2 - 3 weeks

flow-through sight flow indicator 1 1/2" soda lime glass Typ GS03 graphit max 16 bar design with PTFE-spinner

diameter:

DN40 - 1 1/2" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€642.30*

€764.34 VAT included.

Delivery time: 2 - 3 weeks

female thread sight flow indicator 1/4" design with disc Typ GS01 grey cast iron GG25 borosilicate glass graphit max 16 bar

diameter:

DN8 - 1/4" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€201.60*

€239.90 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN15 design with PTFE-spinner Typ FS01 grey cast iron GG25 borosilicate glass graphit max 16 bar

diameter:

DN15 - 1/2" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€244.80*

€291.31 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator 2" GS - C25 Typ FS02 soda lime glass max 16 bar design with PTFE-spinner

diameter:

DN50 - 2" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€584.70*

€695.79 VAT included.

Delivery time: 2 - 3 weeks

female thread sight flow indicator 1 1/2" Typ GS01 grey cast iron GG25 borosilicate glass graphit max 16 bar

diameter:

DN40 - 1 1/2" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€226.10*

€269.06 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN40 casti iron PTFE-spinner Typ FS02 borosilicate glass max 16 bar

diameter:

DN40 - 1 1/2" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€607.70*

€723.16 VAT included.

Delivery time: 2 - 3 weeks

flow-through sight flow indicator 3/8" soda lime glass Typ GS03 graphit max 16 bar design with PTFE-spinner

diameter:

DN10 - 3/8" Inch

connection:

female thread

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€278.00*

€330.82 VAT included.

Delivery time: 2 - 3 weeks

flange sight flow indicator DN20 borosilicate glass Typ FS01 grey cast iron GG25 graphit max 16 bar

diameter:

DN20 - 3/4" Inch

connection:

flange PN16

seal:

graphit

design:

straightway form

max. working pressure:

max 16 bar

Certified
€149.80*

€178.26 VAT included.

Delivery time: 2 - 3 weeks

High quality sigth-flow-indicator

Our sight flow indicators can be made of stainless steel 1.4408, cast iron GS-C 25 or grey cast iron GG25. Whether you choose soda-lime-glass or borosilicate glass, the sight glass is then mounted between the mounting and the base flange using screws. The manufacturer also includes a graphite-seal. Sight-flow-indicators with flap, drip nozzle and rotor can be manufactured as thread sight glasses or flange sight glasses. Thread sight glasses come with internal threads from ¼“ - 2“ inch. Flange sight glasses come in nominal sizes ranging from DN15 to DN200. They are approved for up to PN16, from nominal size DN150 on only for PN10. Sight-flow-indicators withstand temperatures of up to +150°C. They can be mounted in any position, just keep the flow direction in mind. Buy your sight-flow-indicator directly from our online shop, or call our hotline if you need help choosing the right one. We would love to help you find the sight glass that fits your application and medium.
