FS01012007

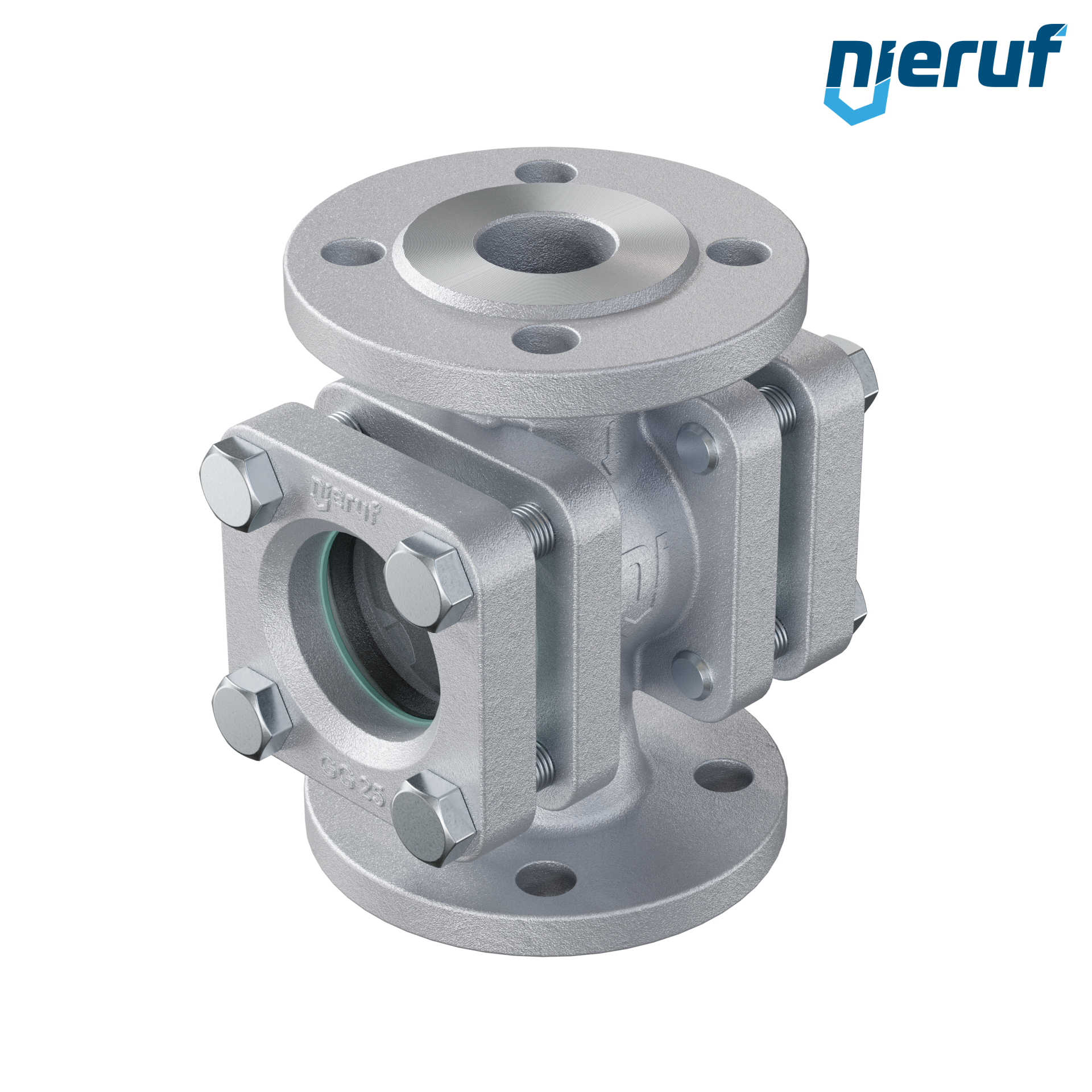

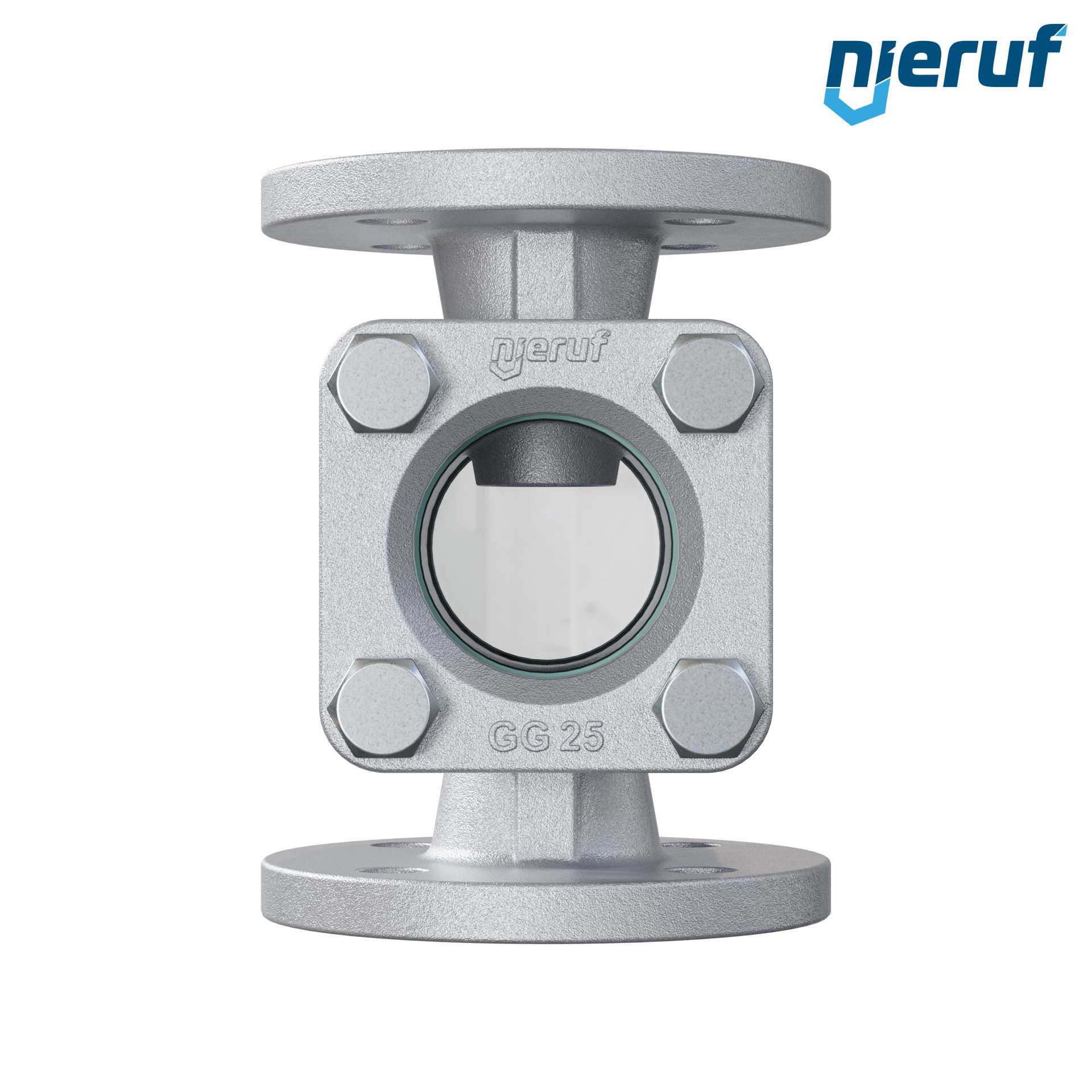

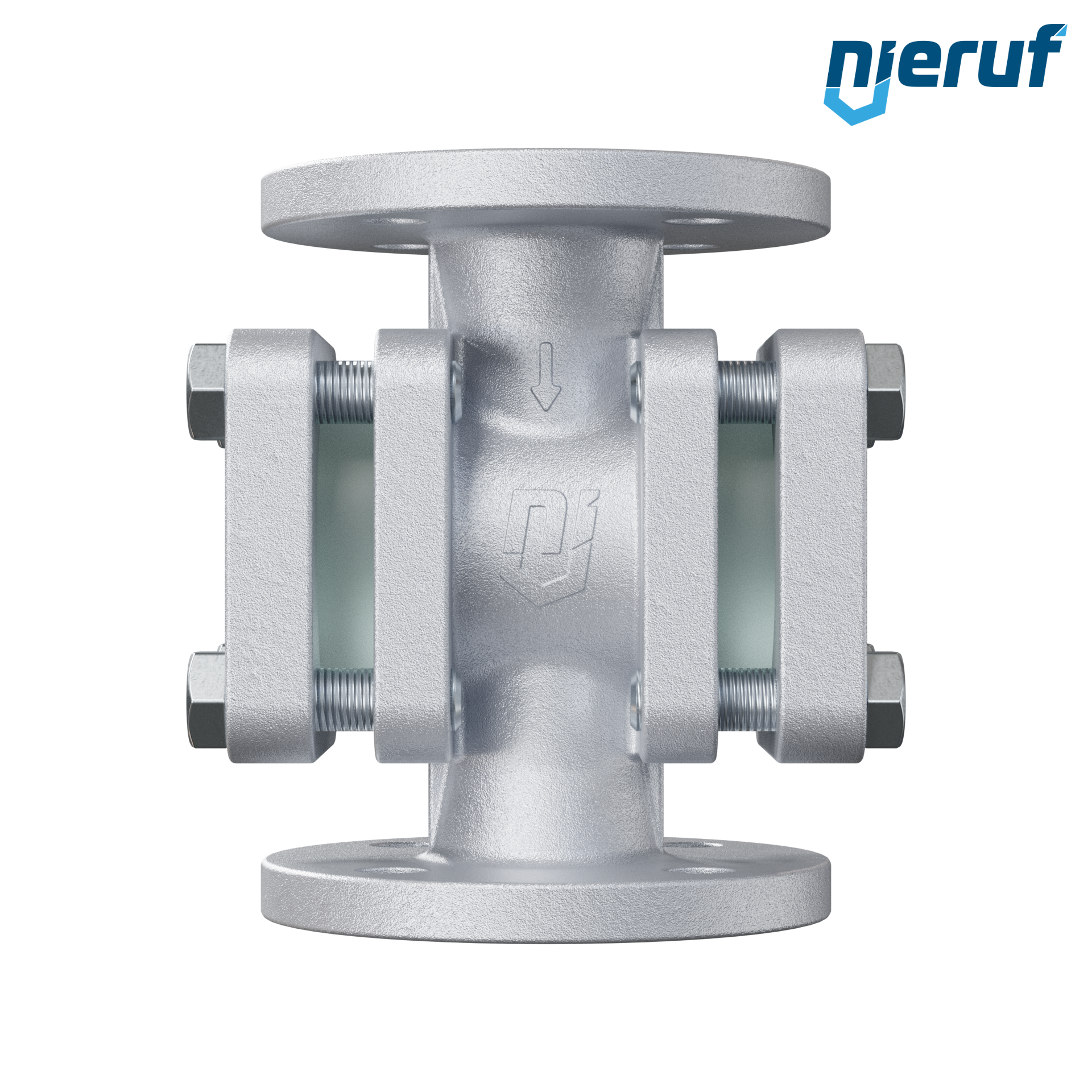

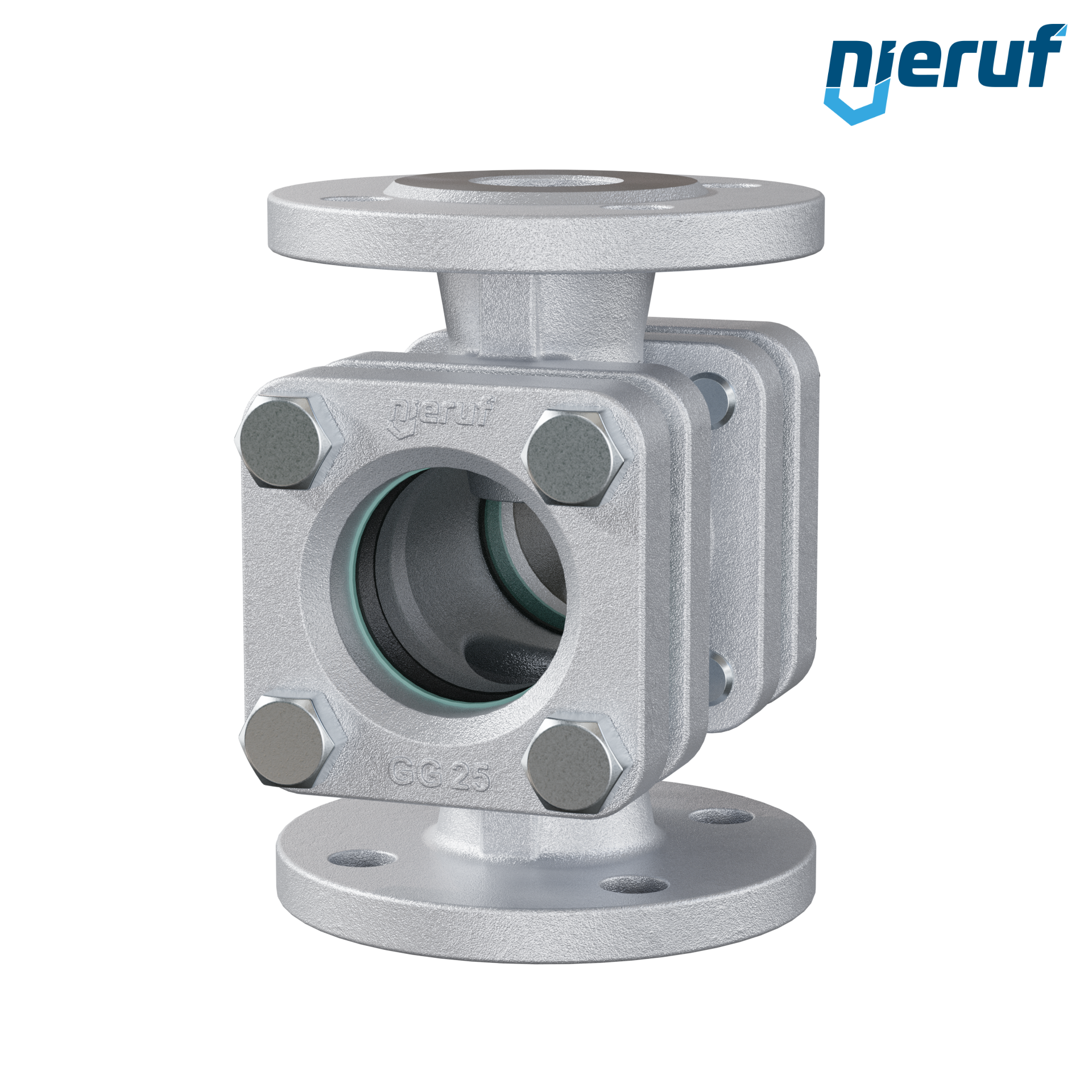

flange sight flow indicator DN40 - 1 1/2" Inch grey cast iron GG25 flange ANSI 150 soda lime glass version with dripping edge
- Delivery time
- 2 - 3 weeks
Questions about the article?
Downloads
flange sight flow indicator version with dripping edge type FS01 made of grey cast iron GG25, soda lime glass and seal graphit DN40 - 1 1/2" Inch flange ANSI 150 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN40 - 1 1/2" Inch |
| connection | flange ANSI 150 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| installation position | any position |
| product feature | version with dripping edge |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN40 - 1 1/2" Inch grey cast iron GG25 flange ANSI 150 soda lime glass version with dripping edge
Article no.
: FS01012007
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN40 - 1 1/2" Inch
connection:
flange ANSI 150
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
installation position:
any position
product feature:
version with dripping edge
