Namur-valve

Namur valve

Namur valves for compressed air. Namur valves are often used to control pneumatic single- or double-acting actuators.

Filter

Product finder

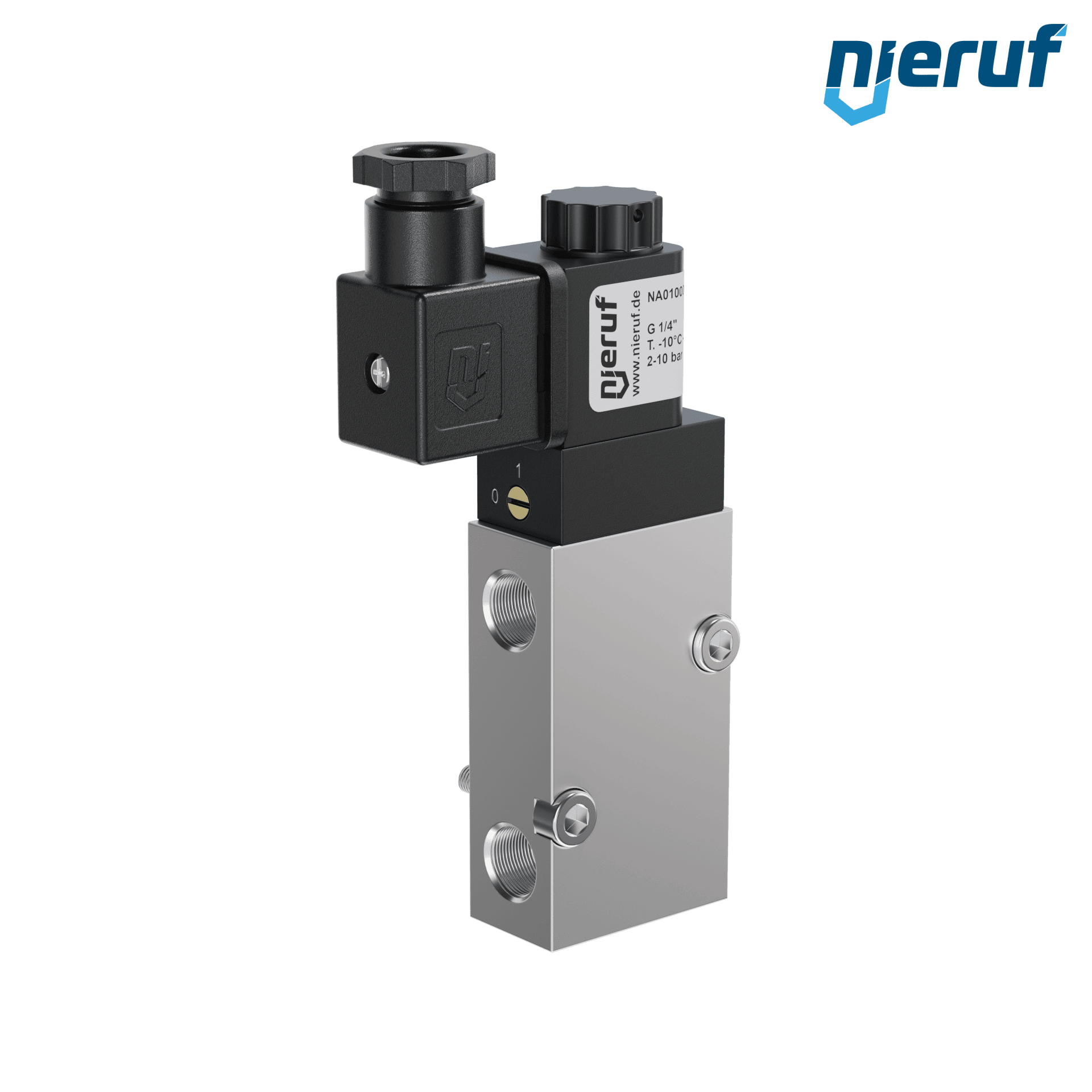

3/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 24V DC Druck 2,0 - 10,0 bar

diameter:

DN 8

design:

Namur-valve with spring chamber ventilation

connection:

G 1/4" Inch

material:

aluminium

type of connection:

Namur

NieRuf-Exchange
24 months warranty
€40.00*

€47.60 VAT included.

Delivery time: in stock

Express delivery:

5/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 24V DC Druck 2,0 - 10,0 bar

diameter:

DN 8

design:

Namur-valve with spring chamber ventilation

connection:

G 1/4" Inch

material:

aluminium

type of connection:

Namur

NieRuf-Exchange
24 months warranty
€40.00*

€47.60 VAT included.

Delivery time: in stock

Express delivery:

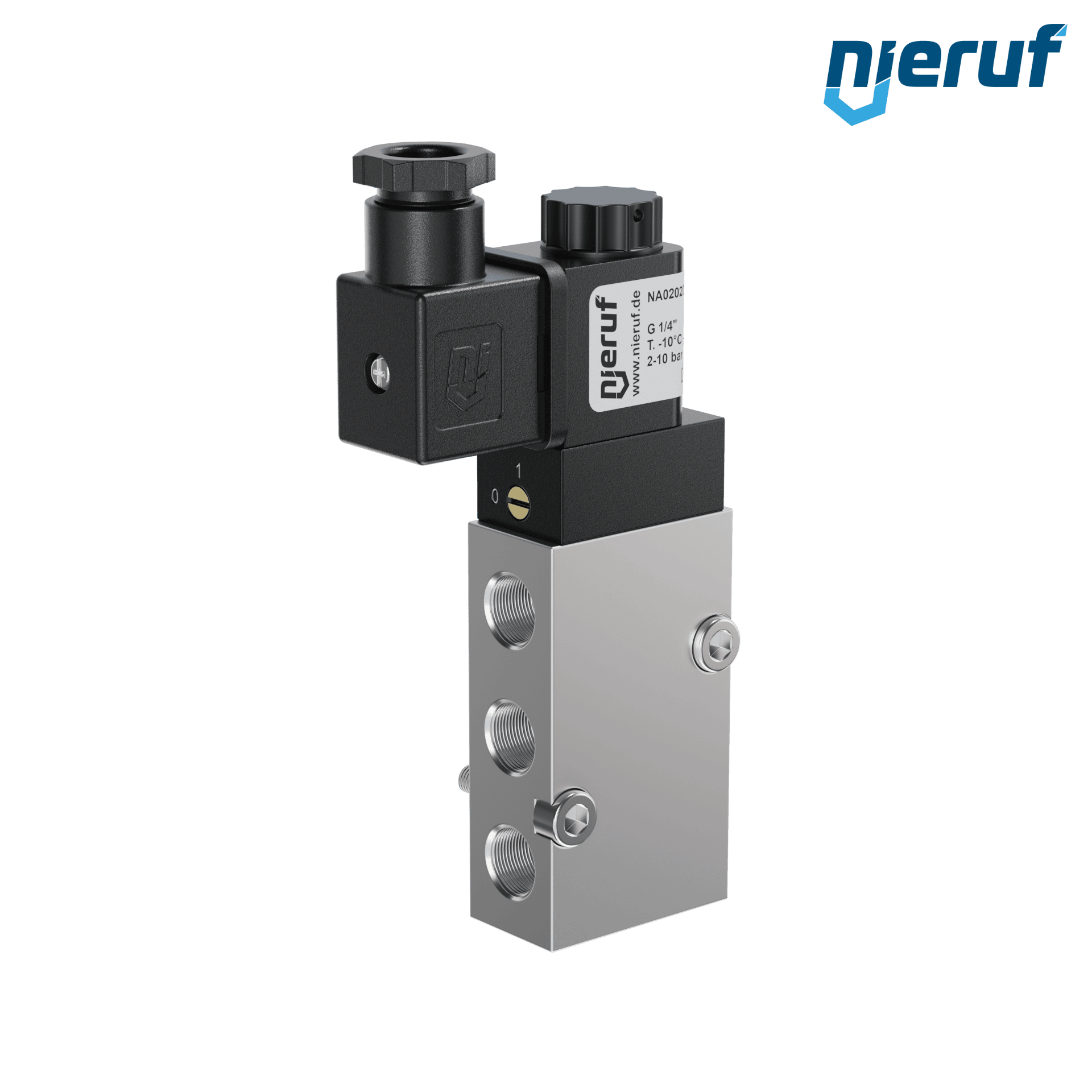

5/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 12V DC Druck 2,0 - 10,0 bar

diameter:

DN 8

design:

Namur-valve with spring chamber ventilation

connection:

G 1/4" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€38.80*

€46.17 VAT included.

Delivery time: in stock

Express delivery:

5/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 230V AC Druck 2,0 - 10,0 bar

diameter:

DN 8

design:

Namur-valve with spring chamber ventilation

connection:

G 1/4" Inch

material:

aluminium

type of connection:

Namur

NieRuf-Exchange
24 months warranty
€38.80*

€46.17 VAT included.

Delivery time: in stock

Express delivery:

3/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 230V AC Druck 2,0 - 10,0 bar

diameter:

DN 8

design:

Namur-valve with spring chamber ventilation

connection:

G 1/4" Inch

material:

aluminium

type of connection:

Namur

NieRuf-Exchange
24 months warranty
€38.80*

€46.17 VAT included.

Delivery time: in stock

Express delivery:

3/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 12V DC Druck 2,0 - 10,0 bar

diameter:

DN 8

design:

Namur-valve with spring chamber ventilation

connection:

G 1/4" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€38.80*

€46.17 VAT included.

Delivery time: in stock

Express delivery:

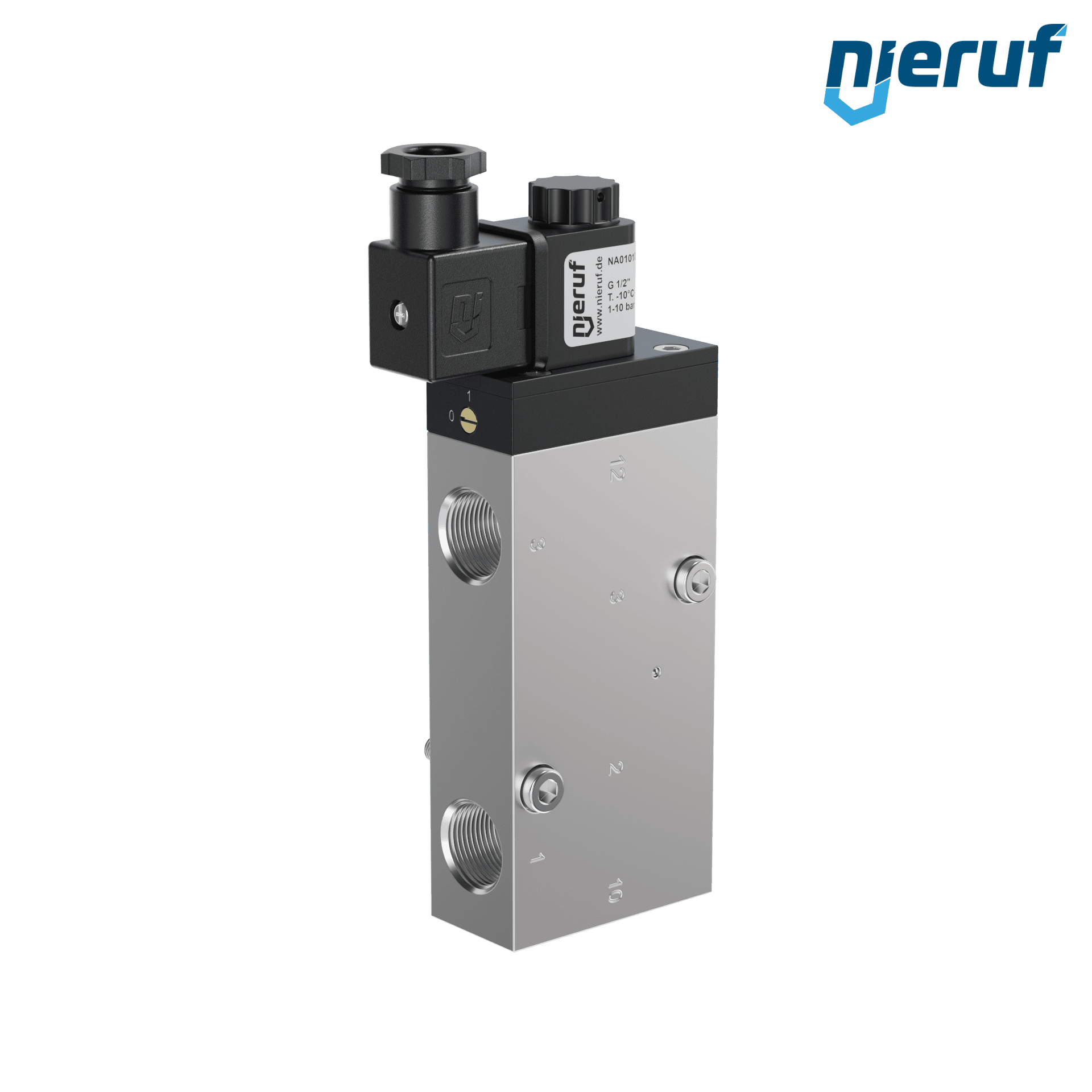

3/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 12V DC Druck 1,0 - 10,0 bar

diameter:

DN12,0

design:

Namur-valve with spring chamber ventilation

connection:

G 1/2" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€184.50*

€219.56 VAT included.

Delivery time: 2 - 3 weeks

3/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 24V DC Druck 1,0 - 10,0 bar

diameter:

DN12,0

design:

Namur-valve with spring chamber ventilation

connection:

G 1/2" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€184.50*

€219.56 VAT included.

Delivery time: 2 - 3 weeks

3/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 230V AC Druck 1,0 - 10,0 bar

diameter:

DN12,0

design:

Namur-valve with spring chamber ventilation

connection:

G 1/2" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€184.50*

€219.56 VAT included.

Delivery time: 2 - 3 weeks

5/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 24V DC Druck 1,0 - 10,0 bar

diameter:

DN12,0

design:

Namur-valve with spring chamber ventilation

connection:

G 1/2" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€184.50*

€219.56 VAT included.

Delivery time: 2 - 3 weeks

5/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 12V DC Druck 1,0 - 10,0 bar

diameter:

DN12,0

design:

Namur-valve with spring chamber ventilation

connection:

G 1/2" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€184.50*

€219.56 VAT included.

Delivery time: 2 - 3 weeks

5/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 230V AC Druck 1,0 - 10,0 bar

diameter:

DN12,0

design:

Namur-valve with spring chamber ventilation

connection:

G 1/2" Inch

material:

aluminium

type of connection:

Namur

24 months warranty
€184.50*

€219.56 VAT included.

Delivery time: 2 - 3 weeks

3/2-way-Namur valve and 5/2-way-Namur valve

The 3/2-way-namur valve helps control single-acting actuators whereas the 5/2-way-namur valve helps control double-acting actuators, both within a pressure range of 2-10 bar. To control the namur valve, depending on the design, 230V 50H alternating current, or 24V direct current can be used. The body of the valve is made of aluminum, the seal material consists of NBR. All namur valves come with a 1/4“ threaded connector. Compressed air is used to operate the valves, and some come with a spring chamber ventilator, which is safer than a simple spring reset mechanism. The KV reaches a  max. of 1260 l/min. All our namur-valves come with manual override (bistable).

Namur-valves in combination with other valves

The 3/2-way valves with namur connector are compatible with all our pneumatically actuated single-acting ball valves and butterfly valves. The 5/2-way valves with namur connector are compatible with all our double-acting ball valves and butterfly valves. Namur valves with ex-protection can be manufactured on request. We would love to help you chose the right namur valve, or you can order it at low cost and with rapid delivery from our online shop.
