Compressed air safety-valve

Compressed air is air that has been condensed in a compressor. Pressure safety valves can secure containers and pipelines operating under pressure. As soon as the pressure within the container reaches or exceeds the pressure set in the pressure safety valve, the valve opens and releases the compressed air. This reduces the pressure within the system.
We set the pressure value on the pressure safety valve according to your wish before sealing the valve. The pressure safety valve reaches its maximum hub (valve completely open) once the pressure exceeds the set pressure value by 10% and closes once the pressure falls 10% below the set pressure value (20% for liquid media). The tolerance is +/-3%.
The pressure safety valve is marked with D/G. This indicates a free scrubbing valve, meaning that the excess compressed air is released into the surrounding. As a result, pressure safety valves should be used only with safe media.
To monitor and service the valve, it comes with a twist-type lifting mechanism. This lifting mechanism needs to be used regularly in order to prevent pollution, which could damage the pressure safety valve.

SV01000001

safety valve 1/4" SV01 for air, brass FKM

safety valve 1/4" m Typ SV01 atmospheric discharg for air, made of brass with an FKM seal, pressure 0,2 - 25,0 bar- higher pressures possible in PTFE version

diameter:

1/4" m

media:

neutral gaseous media

set pressure:

0,2 - 25,0 bar- higher pressures possible in PTFE version

material:

brass

seal:

FKM

€35.80*

€42.60 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV02000003

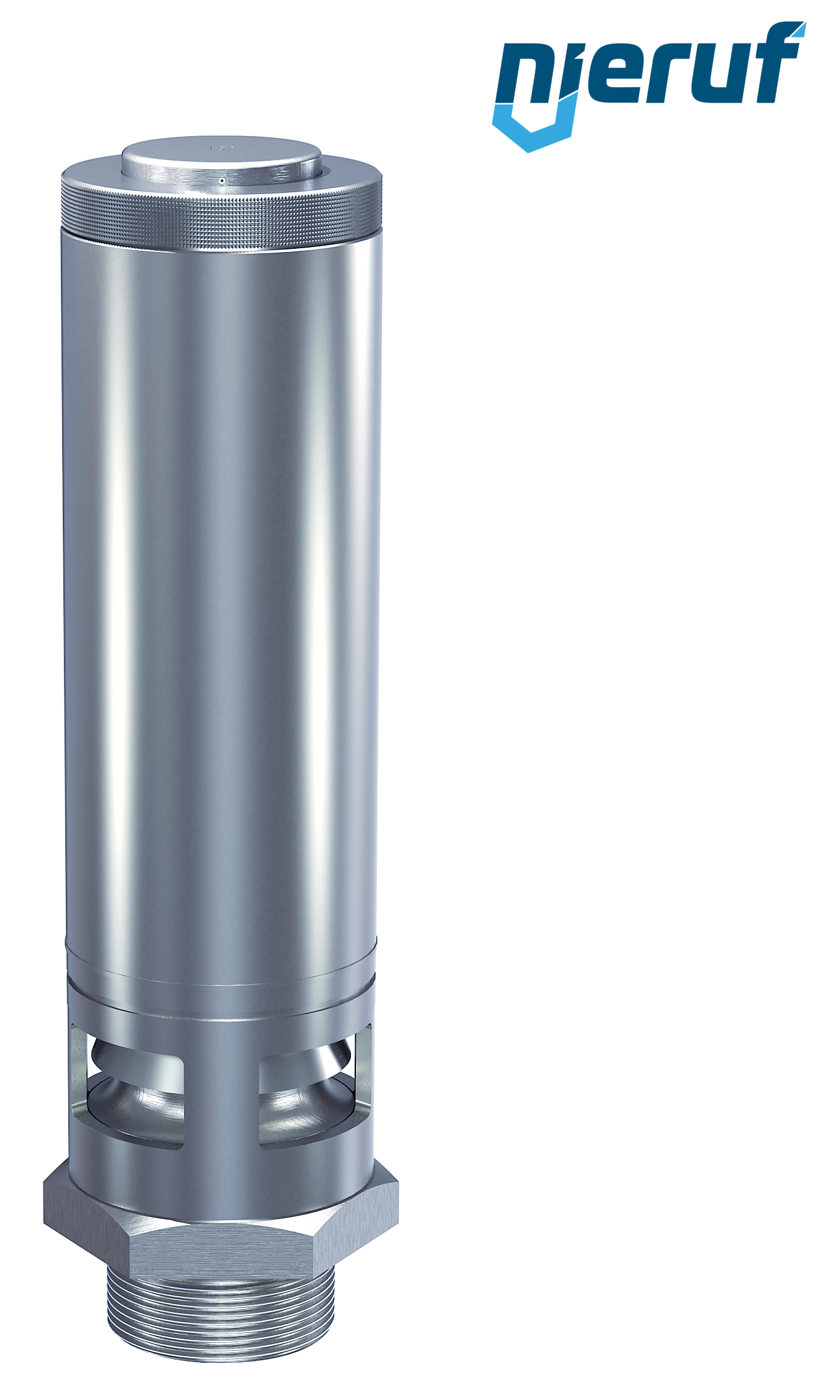

safety valve 1/2" SV02 for air, stainless steel FKM

safety valve 1/2" m Typ SV02 atmospheric discharg for air, made of stainless steel with an FKM seal, pressure 0,2 - 25,0 bar- higher pressures possible in PTFE version

diameter:

1/2" m

media:

neutral gaseous media

set pressure:

0,2 - 25,0 bar- higher pressures possible in PTFE version

material:

stainless steel

seal:

FKM

€181.10*

€215.51 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15022101.3

safety-valve DN6 1/4" m x 1/2" fm male thread NPT, SV15, MD/ PEEK, without lifting device, angle-type, >500,0 - 1100,0 bar

safety-valve DN6 1/4" m x 1/2" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD/ PEEK pressure >500,0 - 1100,0 bar without lifting device angle-type

diameter:

DN6 1/4" m x 1/2" fm

media:

gaseous media

set pressure:

>500,0 - 1100,0 bar

material:

stainless steel

seal:

MD/ PEEK

€3,182.90*

€3,787.65 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV01000308

safety valve 2" m SV01 for air PTFE brass

safety valve 2" m Typ SV01 atmospheric discharg for air, made of brass with an PTFE seal, pressure 25,1 - 30,0 bar

diameter:

2" m

media:

neutral gaseous media

set pressure:

25,1 - 30,0 bar

material:

brass

seal:

PTFE

€333.70*

€397.10 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15223002.5

safety-valve DN10 3/8" m x 1" fm SV15, MD / PAI, without lifting device, angle-type, >350,0 bar - 630,0 bar

safety-valve DN10 3/8" m x 1" fm SV15 for gaseous media made of stainless steel seal MD / PAI pressure >350,0 bar - 630,0 bar without lifting device angle-type

diameter:

DN10 3/8" m x 1" fm

media:

gaseous media

set pressure:

>350,0 bar - 630,0 bar

material:

stainless steel

seal:

MD / PAI

€1,173.90*

€1,396.94 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15221101.5

safety-valve DN10 1/4" m x 1" fm male thread NPT, SV15, MD / PAI, without lifting device, angle-type, 50,0 - 180,0 bar

safety-valve DN10 1/4" m x 1" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar without lifting device angle-type

diameter:

DN10 1/4" m x 1" fm

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI

€942.40*

€1,121.46 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15322102.5

safety-valve DN15 3/8" m x 1" fm male thread NPT, SV15, MD / PAI, without lifting device, angle-type, >180,0 - 250,0 bar

safety-valve DN15 3/8" m x 1" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD / PAI pressure >180,0 - 250,0 bar without lifting device angle-type

diameter:

DN15 3/8" m x 1" fm

media:

gaseous media

set pressure:

>180,0 - 250,0 bar

material:

stainless steel

seal:

MD / PAI

€1,126.80*

€1,340.89 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15121104.5

safety-valve DN8 3/4" m x 1" fm male thread NPT, SV15, MD/ PEEK, without lifting device, angle-type, 100,0 - 600,0 bar

safety-valve DN8 3/4" m x 1" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD/ PEEK pressure 100,0 - 600,0 bar without lifting device angle-type

diameter:

DN8 3/4" m x 1" fm

media:

gaseous media

set pressure:

100,0 - 600,0 bar

material:

stainless steel

seal:

MD/ PEEK

€1,281.30*

€1,524.75 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15321004.4

safety-valve DN15 3/4" m x 3/4" fm SV15, MD / PAI, without lifting device, angle-type, 50,0 - 180,0 bar

safety-valve DN15 3/4" m x 3/4" fm SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar without lifting device angle-type

diameter:

DN15 3/4" m x 3/4" fm

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI

€854.80*

€1,017.21 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15221103.4

safety-valve DN10 1/2" m x 3/4" fm male thread NPT, SV15, MD / PAI, without lifting device, angle-type, 50,0 - 180,0 bar

safety-valve DN10 1/2" m x 3/4" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar without lifting device angle-type

diameter:

DN10 1/2" m x 3/4" fm

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI

€942.60*

€1,121.69 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15222005.5

safety-valve DN10 1" m x 1" fm SV15, MD / PAI, without lifting device, angle-type, >180,0 bar - 350,0 bar

safety-valve DN10 1" m x 1" fm SV15 for gaseous media made of stainless steel seal MD / PAI pressure >180,0 bar - 350,0 bar without lifting device angle-type

diameter:

DN10 1" m x 1" fm

media:

gaseous media

set pressure:

>180,0 bar - 350,0 bar

material:

stainless steel

seal:

MD / PAI

€1,001.40*

€1,191.67 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15321104.5

safety-valve DN15 3/4" m x 1" fm male thread NPT, SV15, MD / PAI, without lifting device, angle-type, 50,0 - 180,0 bar

safety-valve DN15 3/4" m x 1" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar without lifting device angle-type

diameter:

DN15 3/4" m x 1" fm

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI

€942.60*

€1,121.69 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15221005.5

safety-valve DN10 1" m x 1" fm SV15, MD / PAI, without lifting device, angle-type, 50,0 - 180,0 bar

safety-valve DN10 1" m x 1" fm SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar without lifting device angle-type

diameter:

DN10 1" m x 1" fm

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI

€854.80*

€1,017.21 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15321005.5

safety-valve DN15 1" m x 1" fm SV15, MD / PAI, without lifting device, angle-type, 50,0 - 180,0 bar

safety-valve DN15 1" m x 1" fm SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar without lifting device angle-type

diameter:

DN15 1" m x 1" fm

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI

€854.80*

€1,017.21 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15222105.5

safety-valve DN10 1" m x 1" fm male thread NPT, SV15, MD / PAI, without lifting device, angle-type, >180,0 bar - 350,0 bar

safety-valve DN10 1" m x 1" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD / PAI pressure >180,0 bar - 350,0 bar without lifting device angle-type

diameter:

DN10 1" m x 1" fm

media:

gaseous media

set pressure:

>180,0 bar - 350,0 bar

material:

stainless steel

seal:

MD / PAI

€1,126.80*

€1,340.89 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15121002.5

safety-valve DN8 3/8" m x 1" fm SV15, MD/ PEEK, without lifting device, angle-type, 100,0 - 600,0 bar

safety-valve DN8 3/8" m x 1" fm SV15 for gaseous media made of stainless steel seal MD/ PEEK pressure 100,0 - 600,0 bar without lifting device angle-type

diameter:

DN8 3/8" m x 1" fm

media:

gaseous media

set pressure:

100,0 - 600,0 bar

material:

stainless steel

seal:

MD/ PEEK

€1,138.80*

€1,355.17 VAT included.

Delivery time: 3 - 5 working days

Datasheet

Details

SV15311005.0

safety-valve DN15 1" SV15, MD / PAI, twist-type lifting mechanism, atmospheric discharge, 50,0 - 180,0 bar

safety-valve DN15 1" SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar twist-type lifting mechanism atmospheric discharge

diameter:

DN15 1"

media:

gaseous media

set pressure:

50,0 - 180,0 bar

material:

stainless steel

seal:

MD / PAI
