steam pressure reducing valve DN25 made of stainless steel 1.4408 flange acc. to DIN EN 1092-1 seal PTFE | backside seals FKM for saturated steam, set pressure 1.0 - 6.0 bar
diameter:
DN25
connection:
flange acc. to DIN EN 1092-1
seal:
PTFE | backside seals FKM
range of adjustment:
1.0 - 6.0 bar
max. inlet pressure:
9 bar
steam pressure reducing valve DN20 made of stainless steel 1.4408 flange acc. to DIN EN 1092-1 seal PTFE | backside seals FKM for saturated steam, set pressure 4.0 - 8.0 bar
diameter:
DN20
connection:
flange acc. to DIN EN 1092-1
seal:
PTFE | backside seals FKM
range of adjustment:
4.0 - 8.0 bar
max. inlet pressure:
9 bar
steam pressure reducing valve DN15 made of stainless steel 1.4408 flange acc. to DIN EN 1092-1 seal PTFE | backside seals FKM for saturated steam, set pressure 1.0 - 6.0 bar
diameter:
DN15
connection:
flange acc. to DIN EN 1092-1
seal:
PTFE | backside seals FKM
range of adjustment:
1.0 - 6.0 bar
max. inlet pressure:
9 bar
steam pressure reducing valve DN25 made of stainless steel 1.4408 flange acc. to DIN EN 1092-1 seal PTFE | backside seals FKM for saturated steam, set pressure 4.0 - 8.0 bar
diameter:
DN25
connection:
flange acc. to DIN EN 1092-1
seal:
PTFE | backside seals FKM
range of adjustment:
4.0 - 8.0 bar
max. inlet pressure:
9 bar
steam pressure reducing valve DN15 made of stainless steel 1.4408 flange acc. to DIN EN 1092-1 seal PTFE | backside seals FKM for saturated steam, set pressure 4.0 - 8.0 bar
diameter:
DN15
connection:
flange acc. to DIN EN 1092-1
seal:
PTFE | backside seals FKM
range of adjustment:
4.0 - 8.0 bar
max. inlet pressure:
9 bar
pressure reducing valve 2" Inch, pressure 0.2 - 2.0 bar made of stainless steel seal FPM / FKM for liquid and neutral gaseous media
diameter:
2" Inch
connection:
female thread
seal:
FPM / FKM
range of adjustment:
0.2 - 2.0 bar
max. inlet pressure:
25 bar
precision-pressure reducing valve 1/4" inch female thread made of stainless steel FKM for liquid & gaseous media, set pressure 0.5 - 15.0 bar
diameter:
1/4" inch
connection:
female thread
seal:
FKM
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60 bar
precision-pressure reducing valve 3/8" inch female thread made of stainless steel FKM for liquid & gaseous media, set pressure 0.5 - 15.0 bar
diameter:
3/8" inch
connection:
female thread
seal:
FKM
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60 bar
precision-pressure reducing valve 3/4" inch female thread made of stainless steel seal FKM for liquid and gaseous media, set pressure 5.0 - 30.0 bar
diameter:
3/4" inch
connection:
female thread
seal:
FKM
range of adjustment:
5.0 - 30.0 bar
max. inlet pressure:
60,0 bar
foods-pressure reducing valve set pressure 0.5 - 9.0 bar DN 25 made of stainless steel seal EPDM for liquid and neutral gaseous media.
diameter:
DN 25
connection:
flange DIN EN 1092
seal:
EPDM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar

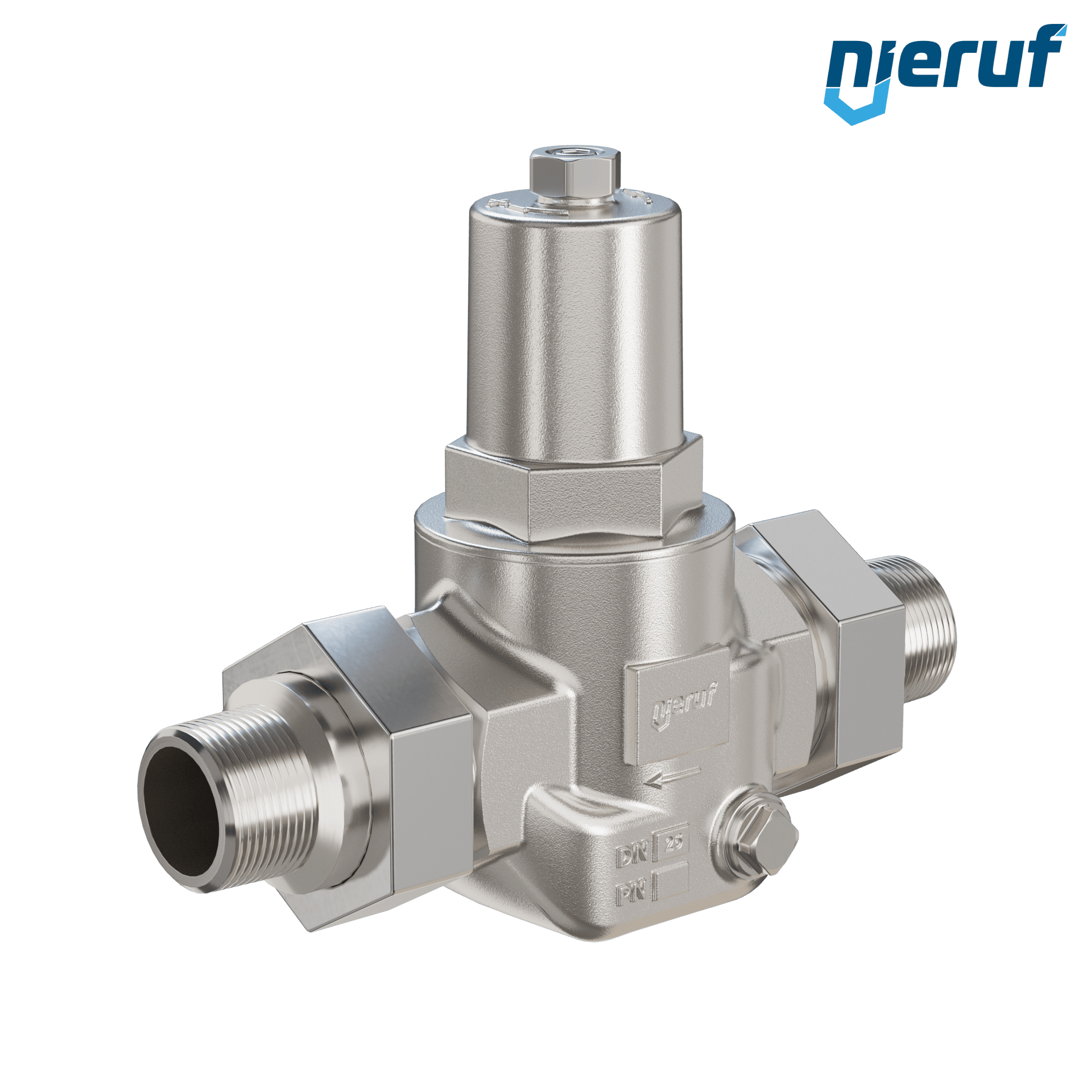

pressure reducing valve 1" Inch with male thread ISO 7 / BSP-T made of stainless steel seal EPDM FDA for liquid and neutral gaseous media, set pressure 0.5 - 9.0 bar
diameter:
1" Inch
connection:
male thread ISO 7 / BSP-T
seal:
EPDM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
precision-pressure reducing valve 1" inch female thread made of stainless steel seal FKM for liquid and gaseous media, set pressure 5.0 - 30.0 bar
diameter:
1" inch
connection:
female thread
seal:
FKM
range of adjustment:
5.0 - 30.0 bar
max. inlet pressure:
60,0 bar
pressure reducing valve 3/4" Inch, pressure 0.5 - 9.0 bar made of stainless steel seal FPM / FKM for liquid and neutral gaseous media
diameter:
3/4" Inch
connection:
female thread
seal:
FPM / FKM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
membrane pressure reducing valve 1 1/4" Inch, set pressure 1.5 - 6.0 barmade of stainless steel seal EPDM FDA
diameter:
1 1/4" Inch
connection:
female thread
seal:
EPDM
range of adjustment:
1.5 - 6.0 bar
max. inlet pressure:
40 bar
pressure reducing valve 1 1/2" Inch with male thread ISO 7 / BSP-T made of stainless steel seal EPDM FDA for liquid and neutral gaseous media, set pressure 0.5 - 9.0 bar
diameter:
1 1/2" Inch
connection:
male thread ISO 7 / BSP-T
seal:
EPDM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
pressure reducing valve 1 1/4" inch male thread male thread BSP-T made of stainless steel seal FKM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
diameter:
1 1/4" inch male thread
connection:
male thread BSP-T
seal:
FKM
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
40 bar
pressure reducing valve 1 1/4" Inch with male thread ISO 7 / BSP-T made of stainless steel seal EPDM FDA for liquid and neutral gaseous media, set pressure 0.5 - 9.0 bar
diameter:
1 1/4" Inch
connection:
male thread ISO 7 / BSP-T
seal:
EPDM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
precision-pressure reducing valve 1 1/2" inch female thread made of stainless steel EPDM for liquid & gaseous media, set pressure 0.5 - 15.0 bar
diameter:
1 1/2" inch
connection:
female thread
seal:
EPDM
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60 bar
pressure reducing valve 3/4" Inch with male thread ISO 7 / BSP-T made of stainless steel seal EPDM FDA for liquid and neutral gaseous media, set pressure 0.5 - 9.0 bar
diameter:
3/4" Inch
connection:
male thread ISO 7 / BSP-T
seal:
EPDM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
Piston-pressure reducing valve 1/2" Inch female thread made of stainless steel seal FPM / FKM for liquid and neutral gaseous media, set pressure 2.0 - 20.0 bar
diameter:
1/2" Inch
connection:
female thread
seal:
FPM / FKM
range of adjustment:
2.0 - 20.0 bar
max. inlet pressure:
40 bar
foods-pressure reducing valve set pressure 0.5 - 9.0 bar DN 15 made of stainless steel seal EPDM for liquid and neutral gaseous media.
diameter:
DN 15
connection:
flange DIN EN 1092
seal:
EPDM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
pressure reducing valve 2" Inch, pressure 0.5 - 9.0 bar made of stainless steel seal FPM / FKM for liquid and neutral gaseous media
diameter:
2" Inch
connection:
female thread
seal:
FPM / FKM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
pressure reducing valve 1 1/2" Inch, pressure 0.5 - 9.0 bar made of stainless steel seal FPM / FKM for liquid and neutral gaseous media
diameter:
1 1/2" Inch
connection:
female thread
seal:
FPM / FKM
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
precision-pressure reducing valve 1" inch female thread made of stainless steel FKM for liquid & gaseous media, set pressure 0.5 - 15.0 bar
diameter:
1" inch
connection:
female thread
seal:
FKM
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60 bar
Huge pressure range selection for pressure reducing valves made of stainless steel
We offer a broad selection of springs that are the control units within our pressure-reducing-valves. This broad selection enables us to offer outlet pressures of up to 50 bar. Furthermore, the special design of our pressure-reducing-valves permits us to offer inlet pressures of up to 60 bar. Please feel free to ask our experts to help you with our broad selection of stainless-steel-pressure-reducing-valves. We are proud to guarantee you expert advice. In addition, we offer data sheets that permit a look at all the technical specifications of our stainless-steel pressure regulating valves.
Fast and secure installation of stainless-steel-pressure-reducing-valves
For the installation of our stainless-steel-pressure-reducing-valves we provide a broad selection of connecting elements. You can directly put piston pressure reducing valves with female threads on pipes with threads. For the sealing you may use different specific sealing materials. For a quick installation just use our stainless-steel pressure reducing valves with flange connection or those with male threads. Benefit from the expertise of our company and find your ideal stainless-steel pressure-reducing-valve in our online shop.
