3/2 way solenoid valve

3/2 way solenoid valve - the right valve for any direction

The 3/2 way solenoid valve differs from the 2/2 way solenoid valve, in that is has an additional switching point, which can be controlled using an electromagnet. This means, that the anchor within the valve can take on two different positions when the solenoid is activated. When the solenoid is not active, depending on the version, the anchor can be pulled down. When activating the solenoid, the polarity pushes the anchor upwards. The solenoid requires power supply with either 230 volt AC voltage, or 24 volt DC voltage. Only one income power supply and two outlet pipes can be connected to the valve. Depending on whether the anchor is in the upward or downward position, two pipelines are connected for the media to flow through. The 3/2 way solenoid valve is usually used in engineering, medical engineering, food – or pharmaceutical industry, since it can be activated from as low as 0 bar.

Filter

Product configurator

3/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 24V DC Druck 2,0 - 10,0 bar

diameter:

DN 8

voltage:

24V DC

max. pressure:

2,0 - 10,0 bar

function:

spring chamber ventilation

NieRuf-Exchange
24 months warranty
€35.80*

€42.60 VAT included.

Delivery time: in stock

Express delivery:

3/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 230V AC Druck 2,0 - 10,0 bar

diameter:

DN 8

voltage:

230V AC

max. pressure:

2,0 - 10,0 bar

function:

spring chamber ventilation

NieRuf-Exchange
24 months warranty
€35.80*

€42.60 VAT included.

Delivery time: in stock

Express delivery:

3/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 12V DC Druck 2,0 - 10,0 bar

diameter:

DN 8

voltage:

12V DC

max. pressure:

2,0 - 10,0 bar

function:

spring chamber ventilation

24 months warranty
€35.80*

€42.60 VAT included.

Delivery time: in stock

Express delivery:

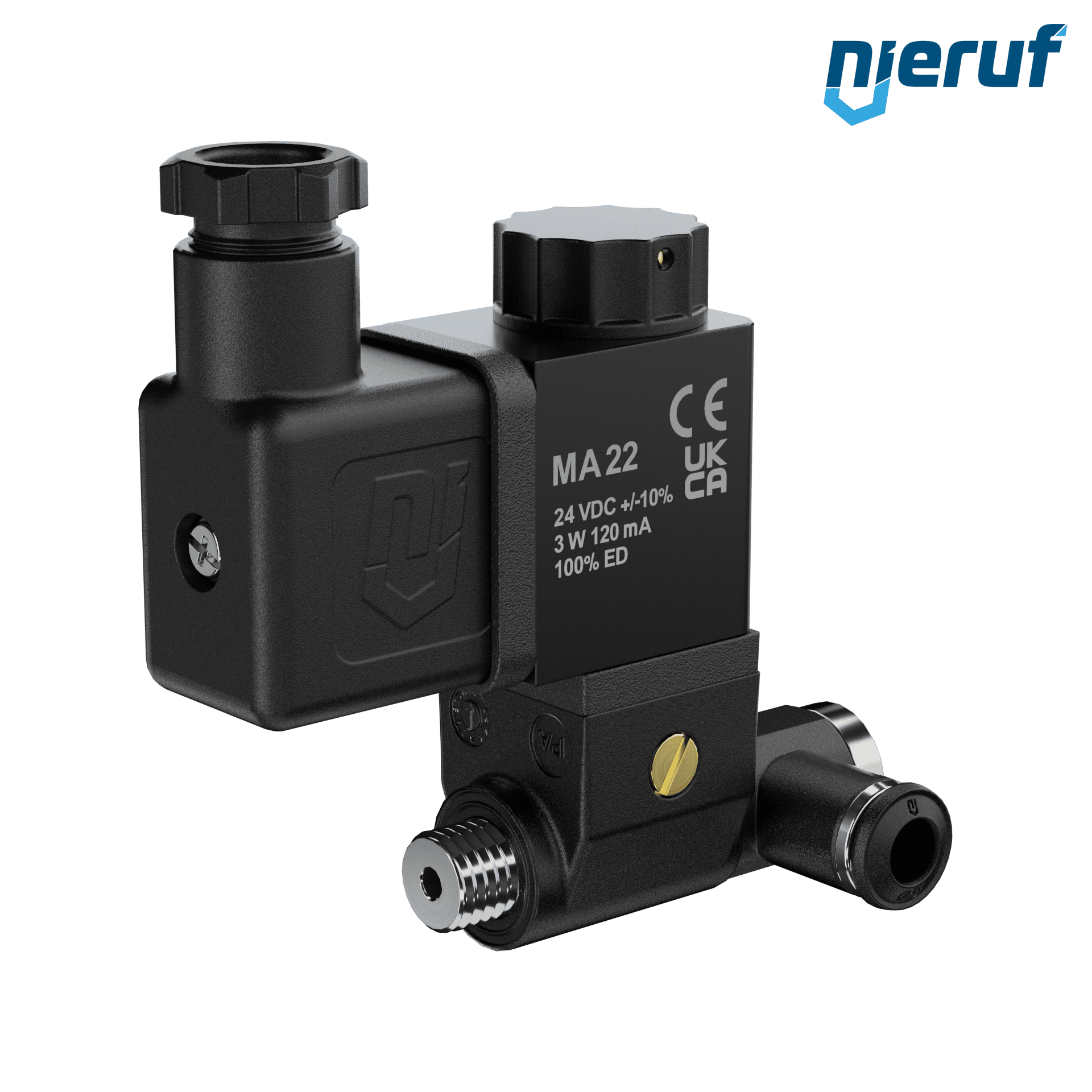

3/2-solenoid valve output: G 1/8" Inch input: G 1/8" inch plastic polyamid 24V DC NC - normally closed direct acting pressure air -0,9 - 10 bar

diameter:

DN6

control:

direct acting

voltage:

24V DC

max. pressure:

-0,9 - 10 bar

function:

NC - normally closed

24 months warranty
€42.60*

€50.69 VAT included.

Delivery time: in stock

Express delivery:

3/2 ways Solenoid valve G 1/4" Inch DN2,5 made of stainless steel 1.4305 seal FKM direct acting nominal voltage 24V DC pressure 0-6 bar

diameter:

DN2,5

control:

direct acting

voltage:

24V DC

max. pressure:

0-6 bar

function:

NC - normally closed

24 months warranty
Certified
€127.10*

€151.25 VAT included.

Delivery time: 3 - 5 working days

3/2 ways Solenoid valve G 1/4" Inch DN1,0 made of brass seal EPDM direct acting nominal voltage 230V 50Hz pressure 0-20 bar

diameter:

DN1,0

control:

direct acting

voltage:

230V 50Hz

max. pressure:

0-20 bar

function:

NC - normally closed

24 months warranty
Certified
€111.00*

€132.09 VAT included.

Delivery time: 3 - 5 working days

3/2 ways Solenoid valve G 1/8" Inch DN1,0 made of stainless steel 1.4305 seal FKM direct acting nominal voltage 230V 50Hz pressure 0-12 bar

diameter:

DN1,0

control:

direct acting

voltage:

230V 50Hz

max. pressure:

0-12 bar

function:

NC - normally closed

24 months warranty
Certified
€65.10*

€77.47 VAT included.

Delivery time: 3 - 5 working days

3/2 ways Solenoid valve G 1/4" Inch DN2,5 made of stainless steel 1.4305 seal EPDM direct acting nominal voltage 24V DC pressure 0-6 bar

diameter:

DN2,5

control:

direct acting

voltage:

24V DC

max. pressure:

0-6 bar

function:

NC - normally closed

24 months warranty
Certified
€124.50*

€148.16 VAT included.

Delivery time: 3 - 5 working days

3/2 way solenoid valve from stainless steel or brass

The 3/2 way solenoid valve is suited for both liquid and gaseous media. We supply valves with female thread in 1/8” or ¼”. The pressure range varies depending on the 3/2 way design and power supply from 0 to a maximum of 12 bar. The valves need to be used with 230 volt AC or 24 volt DC. The sealing material used in these valves are FKM seals. Depending on what you need the valve for, our 3/2 way solenoid valves are made of stainless steel or brass. The stainless steel version is ideally suited for aggressive media. The 3/2 way solenoid valves are directly controlled and closed when currentless. Find more information on the KV value, the voltage tolerance, the protection class of the appliance socket and much more on the data sheets in our download section.

Indiviual 3/2 way solenoid valves tailored to your needs

You could not find the right 3/2 way solenoid valve in our shop? No problem! We would love to offer you an individualized solenoid valve that is tailored to your application. We can provide 3/2 way solenoid valves with thread or flange connection in all common sized, but also in individualized sizes. Also, we are pleased to offer you 3/2 way solenoid valves with special voltage or with 110 volt for the North American market. Even force controlled or servo-operated valves are no problem for us. No matter what kind of solenoid valve you need, we would love to help you find the right one” Please feel free to use our contact sheet, send an email to us..
