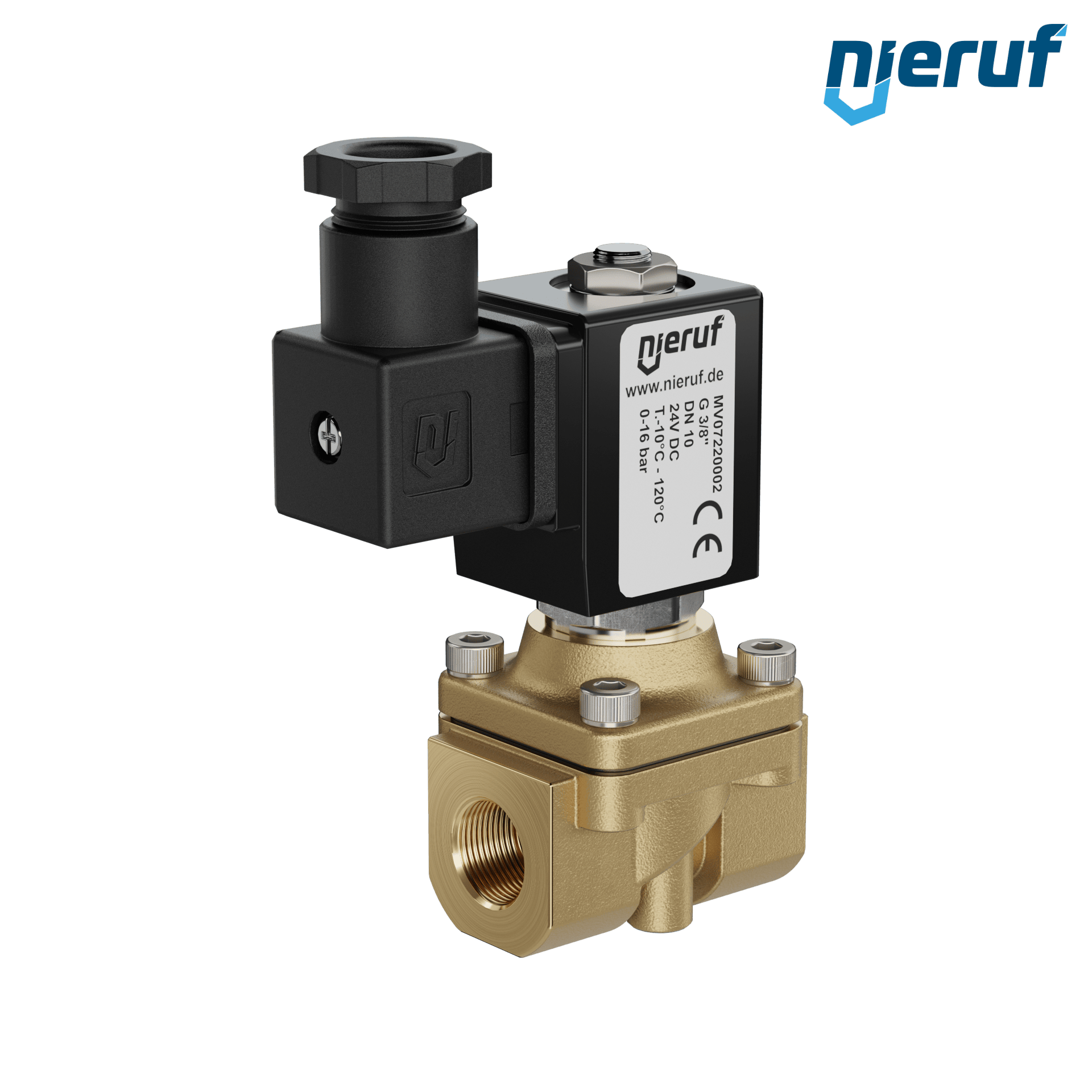

2/2 Ways Solenoid valve G 3/8" Inch DN10 made of brass seal FKM force pilot operated nominal voltage 24V DC pressure 0.0 - 16 bar
diameter:
DN10
control:
force pilot operated
voltage:
24V DC
max. pressure:
0.0 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1/4" Inch DN 6.0 made of brass seal NBR direct acting nominal voltage 24V DC pressure 0 - 4.8 bar
diameter:
DN 6.0
control:
direct acting
voltage:
24V DC
max. pressure:
0 - 4.8 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1 1/2" Inch DN40 made of brass seal EPDM servo controlled nominal voltage 24V DC pressure 0.5 - 16 bar
diameter:
DN40
control:
servo controlled
voltage:
24V DC
max. pressure:
0.5 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1/4" Inch DN 6.0 made of brass seal FKM direct acting nominal voltage 24V DC pressure 0 - 4.8 bar
diameter:
DN 6.0
control:
direct acting
voltage:
24V DC
max. pressure:
0 - 4.8 bar
function:
NC - normally closed

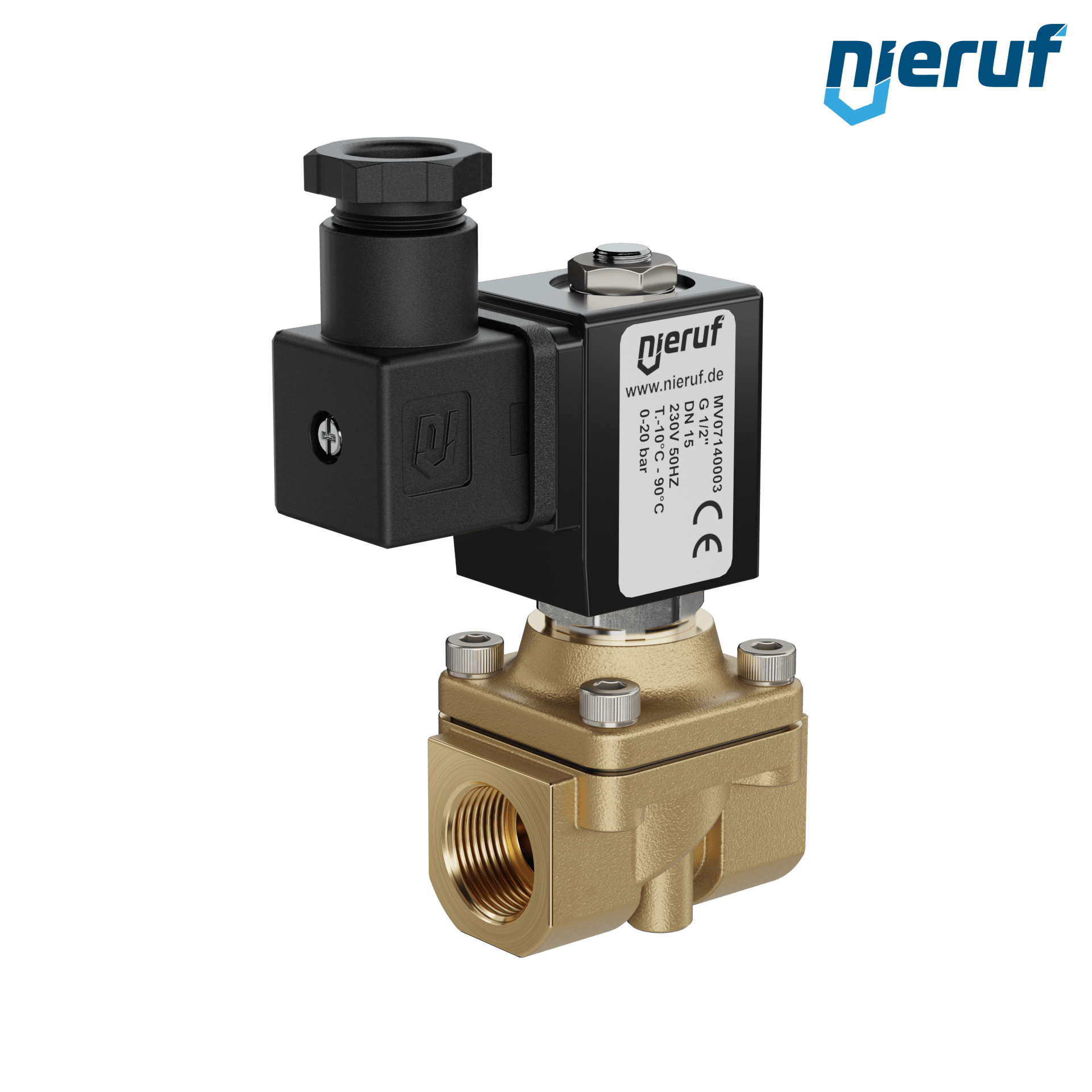

2/2 Ways Solenoid valve G 1/2" Inch DN10 made of brass seal FKM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 20 bar
diameter:
DN10
control:
force pilot operated
voltage:
230V 50Hz
max. pressure:
0.0 - 20 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1/4" Inch DN10 made of brass seal FKM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 20 bar
diameter:
DN10
control:
force pilot operated
voltage:
230V 50Hz
max. pressure:
0.0 - 20 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 2" Inch DN50 made of brass seal NBR servo controlled nominal voltage 230V 50Hz pressure 0.5 - 16 bar
diameter:
DN50
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.5 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 3/8" Inch DN10 made of brass seal EPDM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 20 bar
diameter:
DN10
control:
force pilot operated
voltage:
230V 50Hz
max. pressure:
0.0 - 20 bar
function:
NC - normally closed
Solenoid valve G 1/4" Inch DN 8.0 made of brass seal NBR servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar
diameter:
DN 8.0
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.1 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 3/8" Inch DN16 made of brass seal FKM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 10 bar
diameter:
DN16
control:
force pilot operated
voltage:
230V 50Hz
max. pressure:
0.0 - 10 bar
function:
NC - normally closed

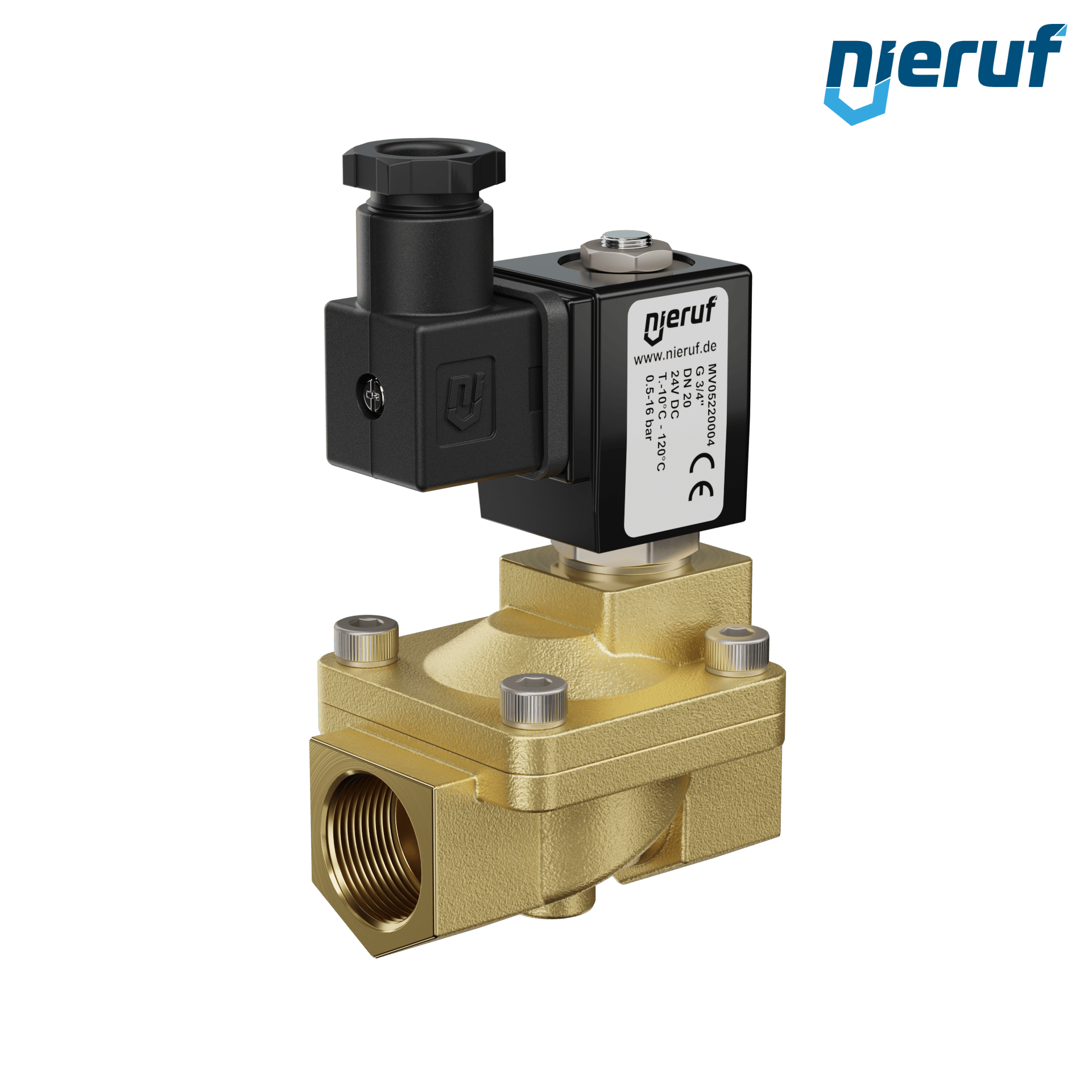

2/2 Ways Solenoid valve G 3/4" Inch DN20 made of brass seal EPDM force pilot operated nominal voltage 24V DC pressure 0.0 - 8 bar
diameter:
DN20
control:
force pilot operated
voltage:
24V DC
max. pressure:
0.0 - 8 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1/2" Inch DN10 made of brass seal EPDM force pilot operated nominal voltage 24V DC pressure 0.0 - 16 bar
diameter:
DN10
control:
force pilot operated
voltage:
24V DC
max. pressure:
0.0 - 16 bar
function:
NC - normally closed

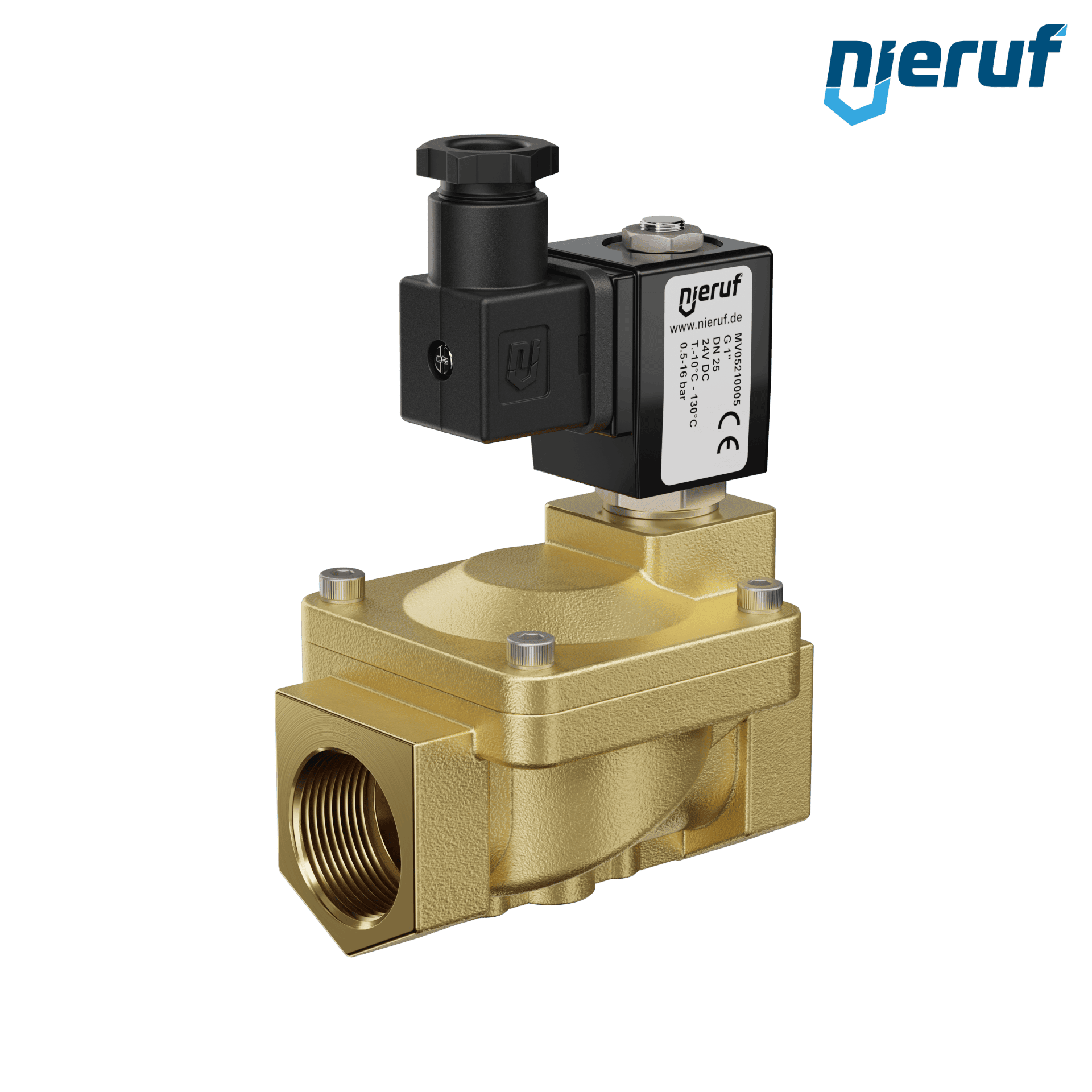

2/2 Ways Solenoid valve G 1" Inch DN25 made of brass seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.5 - 16 bar
diameter:
DN25
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.5 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 3/8" Inch DN16 made of brass seal FKM force pilot operated nominal voltage 24V DC pressure 0.0 - 8 bar
diameter:
DN16
control:
force pilot operated
voltage:
24V DC
max. pressure:
0.0 - 8 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 3/8" Inch DN13.0 made of brass seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.5 - 16 bar
diameter:
DN13.0
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.5 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1/2" Inch DN13.0 made of brass seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.5 - 16 bar
diameter:
DN13.0
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.5 - 16 bar
function:
NC - normally closed
Solenoid valve G 1/4" Inch DN 8.0 made of brass seal FKM servo controlled nominal voltage 24V DC pressure 0.1 - 10 bar
diameter:
DN 8.0
control:
servo controlled
voltage:
24V DC
max. pressure:
0.1 - 10 bar
function:
NC - normally closed
Solenoid valve G 1/2" Inch DN 8.0 made of brass seal NBR servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar
diameter:
DN 8.0
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.1 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1 1/4" Inch DN32 made of brass seal EPDM servo controlled nominal voltage 24V DC pressure 0.5 - 16 bar
diameter:
DN32
control:
servo controlled
voltage:
24V DC
max. pressure:
0.5 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1 1/4" Inch DN32 made of brass seal EPDM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 10 bar
diameter:
DN32
control:
force pilot operated
voltage:
230V 50Hz
max. pressure:
0.0 - 10 bar
function:
NC - normally closed
Solenoid valve G 3/8" Inch DN 8.0 made of brass seal EPDM servo controlled nominal voltage 24V DC pressure 0.1 - 10 bar
diameter:
DN 8.0
control:
servo controlled
voltage:
24V DC
max. pressure:
0.1 - 10 bar
function:
NC - normally closed
Solenoid valve G 1/4" Inch DN 8.0 made of brass seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar
diameter:
DN 8.0
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.1 - 16 bar
function:
NC - normally closed
2/2 Ways Solenoid valve G 1/4" Inch DN10 made of brass seal NBR force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 20 bar
diameter:
DN10
control:
force pilot operated
voltage:
230V 50Hz
max. pressure:
0.0 - 20 bar
function:
NC - normally closed
Solenoid valve G 1/4" Inch DN 8.0 made of brass seal FKM servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar
diameter:
DN 8.0
control:
servo controlled
voltage:
230V 50Hz
max. pressure:
0.1 - 16 bar
function:
NC - normally closed
