5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 12V DC

NA02020001
quantity (pcs.):
30.50€ * 36.30€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: at stock

Express shipping:

Shipping on: Thursday, 28. January
Guaranteed delivery until Friday, 29. January, 12 Uhr:
order within 4 hours & 39 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

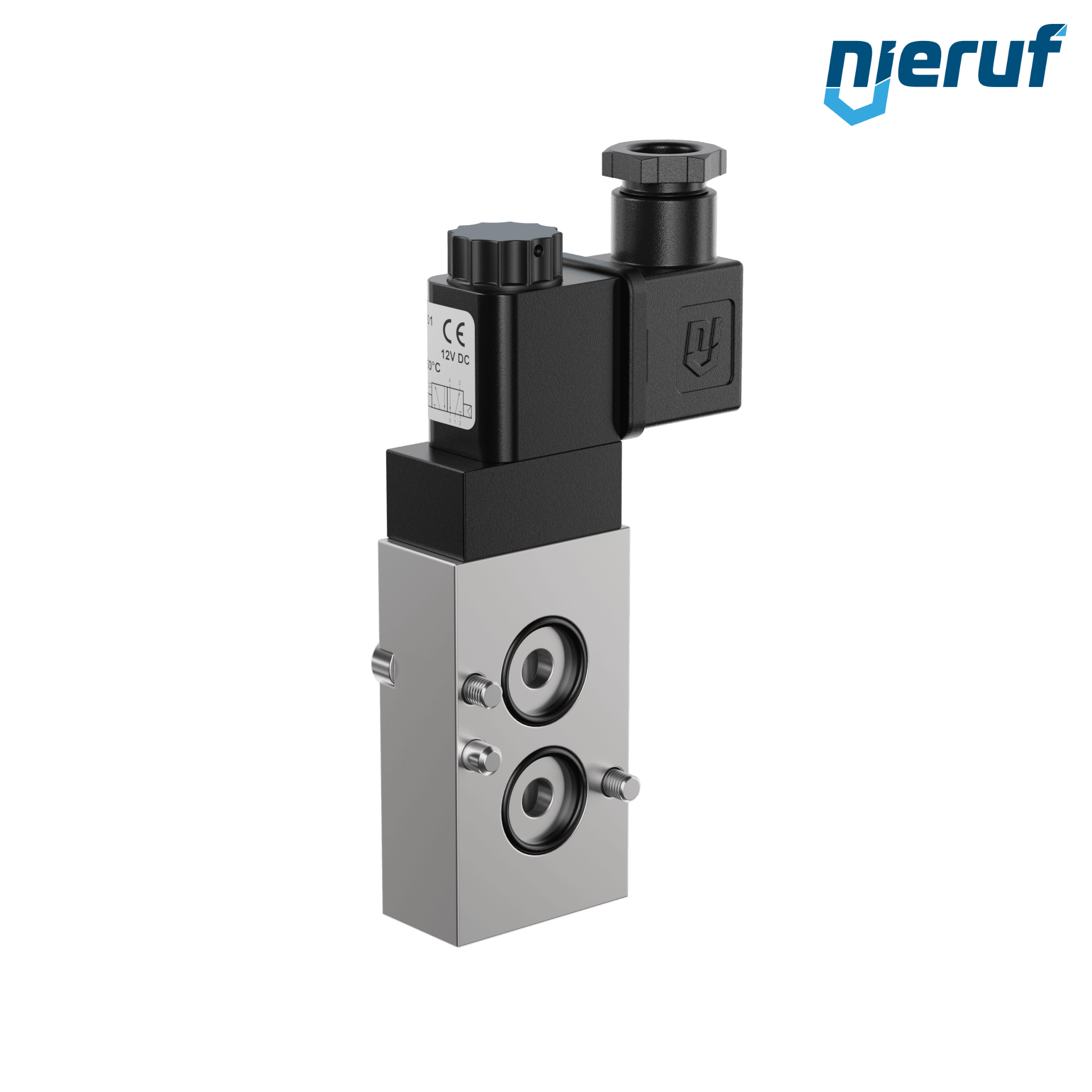

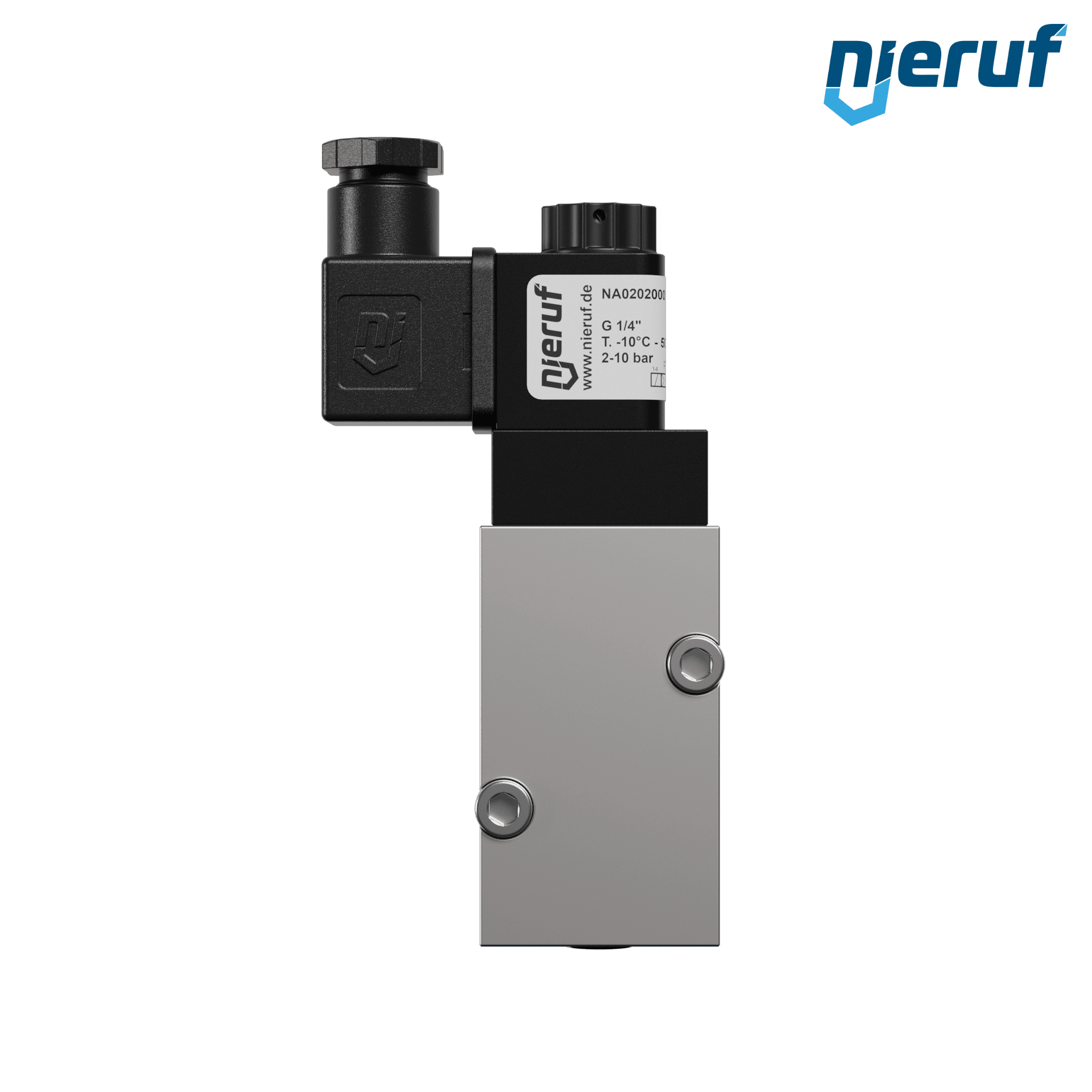

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 12V DC
5/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 12V DC Druck 2,0 - 10,0 bar
design: Namur-valve with spring chamber ventilation
diameter: DN 8
connection: G 1/4" Inch
type of connection: Namur
Type of design: 5/2 ways
flow rate: 1250 l/min
material: aluminium
seal: NBR
voltage: 12V DC
media: pressure air
temperature ambiente: max up to +80°C
max. pressure: 2,0 - 10,0 bar
installation position: any position, solenoid valve preferably upwards
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 12V DC

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 12V DC
