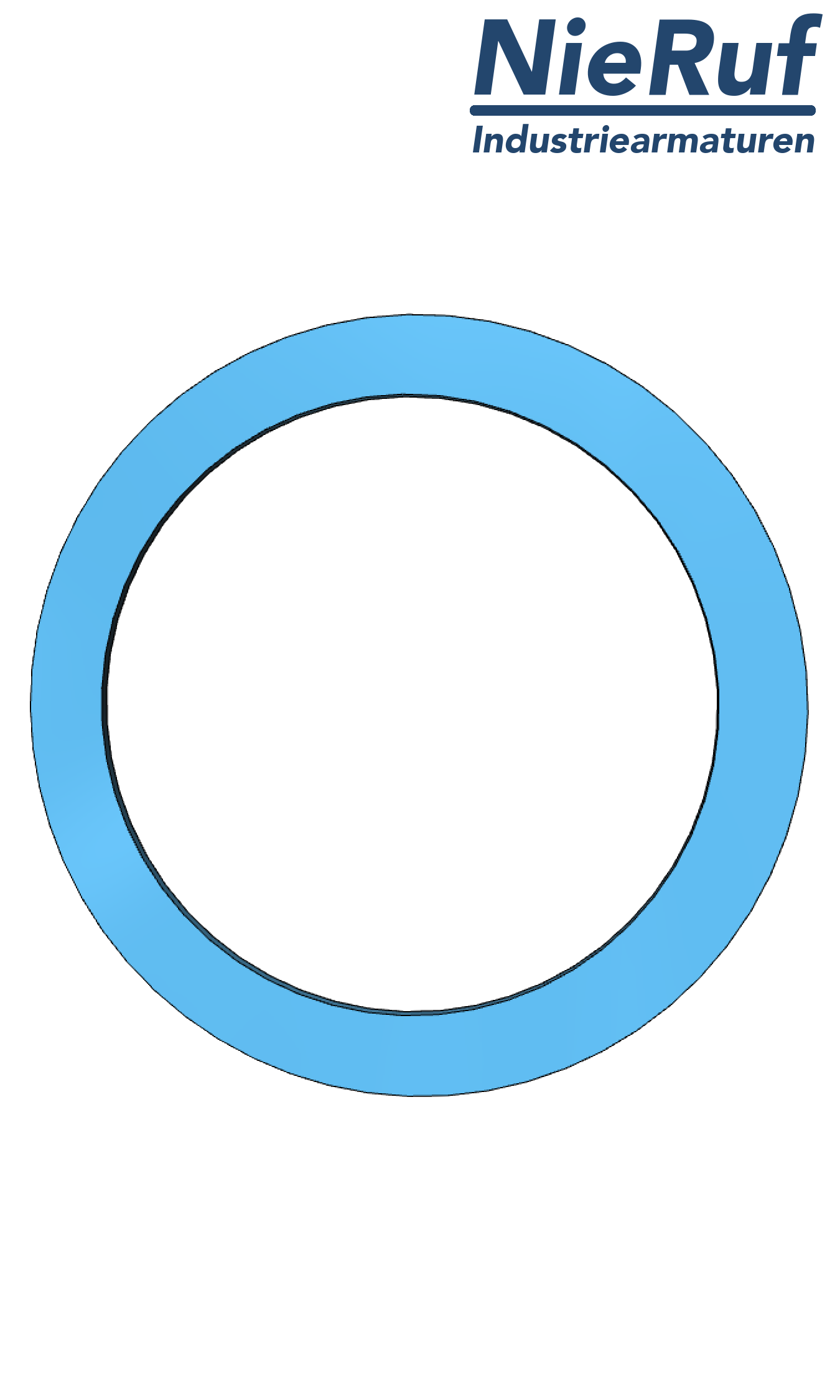

flange seal DN125 PN10/16 141x192x2 Klingersil C 4400

FD01000112
quantity (pcs.):
3.80€ * 4.41€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Wednesday, 21. October
Guaranteed delivery until Thursday, 22. October, 12 Uhr:
order within 16 hours & 36 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
flange seal DN125 192x141x2 PN10/16 made of Klingersil C 4400 acc. rule EN1514-1 IBC
diameter: DN125
connection: PN10/16
material: Klingersil C 4400
norm: EN1514-1
form: IBC

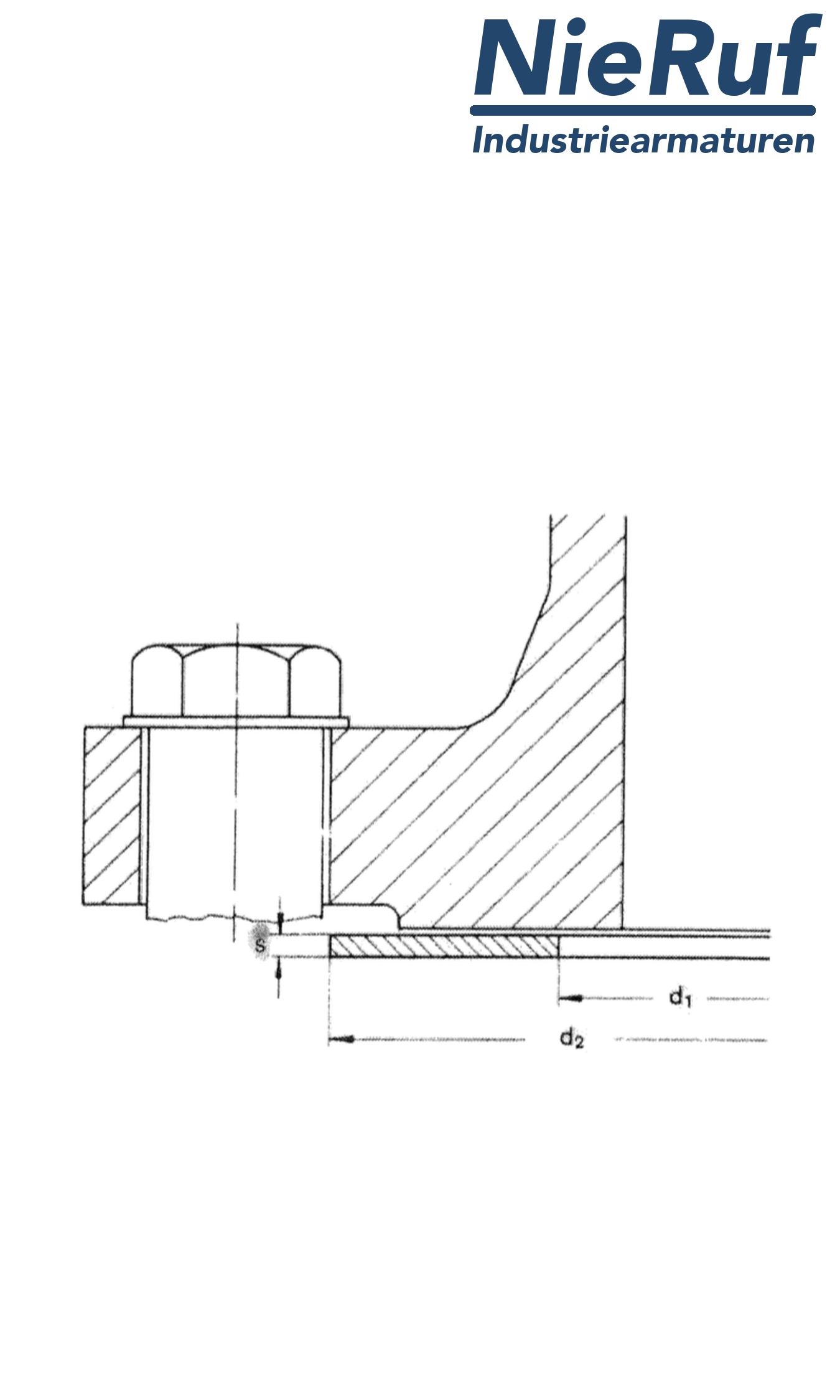

Design: flange seal
d1: 141
d2: 192
S: 2
Dimension tolerance: acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm
temerature: -100°C up to +160°C, max. +400°C with 0 bar pressure
approval: DVGW, BAM, TA-Luft, ÖVGW, SVGW
suitable for: oil, gas, steam
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
