Vent Valves as Protection against Underpressure

A vent valve protects containers, pipeline systems or tanks from underpressure via targeted airing and therefore prevents damage such as deformation and contraction. The vent valve constantly synchronises the previously defined differential value between atmospheric pressure and internal pressure within the container with the current differential pressure. Should it fall below the set value, the vent opens and draws air into the tank, container or pipeline until the pressure fulfils the desired differential value. In order for your vent valves to function reliably, you must maintain them regularly and keep their vent openings free of dust and dirt at all times. Only then are they perfectly protected against underpressure damages.

Filter

Product configurator

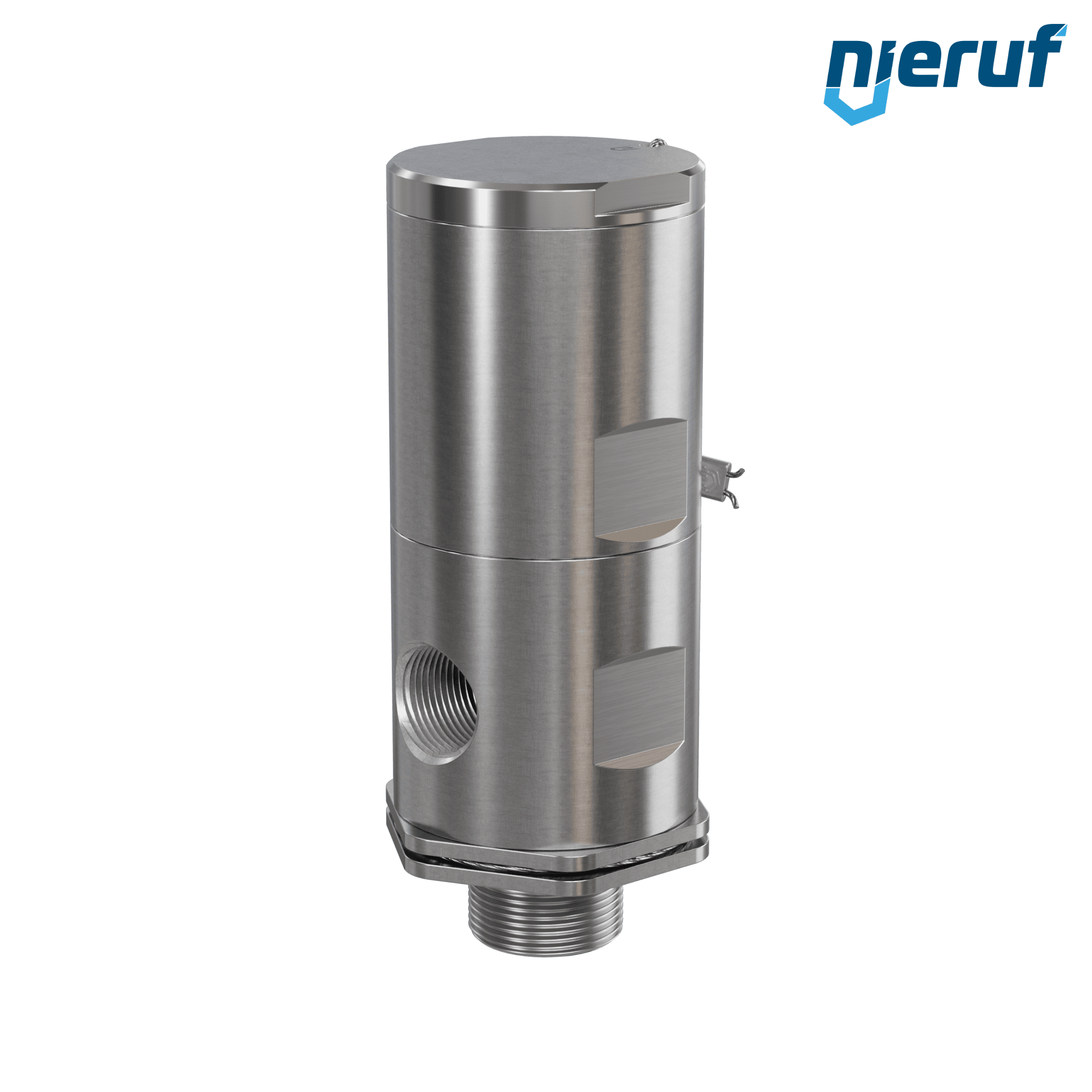

vent-valve 3/4" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -100 to -800 mbar, adjustable made of stainless steel 1.4404

diameter:

3/4" inch

connection:

male screw threaded BSP-P

set pressure:

-100 to -800 mbar, adjustable

material:

stainless steel 1.4404

seal:

PTFE

NieRuf-Exchange
24 months warranty
€297.00*

€353.43 VAT included.

Delivery time: in stock

Express delivery:

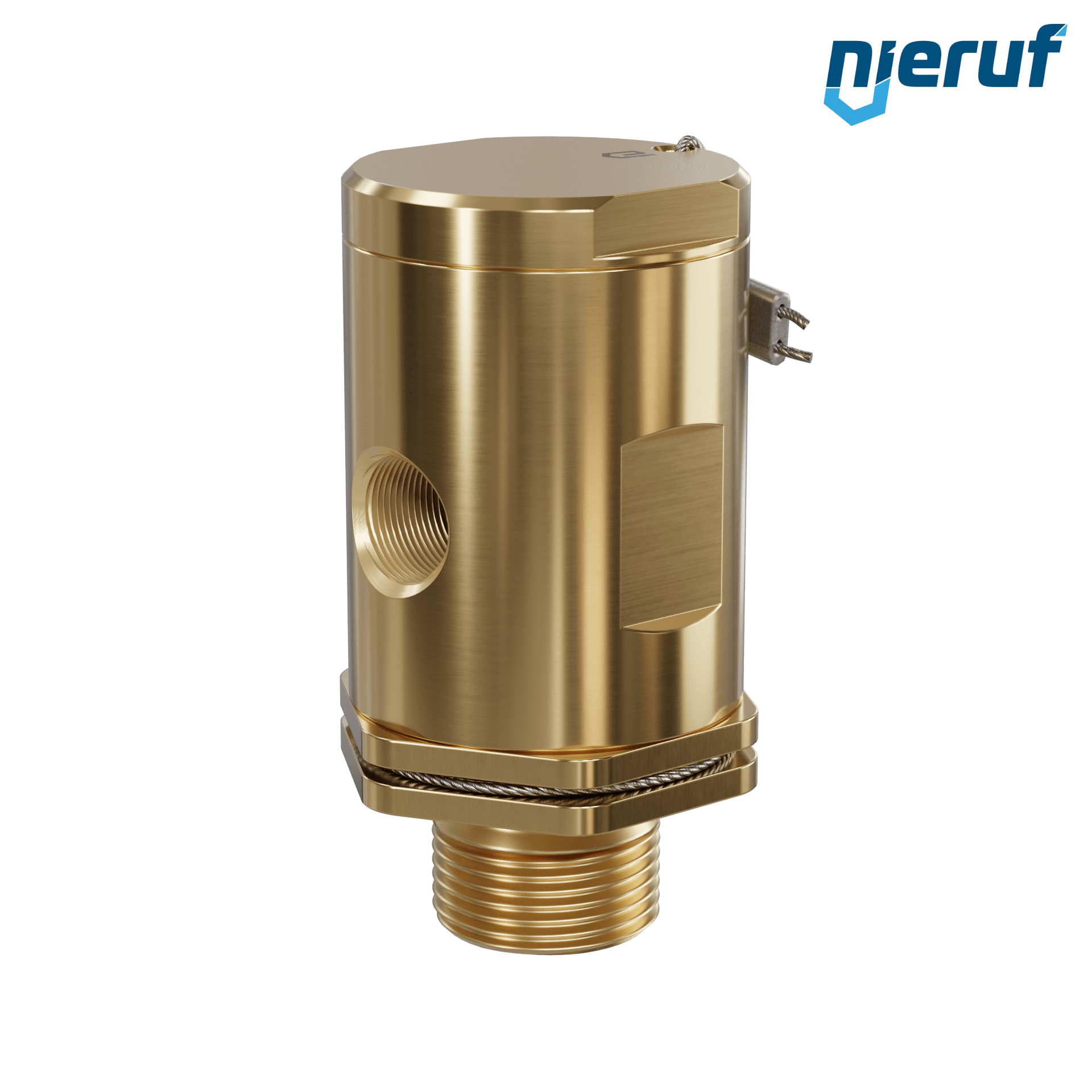

vent-valve 1/2" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -6 mbar made of brass CW617N

diameter:

1/2" inch

connection:

male screw threaded BSP-P

set pressure:

-6 mbar

material:

brass CW617N

seal:

PTFE

24 months warranty
€103.20*

€122.81 VAT included.

Delivery time: in stock

Express delivery:

vent-valve 1/2" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -100 to -800 mbar, adjustable made of stainless steel 1.4404

diameter:

1/2" inch

connection:

male screw threaded BSP-P

set pressure:

-100 to -800 mbar, adjustable

material:

stainless steel 1.4404

seal:

PTFE

NieRuf-Exchange
24 months warranty
€255.80*

€304.40 VAT included.

Delivery time: in stock

Express delivery:

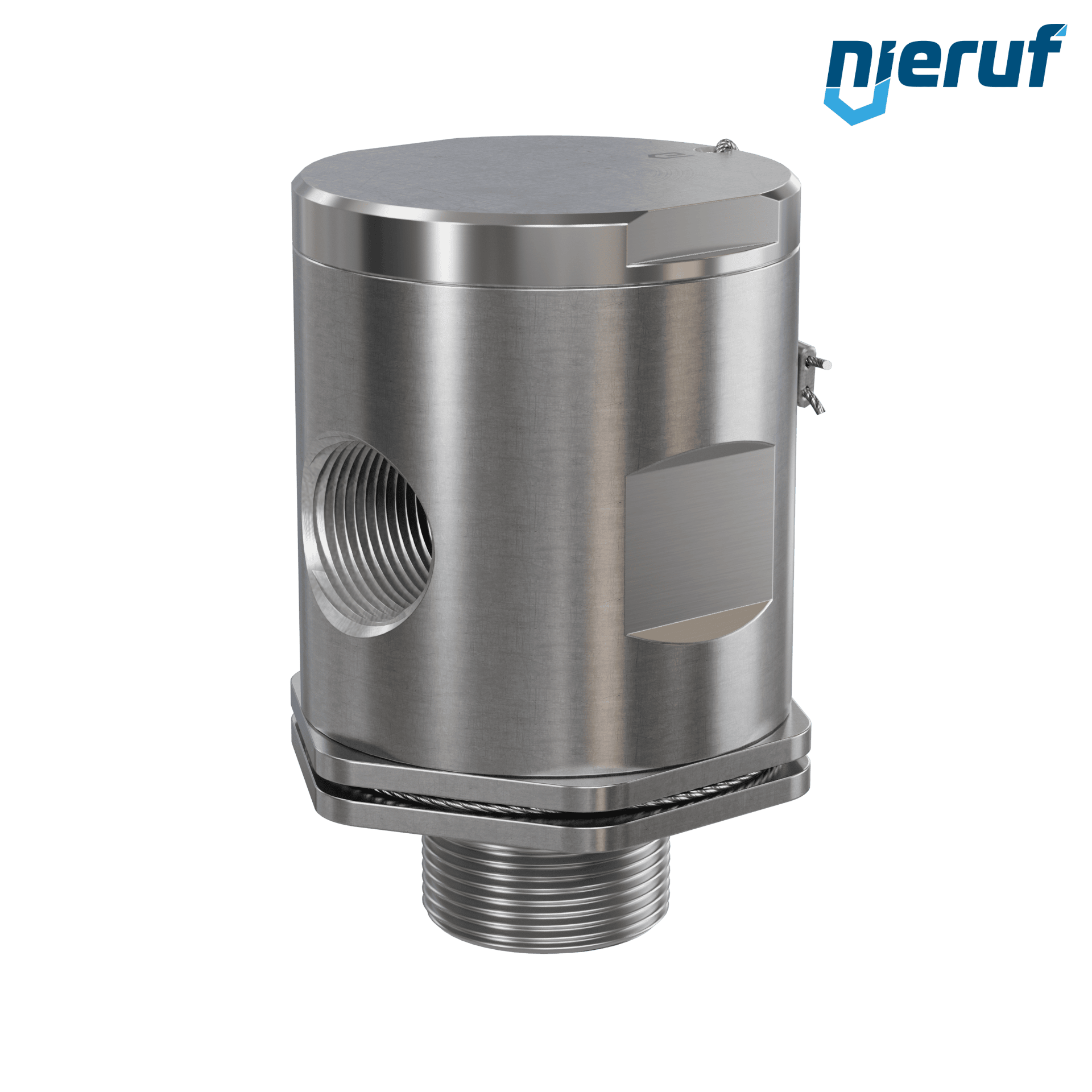

vent-valve 3/4" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -6 mbar made of stainless steel 1.4404

diameter:

3/4" inch

connection:

male screw threaded BSP-P

set pressure:

-6 mbar

material:

stainless steel 1.4404

seal:

PTFE

NieRuf-Exchange
24 months warranty
€203.40*

€242.05 VAT included.

Delivery time: in stock

Express delivery:

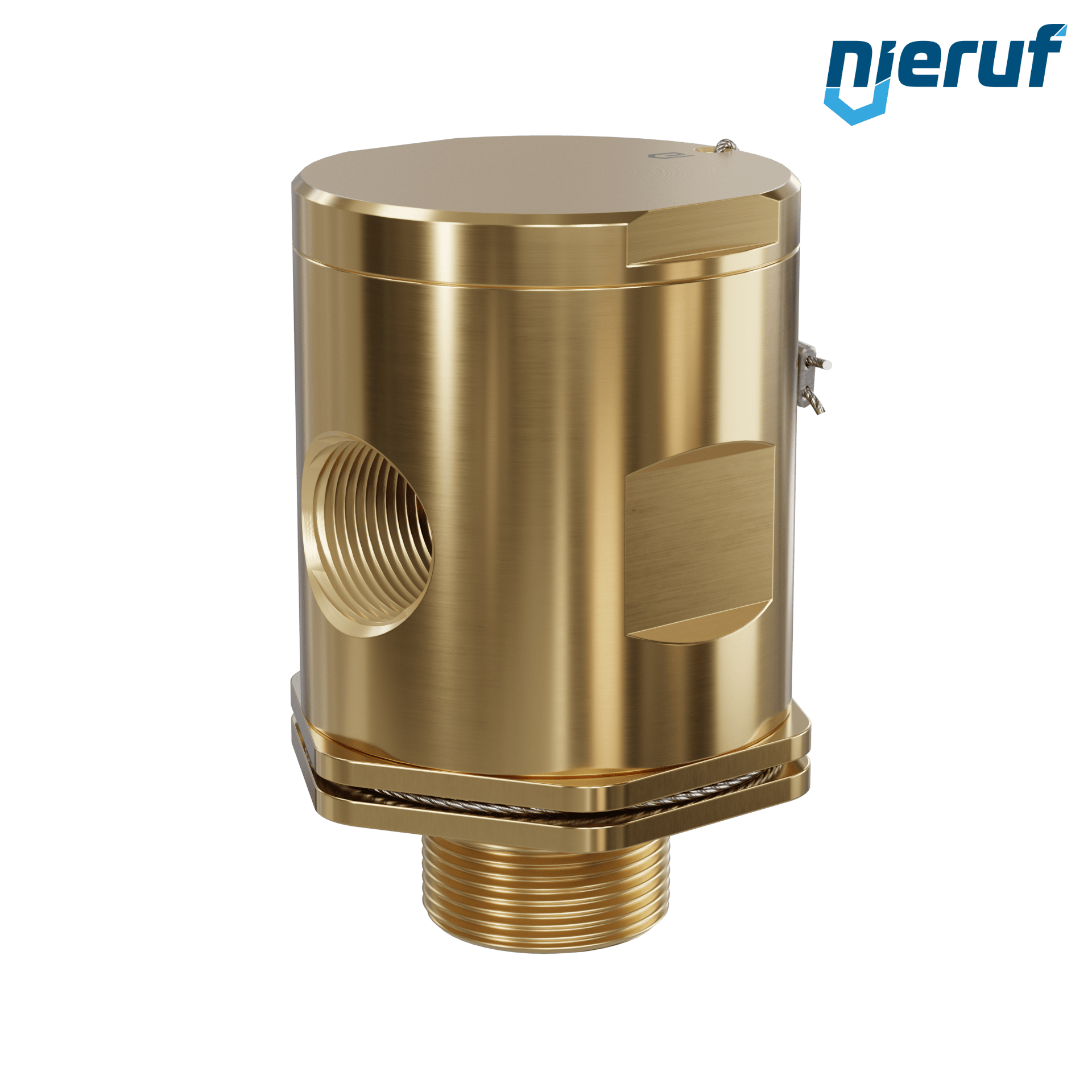

vent-valve 3/4" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -6 mbar made of brass CW617N

diameter:

3/4" inch

connection:

male screw threaded BSP-P

set pressure:

-6 mbar

material:

brass CW617N

seal:

PTFE

24 months warranty
€149.80*

€178.26 VAT included.

Delivery time: in stock

Express delivery:

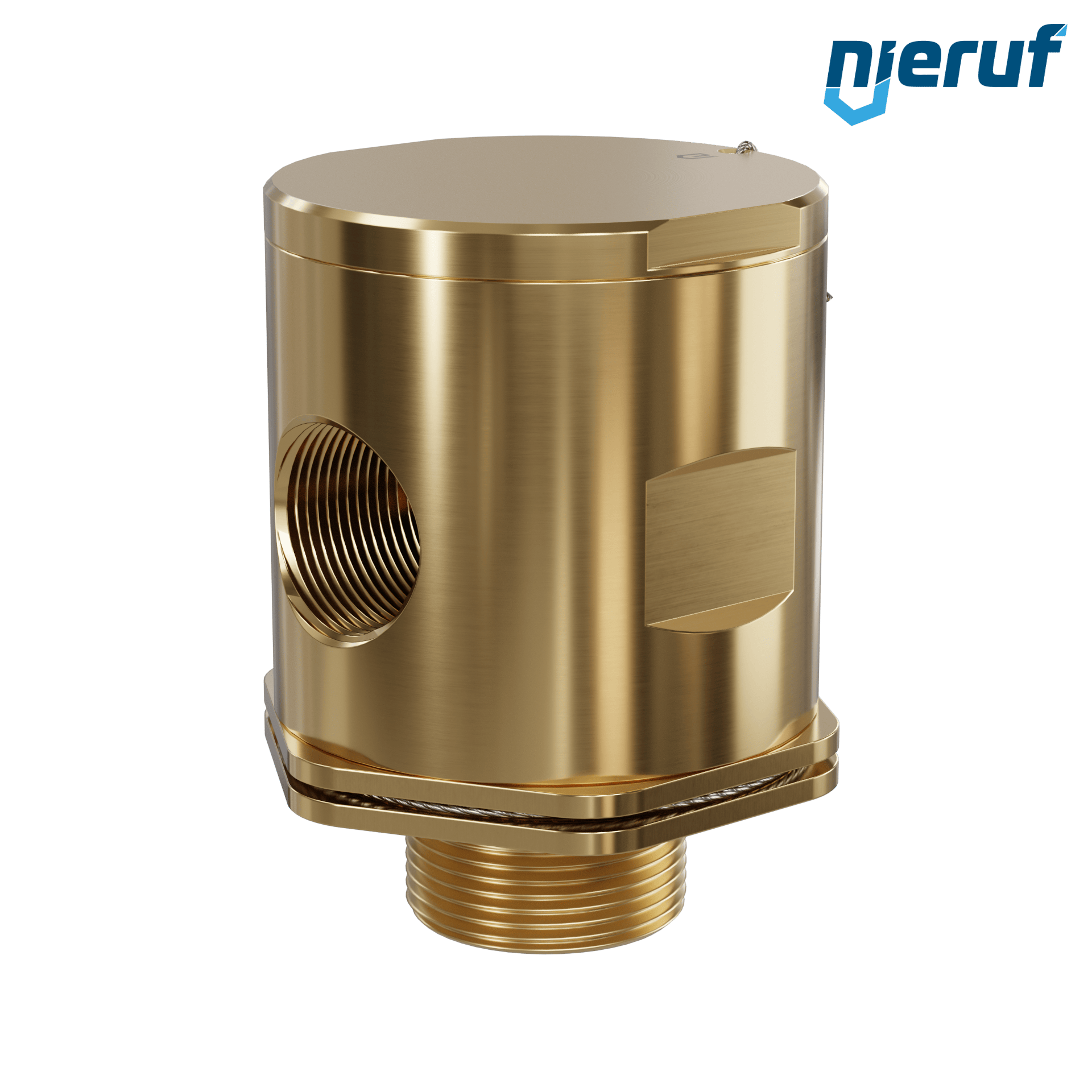

vent-valve 1" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -6 mbar made of brass CW617N

diameter:

1" inch

connection:

male screw threaded BSP-P

set pressure:

-6 mbar

material:

brass CW617N

seal:

PTFE

24 months warranty
€249.80*

€297.26 VAT included.

Delivery time: in stock

Express delivery:

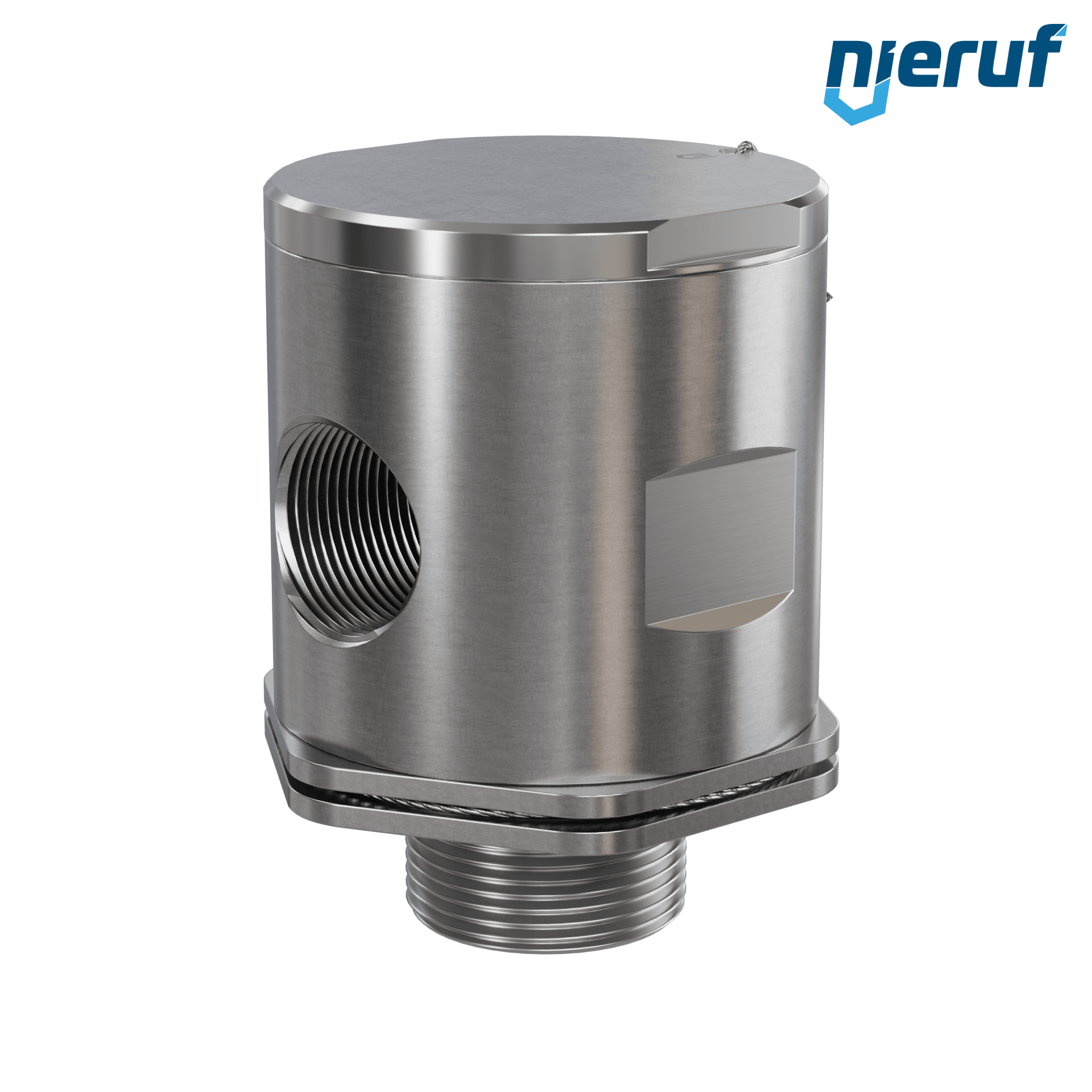

vent-valve 1" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -6 mbar made of stainless steel 1.4404

diameter:

1" inch

connection:

male screw threaded BSP-P

set pressure:

-6 mbar

material:

stainless steel 1.4404

seal:

PTFE

NieRuf-Exchange
24 months warranty
€253.80*

€0.00 VAT included.

Delivery time: 3 - 5 working days

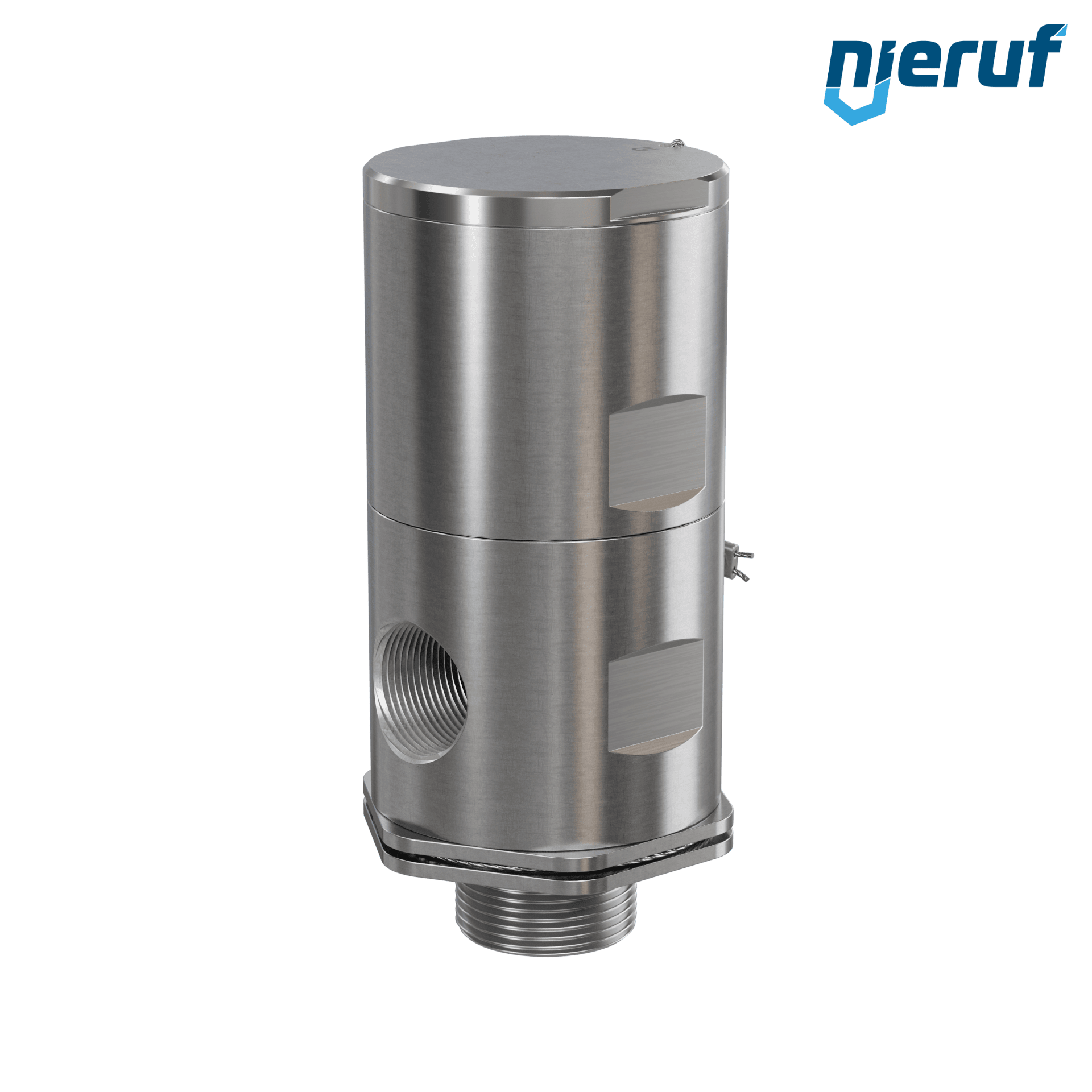

vent-valve 1" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -100 to -800 mbar, adjustable made of stainless steel 1.4404

diameter:

1" inch

connection:

male screw threaded BSP-P

set pressure:

-100 to -800 mbar, adjustable

material:

stainless steel 1.4404

seal:

PTFE

NieRuf-Exchange
24 months warranty
€328.00*

€390.32 VAT included.

Delivery time: 3 - 5 working days

No Protection from Overpressure

A vent valve only reacts to underpressure. In order to protect your pipelines, tanks and other containers against vacuum, we recommend the installation of a safety valve. When pressure gets too high, this gently discharges the excess and therefore prevents your pipelines, containers, silos, etc. from bursting.

Hard as Steel – Vent Valves Made from Stainless Steel

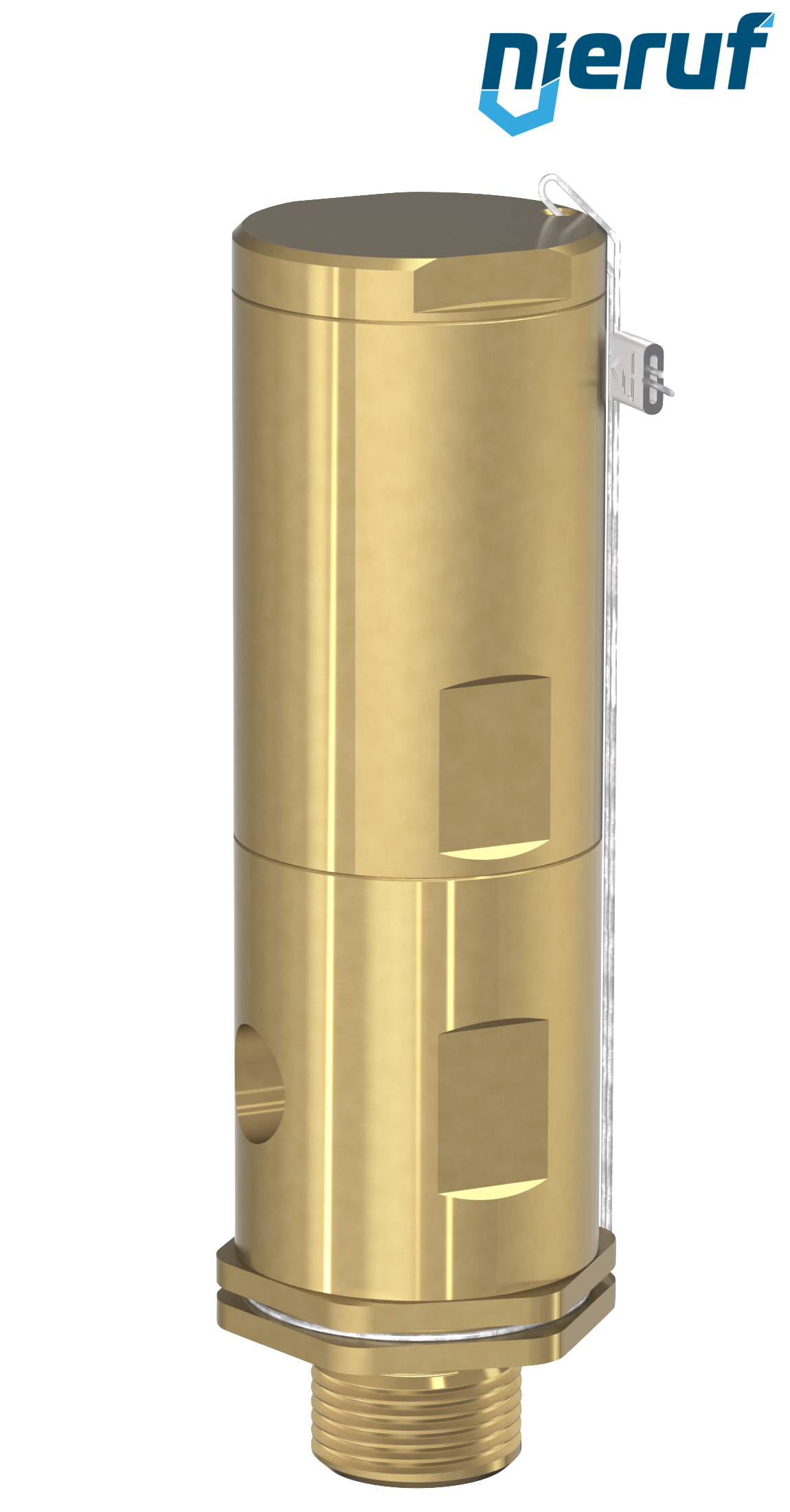

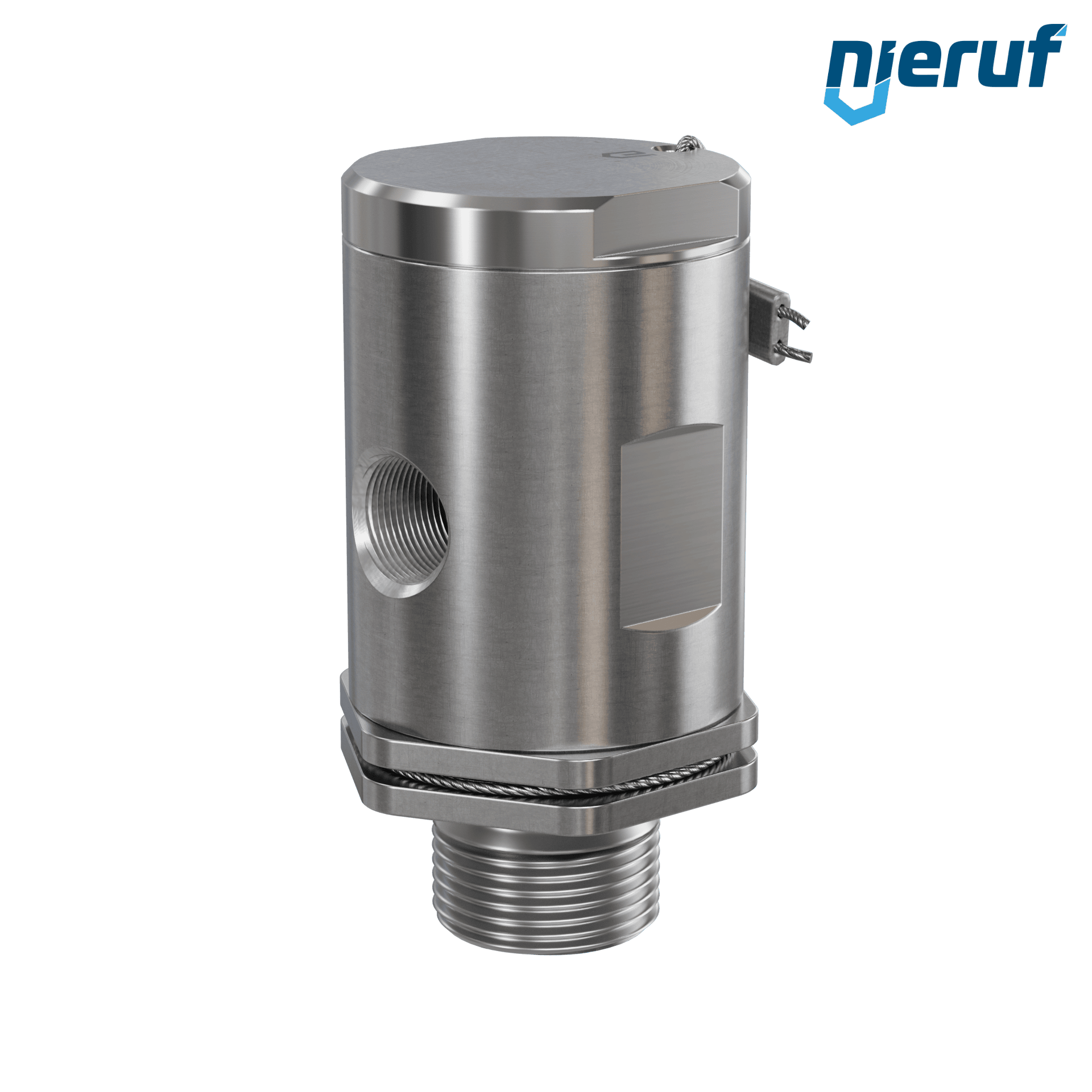

Our product range includes four different vent valves: Type VB01 and Type VB02 are optimised for utilisation with neutral, gaseous media such as air, gases and technical vapours and are made from high-quality, non-corrosive stainless steel 1.4404. It is sealed with a PTFE carbon seal. Concerning the male thread, the vents have the three nominal sizes ½", ¾" and 1". They are suitable for temperatures from a maximum low of -60°C to a maximum high of +225°C. Vent type VB01 is set at an opening pressure of -6mbar pressure difference. Type VB02, however, covers differential values between -100mbar and -800mbar. Types VB03 and VB04, on the other hand, are made from brass.

We are happy to support you with our expertise and experience in selecting the right vent valve for your pipeline system, tank or container. Just give us a ring or send an e-mail.
