vent-valve 1/2" inch VB02 -100 to -800 mbar, adjustable

vent-valve 1/2" inch VB02 -100 to -800 mbar, adjustable
quantity (pcs.):
224.70€ * 267.39€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: 3-5 working days

Uncomplicated NieRuf-Return Policy for this Product. Falls Sie sich in Nennweite, Druckbereich, Spannung oder Material geirrt haben, können Sie den original verpackten Artikel ohne Einlagerungsgebühren innerhalb von 21 Tagen zurückschicken. Weitere Details siehe AGBs Punkt 9 - 9.5.
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

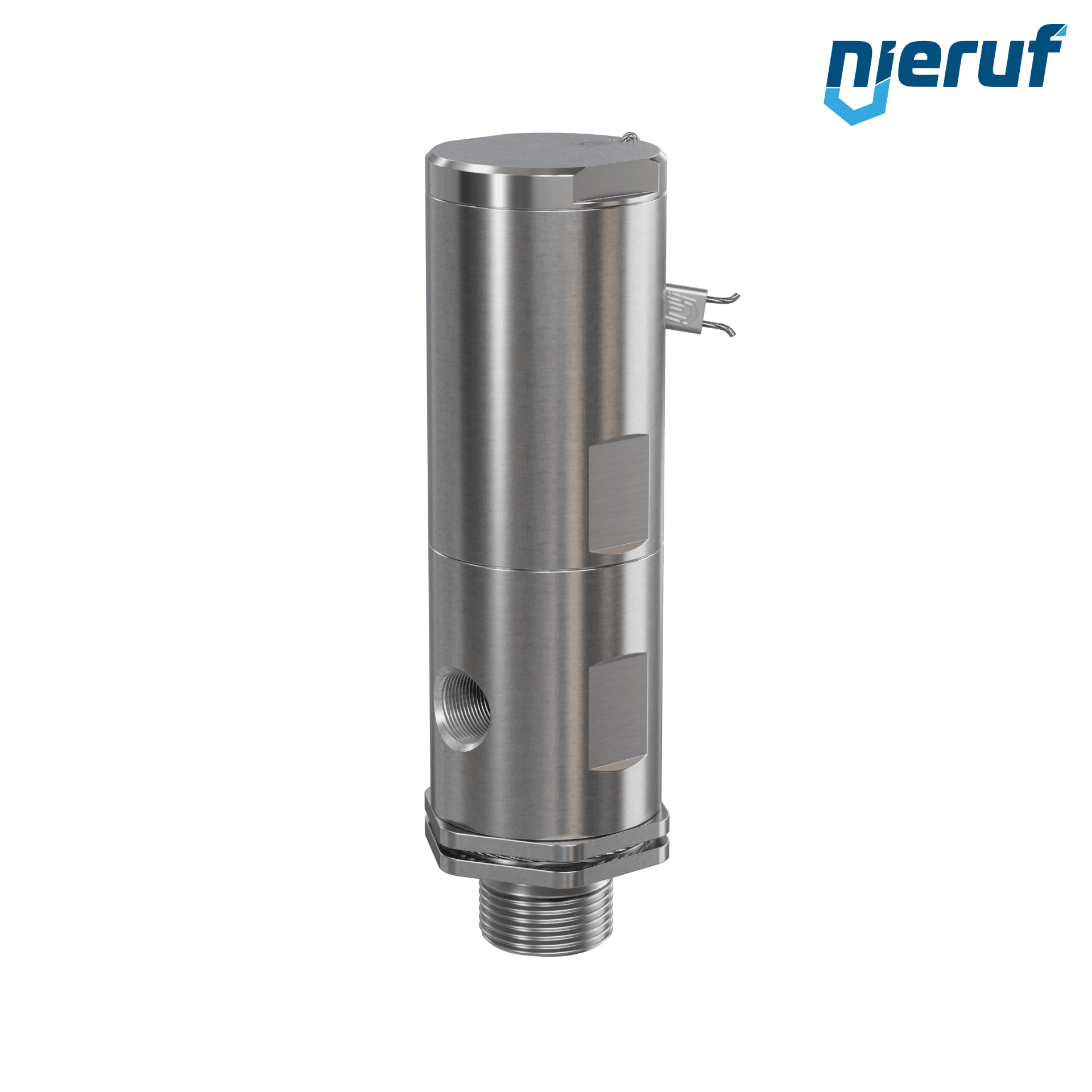

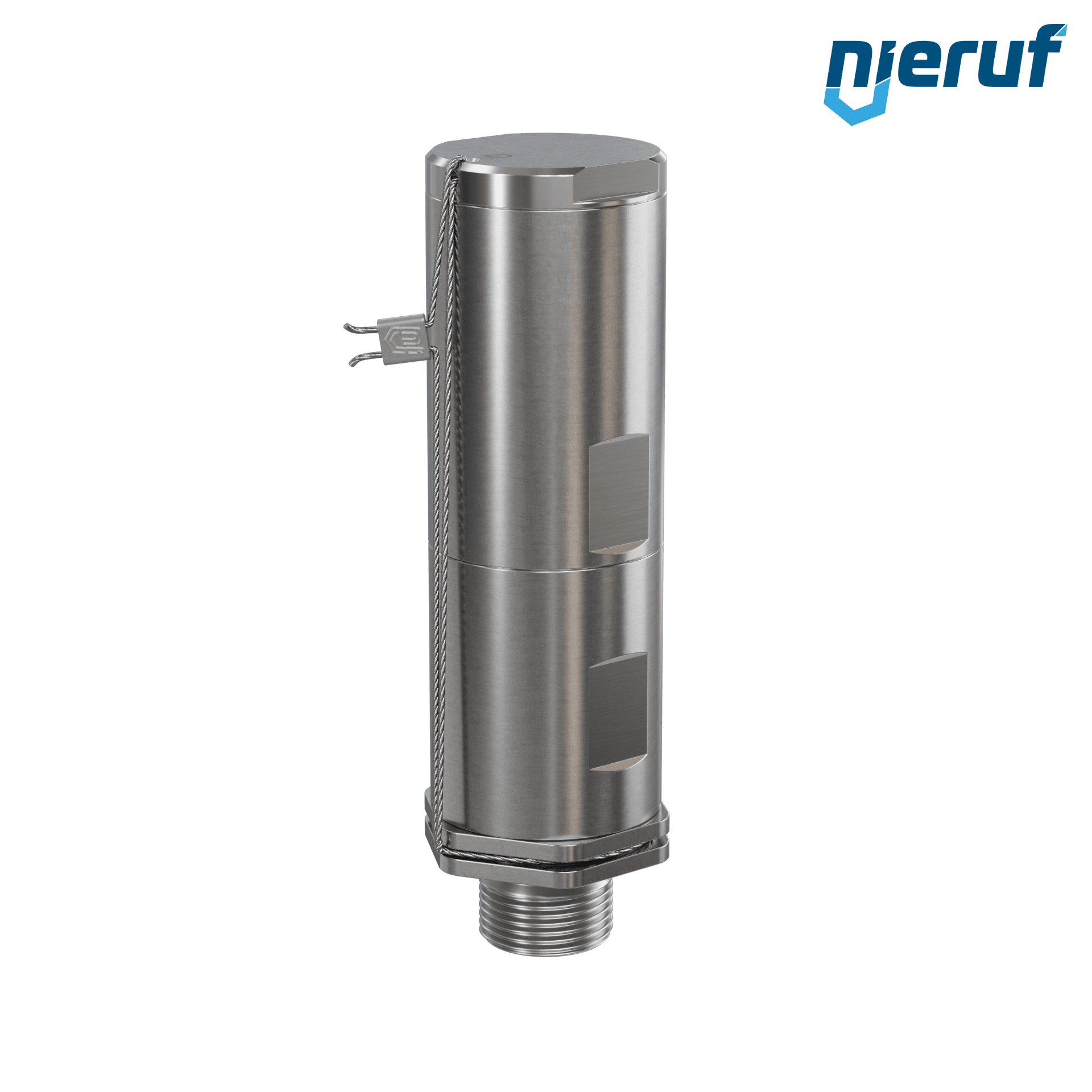

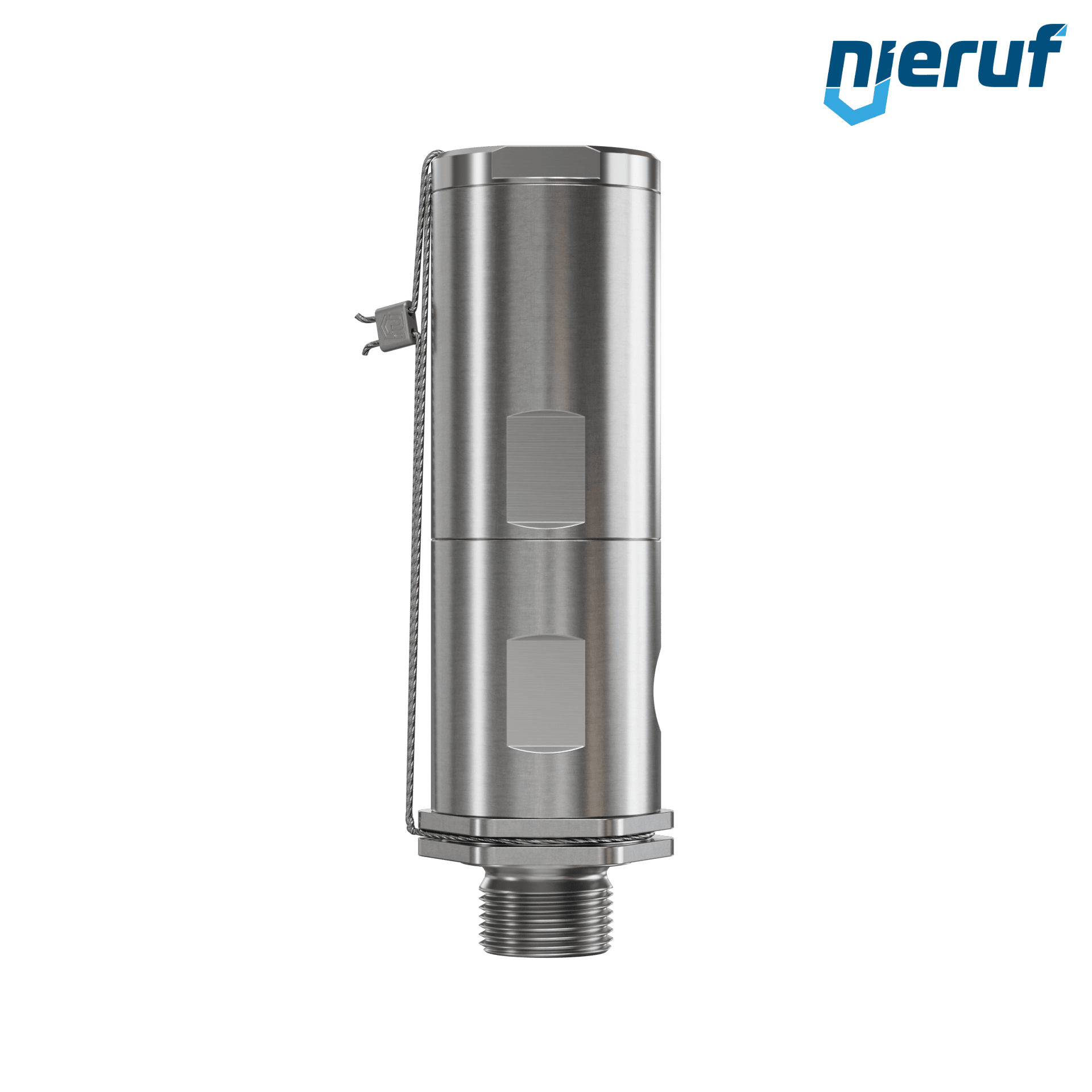

vent-valve 1/2" inch VB02 -100 to -800 mbar, adjustable
vent-valve 1/2" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -100 to -800 mbar, adjustable made of stainless steel 1.4404
diameter: 1/2" inch
connection: male screw threaded BSP-P
seal: PTFE
media: neutral gaseous media, steam
temperature: -60°C to +225°C
set pressure: -100 to -800 mbar, adjustable
material: stainless steel 1.4404
installation position: Vent-valves are used to protect tanks and vessels as well as other closed systems against vacuum.
vent-valve 1/2" inch VB02 -100 to -800 mbar, adjustable

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

vent-valve 1/2" inch VB02 -100 to -800 mbar, adjustable

datasheet 3D model
