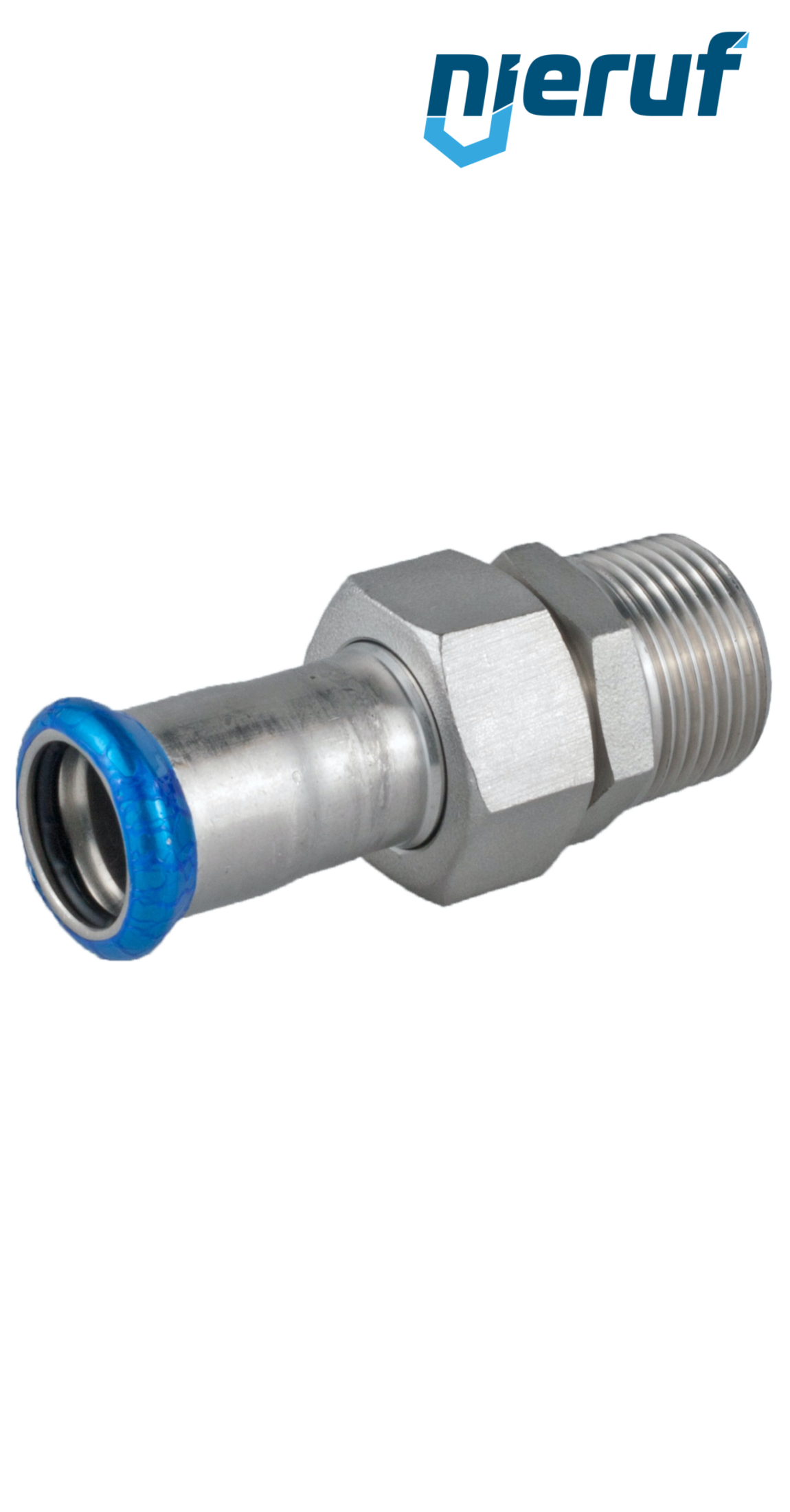

Union Coupling PF01-02 with press connection F DN20 - 22,0 mm, male thread 3/4" inch made of stainless steel for liquid and gaseous media
diameter 2:
3/4" inch
connection 2:
male thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Elbow 90° PF01-00 with press connection F x F DN32 - 35,0 mm made of stainless for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
design:
90°
Elbow 90° PF01-00 with press connection F x M DN20 - 22,0 mm made of stainless for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
design:
90°
T-fitting PF01-01 with press connection F x F DN20 - 22,0 mm, male thread 3/4" inch made of stainless steel for liquid and gaseous media
diameter 2:
3/4" inch
connection 2:
male thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
reducing piece PF01-07 with press connection M DN20 x DN15, made of stainless steel for liquid and gaseous media
diameter 2:
DN15 - 18,0 mm
connection 2:
F
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Wall plate Elbow 90° PF01-09 mit Pressanschluss F DN12 - 15,0 mm, female thread 1/2" inch aus stainless für flüssige & gasförmige Medien
diameter 2:
1/2" inch
connection 2:
female thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
design:
90°
Elbow 45° PF01-00 with press connection F x M DN32 - 35,0 mm made of stainless for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
design:
45°
Elbow 90° PF01-00 with press connection F x M DN32 - 35,0 mm made of stainless for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
design:
90°
T-fitting PF01-01 with press connection F x F DN20 - 22,0 mm made of stainless steel for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Female Coupling PF01-08 with press connection F DN20 - 22,0 mm, female thread 1" inch made of stainless steel for liquid and gaseous media
diameter 2:
1" inch
connection 2:
female thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
seal FPM/FKM PF01-11 DN25 - 28,0 mm, for liquid and gaseous media
material:
FPM/FKM
max. working pressure:
16 bar at +20°C
Male straight connector PF01-03 with press connection M DN12 - 15,0 mm, male thread 1/2" inch made of stainless steel for liquid and gaseous media
diameter 2:
1/2" inch
connection 2:
male thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Press Fitting Coupling PF01-06 F x F DN32 - 35,0 mm made of stainless steel for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Union Coupling PF01-02 F x F DN25 - 28,0 mm made of stainless steel for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Press Fitting Long Coupling PF01-06 F x F DN25 - 28,0 mm made of stainless steel for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Elbow 90° PF01-00 with press connection F x F DN12 - 15,0 mm made of stainless for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
design:
90°
seal EPDM PF01-11 DN40 - 42,0 mm, for liquid and gaseous media
material:
EPDM
max. working pressure:
16 bar at +20°C
seal EPDM PF01-11 DN25 - 28,0 mm, for liquid and gaseous media
material:
EPDM
max. working pressure:
16 bar at +20°C
seal FPM/FKM PF01-11 DN32 - 35,0 mm, for liquid and gaseous media
material:
FPM/FKM
max. working pressure:
16 bar at +20°C
Male straight connector PF01-03 with press connection M DN25 - 28,0 mm, male thread 1" inch made of stainless steel for liquid and gaseous media
diameter 2:
1" inch
connection 2:
male thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
Male straight connector PF01-03 with press connection M DN32 - 35,0 mm, male thread 1 1/4" inch made of stainless steel for liquid and gaseous media
diameter 2:
1 1/4" inch
connection 2:
male thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
T-fitting PF01-01 with press connection F x F DN12 - 15,0 mm made of stainless steel for liquid and gaseous media
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
seal EPDM PF01-11 DN12 - 15,0 mm, for liquid and gaseous media
material:
EPDM
max. working pressure:
16 bar at +20°C
Union Coupling PF01-02 with press connection F DN20 - 22,0 mm, male thread 1/2" inch made of stainless steel for liquid and gaseous media
diameter 2:
1/2" inch
connection 2:
male thread
material:
stainless steel 316 L
max. working pressure:
16 bar at +20°C
