Membrane valves for challenging areas of use

A membrane valve is a control valve that has some special features thanks to the internal membrane. For example, it is suitable for highly viscous media or aggressive chemical applications. The medium only comes into contact with the membrane and the valve body, all the mechanical parts are beneath the membrane and thus are protected from the medium. This is a valve type with low dead space, which is easy to clean and does not allow deposits, thereby preventing cross-contamination. The valves of series MB01 are available with casing material or either PP, PVC-U or PVDF. The valves of series MB02 are made from high quality stainless steel. Thanks to these materials, the valves can also be used in chemically aggressive applications, e.g. in the pharmaceuticals industry, hygiene and sterile technology, or the chemicals industry. The valves can be also be used in biotechnology, the drinks industry and the food sector, however, as well as in sludge, powder or paint processing. The valves can be made either with an internal thread, with adhesive/weld sleeve, adhesive/weld end nozzles, DIN or ANSI flanges.

Filter

Product finder

diaphragm valve PVC-U d25 adhesive connection EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 15.66 m3/h suitable for liquid and gaseous media

diameter:

d25

design:

diaphragm valve with handwheel

connection:

adhesive connection

material:

PVC-U

€62.10*

€73.90 VAT included.

Delivery time: in stock

Express delivery:

diaphragm valve PVC-U d20 adhesive connection EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 6.72 m3/h suitable for liquid and gaseous media

diameter:

d20

design:

diaphragm valve with handwheel

connection:

adhesive connection

material:

PVC-U

€59.10*

€70.33 VAT included.

Delivery time: in stock

Express delivery:

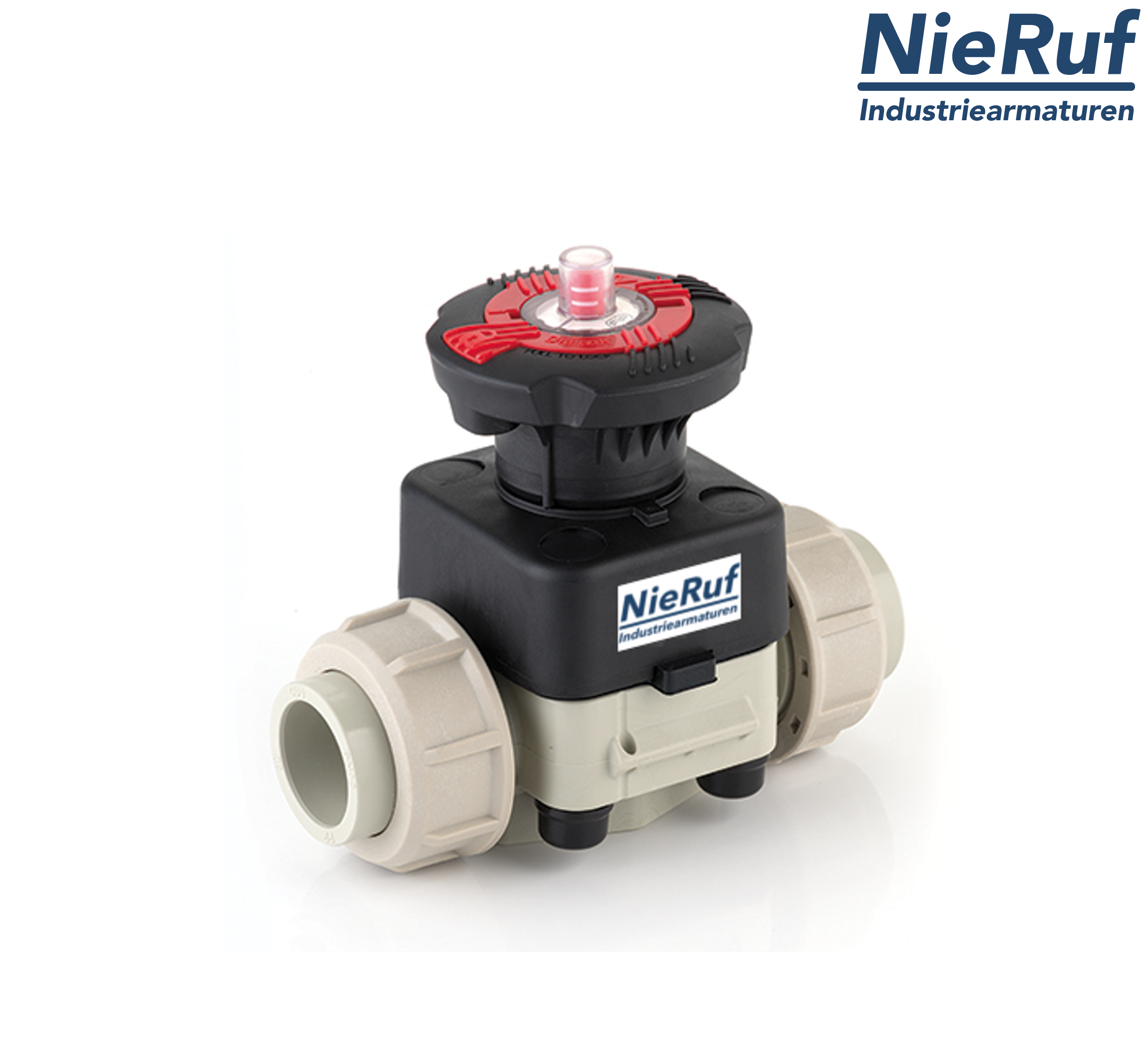

diaphragm valve PP-H d25 welding sleeve EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 15.66 m3/h optimised fluid dynamic design

diameter:

d25

design:

with handwheel

connection:

welding sleeve

material:

PP-H

€84.10*

€100.08 VAT included.

Delivery time: in stock

Express delivery:

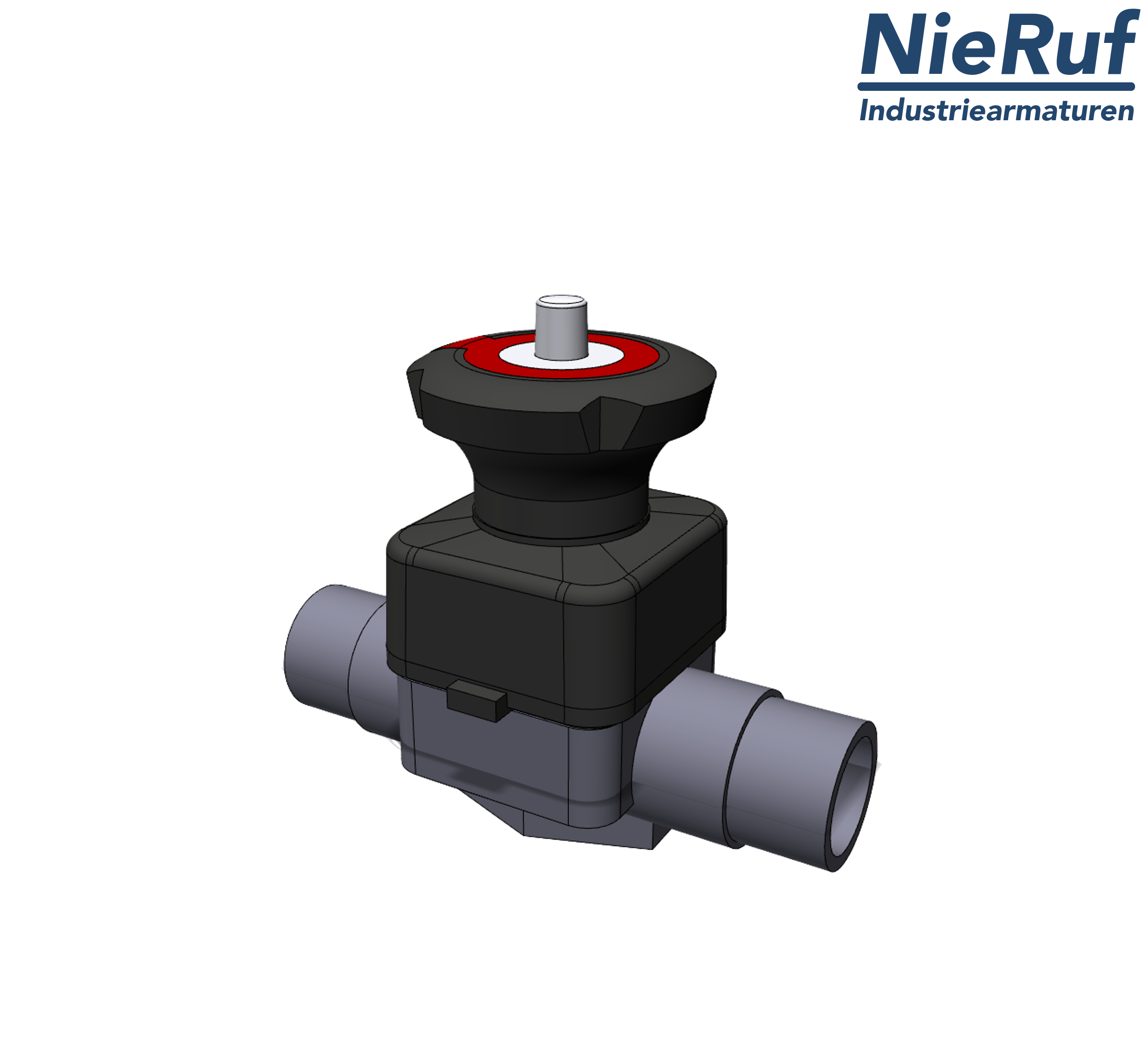

diaphragm valve PVC-U d25 cementing spigots EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 15.66 m3/h suitable for liquid and gaseous media

diameter:

d25

design:

diaphragm valve with handwheel

connection:

cementing spigots

material:

PVC-U

€47.60*

€56.64 VAT included.

Delivery time: in stock

Express delivery:

diaphragm valve PVC-U d32 cementing spigots EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 26.7 m3/h suitable for liquid and gaseous media

diameter:

d32

design:

diaphragm valve with handwheel

connection:

cementing spigots

material:

PVC-U

€64.60*

€76.87 VAT included.

Delivery time: in stock

Express delivery:

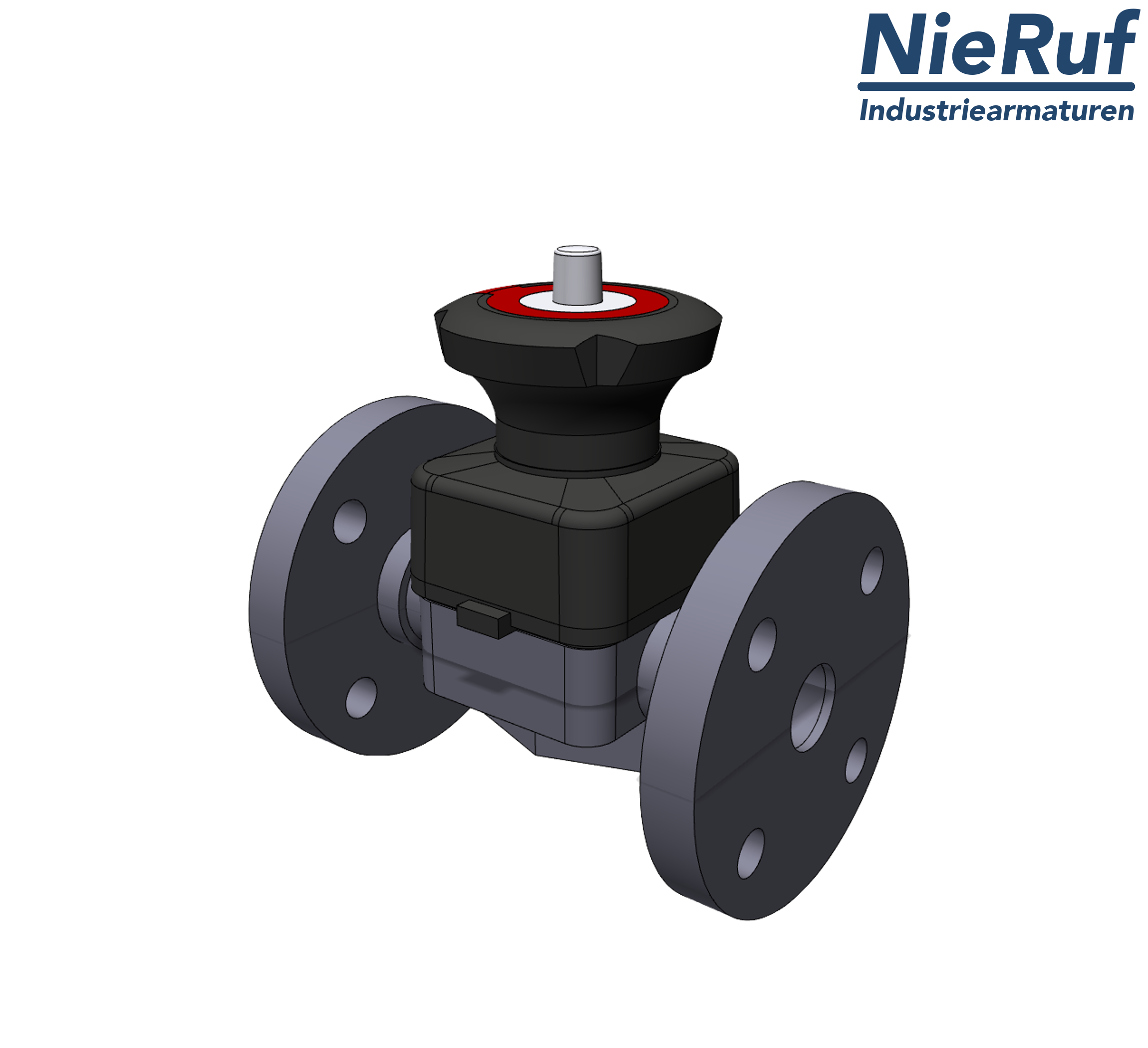

diaphragm valve PP-H DN20 flange PN10 / PN16 EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 15.66 m3/h optimised fluid dynamic design

diameter:

DN20

design:

with handwheel

connection:

flange PN10 / PN16

material:

PP-H

€109.10*

€129.83 VAT included.

Delivery time: 1 - 2 weeks

stainless steel 1.4435 diaphragm valve 1 Inch female thread BSP diaphragm PTFE/EPDM one-piece handwheel made of PP-GR pressure: PN10 KVs-value: 14 m3/h eliminates water hammer

diameter:

DN25 - 1" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€492.00*

€585.48 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U DN20 flange EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 15.66 m3/h suitable for liquid and gaseous media

diameter:

DN20

design:

with handwheel

connection:

flange PN10 / PN16

material:

PVC-U

€90.10*

€107.22 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U d50 adhesive connection EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 65.22 m3/h suitable for liquid and gaseous media

diameter:

d50

design:

diaphragm valve with handwheel

connection:

adhesive connection

material:

PVC-U

€125.70*

€149.58 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PP-H d32 welding sleeve EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 26.7 m3/h optimised fluid dynamic design

diameter:

d32

design:

with handwheel

connection:

welding sleeve

material:

PP-H

€99.20*

€118.05 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PP-H d50 welding sleeve EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 65.22 m3/h optimised fluid dynamic design

diameter:

d50

design:

with handwheel

connection:

welding sleeve

material:

PP-H

€153.70*

€182.90 VAT included.

Delivery time: 1 - 2 weeks

stainless-steel-diaphragm-valve female thread 1 Inch diaphragm: EPDM handwheel made of PP-GR pressure: PN10 KVs-value: 14 m3/h Maintenance free non corrosive actuator

diameter:

DN25 - 1" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€385.60*

€458.86 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U d63 cementing spigots EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 98.88 m3/h suitable for liquid and gaseous media

diameter:

d63

design:

diaphragm valve with handwheel

connection:

cementing spigots

material:

PVC-U

€127.70*

€151.96 VAT included.

Delivery time: 1 - 2 weeks

stainless steel 1.4435 diaphragm valve 2 Inch female thread BSP diaphragm PTFE/EPDM one-piece handwheel made of PP-GR pressure: PN10 KVs-value: 78 m3/h eliminates water hammer

diameter:

DN50 - 2" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€851.40*

€1,013.17 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PP-H d63 welding sleeve EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 98.88 m3/h optimised fluid dynamic design

diameter:

d63

design:

with handwheel

connection:

welding sleeve

material:

PP-H

€189.40*

€225.39 VAT included.

Delivery time: 1 - 2 weeks

stainless steel 1.4435 diaphragm valve 1 1/4 Inch female thread BSP diaphragm PTFE/EPDM one-piece handwheel made of PP-GR pressure: PN10 KVs-value: - m3/h eliminates water hammer

diameter:

DN32 - 1 1/4" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€600.00*

€714.00 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PP-H DN40 flange PN10 / PN16 EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 65.22 m3/h optimised fluid dynamic design

diameter:

DN40

design:

with handwheel

connection:

flange PN10 / PN16

material:

PP-H

€203.10*

€241.69 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U DN15 flange EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 6.72 m3/h suitable for liquid and gaseous media

diameter:

DN15

design:

with handwheel

connection:

flange PN10 / PN16

material:

PVC-U

€75.90*

€90.32 VAT included.

Delivery time: 1 - 2 weeks

stainless-steel-diaphragm-valve female thread 1 1/4 Inch diaphragm: EPDM handwheel made of PP-GR pressure: PN10 KVs-value: - m3/h Maintenance free non corrosive actuator

diameter:

DN32 - 1 1/4" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€444.20*

€528.60 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U d50 cementing spigots EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 65.22 m3/h suitable for liquid and gaseous media

diameter:

d50

design:

diaphragm valve with handwheel

connection:

cementing spigots

material:

PVC-U

€104.80*

€124.71 VAT included.

Delivery time: 1 - 2 weeks

stainless steel 1.4435 diaphragm valve 3/4 Inch female thread BSP diaphragm PTFE/EPDM one-piece handwheel made of PP-GR pressure: PN10 KVs-value: 12 m3/h eliminates water hammer

diameter:

DN20 - 3/4" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€481.20*

€572.63 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve made of stainless steel 1/2 Inch female thread with two-piece PTFE/EPDM membrane handwheel made of PP-GR pressure: PN10 KVs-value: 14 m3/h

diameter:

DN25 - 1" Inch

design:

with handwheel

connection:

female thread BSP

material:

stainless steel 1.4435

€492.00*

€585.48 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U DN25 flange EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 26.7 m3/h suitable for liquid and gaseous media

diameter:

DN25

design:

with handwheel

connection:

flange PN10 / PN16

material:

PVC-U

€109.10*

€129.83 VAT included.

Delivery time: 1 - 2 weeks

diaphragm valve PVC-U DN65 flange EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 96 m3/h suitable for liquid and gaseous media

diameter:

DN65

design:

with handwheel

connection:

flange PN10 / PN16

material:

PVC-U

€254.50*

€302.86 VAT included.

Delivery time: 1 - 2 weeks

Series MB01 and MB02 with plastic hand wheel:

Thanks to the hand wheel and the moveable membrane made from EPDM, FKM or PTFE, the valve can be set at up to 300 different opening degrees, even during running operation. The hand wheel is not ascending and after being set can be locked with a padlock, the valve can also be locked and secured against manipulation. There is an optical position display in the centre of the hand wheel controls, which shows the degree of opening. The casing and the hand wheel are completely watertight and protect the integrated metal parts from external influences. There is a holder for the fastenings on the bottom of the valve. The inside of the valve is manufactured in a flow-optimising design, allowing high flow rates.

Design and operation

The membrane valve has quite a simple design. Inside the casing is a sealing web, which is fitted at 90° to the valve opening, this protrudes slightly and thus the membrane, which is above it, pushes against it slightly. If the hand wheel is used when the valve is fully open, a translation from the hand wheel pushes against the membrane and moves it to the sealing web until it is completely closed.
