MB01000203

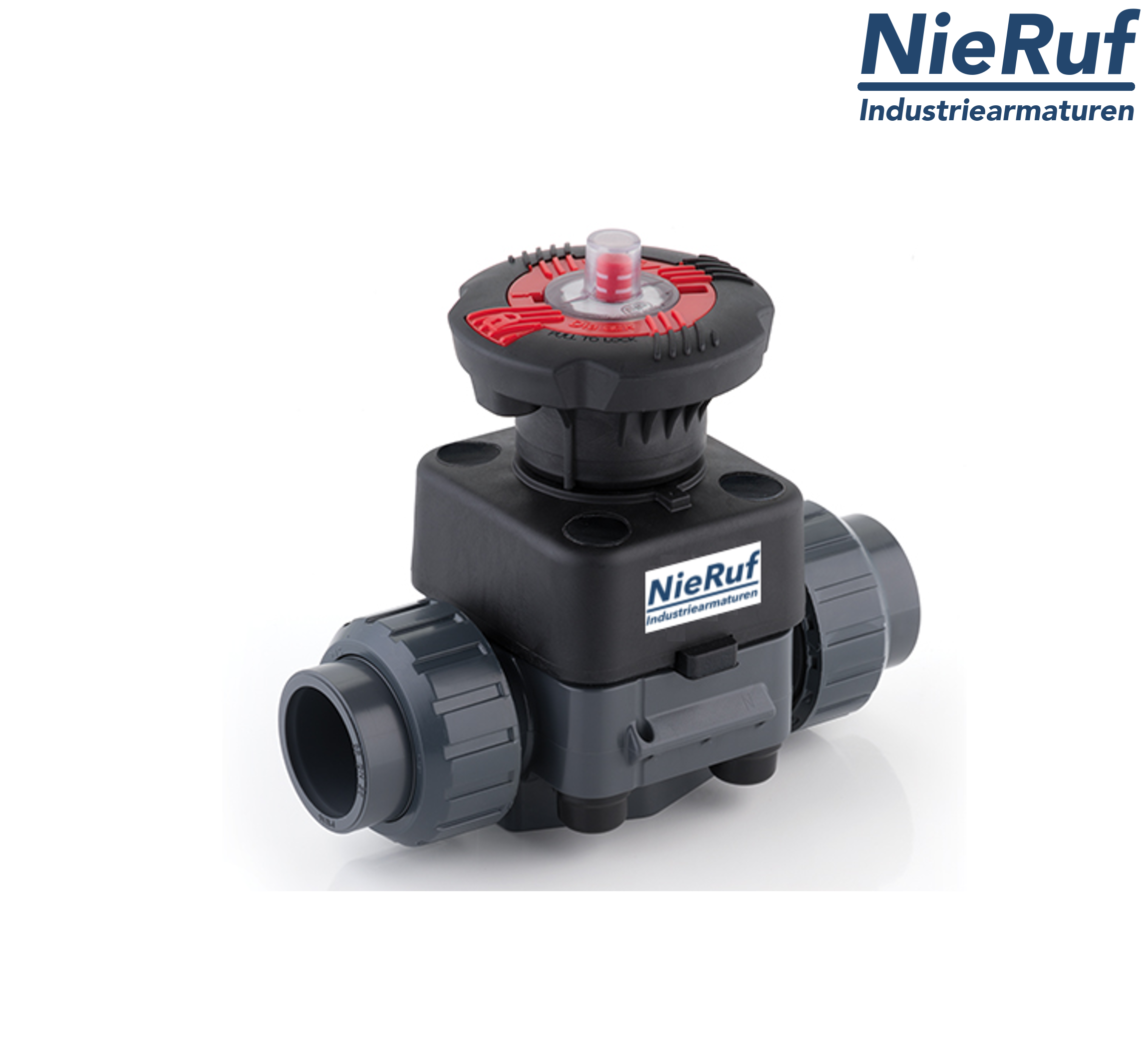

diaphragm valve PVC-U 1/2 Inch female thread EPDM
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
diaphragm valve PVC-U 1/2 Inch female thread EPDM
diaphragm valve PVC-U 1/2 Inch female thread EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 6,72 m3/h suitable for liquid and gaseous media
| product | diaphragm valve |
|---|---|
| type | MB01 |
| manufacturer | NieRuf |
| design | with handwheel |
| diameter | DN15 - 1/2" Inch |
| connection | female thread |
| material | PVC-U |
| actuator | handwheel made of PP-GR |
| diaphragm | EPDM |
| media | liquid and gaseous media |
| KVs-value m3/h | 6,72 |
| temperature | 0°C up to +60°C |
| pressure range | PN10 |
| product feature | precise control of the media. Adjusted and locked in over 300 positions |
| product feature 2 | a lock can be installed to protect the plant against unwanted interference |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
diaphragm valve PVC-U 1/2 Inch female thread EPDM
Article no.
: MB01000203
product:
diaphragm valve
type:
MB01
manufacturer:
NieRuf
design:
with handwheel
diameter:
DN15 - 1/2" Inch
connection:
female thread
material:
PVC-U
actuator:
handwheel made of PP-GR
diaphragm:
EPDM
media:
liquid and gaseous media
KVs-value m3/h:
6,72
temperature:
0°C up to +60°C
pressure range:
PN10
product feature:
precise control of the media. Adjusted and locked in over 300 positions
product feature 2:
a lock can be installed to protect the plant against unwanted interference
