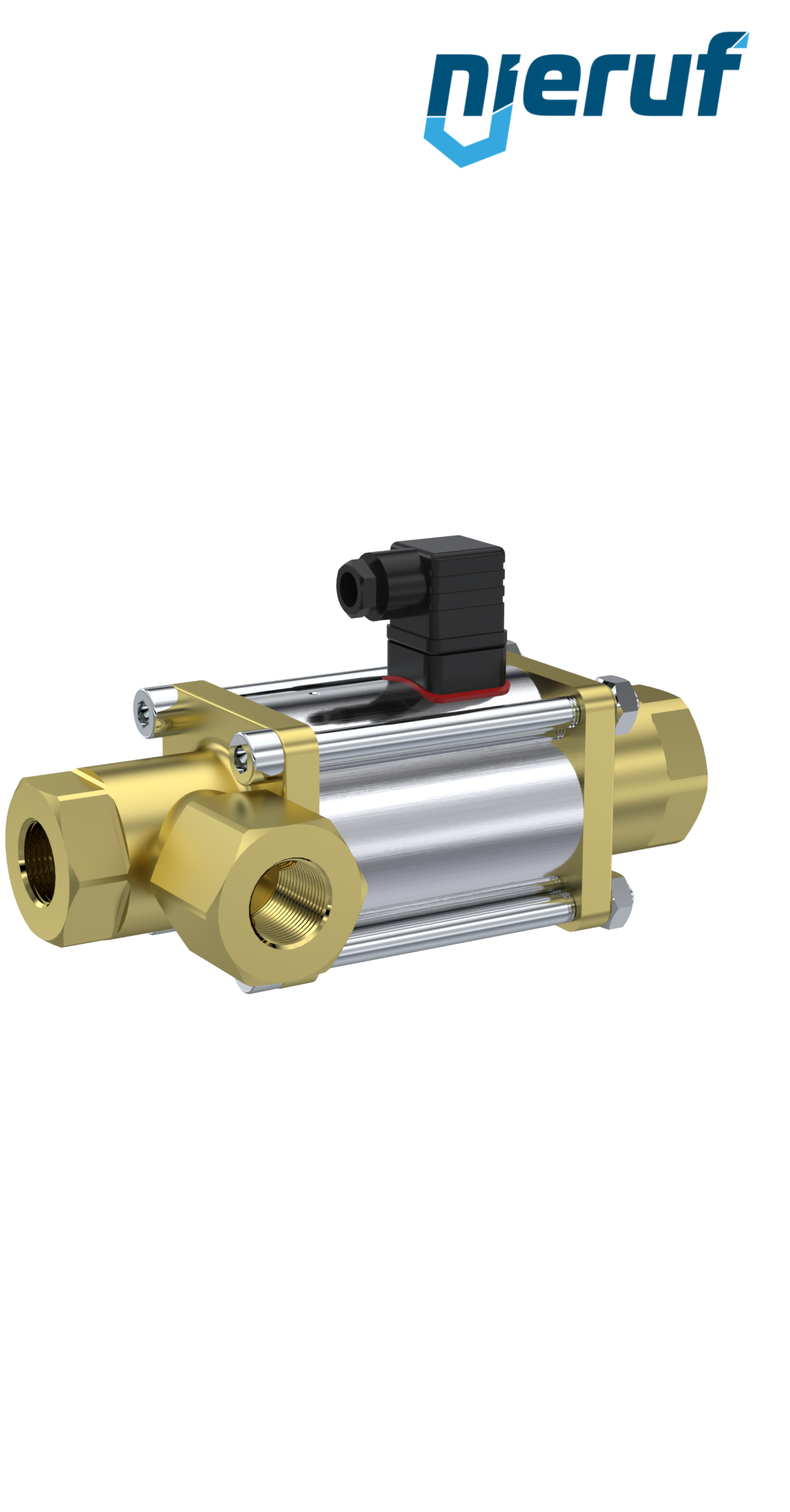

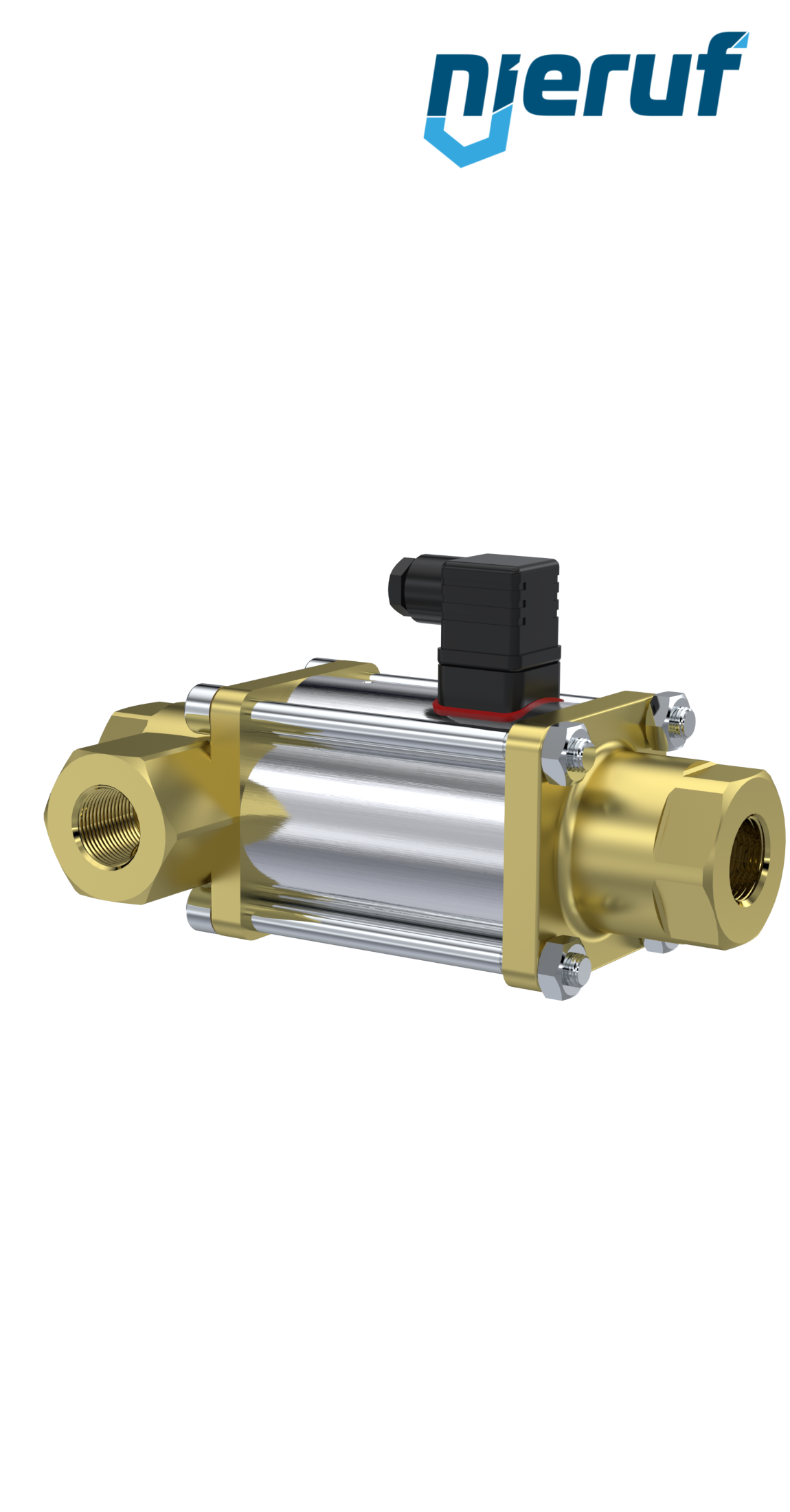

3/2 Way-valve Coaxial-valve 1" inch fm - DN25 made of brass, direct acting up to max. 40 bar, NO - normal open voltage 24V DC
|diameter:||1" inch fm - DN25|
|function:||NO - normally open|
|operation:||with spring return|
|media:||liquid and gaseous media|
|temperature:||from -20°C to max. +100°C|
|pressure range:||up to max. 40 bar|
|installation position:||any position|
|product feature:||Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3/2-Way-Coaxial-valve 1" inch fm - DN25 brass 24V DC NO
design: 3/2 Way-valve
diameter: 1" inch fm - DN25
connection: female thread
function: NO - normally open
operation: with spring return
control: direct acting
voltage: 24V DC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
