- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN250 - 10" Inch for flange PN16 steel
€77.11 VAT included.
Questions about the article?

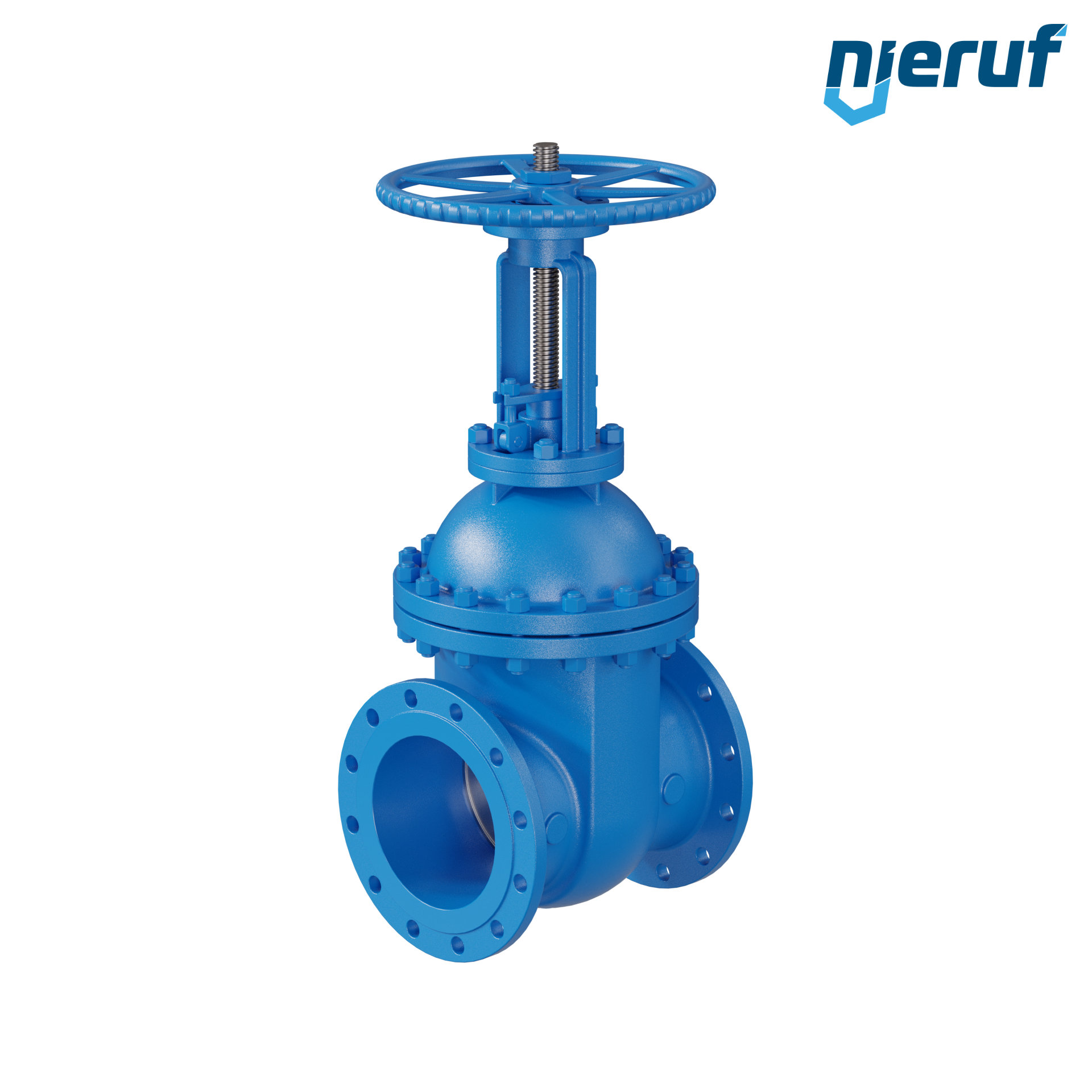

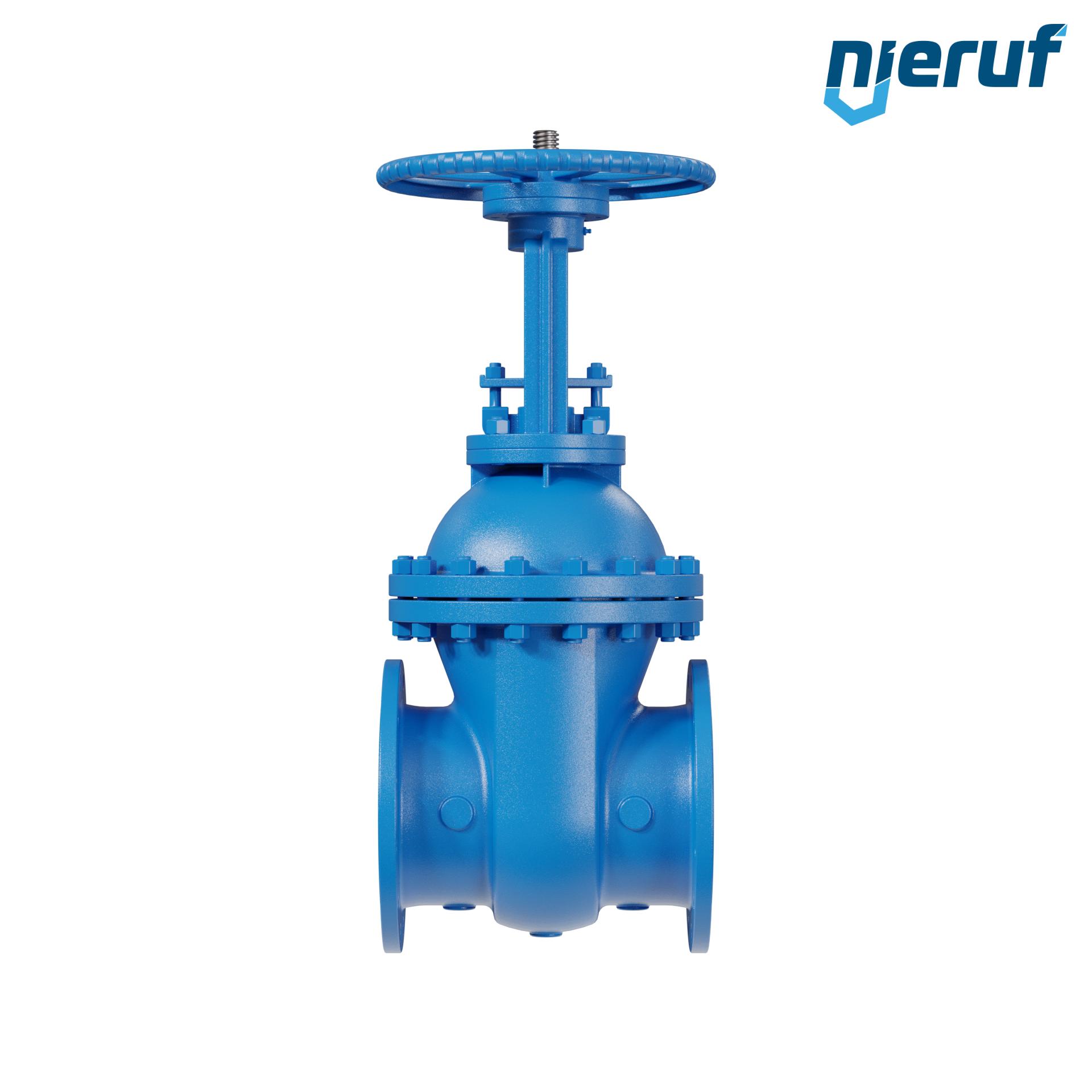

Wedge Gate Valve (round form) AS02 in straightway form DN250 PN16 with flange according to DIN EN 1092, material cast steel 1.0619+N
| Product | Wedge Gate Valve (round form) |
|---|---|
| Type | AS02 |
| Manufacturer | NieRuf |
| Nominal size | DN250 |
| Flange | flange according to DIN EN 1092 |
| Pressure rating | PN16 |
| Seal | metal |
| Medium | liquid and gaseous media |
| Temperature | -10°C to +400°C - depending on operating pressure |
| Pressure range | 0 to 16 bar - depending on temperature |
| Design | straightway form |
| Body material | cast steel 1.0619+N |
| Yoke bonnet material | cast steel 1.0619+N |
| Handwheel | carbon steel 1.0036 (non-rising) |
| Wedge | cast steel 1.0619+N |
| Face-to-face length | according to DIN EN 558 series 15 |
| Testing | final inspection according to DIN EN 12266 |
| Approval | TA-Luft 2021, ATEX 2014/34/EU |
| Installation position | any, spindle preferably vertical |
| Standard | DIN EN 1984: 2110-10 |
| Product feature | Wedge Gate Valve (round form) in straightway form with flange connection and rising spindle, with non-rising handwheel. with TA-Luft 2021 and ATEX 2014/34/EU approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Wedge Gate Valve (round form) made of cast steel 1.0619+N AS02 DN250 PN16
Article no.
: AS02100015
Product:
Wedge Gate Valve (round form)
Type:
AS02
Manufacturer:
NieRuf
Nominal size:
DN250
Flange:
flange according to DIN EN 1092
Pressure rating:
PN16
Seal:
metal
Medium:
liquid and gaseous media
Temperature:
-10°C to +400°C - depending on operating pressure
Pressure range:
0 to 16 bar - depending on temperature
Design:
straightway form
Body material:
cast steel 1.0619+N
Yoke bonnet material:
cast steel 1.0619+N
Handwheel:
carbon steel 1.0036 (non-rising)
Wedge:
cast steel 1.0619+N
Face-to-face length:
according to DIN EN 558 series 15
Testing:
final inspection according to DIN EN 12266
Approval:
TA-Luft 2021, ATEX 2014/34/EU
Installation position:
any, spindle preferably vertical
Standard:
DIN EN 1984: 2110-10
Product feature:
Wedge Gate Valve (round form) in straightway form with flange connection and rising spindle, with non-rising handwheel. with TA-Luft 2021 and ATEX 2014/34/EU approval.
flange seal DN250 PN16 273x329x2 Klingersil C 4400
Delivery time: in stock
joint set flange/flange DN250 - 10" Inch for flange PN16 steel
Delivery time: in stock
