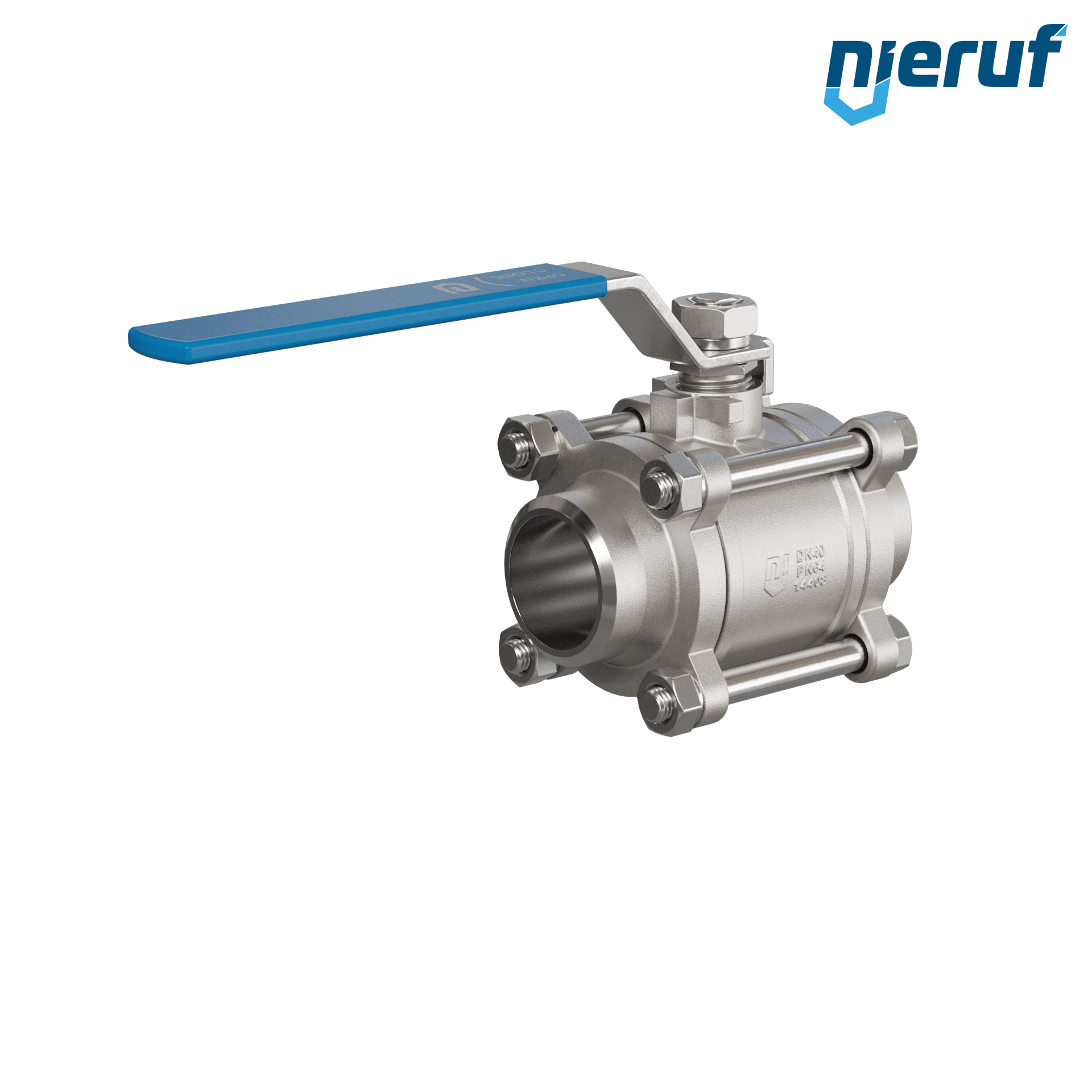

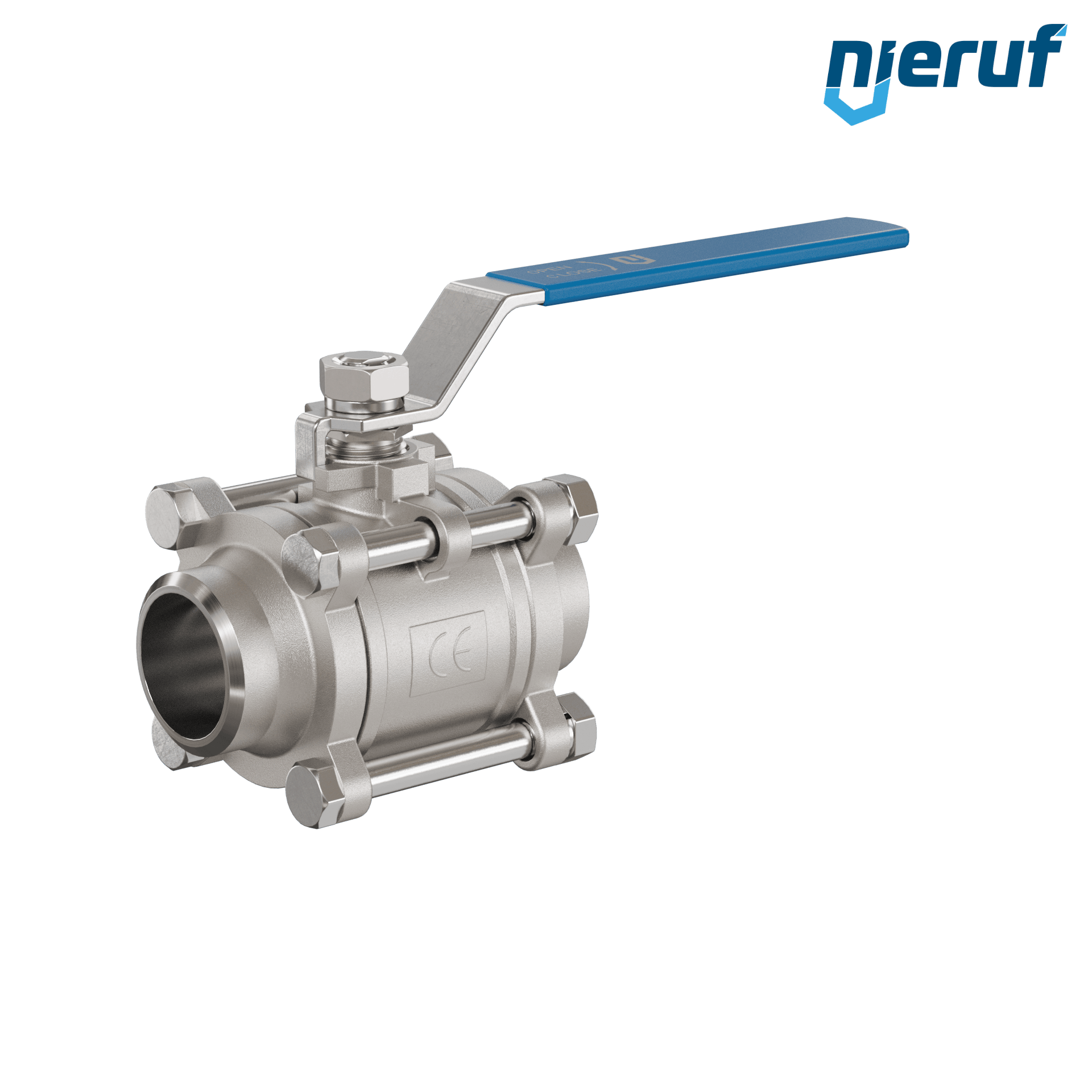

ball valve made of stainless steel DN40 - 1 1/2" inch with butt weld full port design seal made of PTFE for liquid and gaseous media
|product:||ball valve made of stainless steel|
|diameter:||DN40 - 1 1/2" inch|
|connection:||with butt weld|
|media:||liquid and gaseous media|
|temperature:||-20°C up to +180°C - depending on working pressure and media|
|design:||full port design|
|body material:||stainless steel 1.4408|
|ball material:||stainless steel 1.4401|
|actuator:||hand lever made of stainless steel 1.4301 with plastic cover|
|installation position:||any position|
|product description:||This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 2|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of stainless steel DN40 - 1 1/2" inch GK04 with butt weld
product: ball valve made of stainless steel
diameter: DN40 - 1 1/2" inch
connection: with butt weld
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN64
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
ball seal: PTFE
actuator: hand lever made of stainless steel 1.4301 with plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 2
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
