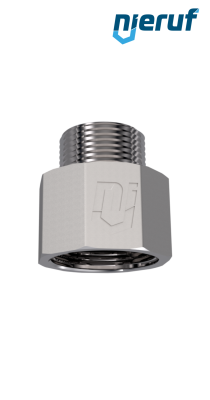

Conical sleeved nipple
The sleeve nipple serves to connect or even reduce pipe systems. On one side it has an internal thread and on the other side an external thread, both can be made conical according to DIN EN 10226-1. It is made from high quality stainless steel 316 (1.4408). It is available in the nominal widths ¼“ – 2“ inches. You can use out filter to see the different configurations.
socket nipple GF01-8 mit female x male 1" x 3/4" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1" x 3/4" inch
connection:
female x male
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
socket nipple GF01-8 mit female x male 3/4" x 1/2" inch made of stainless steel 316 for liquid and gaseous media
diameter:
3/4" x 1/2" inch
connection:
female x male
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
socket nipple GF01-8 mit female x male 1" x 1" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1" x 1" inch
connection:
female x male
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
socket nipple GF01-8 mit female x male 1/2" x 3/8" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1/2" x 3/8" inch
connection:
female x male
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
