SV06010305

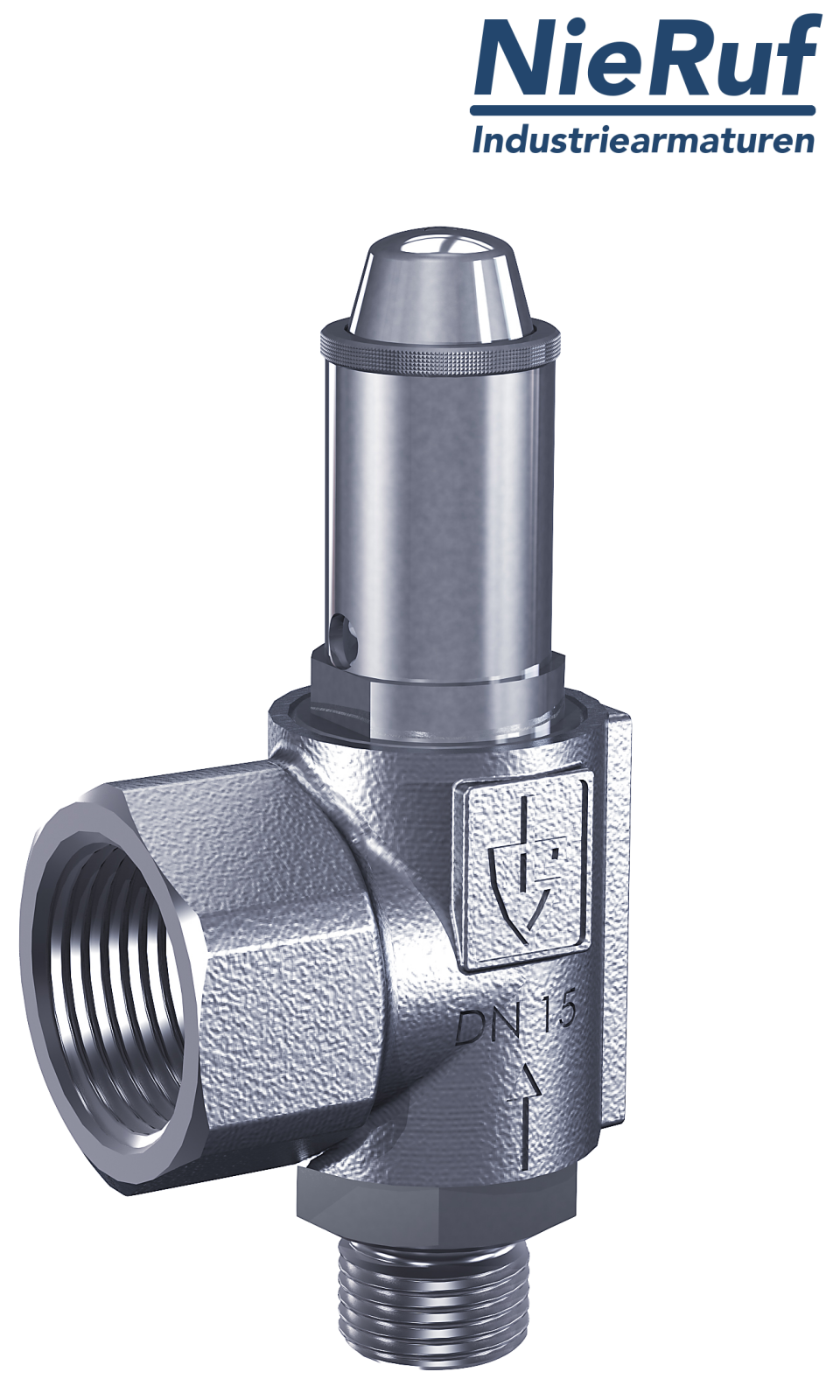

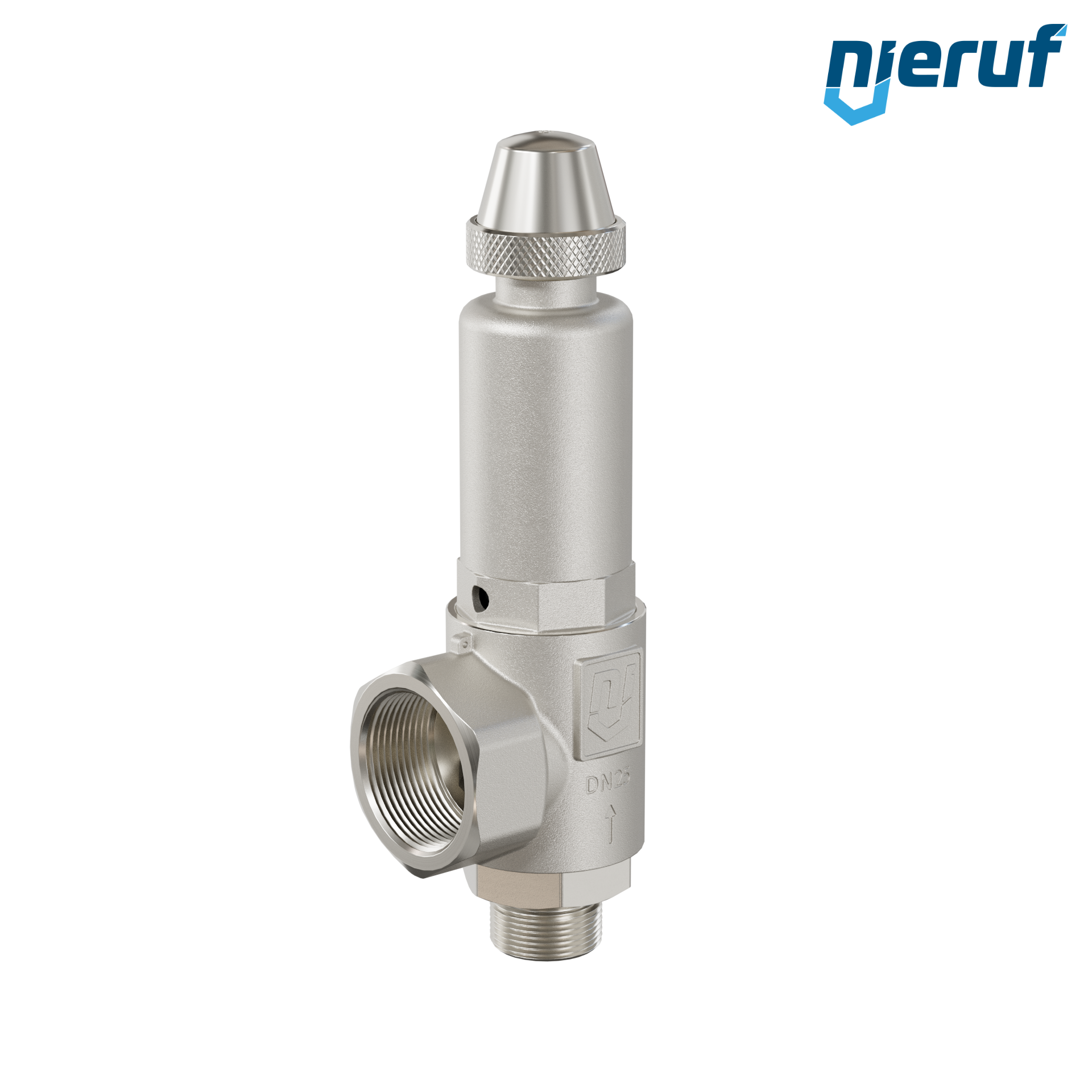

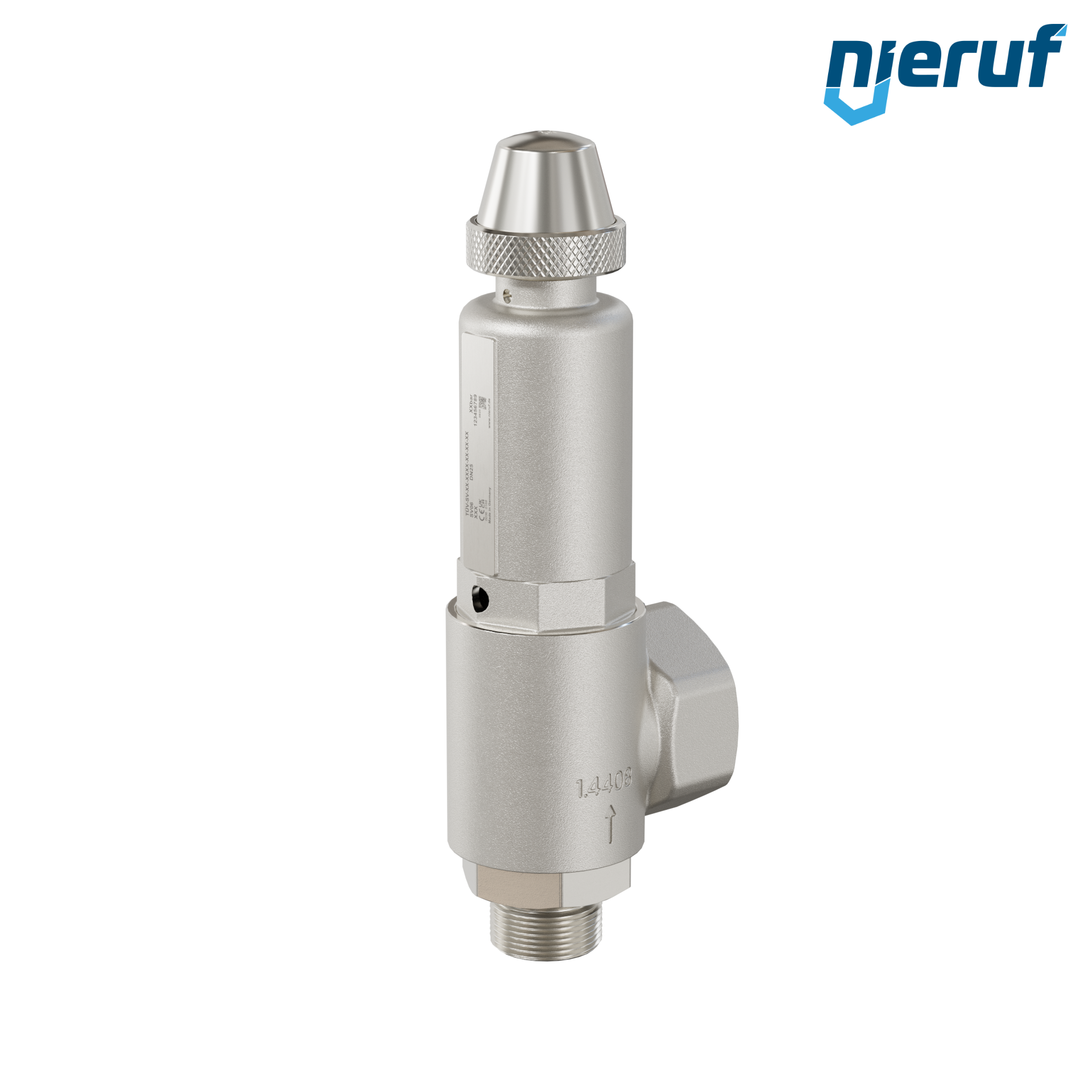

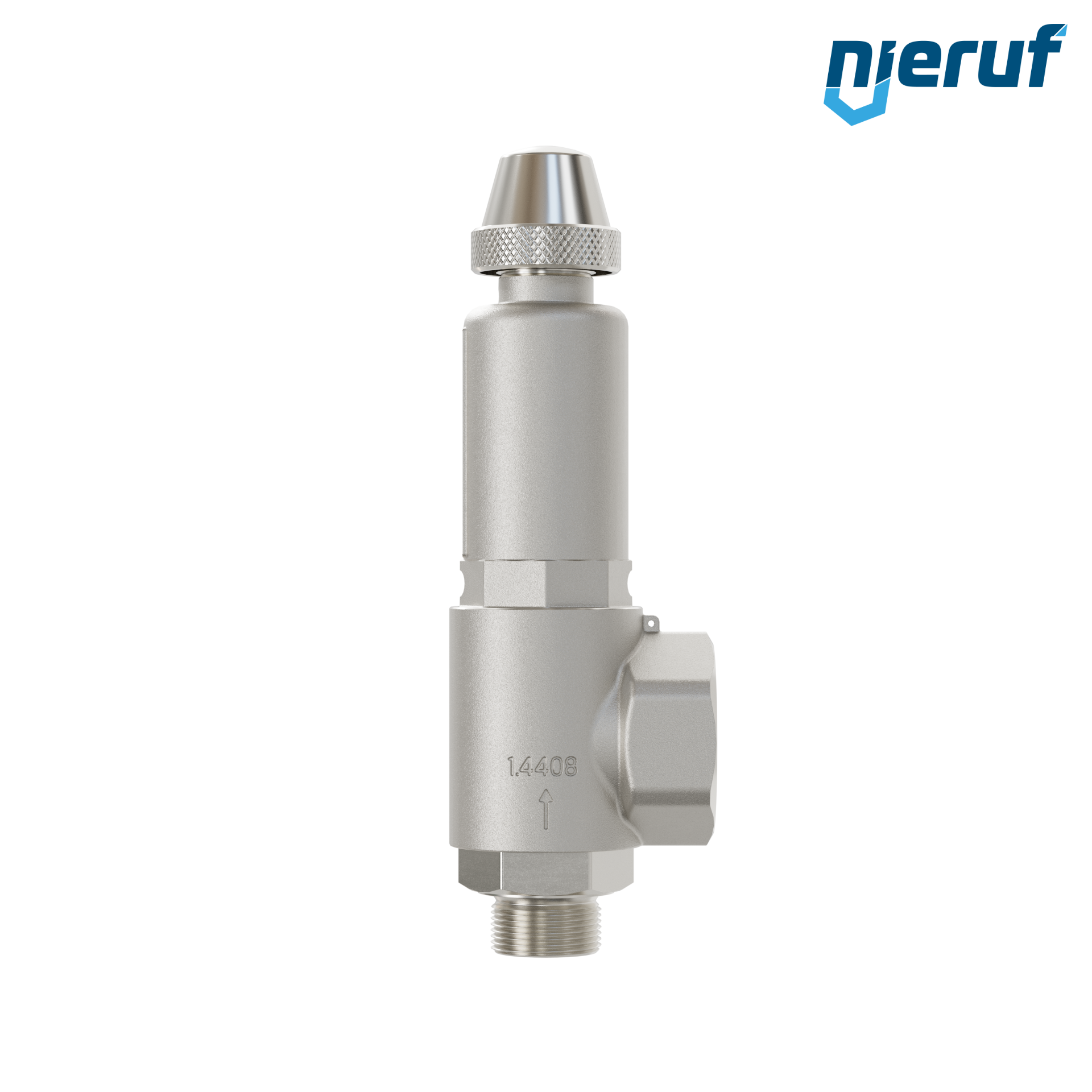

safety valve 1" m x 1 1/2" fm SV06 liquid media, stainless steel PTFE

€1,097.80*

€1,306.38 VAT included.


Operating data


Delivery time: 3 - 5 working days

Delivery information

Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€54.00*

€64.26 VAT included.


ZEU31MAT00

Material test certificate 3.1

€54.00*

€64.26 VAT included.


ZEU32APZ00

Certificate of conformity EN 10204-3.2

€70.00*

€83.30 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: SV06010305
safety valve 1" m x 1 1/2" fm SV06 liquid media, stainless steel PTFE

angle-type-safety valve with with bellows for liquid media 1" m x 1 1/2" fm stainless steel Typ SV06 with male screw threaded BSP-P PTFE-seal and twist-type lifting mechanism

product: safety valve
type: SV06
manufacturer: NieRuf
diameter: 1" m x 1 1/2" fm
d0: 23,0 mm

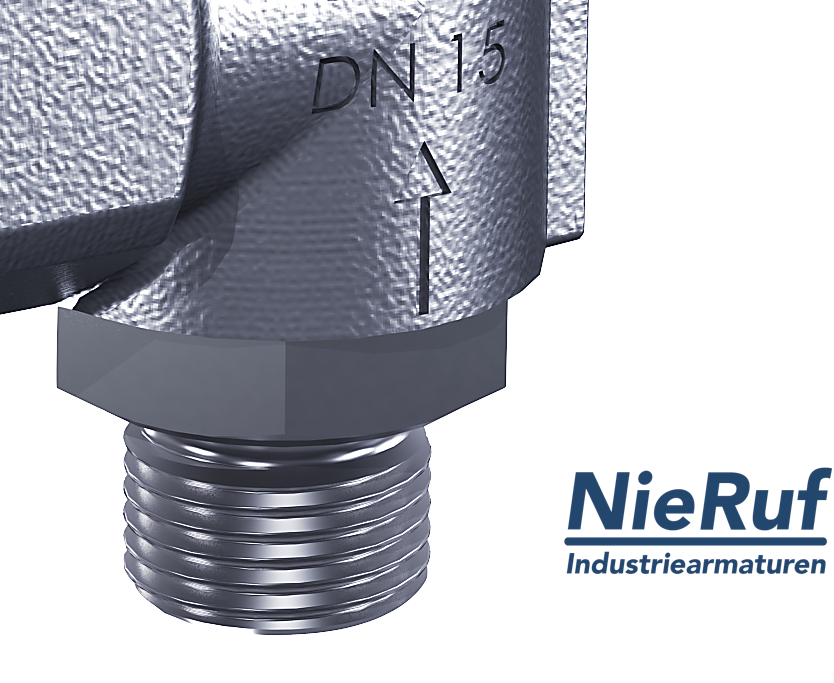

connection: male screw threaded BSP-P
seal: PTFE
media: liquid media
temperature: -60°C up to +225°C
set pressure: 0,5 - 70,0 bar
design: angle-type
material: stainless steel

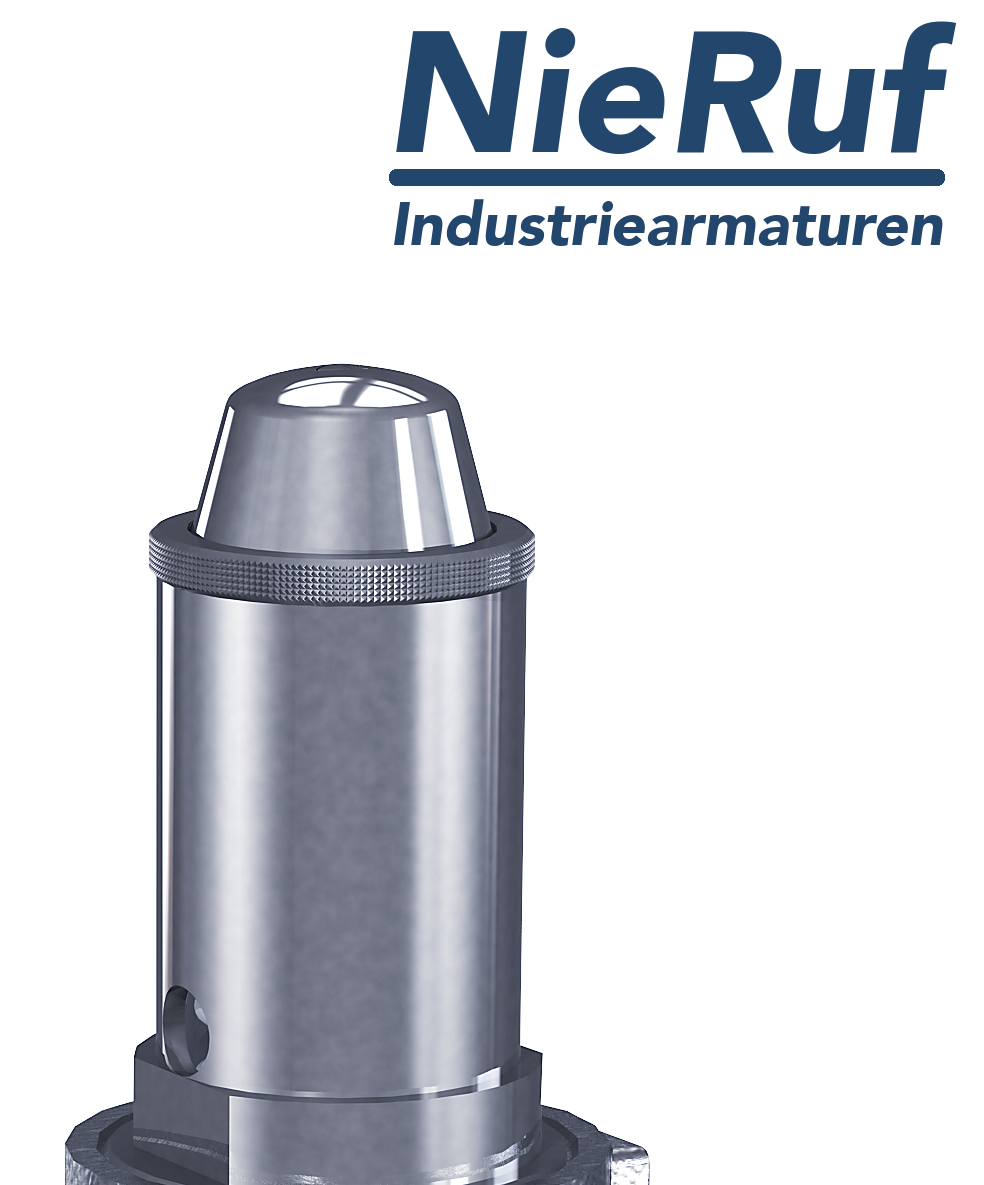

lifting: twist-type lifting mechanism
type test approval: TUV = F / EG = L
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: with bellows
product feature 2: for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

safety valve 1" m x 1 1/2" fm SV06 liquid media, stainless steel PTFE

Article no. : SV06010305
product: safety valve
type: SV06
manufacturer: NieRuf
diameter: 1" m x 1 1/2" fm
d0: 23,0 mm
connection: male screw threaded BSP-P
seal: PTFE
media: liquid media
temperature: -60°C up to +225°C
set pressure: 0,5 - 70,0 bar
design: angle-type
material: stainless steel
lifting: twist-type lifting mechanism
type test approval: TUV = F / EG = L
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: with bellows
product feature 2: for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
