DS01041103.1

pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 1,6 bar

€241.70*

€287.62 VAT included.

Delivery time: 2 - 3 weeks

Delivery information

Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com


Product number: DS01041103.1

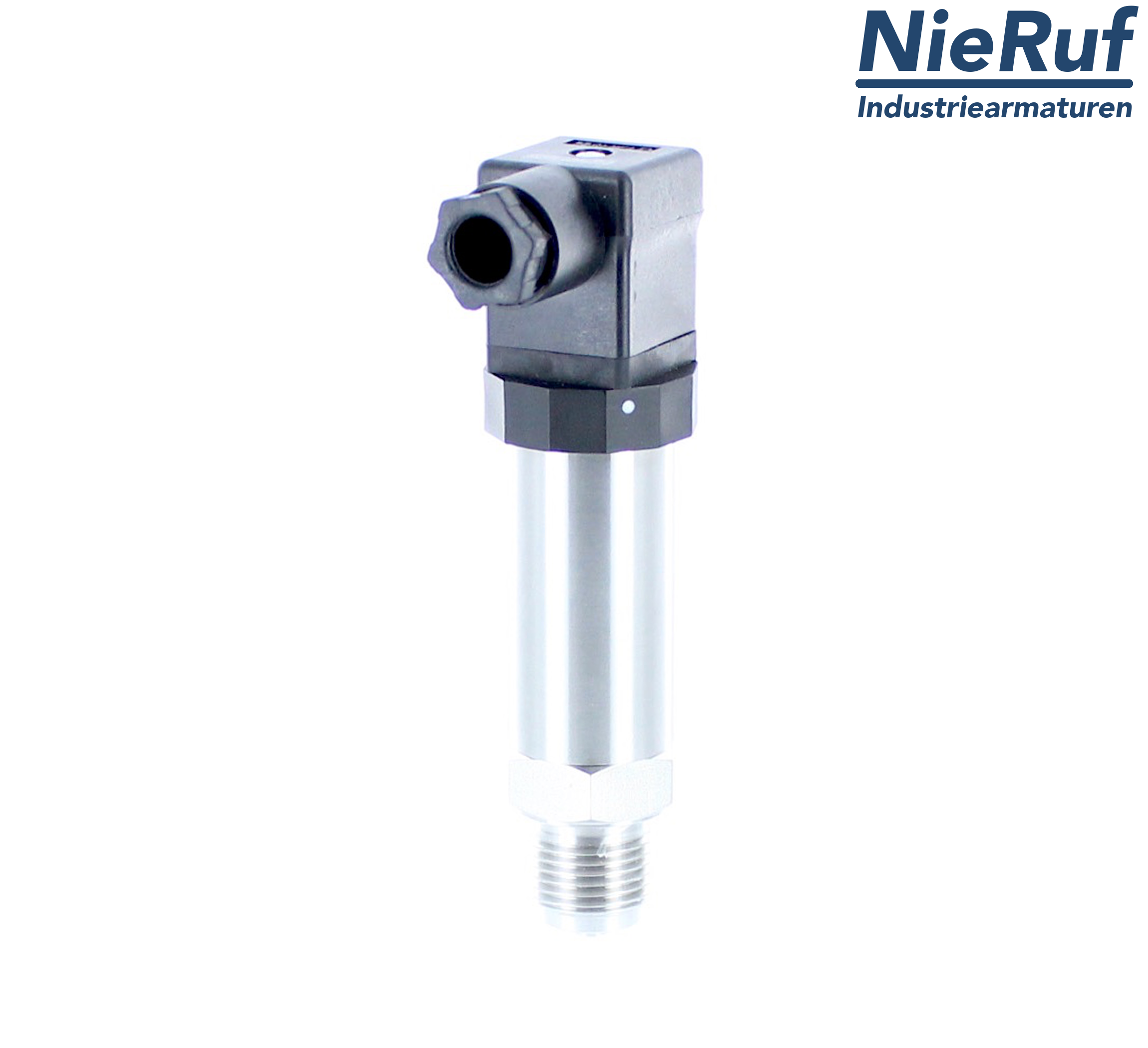

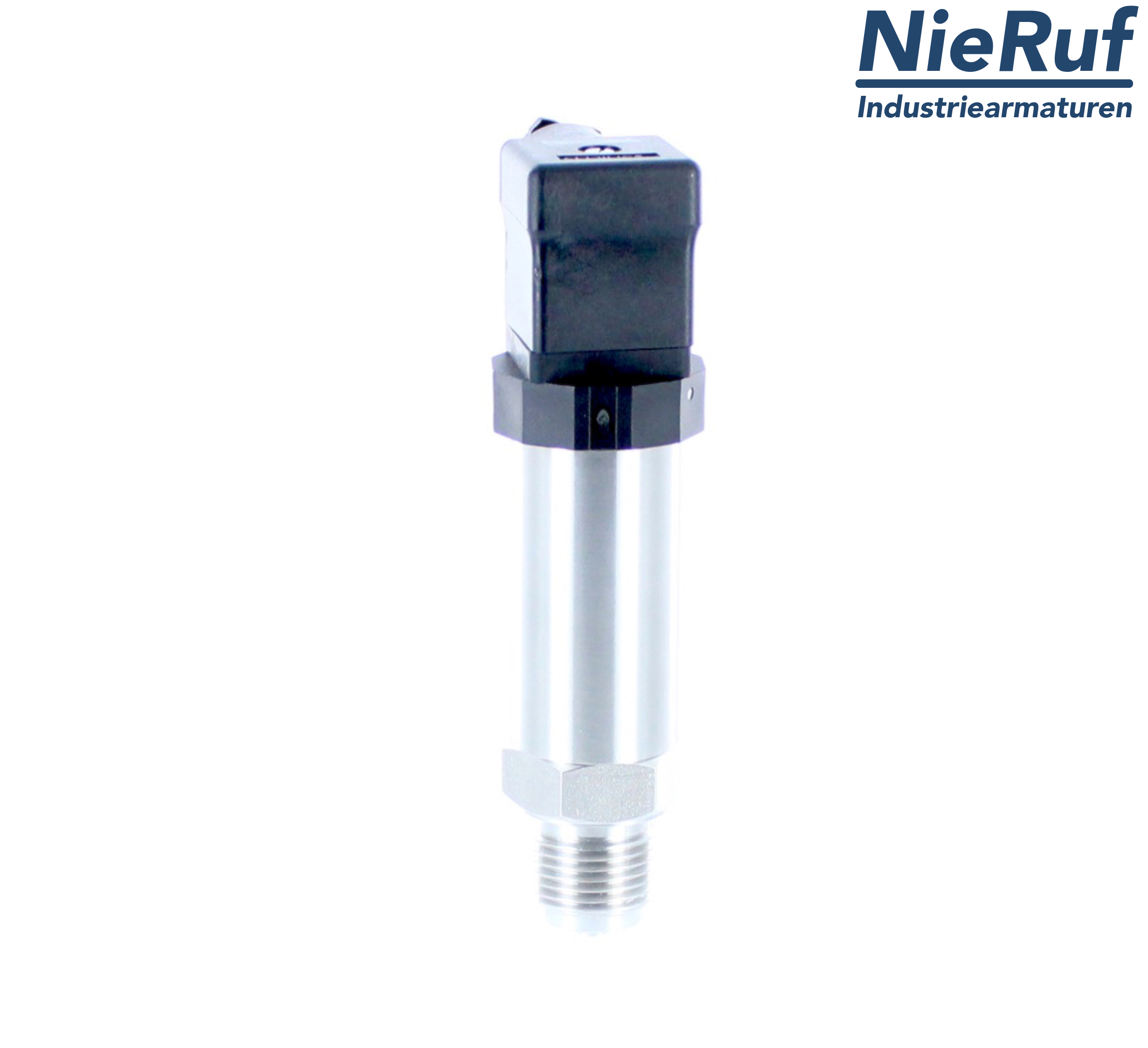

pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 1,6 bar

pressure sensor G 1/2" B IB pressure range 0,0 - 1,6 bar made of stainless steel 3-wire: 0-10V seal EPDM male thread with internal drill

product: pressure sensor
type: DS01
manufacturer: NieRuf
diameter: G 1/2" B IB
connection: male thread with internal drill
material connection: stainless steel
material: chromium-nickel steel
seal: EPDM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 1,6 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 3-wire: 0-10V
plug: EN 175-301-803-A PA Polyamid body
product feature: High-quality pressure sensor with internal ceramic membrane.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 1,6 bar

Article no. : DS01041103.1
product: pressure sensor
type: DS01
manufacturer: NieRuf
diameter: G 1/2" B IB
connection: male thread with internal drill
material connection: stainless steel
material: chromium-nickel steel
seal: EPDM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 1,6 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 3-wire: 0-10V
plug: EN 175-301-803-A PA Polyamid body
product feature: High-quality pressure sensor with internal ceramic membrane.
