Product number: GK06000004

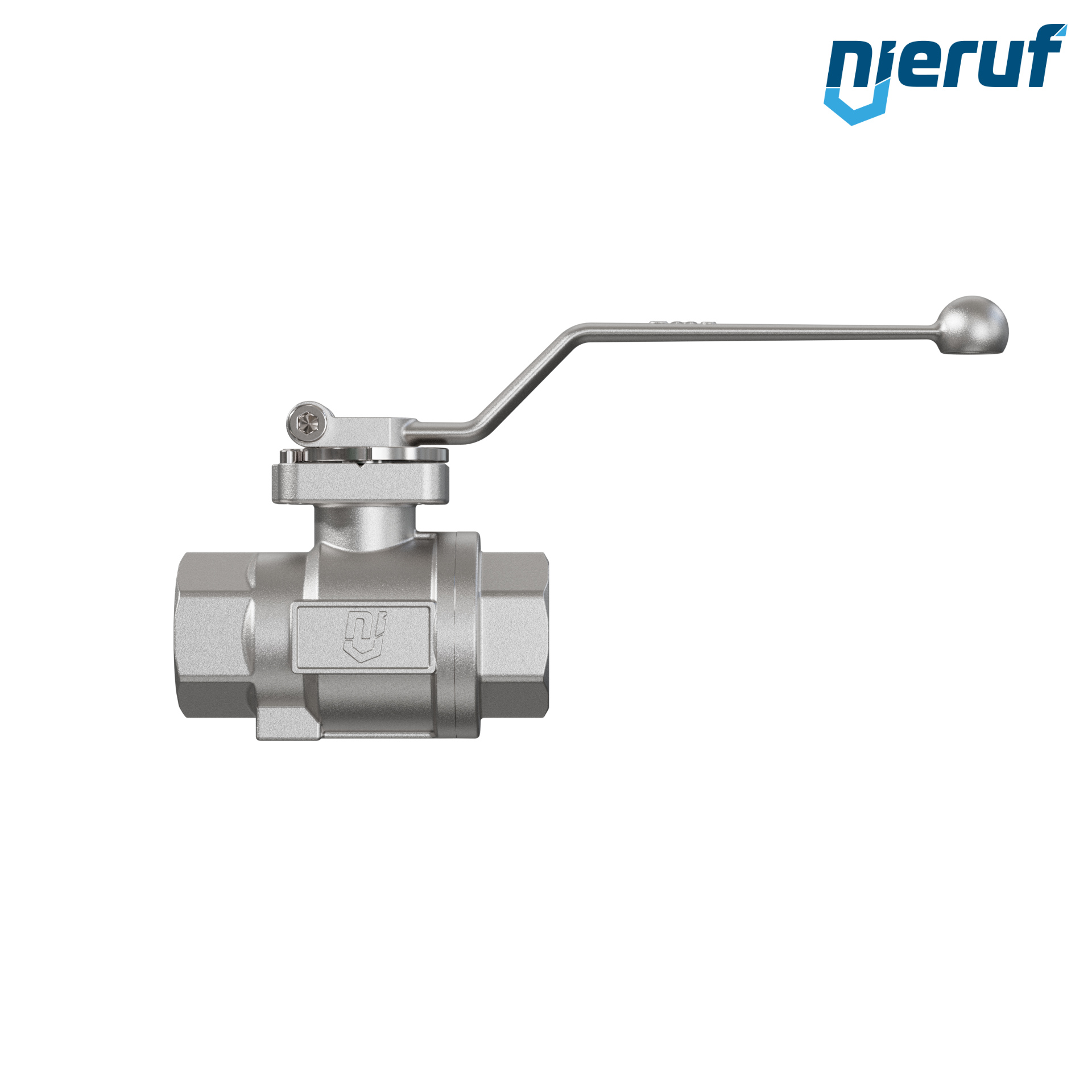

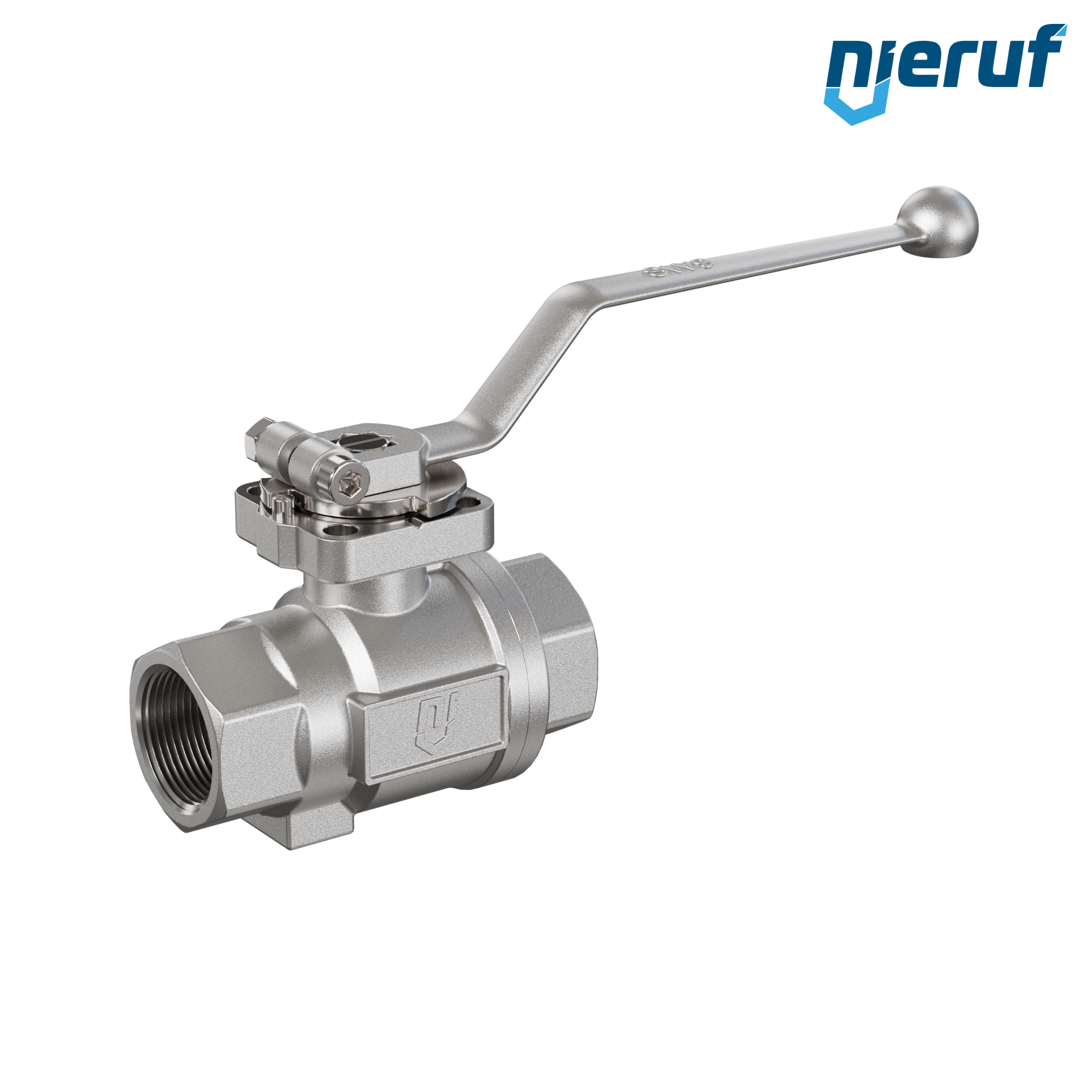

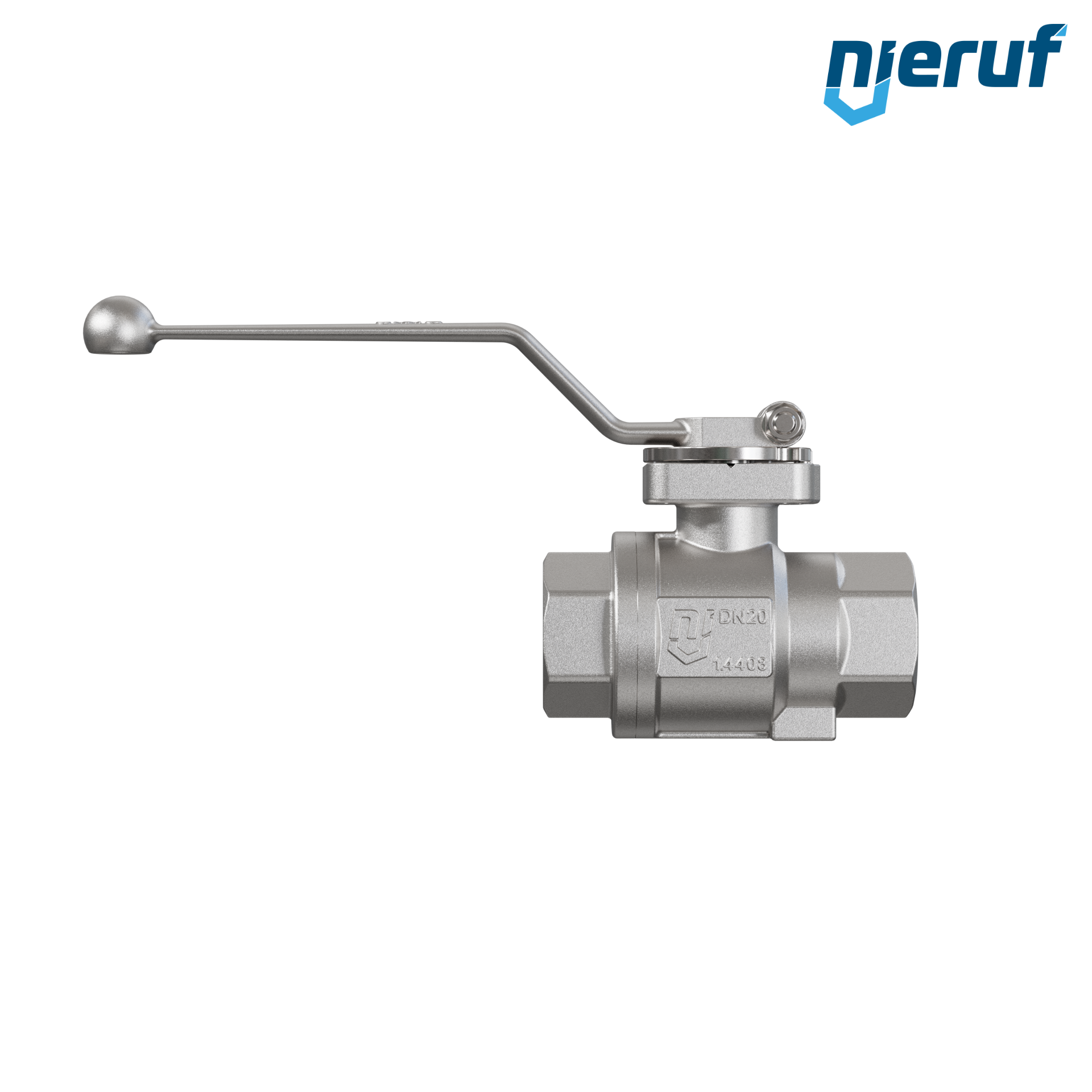

High pressure ball valve DN20 - 3/4" inch GK06

High pressure ball valve DN20 - 3/4" inch full port design seal made of PTFE / Viton for liquid and gaseous media

product: High pressure ball valve
type: GK06
manufacturer: NieRuf
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: -20°C up to +215°C - depending on working pressure and media
max. pressure: PN100
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 80mm
actuator: hand lever made of stainless steel
installation position: any position
product description: This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. This two - piece ball valve "screwed design" has a mounting flange acc. to DIN ISO 5211 and is suitable for direct actuator mounting

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

High pressure ball valve DN20 - 3/4" inch GK06

Article no. : GK06000004
product: High pressure ball valve
type: GK06
manufacturer: NieRuf
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: -20°C up to +215°C - depending on working pressure and media
max. pressure: PN100
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 80mm
actuator: hand lever made of stainless steel
installation position: any position
product description: This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. This two - piece ball valve "screwed design" has a mounting flange acc. to DIN ISO 5211 and is suitable for direct actuator mounting
