SK011100101

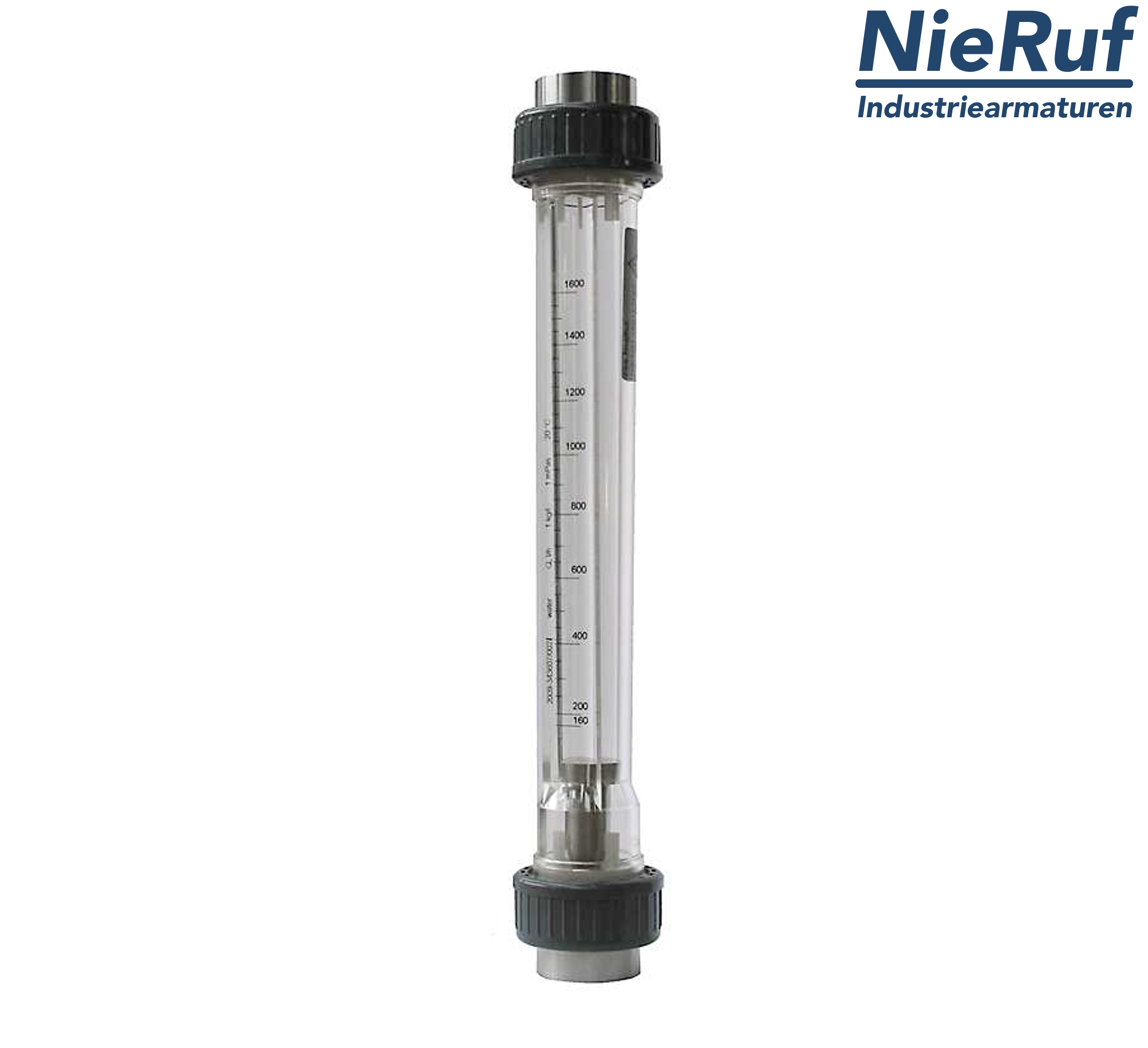

Variable area flowmeter 1/4" inch 200.0 - 2000 l/h air EPDM

€195.50*

€232.65 VAT included.


Operating data


Delivery time: 1 - 2 weeks

Delivery information

Equipment

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: SK011100101
Variable area flowmeter 1/4" inch 200.0 - 2000 l/h air EPDM

Variable area flowmeter Measuring range 200.0 - 2000 l/h, connection 1/4" inch EPDM female thread DIN ISO 228 for air

product: Variable area flowmeter
type: SK01
manufacturer: NieRuf
diameter: 1/4" inch
connection: female thread DIN ISO 228
connection material: PVC
body material: Trogamid plastic
seal: EPDM
float material: aluminum
float version design: standard
media: air
mark: Different media are available upon request
mark 2: standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float: 4 mbar
temperature: max. +60 °C
Measuring range: 200.0 - 2000 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Variable area flowmeter 1/4" inch 200.0 - 2000 l/h air EPDM

Article no. : SK011100101
product: Variable area flowmeter
type: SK01
manufacturer: NieRuf
diameter: 1/4" inch
connection: female thread DIN ISO 228
connection material: PVC
body material: Trogamid plastic
seal: EPDM
float material: aluminum
float version design: standard
media: air
mark: Different media are available upon request
mark 2: standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float: 4 mbar
temperature: max. +60 °C
Measuring range: 200.0 - 2000 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
