Variable area flowmeter 1 1/2" inch NPT 650.0 - 6500 l/h water FKM

SK022000807
check valve DN 65 Duplex 1.4469 NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) 4
quantity (pcs.):
284.00€ * 337.96€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

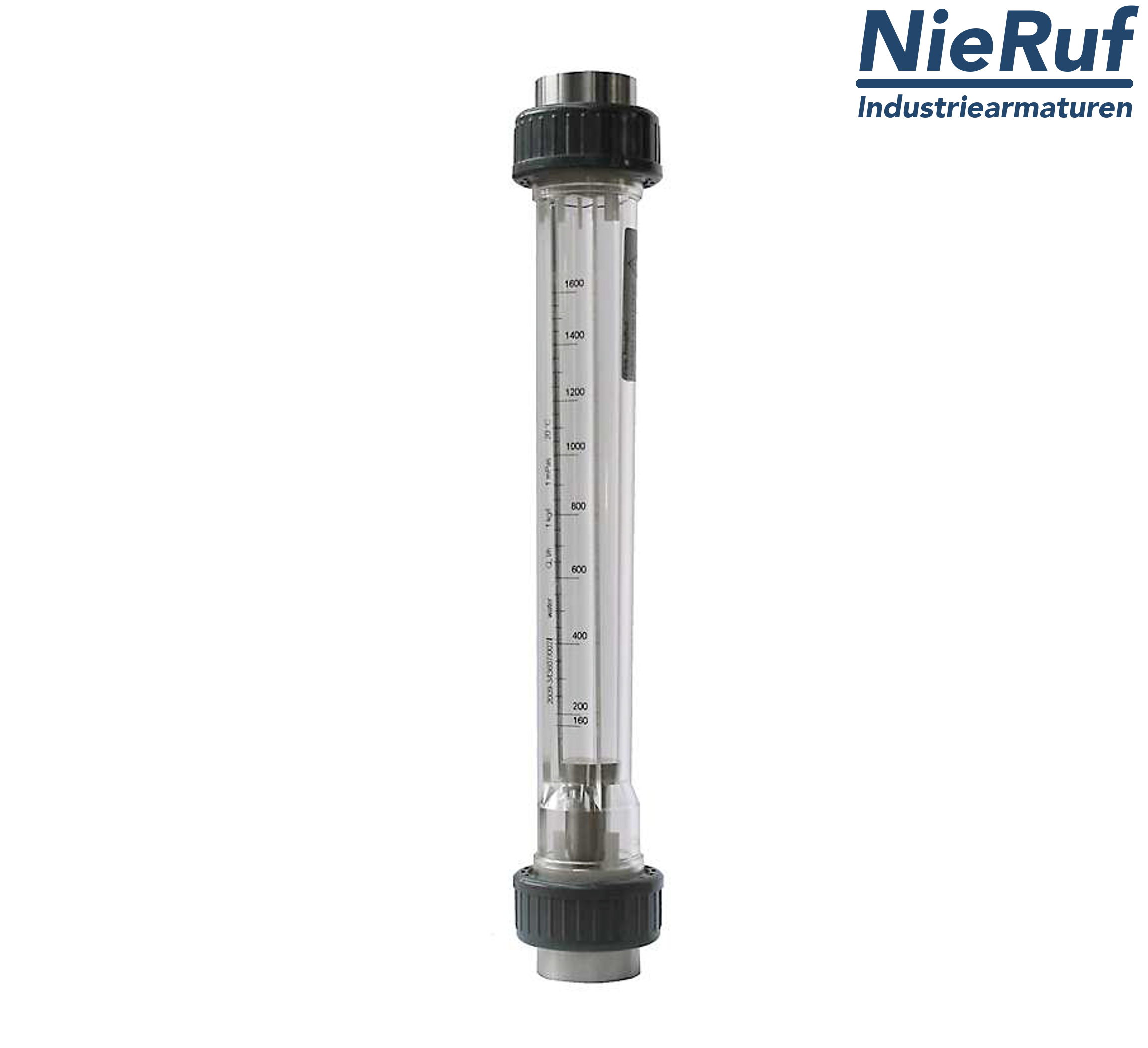

Variable area flowmeter 1 1/2" inch NPT 650.0 - 6500 l/h water FKM
Variable area flowmeter Measuring range 650.0 - 6500 l/h, connection 1 1/2" inch NPT FKM female thread ANSI B1.20.1 for water
diameter: 1 1/2" inch NPT
connection: female thread ANSI B1.20.1
connection material: PVC
body material: Trogamid plastic
seal: FKM
float material: stainless steel 1.4571
float version design: guided
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 27 mbar
temperature: max. +60 °C / water max. +50°C
Measuring range: 650.0 - 6500 l/h
unit of scale: m³/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
Variable area flowmeter 1 1/2" inch NPT 650.0 - 6500 l/h water FKM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Variable area flowmeter 1 1/2" inch NPT 650.0 - 6500 l/h water FKM
