EK05000008
automatic-flange ball valve DN50 - 2" inch EK05 stainless steel 24V
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

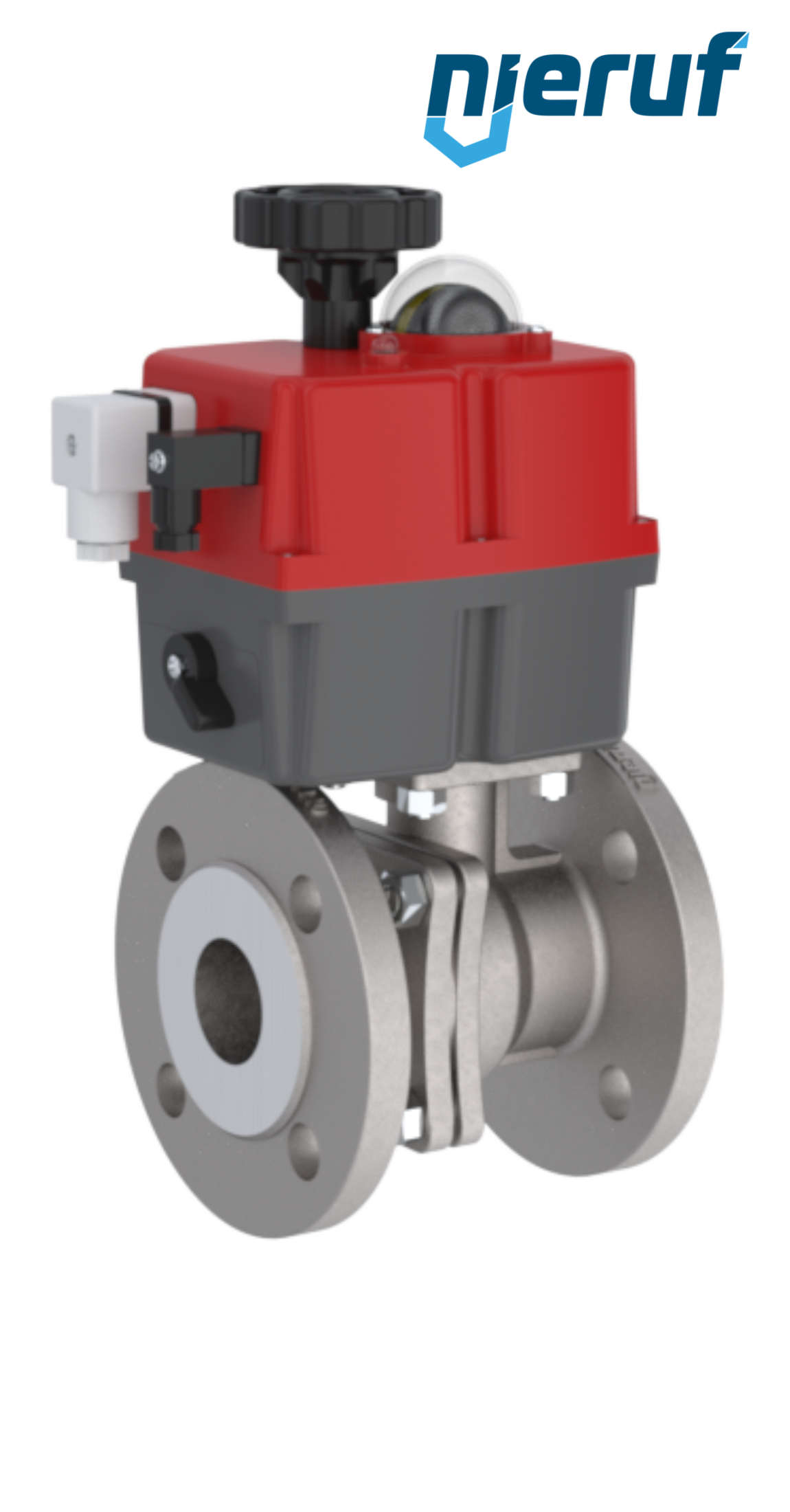

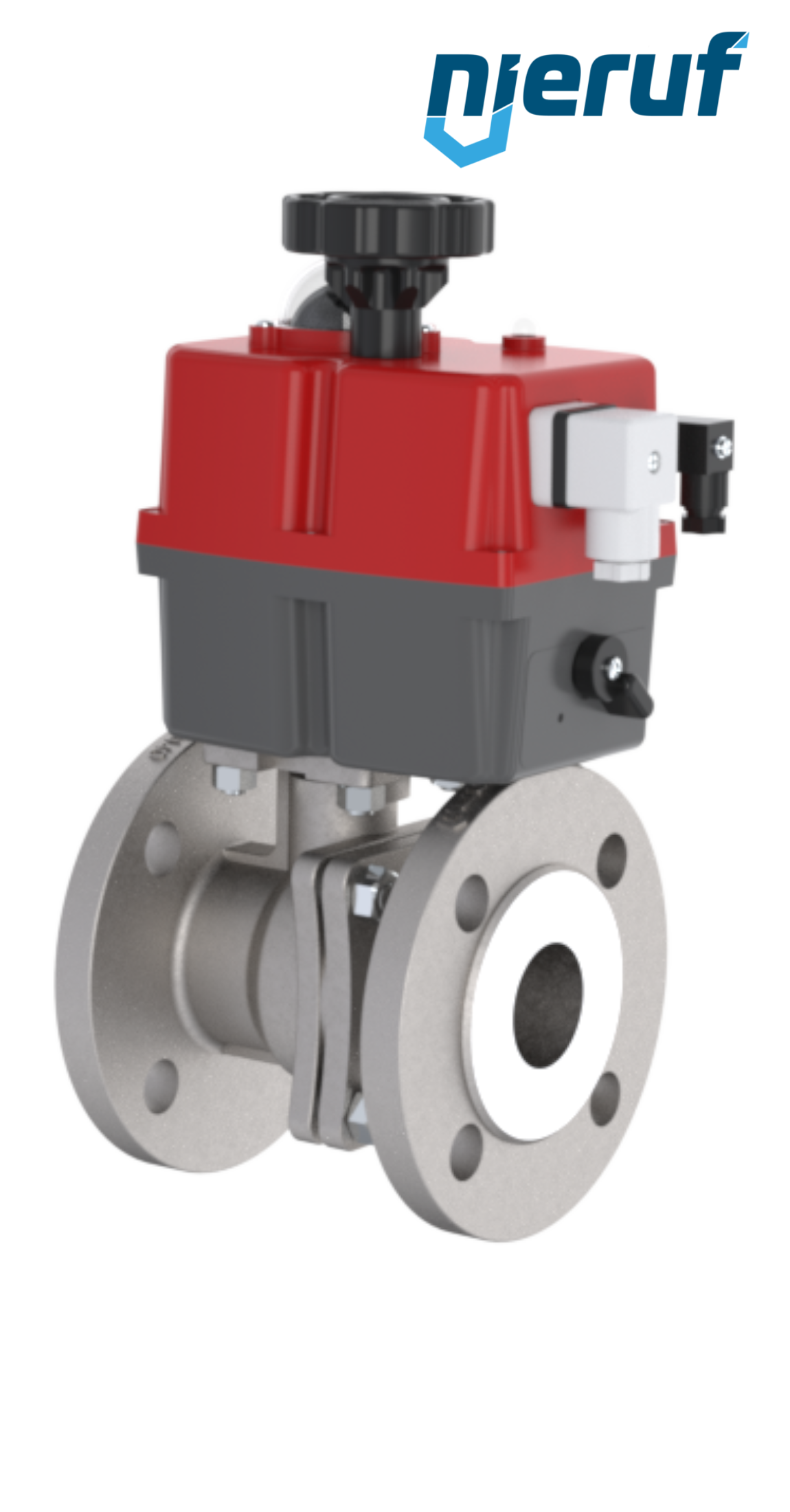

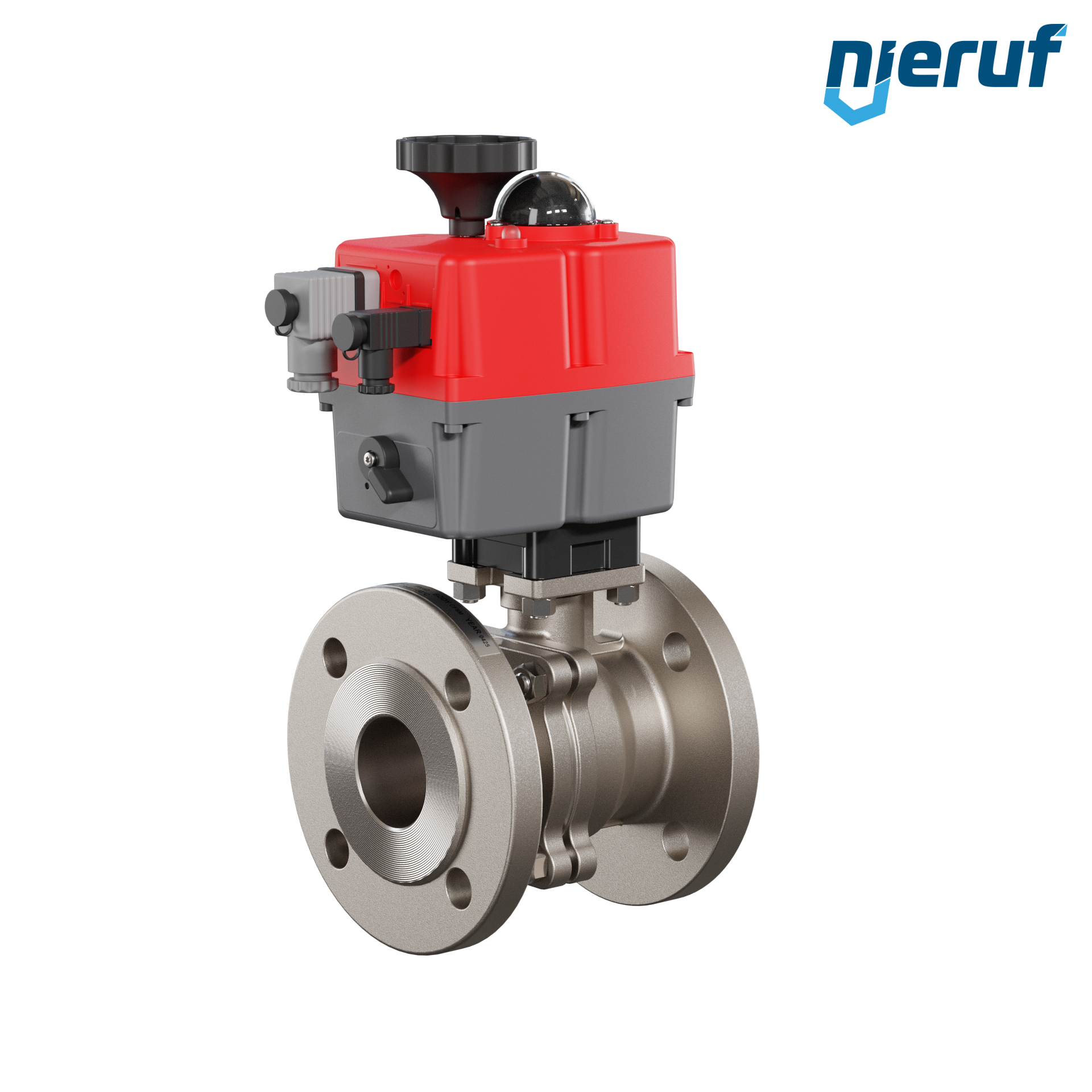

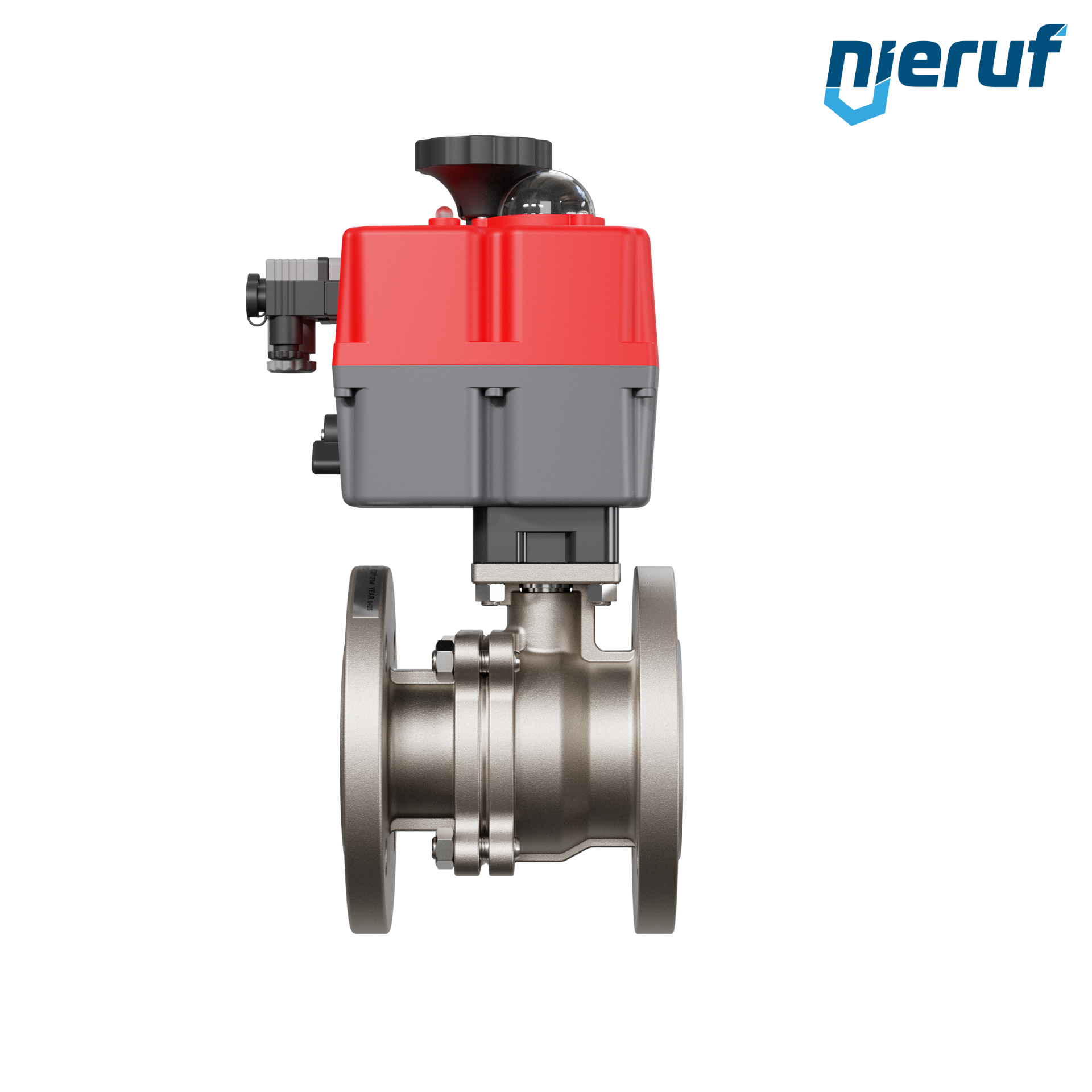

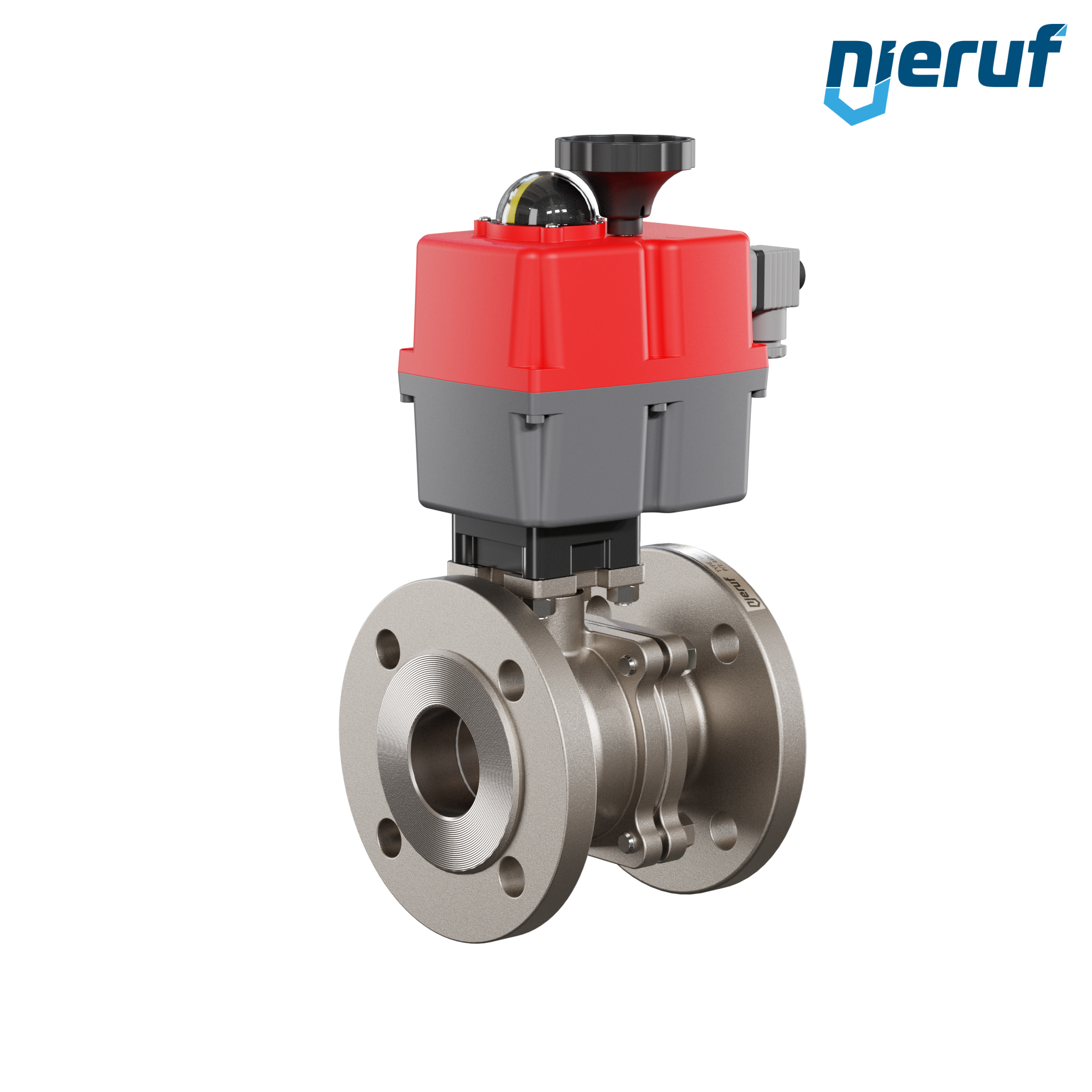

automatic-flange ball valve DN50 - 2" inch stainless steel 1.4408 EK05 24V
product: | automatic-flange ball valve |
---|---|
type: | EK05 |
manufacturer: | NieRuf |
diameter: | DN50 - 2" inch |
connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
Seal steam: | PTFE + 15% GF |
media: | liquid and gaseous media |
temperature: | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
max. pressure: | PN16 |
design: | flange ball valve with actuator |
body material: | stainless steel 1.4408 |
ball material: | stainless steel 1.4401 |
ball seal: | PTFE + GF |
length: | DIN EN 558-1 |
actuator: | electronic actuator S55 - series S for 24-240V AC/DC |
actuator informations: | corrosion resistant synthetic body |
installation position: | any position, not upside down |
product description: | This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN50 - 2" inch EK05 stainless steel 24V
Article no.
: EK05000008
product:
automatic-flange ball valve
type:
EK05
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
PTFE + 15% GF
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with actuator
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
ball seal:
PTFE + GF
length:
DIN EN 558-1
actuator:
electronic actuator S55 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating.
