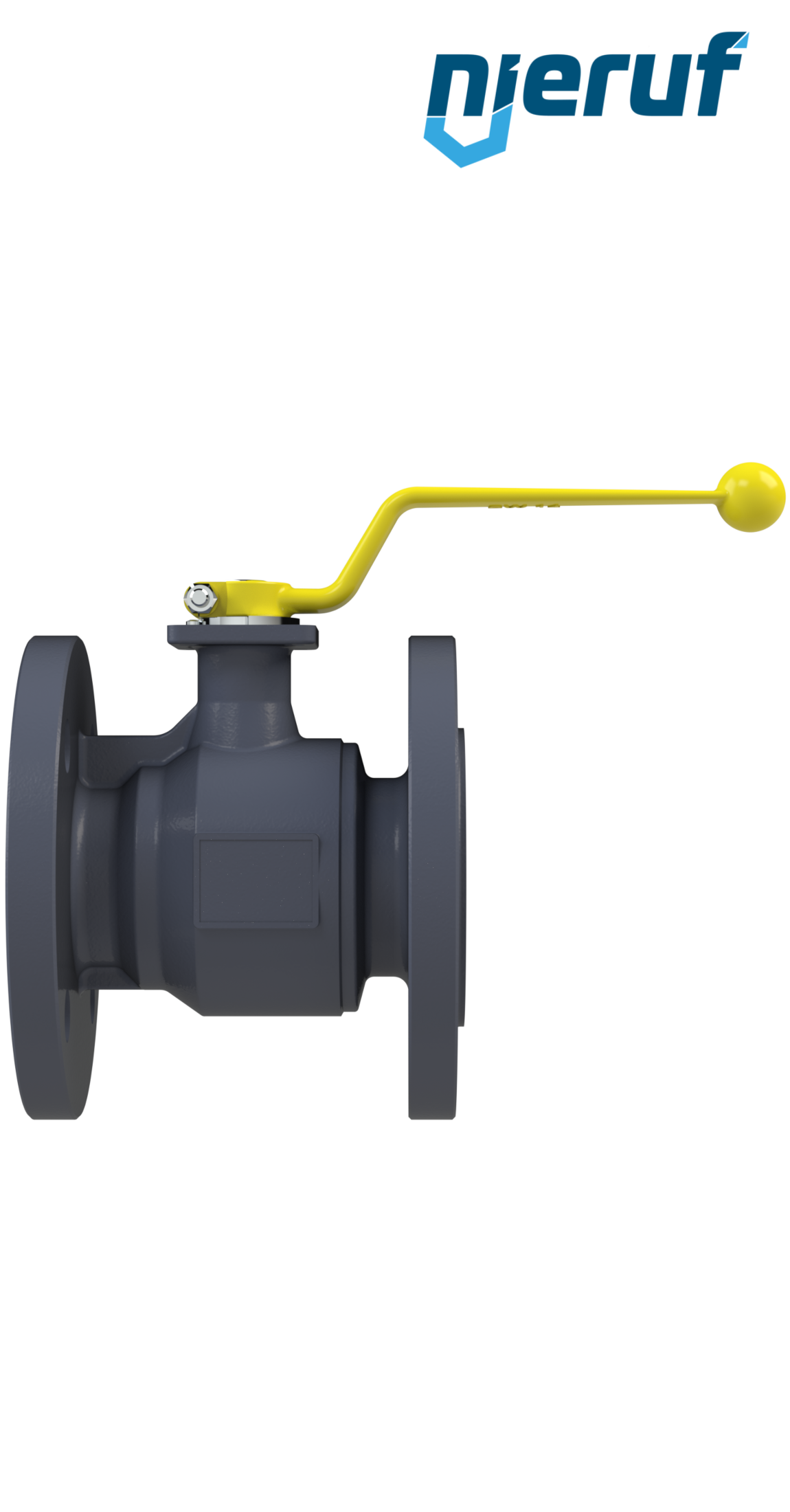

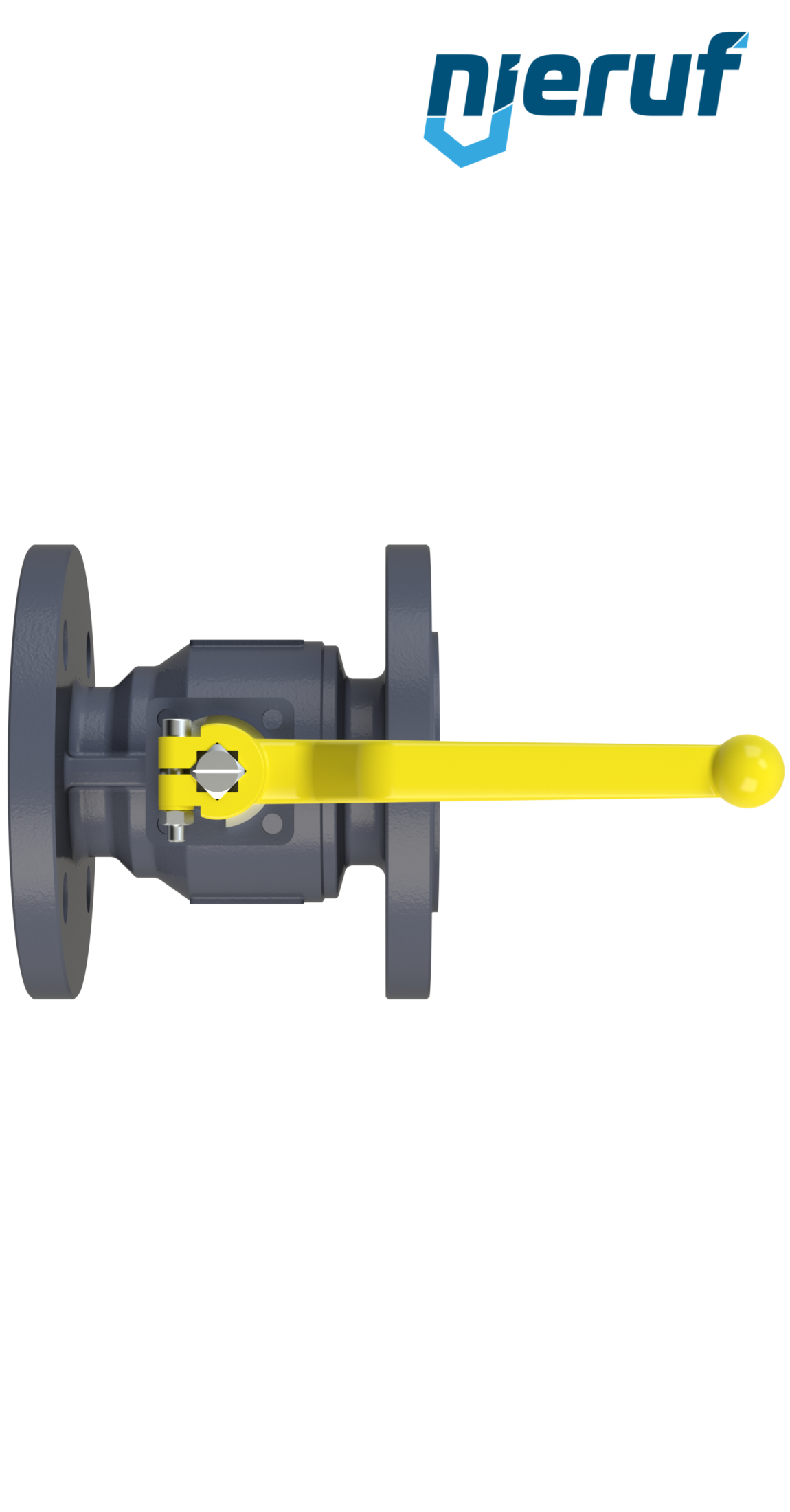

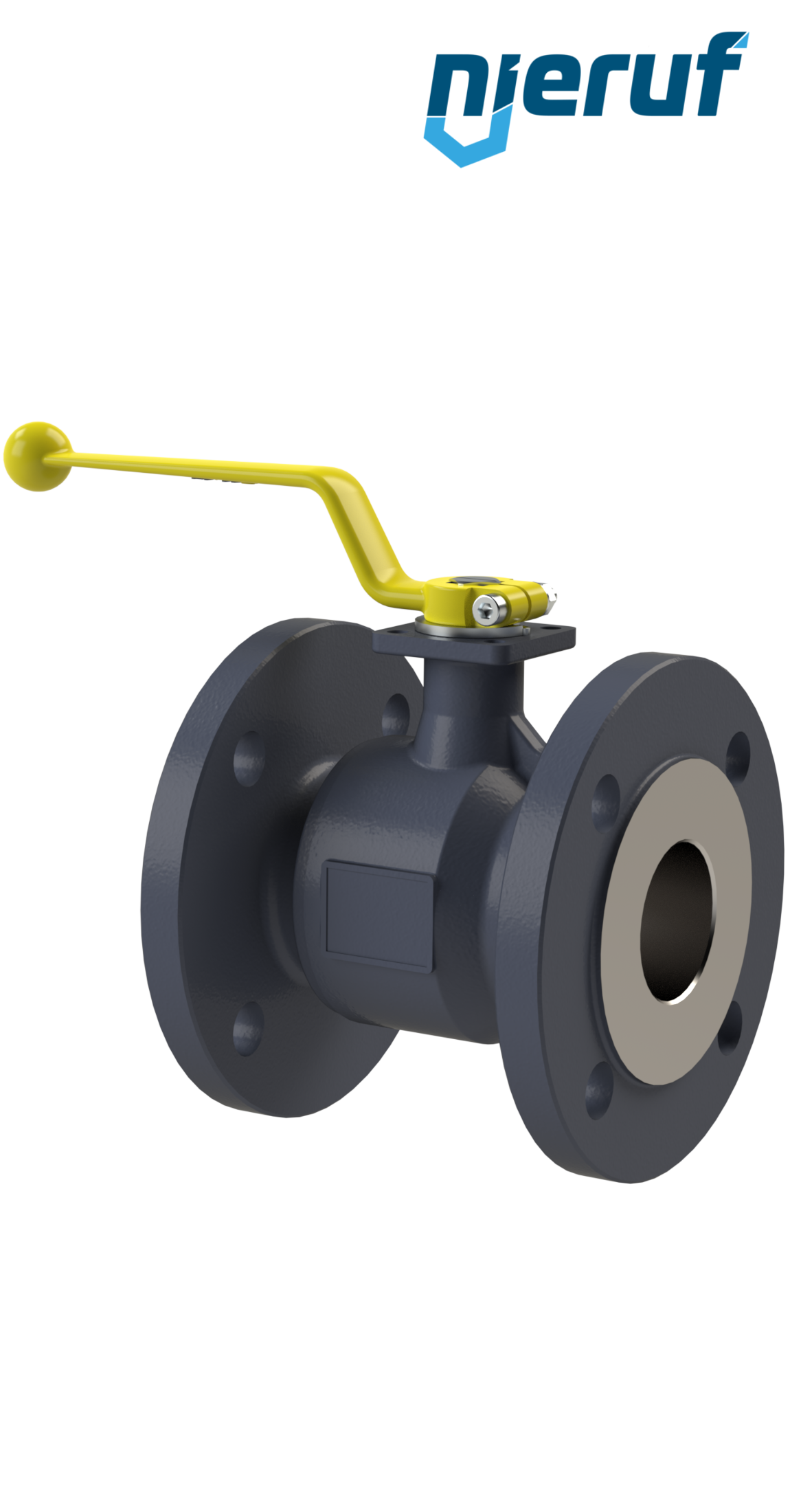

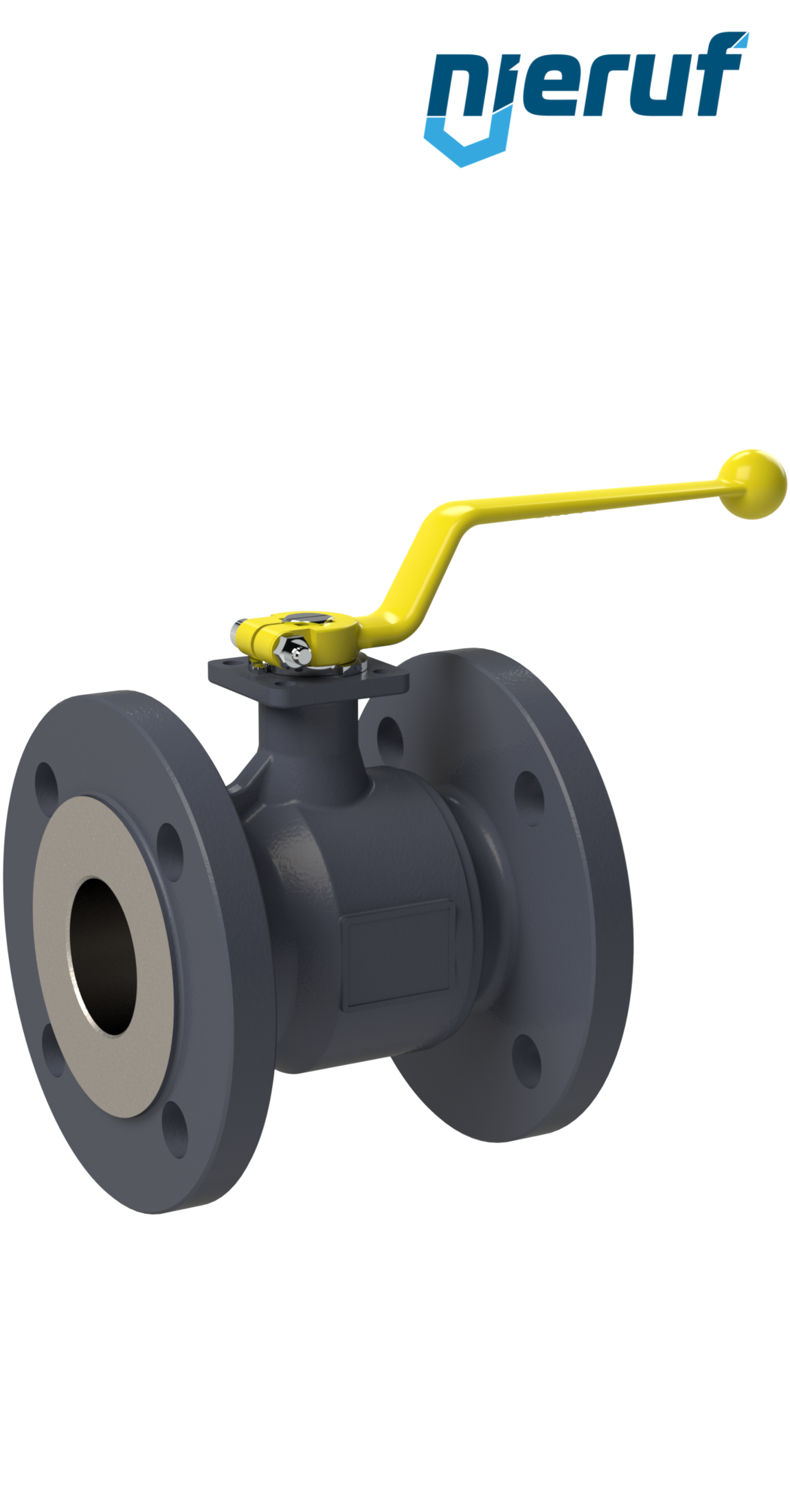

Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas

FK02020008
quantity (pcs.):
155.10€ * 179.92€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas
Flange ball valve DN50 FK02 body spheroidal graphite cast iron GJS 400-18 ball (solid) stainless steel 1.4408 seal PTFE approval DVGW gas
diameter: DN50
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
media: gas: 1., 2. and 3. gas category
temperature: -20°C up to +60°C - depending on working pressure and media
max. pressure: PN16
design: full port design with solid stainless steel ball
body material: spheroidal graphite cast iron GJS 400-18
ball material: (solid) stainless steel 1.4408
ball seal: PTFE
length: DIN EN 558-1 R14
actuator: hand lever made of alu with yellow cover
installation position: any position
product description: This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas
