FK05010006

Steam-flange ball valve DN32 FK05 stainless steel 1.4408

€353.50*

€420.67 VAT included.

Delivery time: 1 - 2 weeks

Delivery information

Equipment

FL01000106

Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541

€39.80*

€47.36 VAT included.


VS01000106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel

€8.40*

€10.00 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€2.10*

€2.50 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK05010006

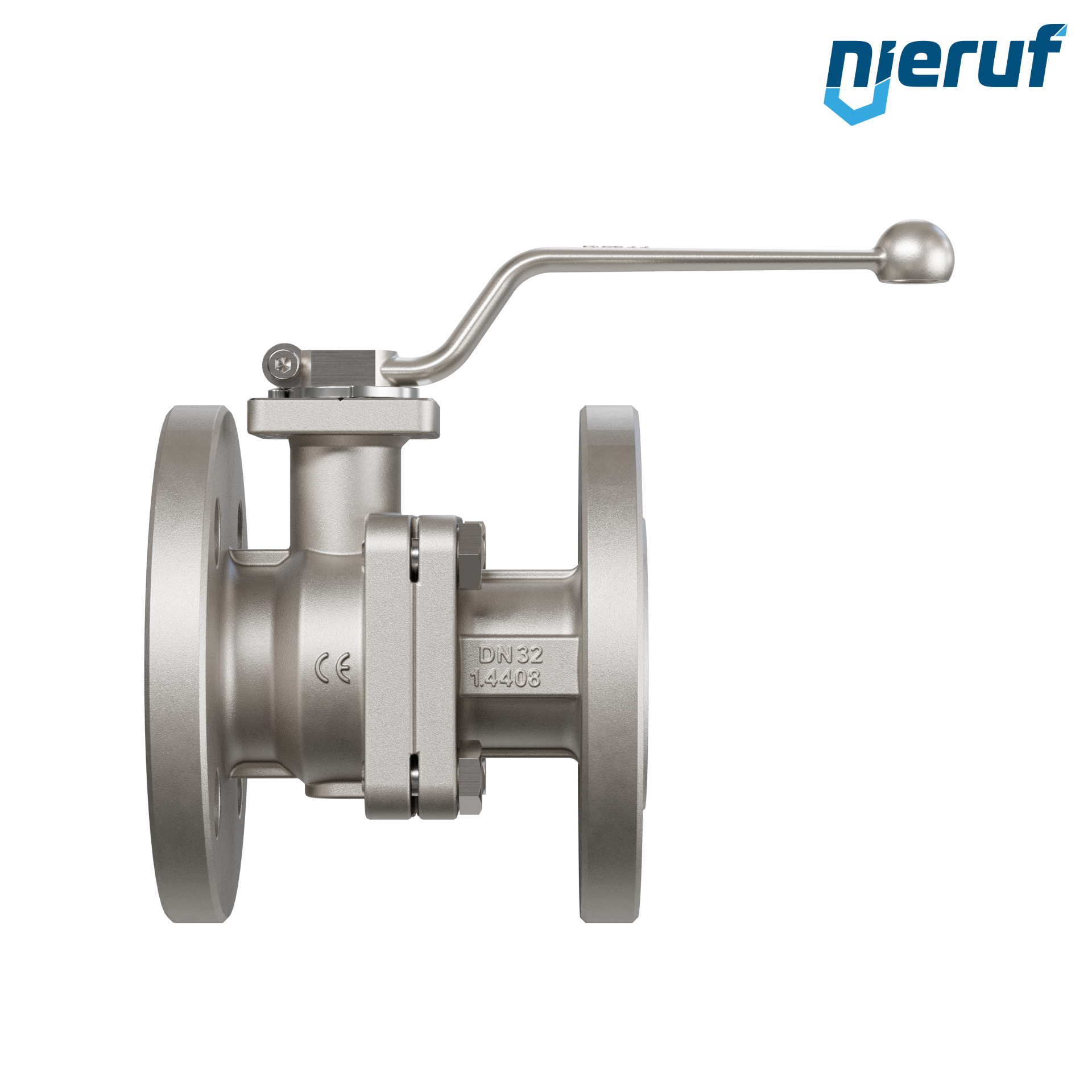

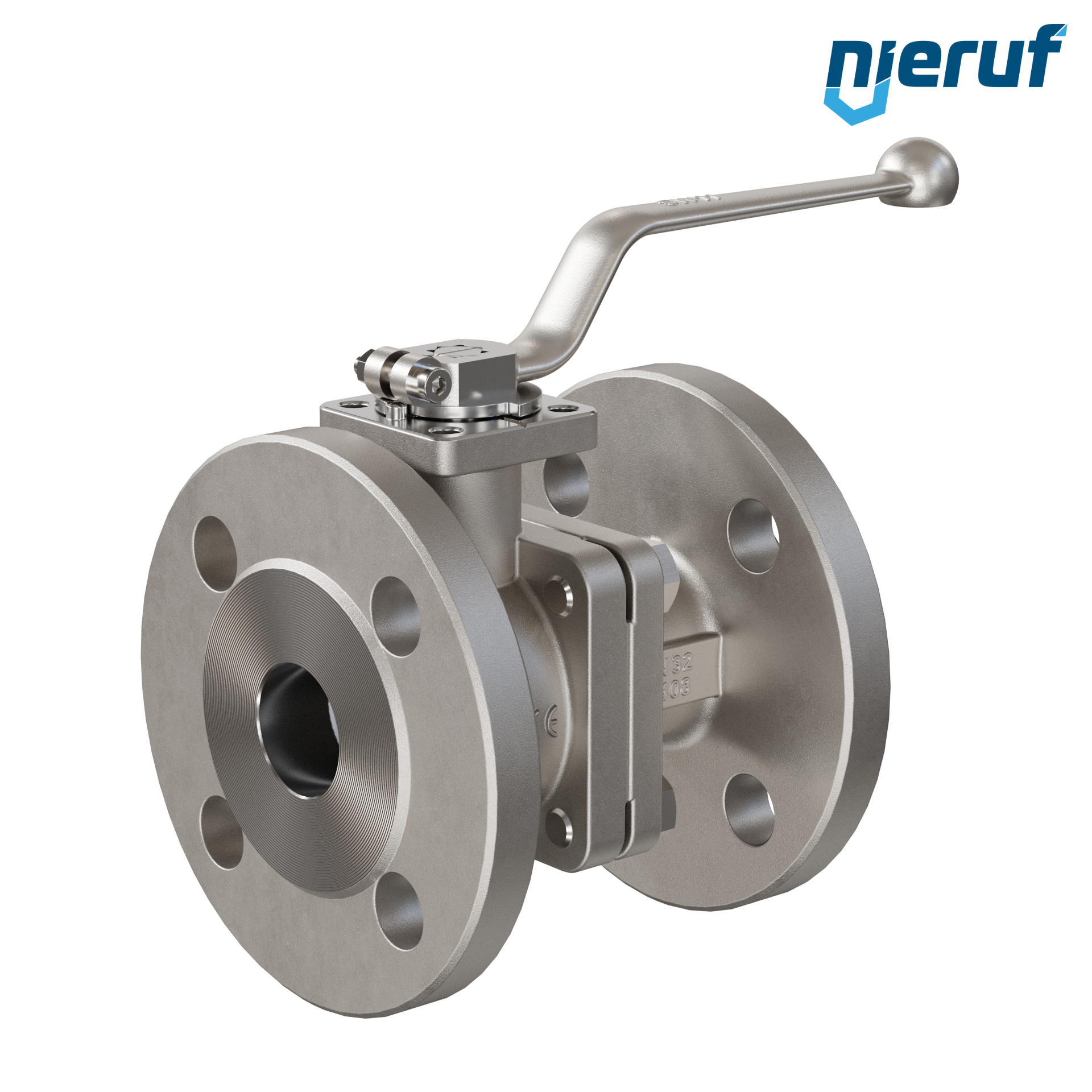

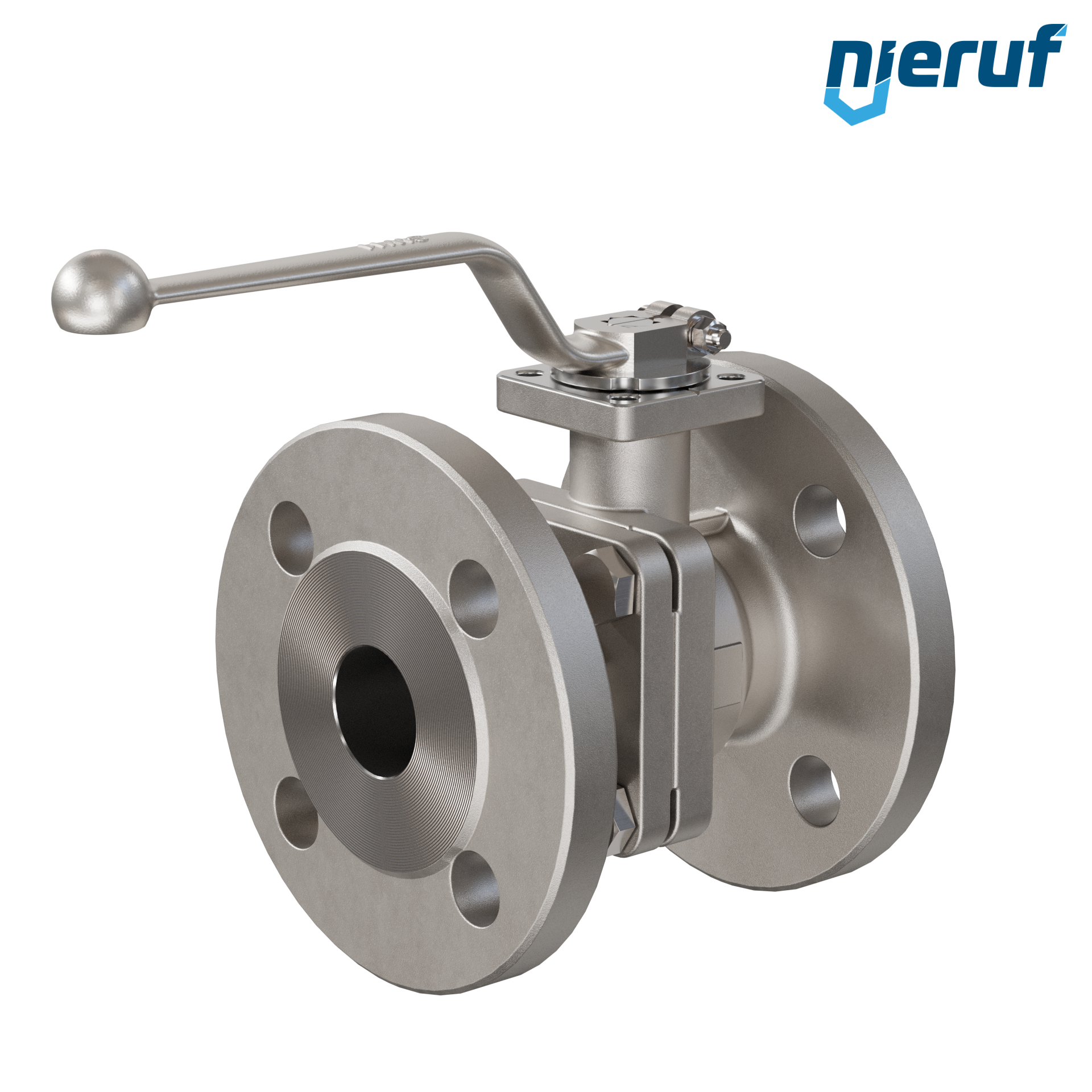

Steam-flange ball valve DN32 FK05 stainless steel 1.4408

Steam-flange ball valve DN32 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / TFM for gaseous for example steam

product: Steam-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN32
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: graphite
body seal: graphite
ball seal: PTFE/TFM
media: gaseous for example steam
temperature: -20°C up to +220°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media, such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Steam-flange ball valve DN32 FK05 stainless steel 1.4408

Article no. : FK05010006
product: Steam-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN32
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: graphite
body seal: graphite
ball seal: PTFE/TFM
media: gaseous for example steam
temperature: -20°C up to +220°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media, such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
