digital pressure sensor G 1/4" B 4-wire: 2xPNP EPDM 0,0 - 2,5 bar

DS03051001
quantity (pcs.):
286.90€ * 341.41€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

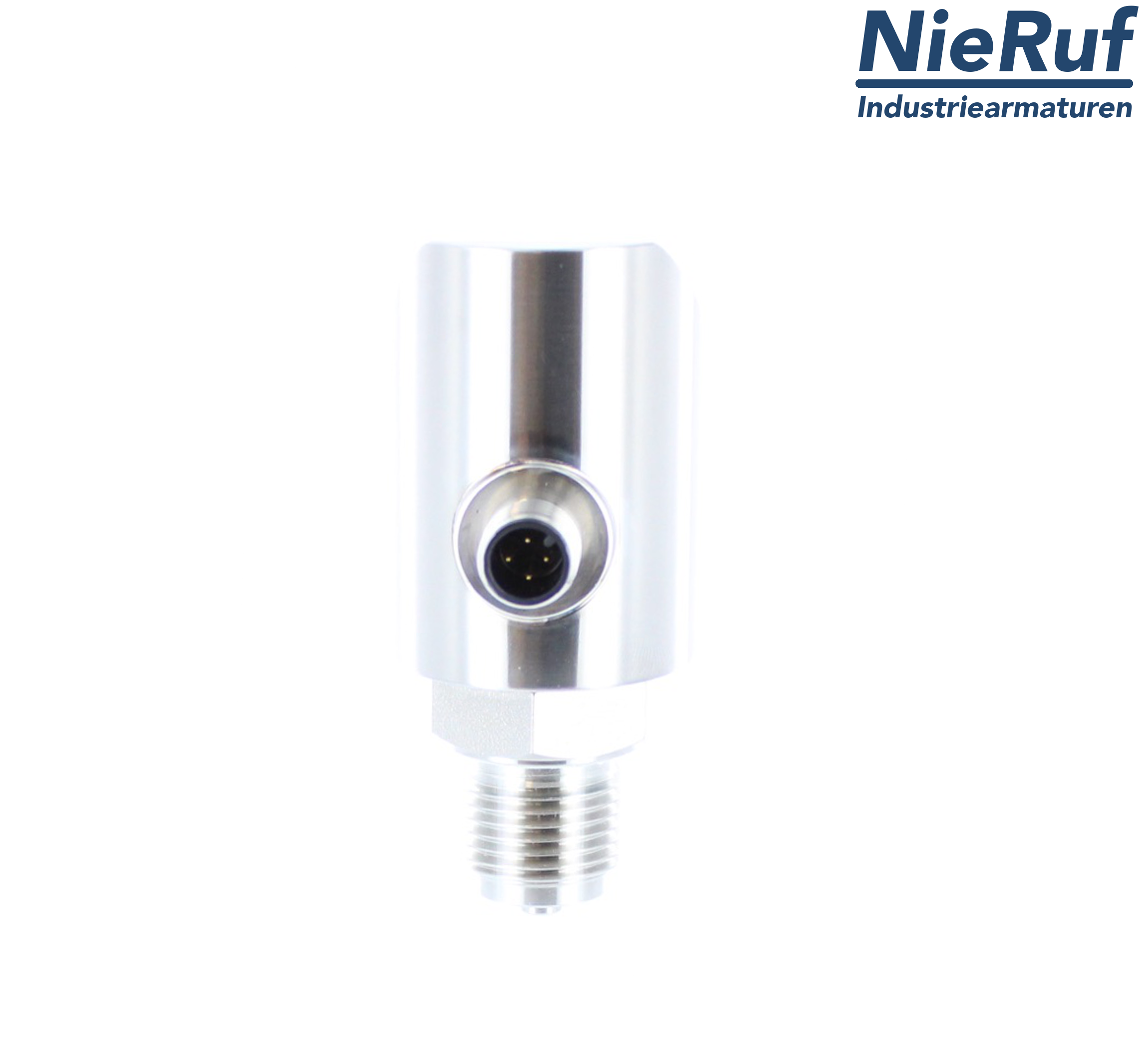

digital pressure sensor G 1/4" B 4-wire: 2xPNP EPDM 0,0 - 2,5 bar
digital pressure sensor G 1/4" B pressure range 0,0 - 2,5 bar made of stainless steel 4-wire: 2xPNP seal EPDM for liquid and gaseous media male thread
diameter: G 1/4" B
connection: male thread
material connection: stainless steel
material: chromium-nickel steel
seal: EPDM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 2,5 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 4-wire: 2xPNP
plug: plug M12

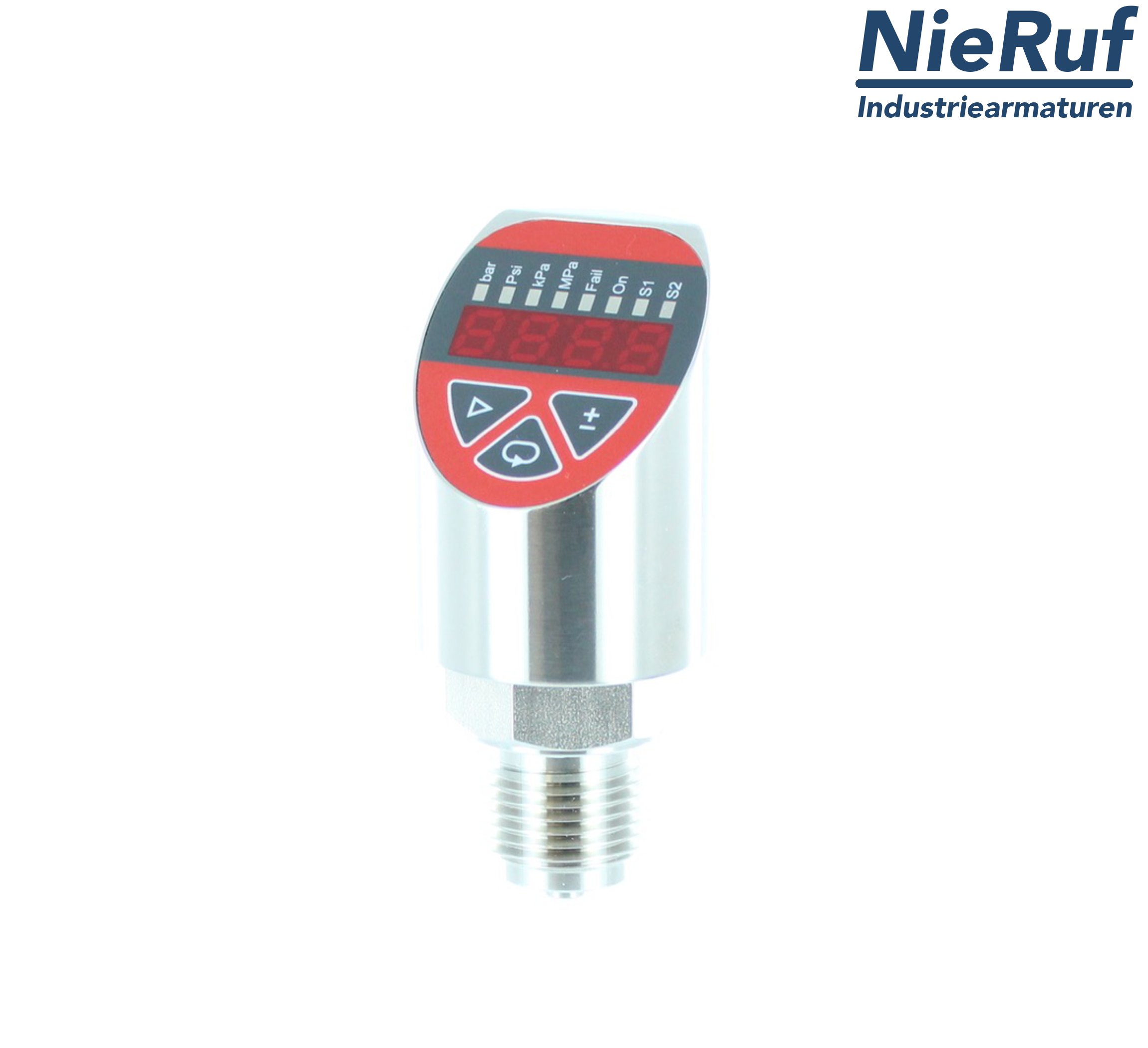

product feature: High-quality pressure switch with 4-digit digital display and internal ceramic membrane.
