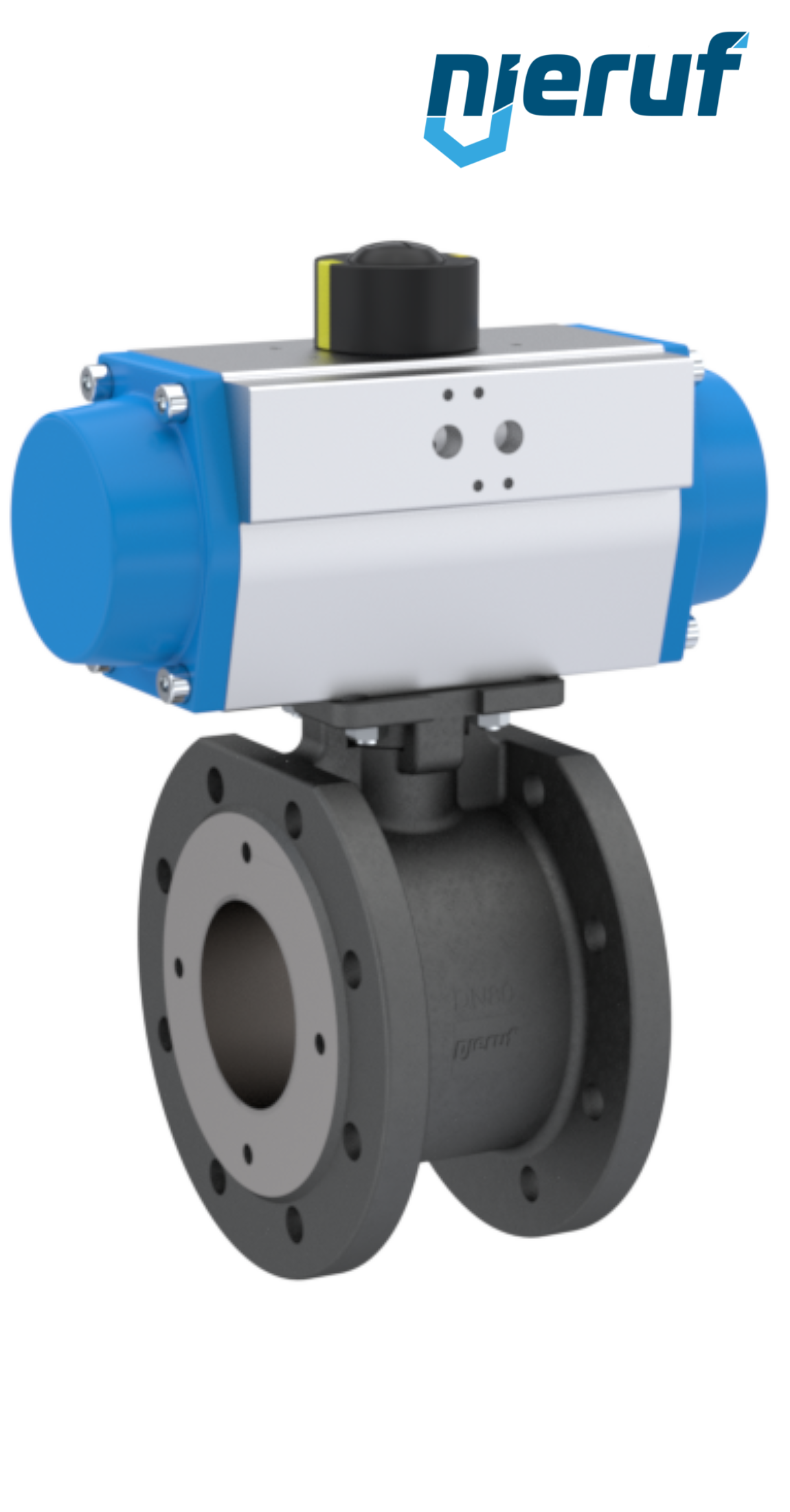

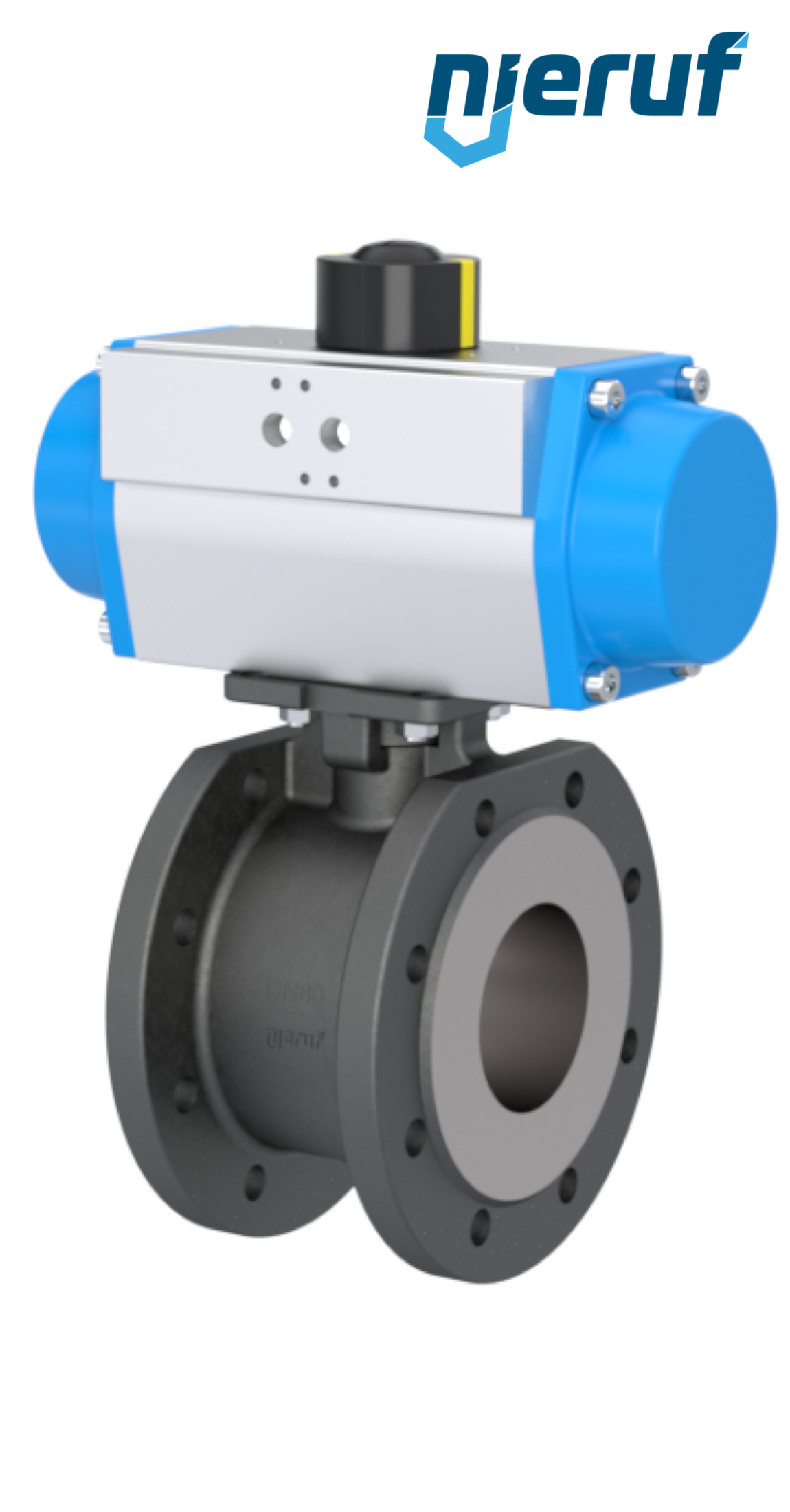

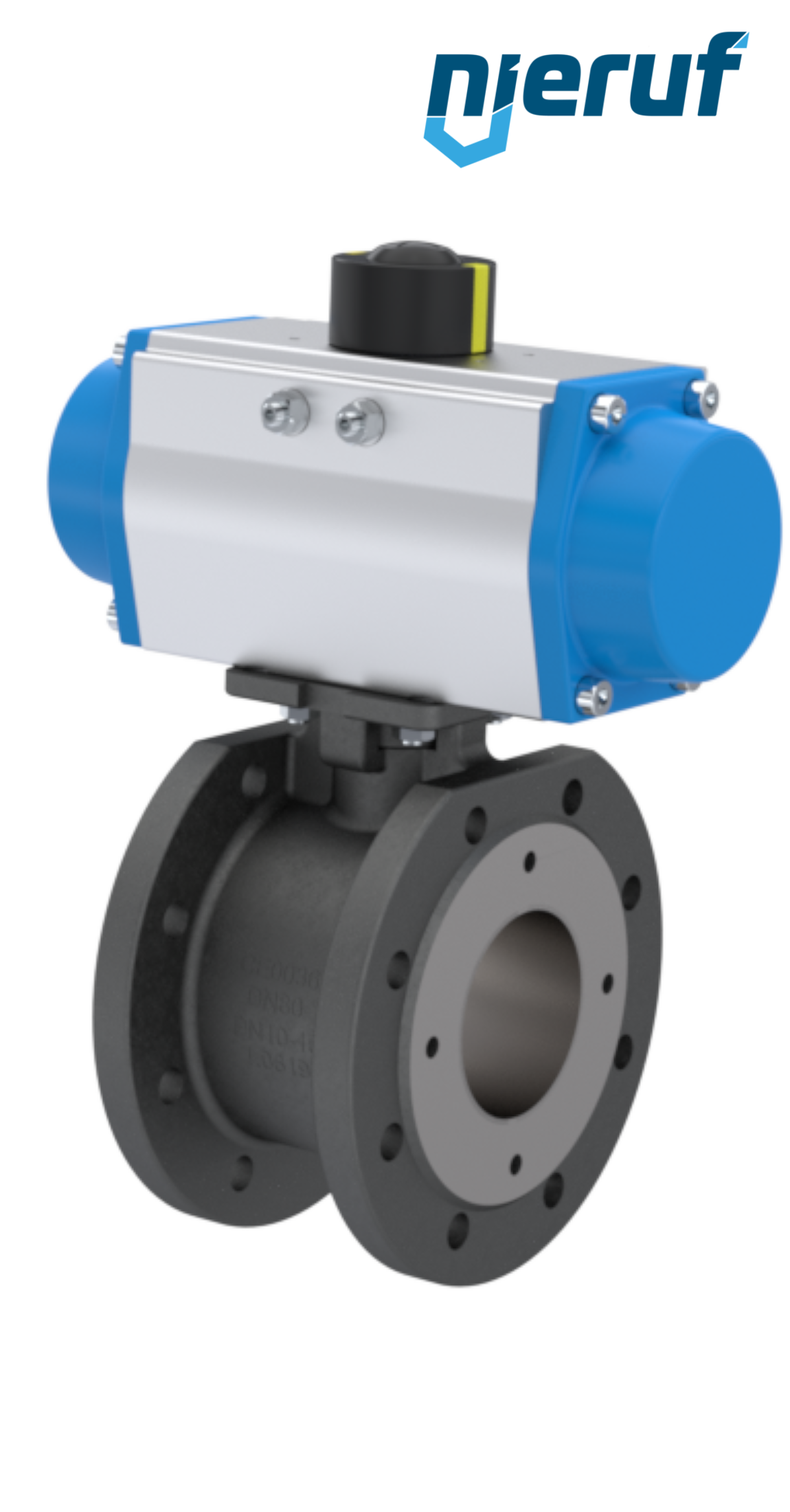

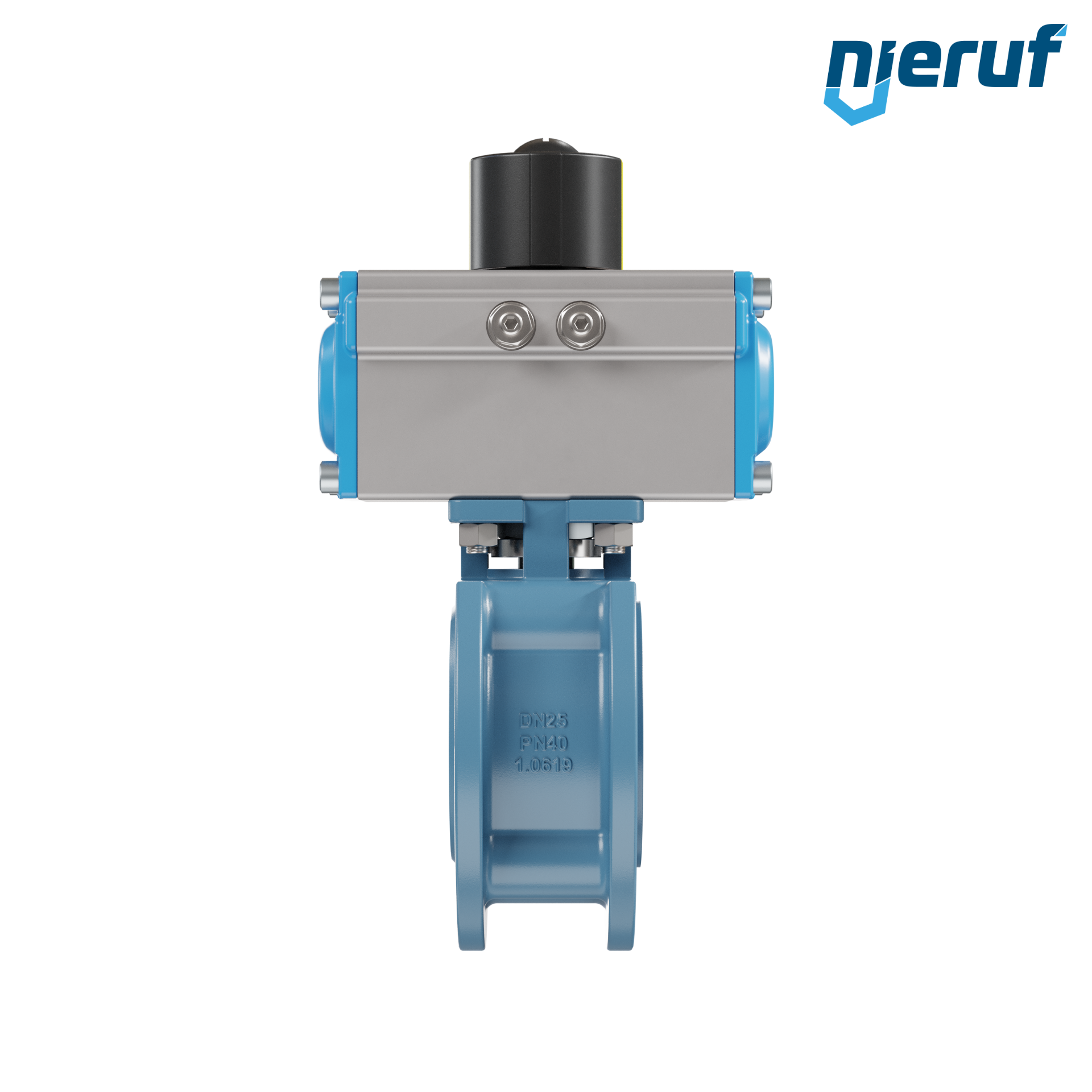

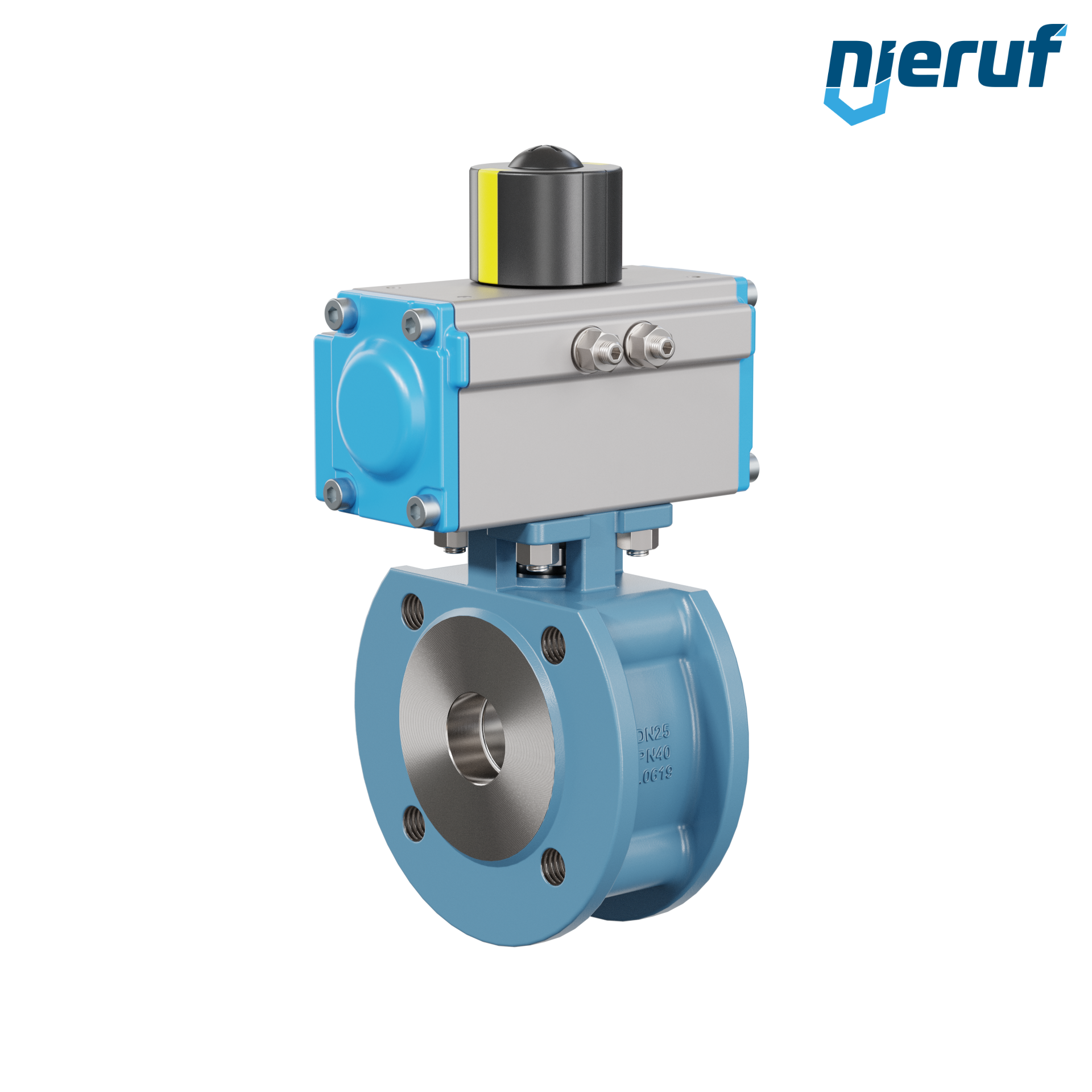

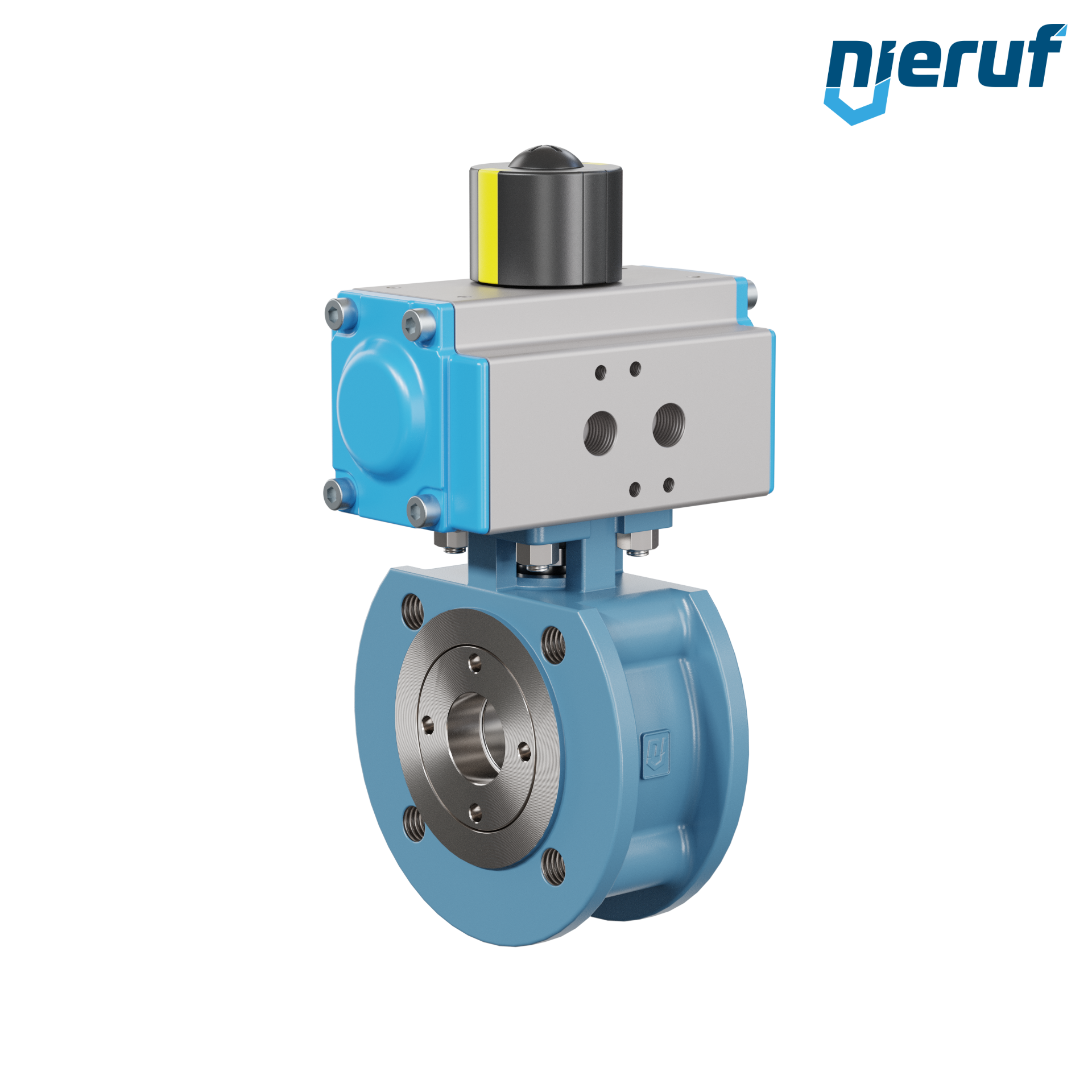

compact-automatic-flange ball valve DN25 PK06 pneumatic actuator double acting

PK06000005
quantity (pcs.):
199.30€ * 231.19€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
compact-automatic-flange ball valve DN25 PK06 pneumatic actuator double acting
compact-automatic-flange ball valve DN25 carbon steel 1.0619 PK06 pneumatic actuator GTD58 made of aluminium (mode of function: GTD = double acting)
diameter: DN25
connection: flange
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 95°C
max. pressure: PN16
design: flange ball valve
body material: carbon steel 1.0619
ball material: stainless steel 1.4408
ball seal: PTFE + TFM
length: 50mm
actuator: pneumatic actuator GTD58 made of aluminium (mode of function: GTD = double acting)
actuator informations: Control pressure rate from 6 bar up to 10 bar / filtered air acc. to Pneurop / ISO class 4
product description: This high quality automatic-carbon steel ball valves with pneumatic actuator (GTD = double acting) with direct mounting of magnetic valves per Namur is also possible.
compact-automatic-flange ball valve DN25 PK06 pneumatic actuator double acting

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

compact-automatic-flange ball valve DN25 PK06 pneumatic actuator double acting
