ball valve with spring reload DN8 - 1/4" inch GK13

quantity (pcs.):
20.20€ * 23.43€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

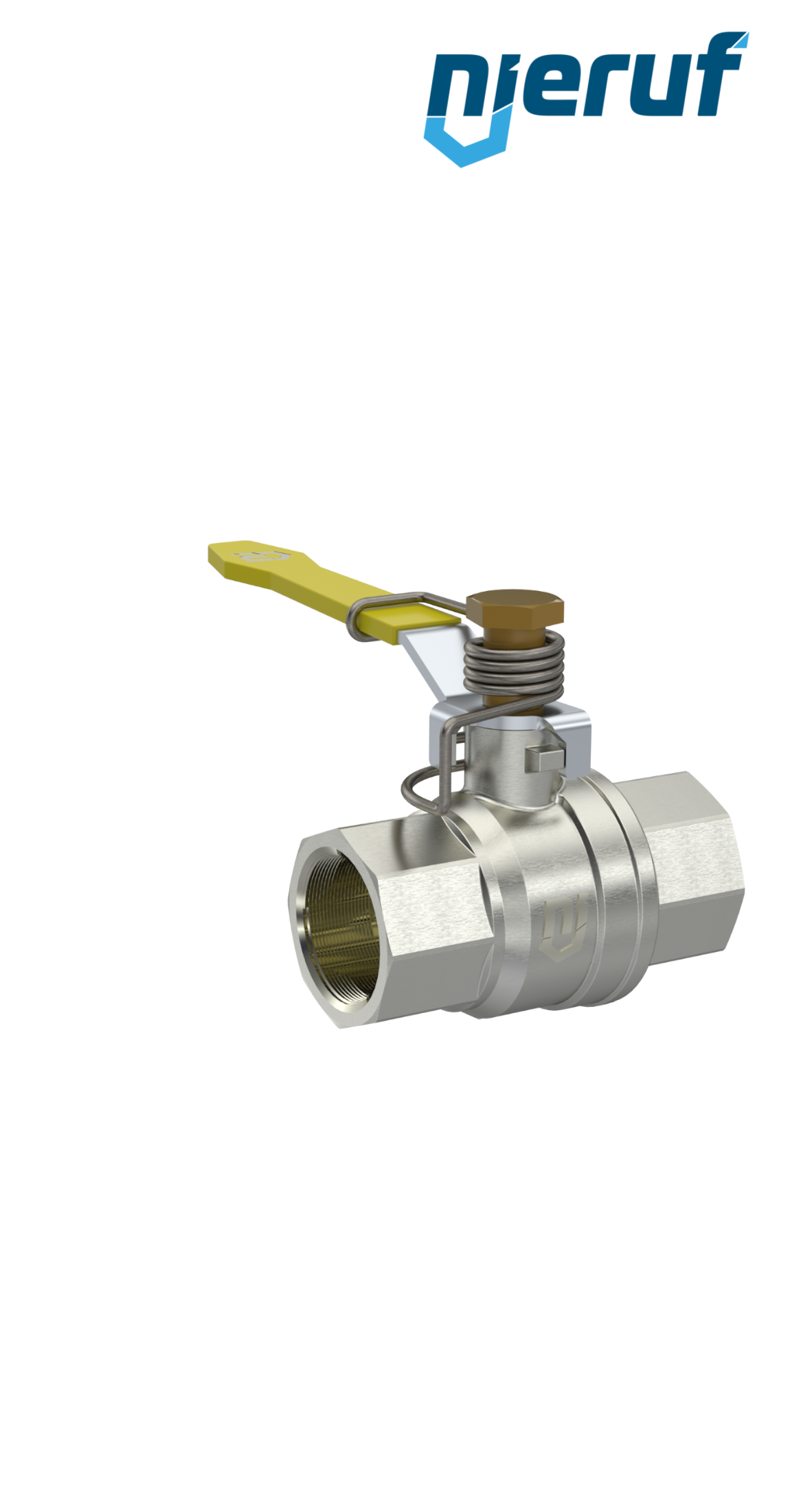

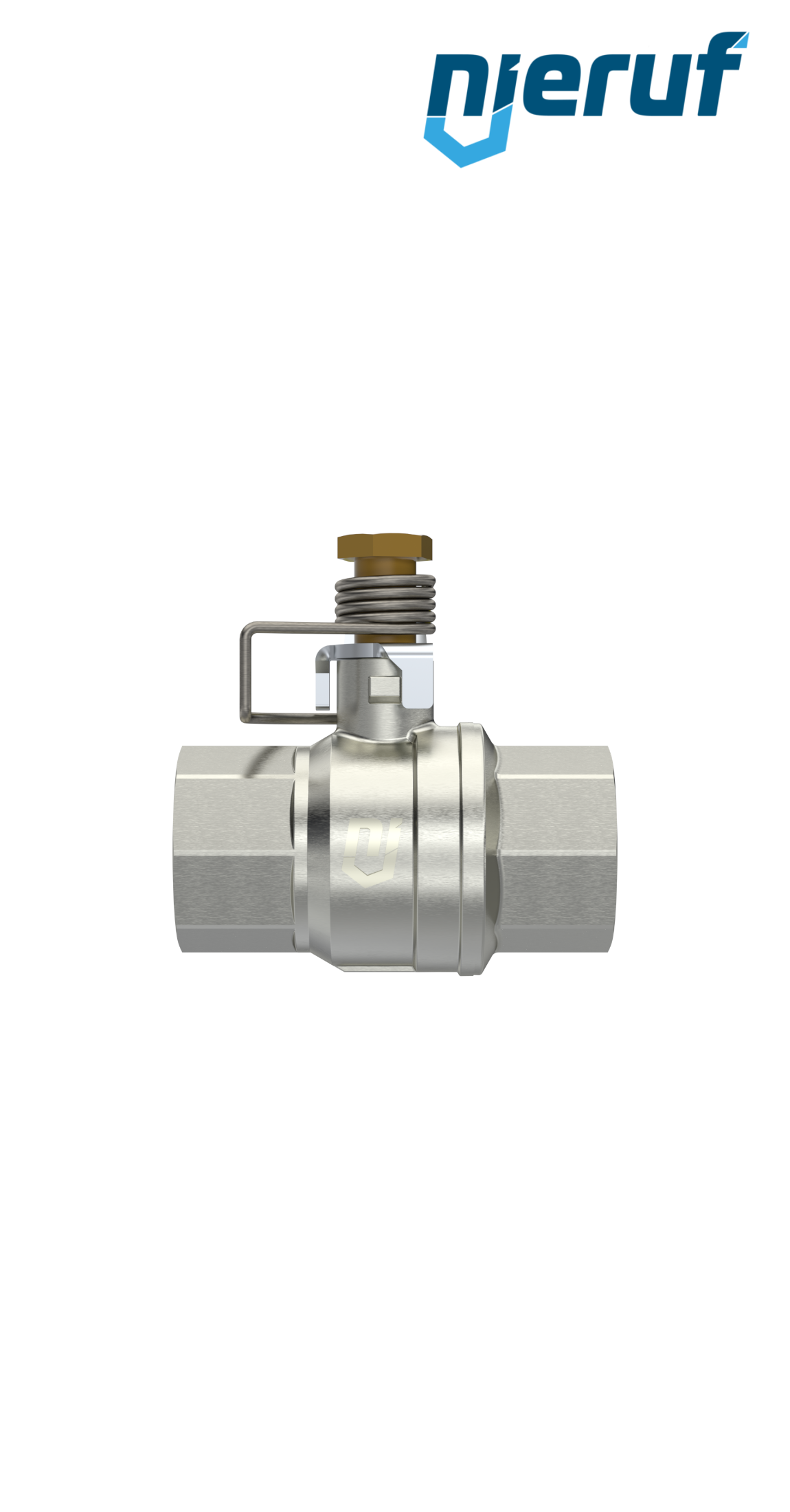

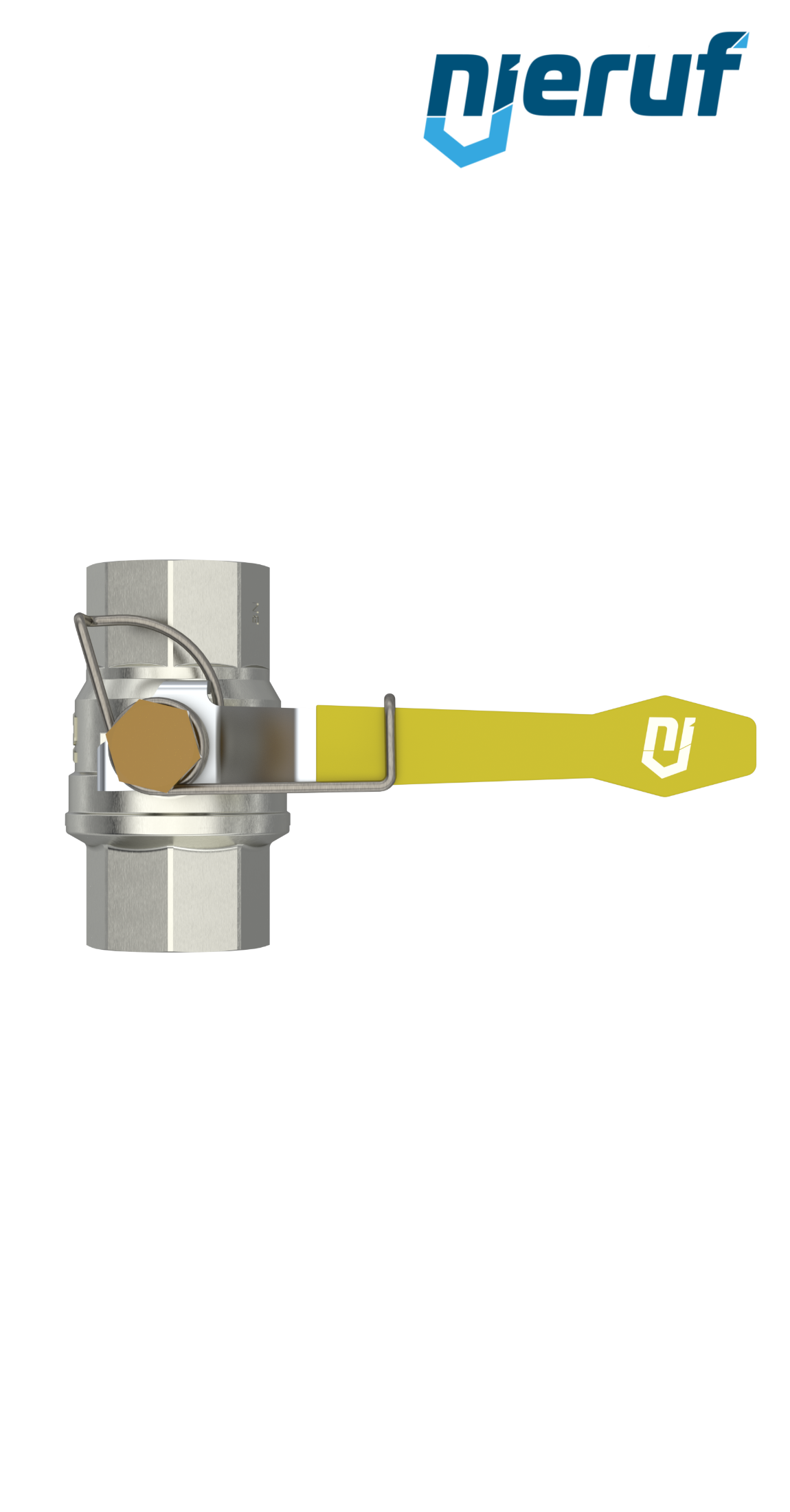

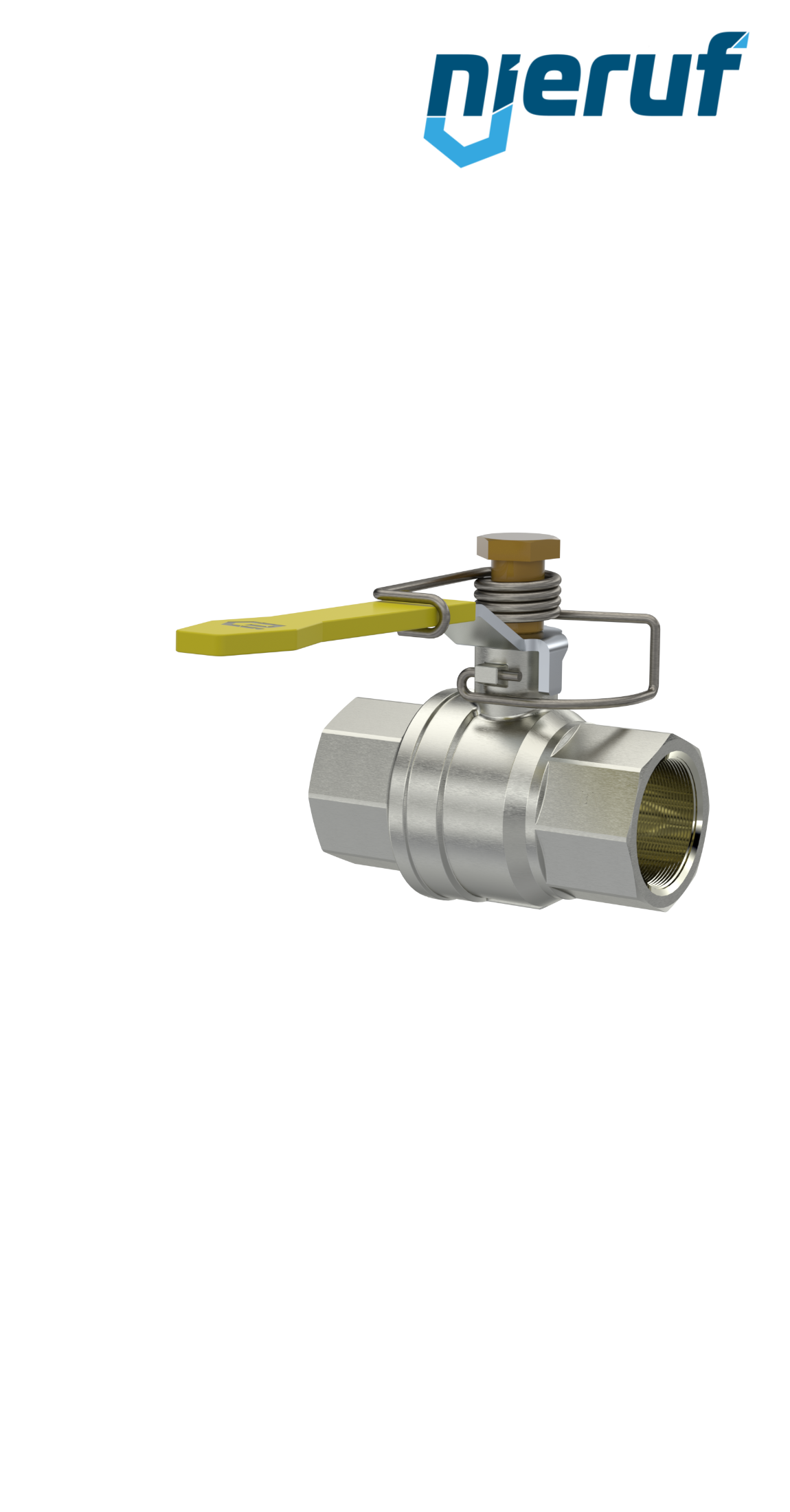

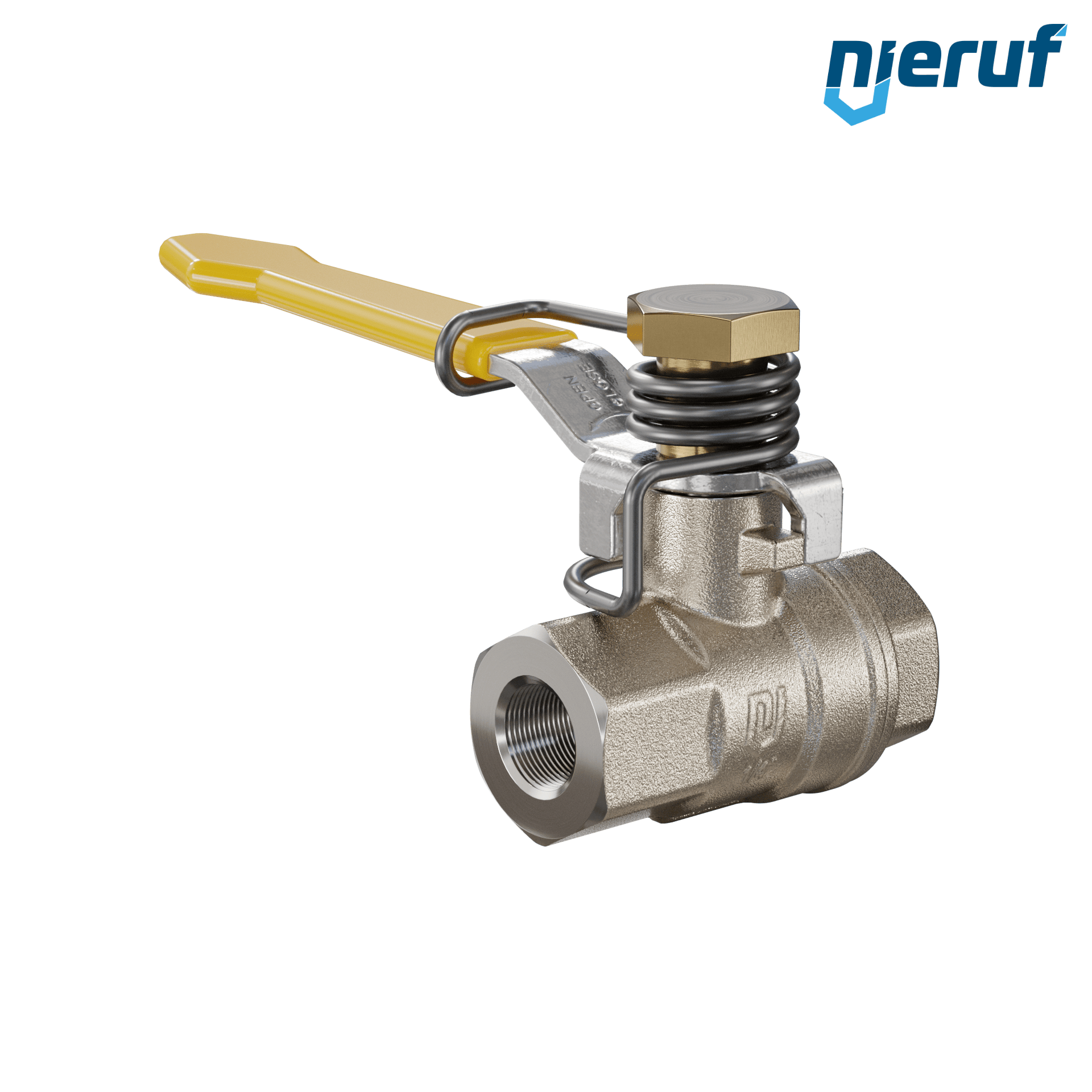

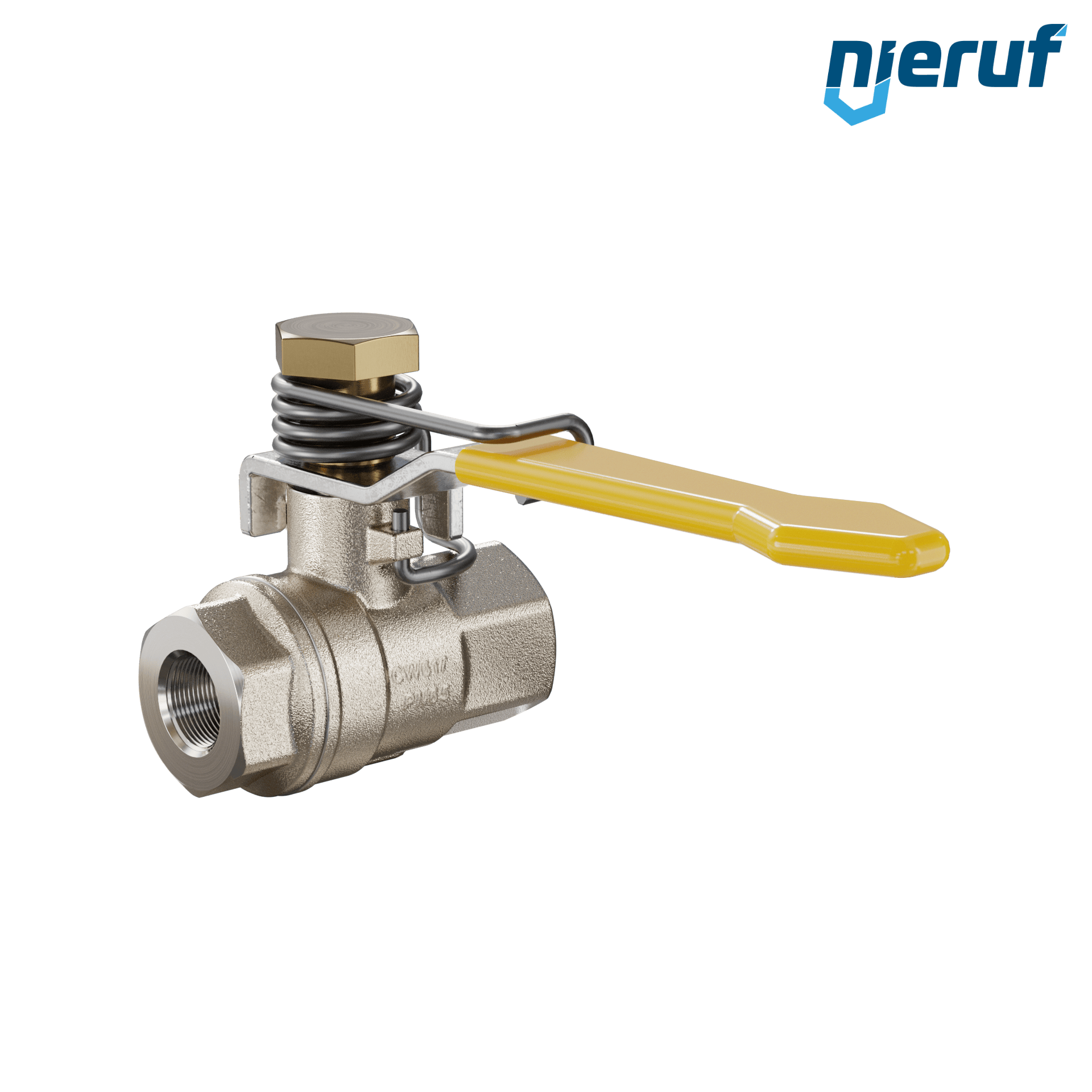

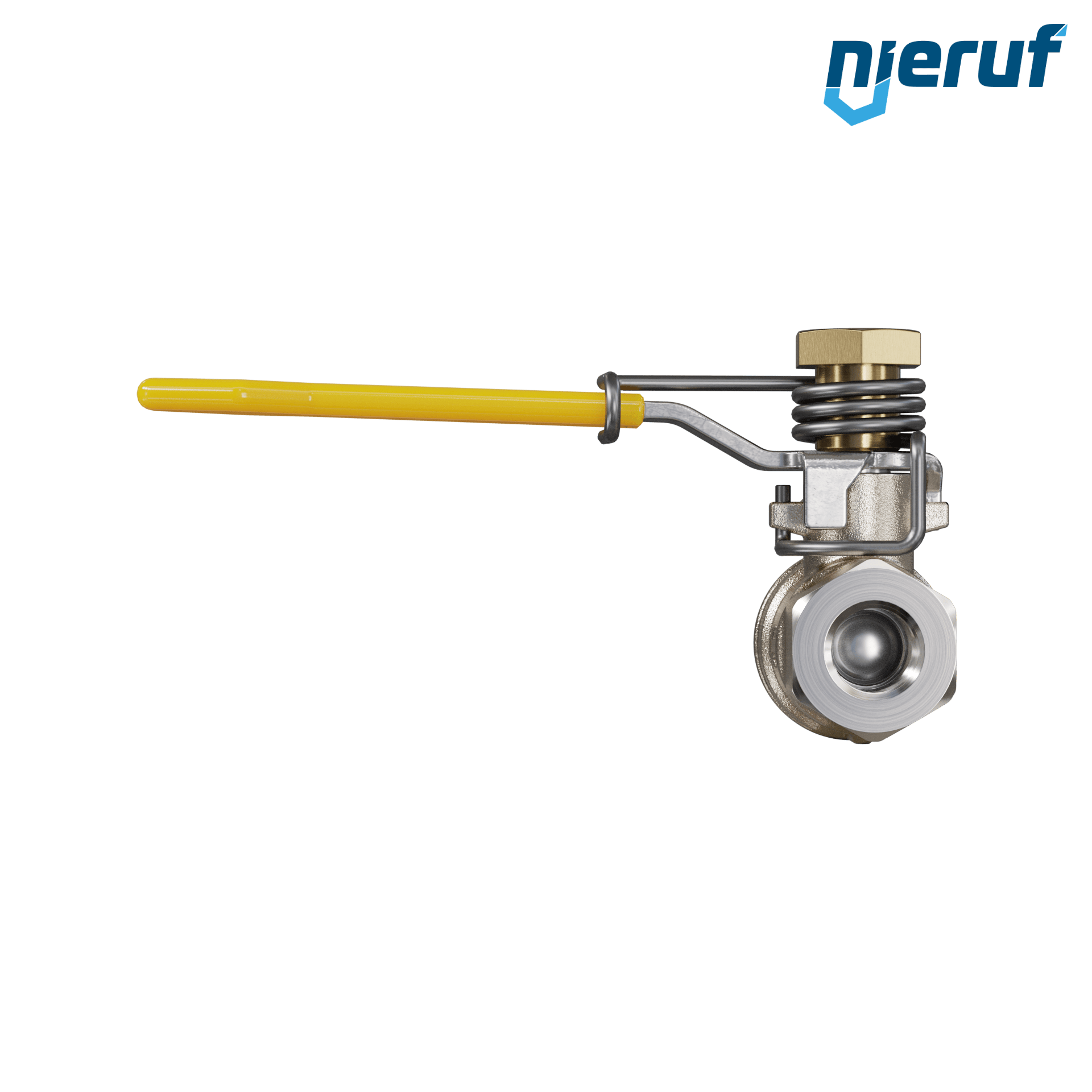

ball valve with spring reload DN8 - 1/4" inch GK13
ball valve with spring reload DN8 - 1/4" inch full port design seal made of 2 Viton O-rings for liquid and gaseous media
diameter: DN8 - 1/4" inch
connection: female thread
Seal steam: 2 Viton O-rings
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN65
design: full port design
body material: brass nickel plated (CW617N)
ball material: brass chrome plated (CW617N)
ball seal: PTFE
length: 50mm
actuator: lever handle made of steel, zinc coated with yellow plastic cover
installation position: any position
product description: This high quality brass ball valve with spring return is normally in position "closed". The actuating of the brass ball valve is against the spring force
ball valve with spring reload DN8 - 1/4" inch GK13

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

ball valve with spring reload DN8 - 1/4" inch GK13

datasheet 3D model
