Water ball valve DN10 - 3/8" inch GK05

GK05000002
quantity (pcs.):
13.60€ * 15.78€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

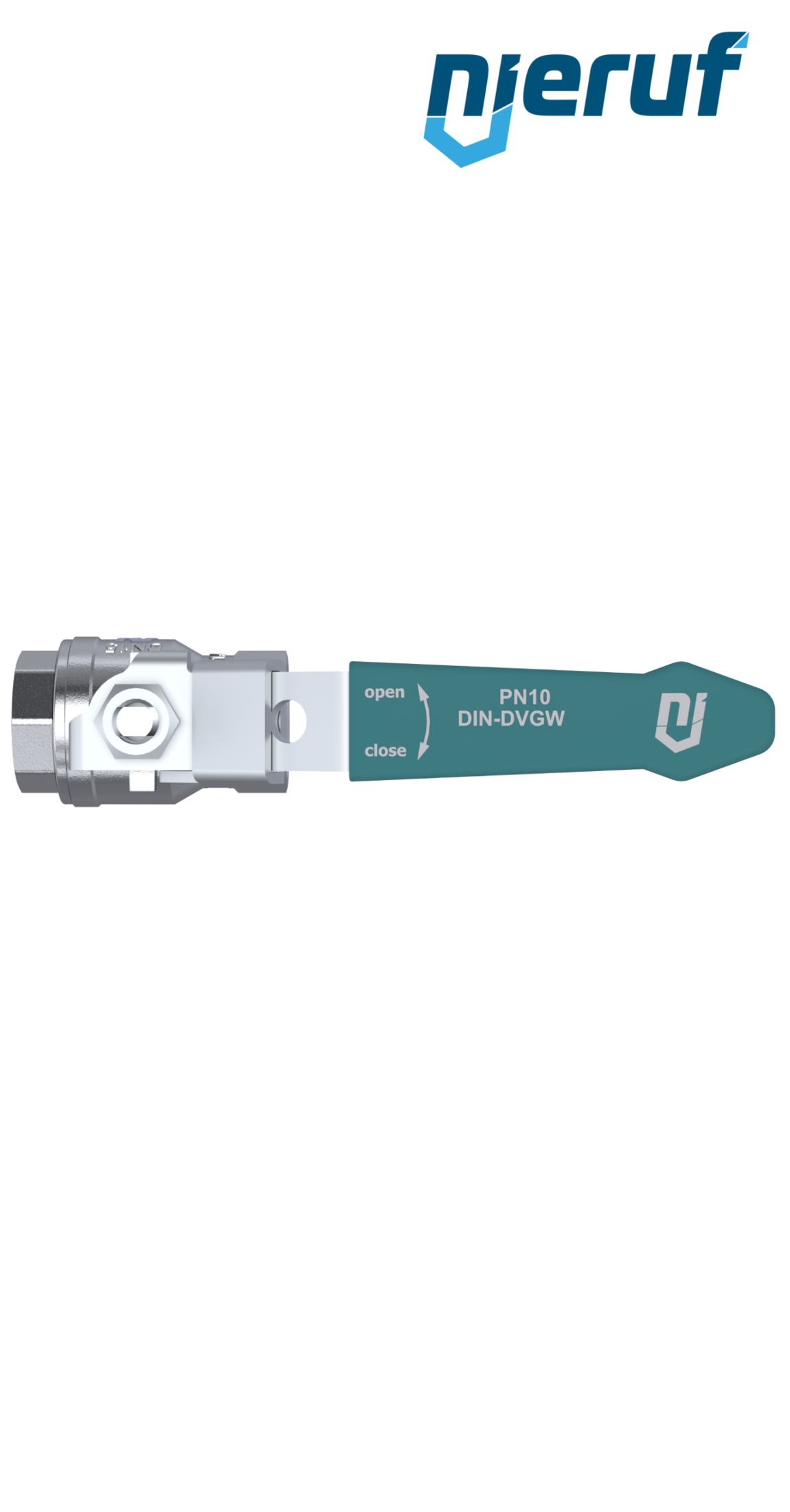

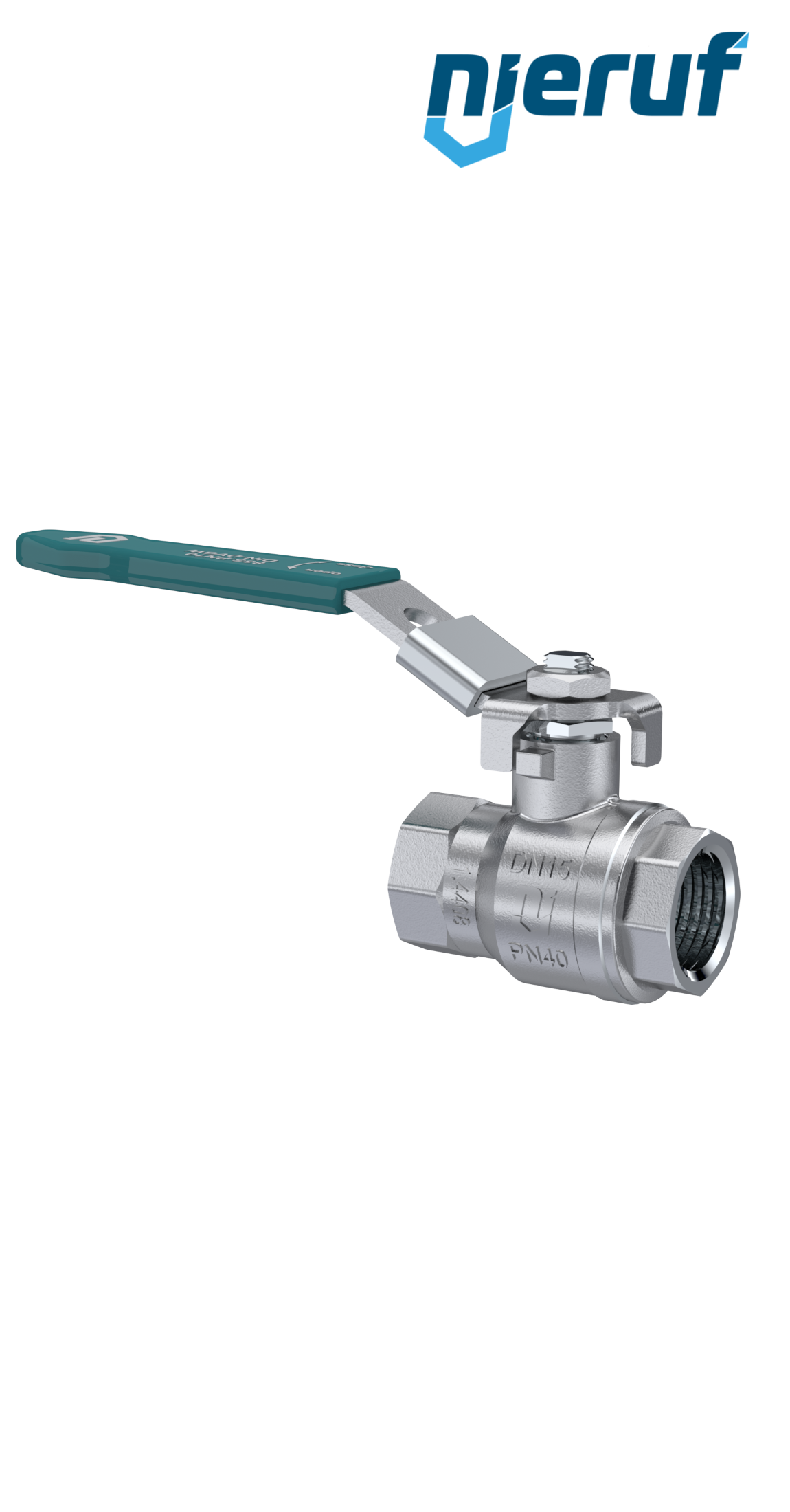

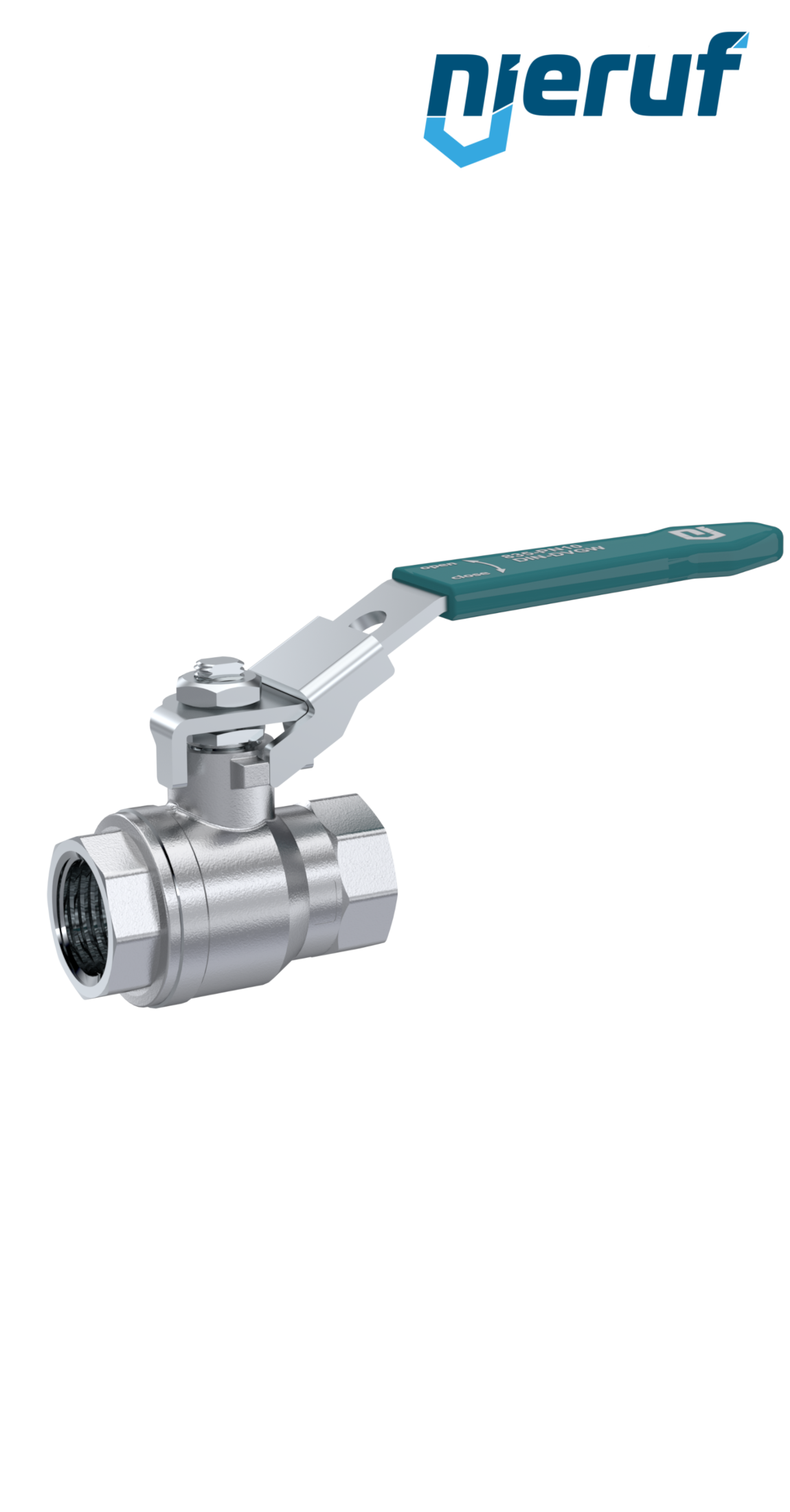

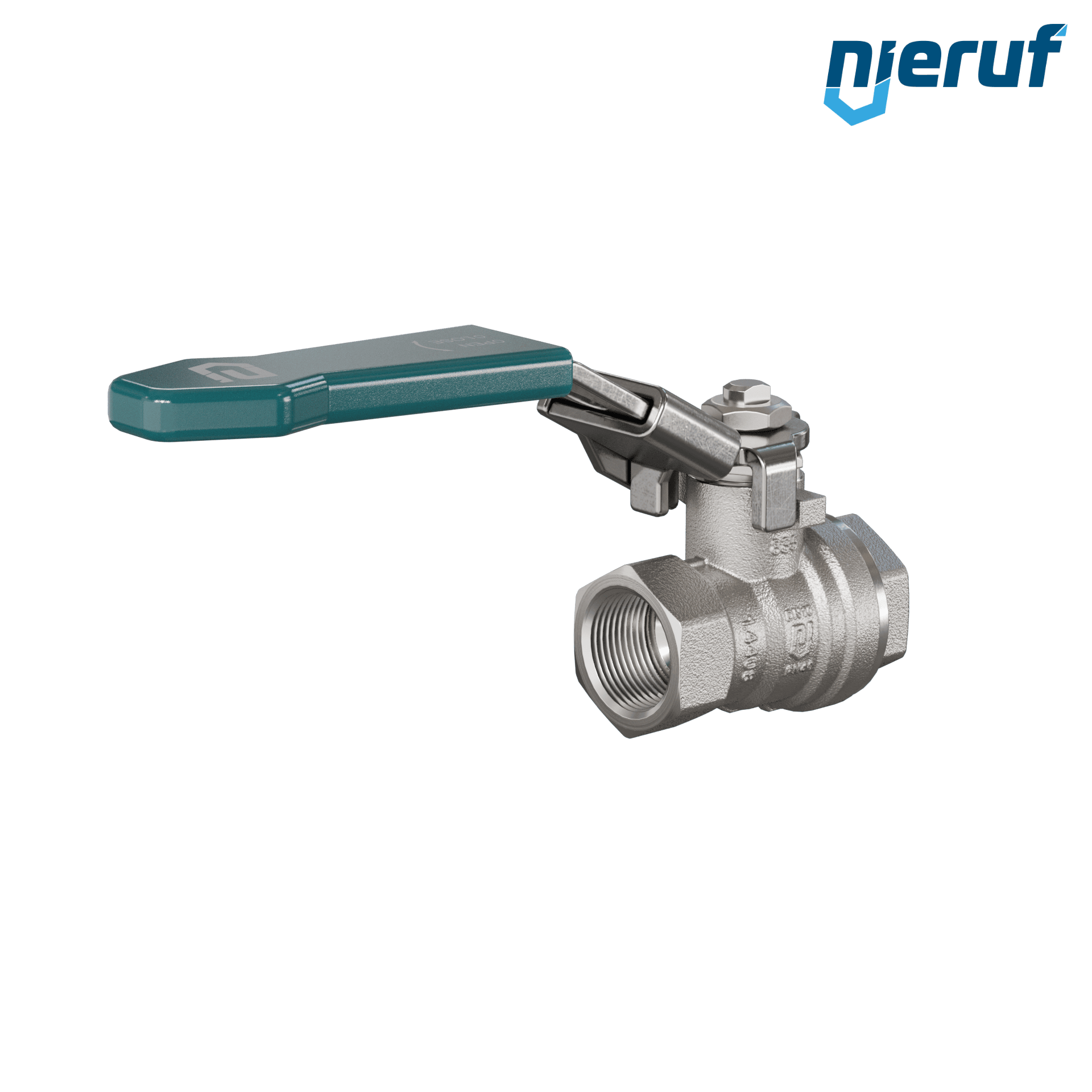

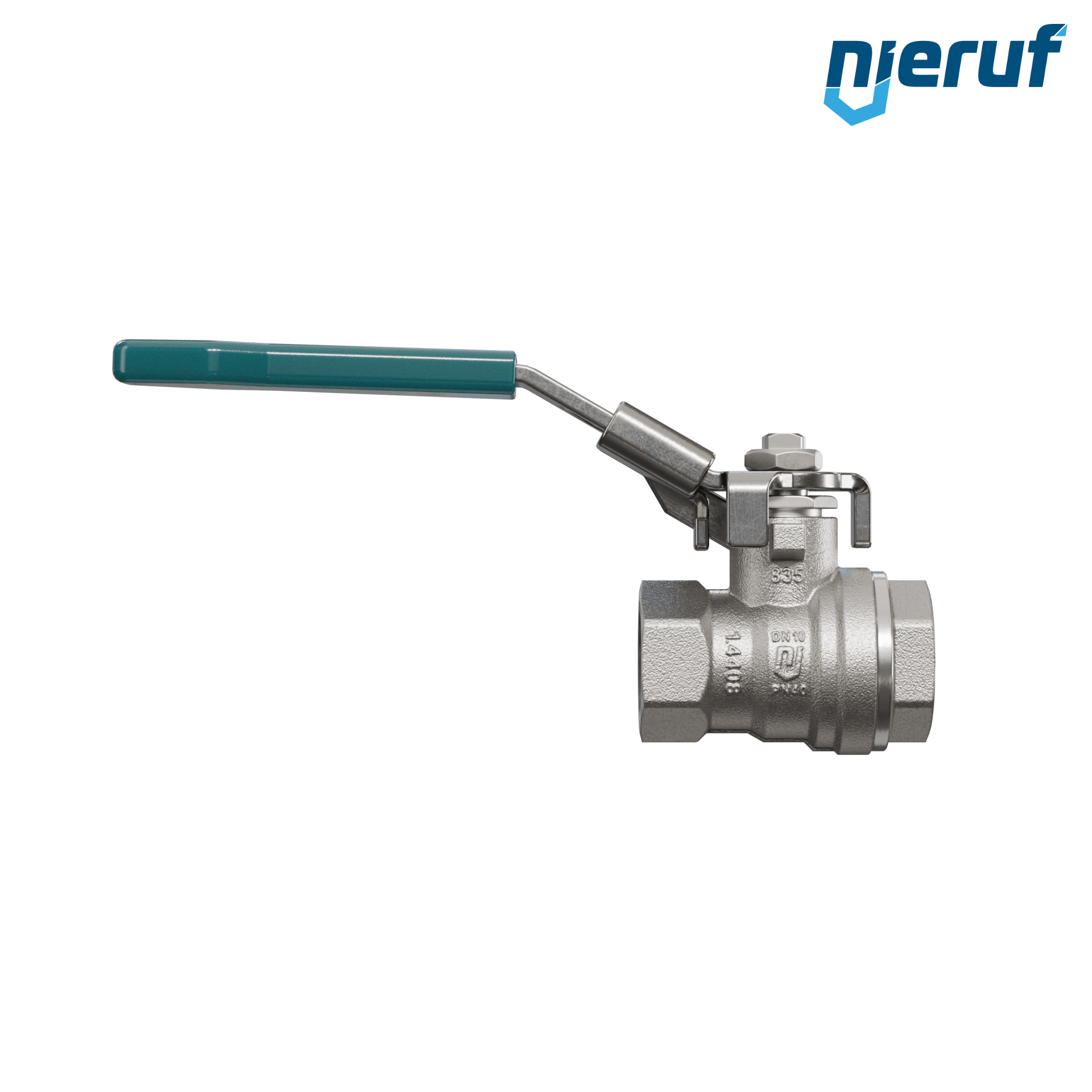

Water ball valve DN10 - 3/8" inch GK05
Water ball valve DN10 - 3/8" inch full port design seal made of PTFE for liquid and gaseous media
diameter: DN10 - 3/8" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN40
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 40mm
actuator: lever handle made of stainless steel with green plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" is drinking water registrated acc. to DIN EN 13828 and DVGW W 570
Water ball valve DN10 - 3/8" inch GK05

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Water ball valve DN10 - 3/8" inch GK05
