EK02010006

automatic-ball valve DN32 - 1 1/4" inch stainless steel electric 24-240V EK02

€421.80*

€501.94 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

AKKUPACK01

AkkuPack BSR for S20-S85

€282.70*

€336.41 VAT included.


DPSKIT01

Digital Positioning System for S20-S85

€254.10*

€302.38 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: EK02010006

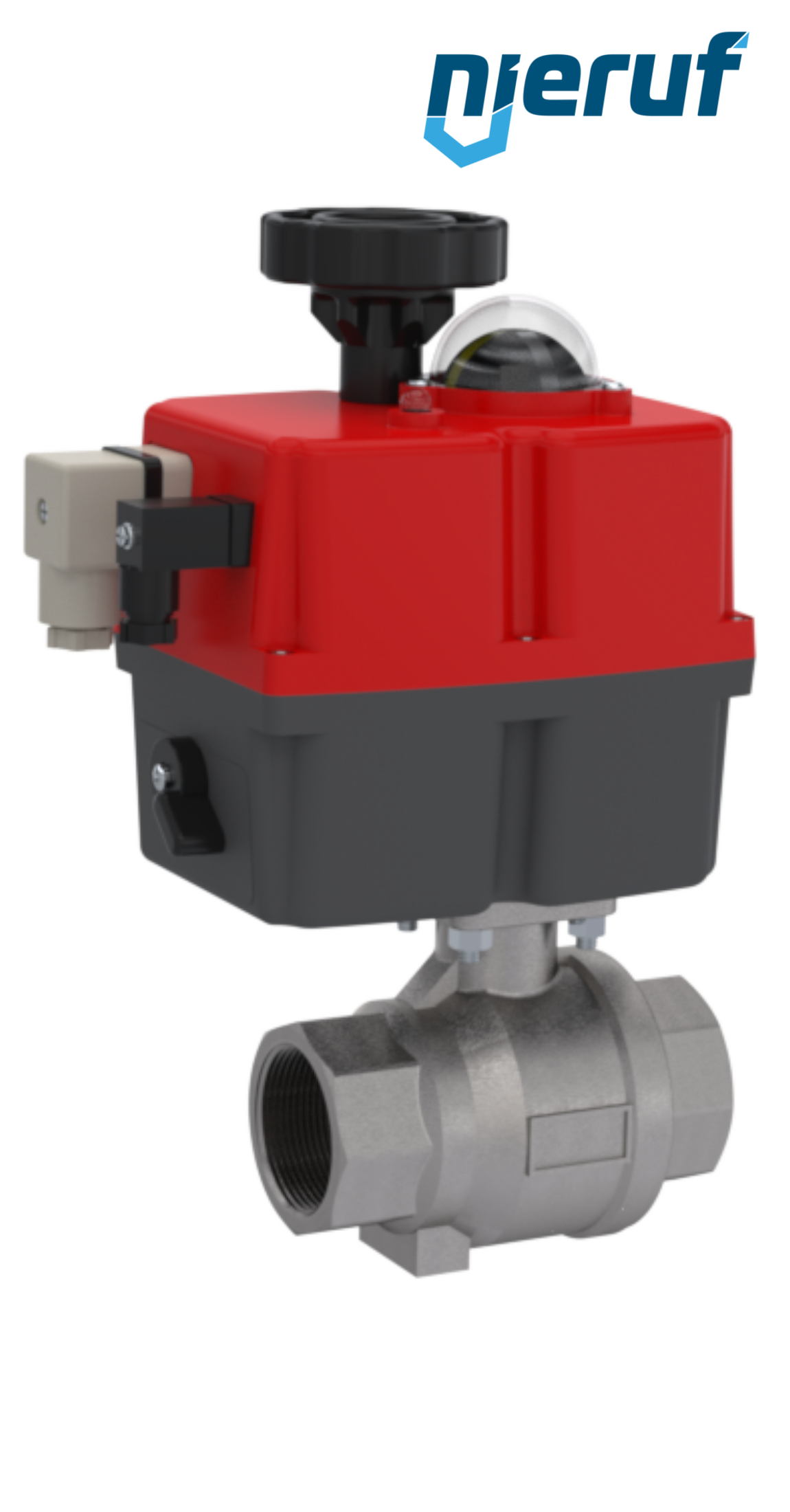

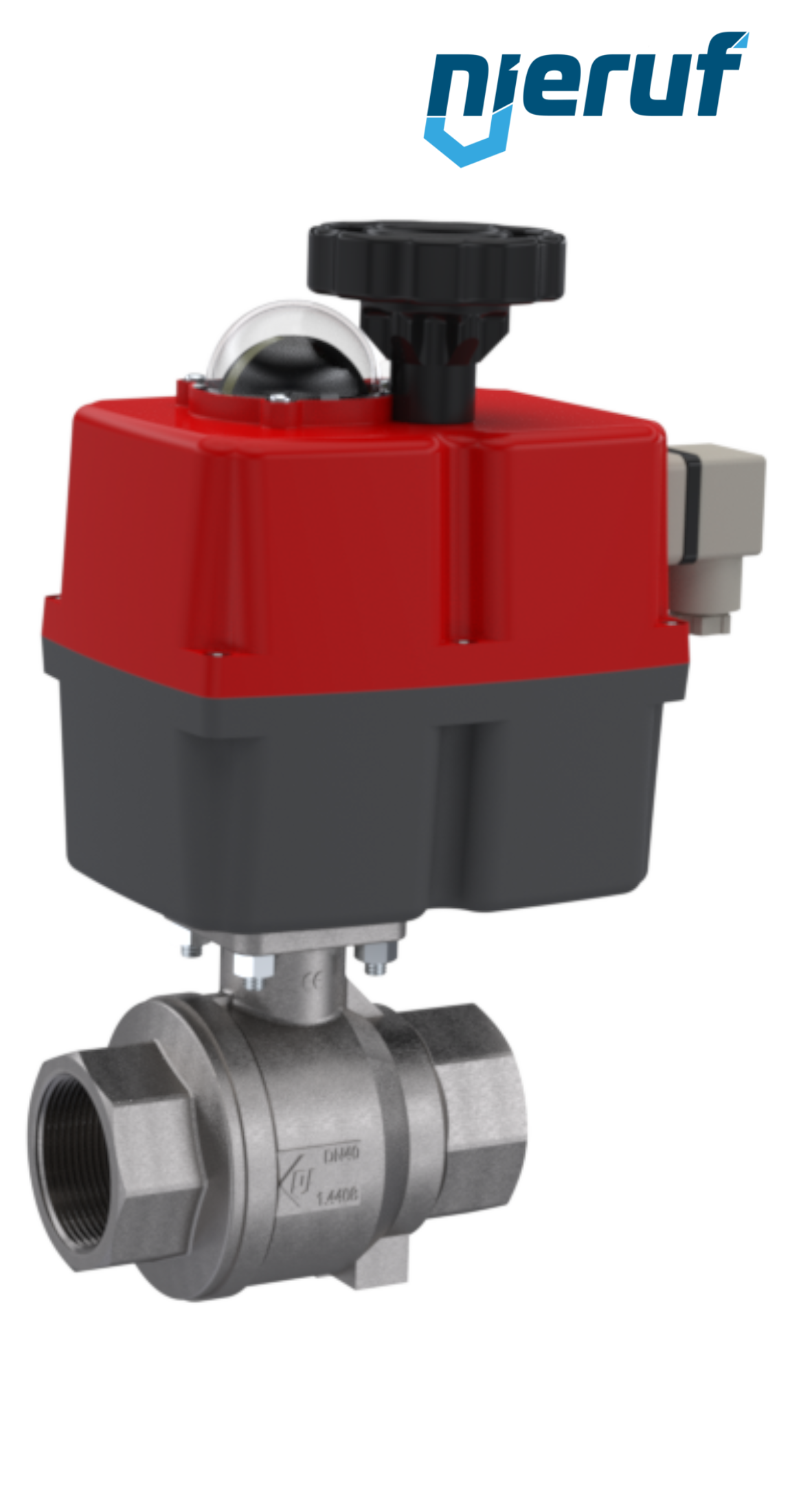

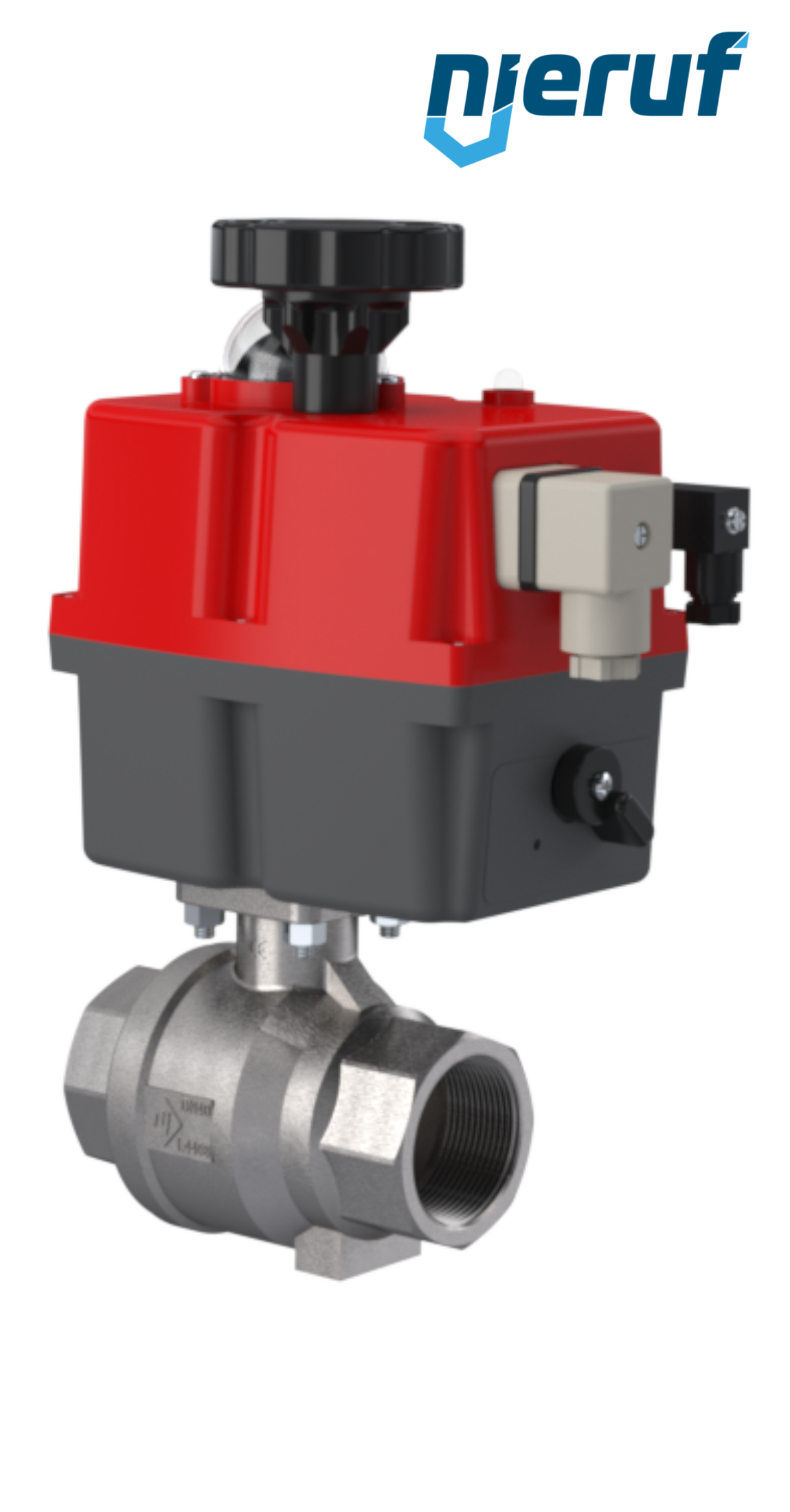

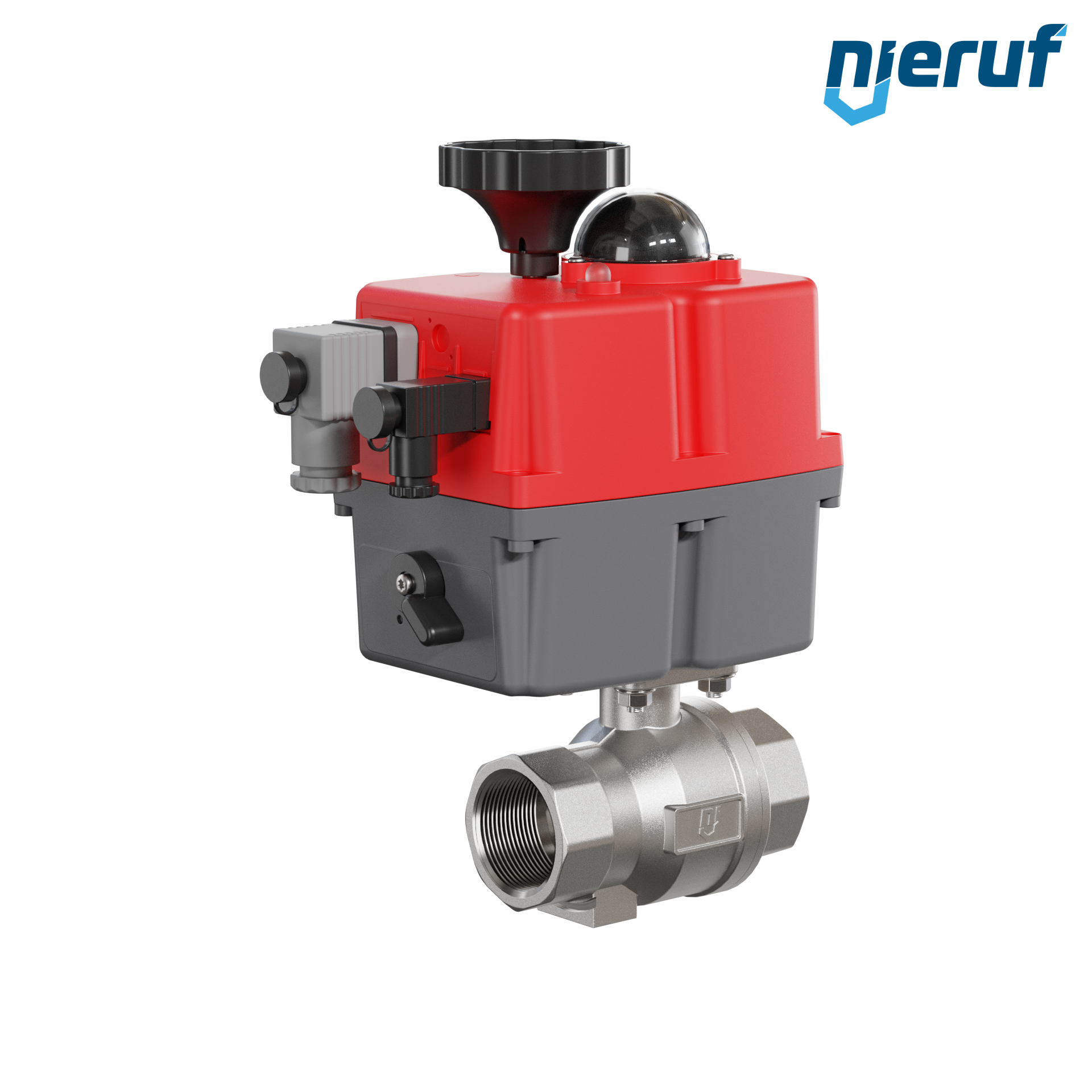

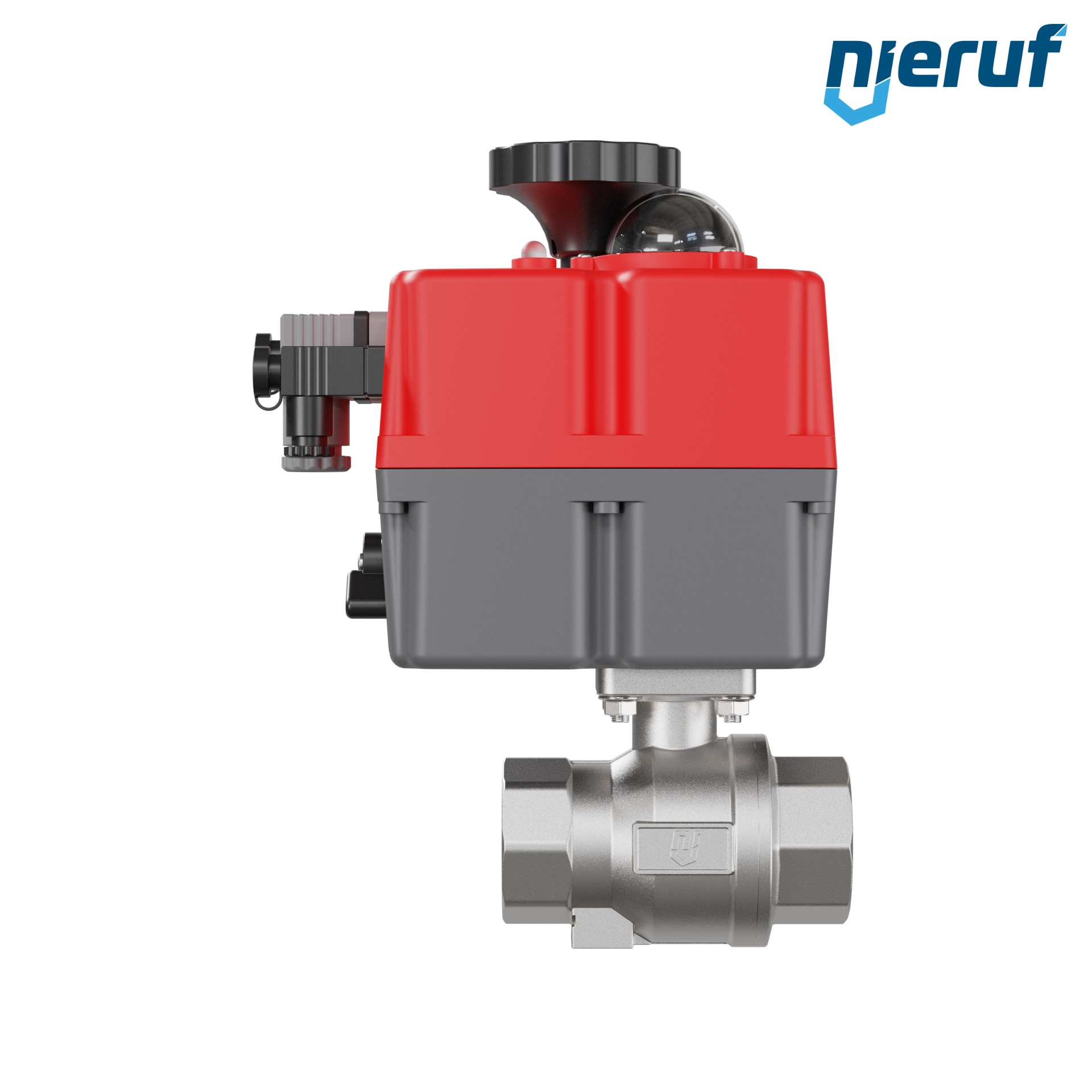

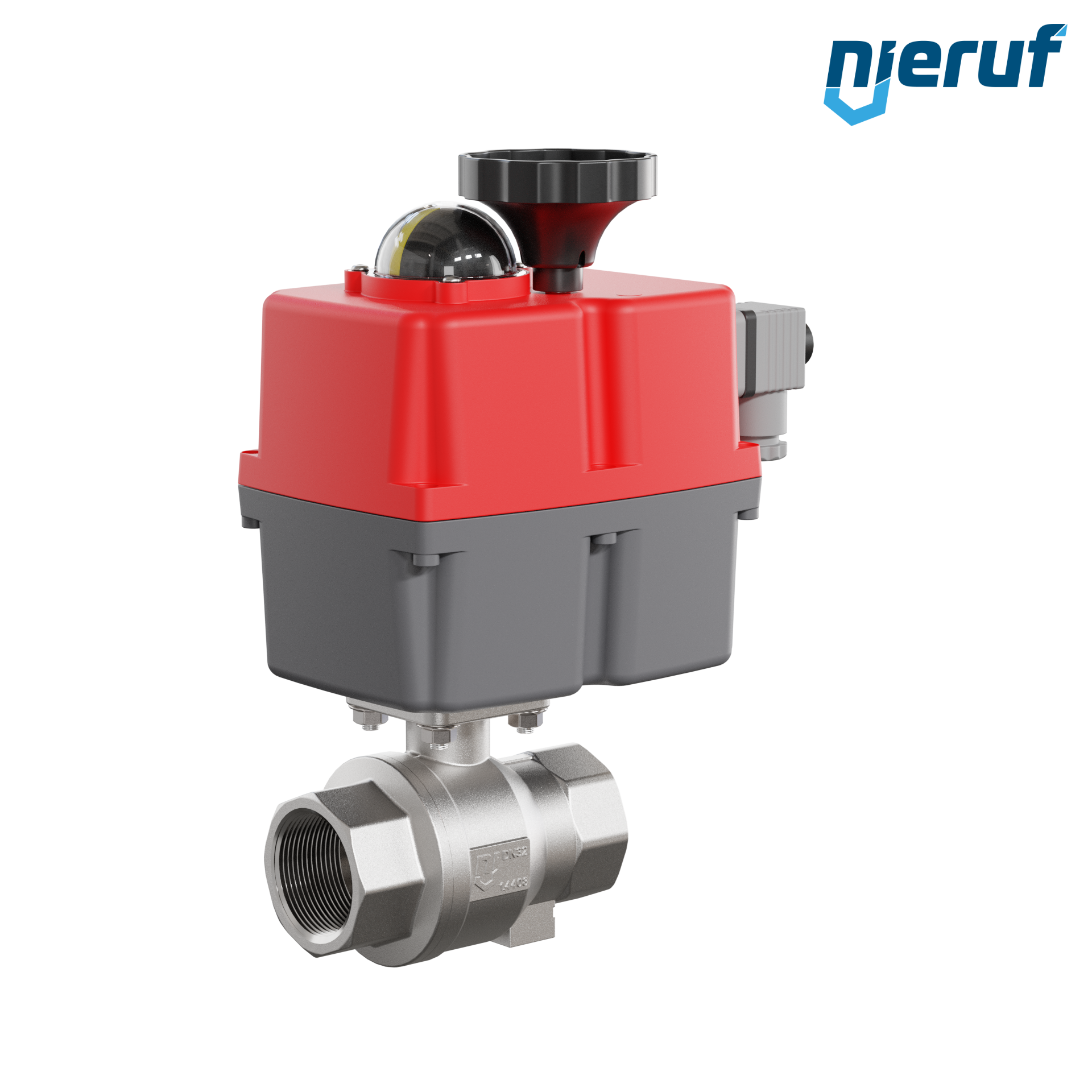

automatic-ball valve DN32 - 1 1/4" inch stainless steel electric 24-240V EK02

automatic-ball valve DN32 - 1 1/4" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24-240V AC/DC

product: automatic-ball valve
type: EK02
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN40
max. differentiel pressure: max. 7 bar
design: Two - pieces stainless steel ball valve with actuator
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 110mm
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-ball valve DN32 - 1 1/4" inch stainless steel electric 24-240V EK02

Article no. : EK02010006
product: automatic-ball valve
type: EK02
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN40
max. differentiel pressure: max. 7 bar
design: Two - pieces stainless steel ball valve with actuator
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 110mm
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.

No spare parts were found for the item number .
