Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
€992.10 VAT included.
Questions about the article?

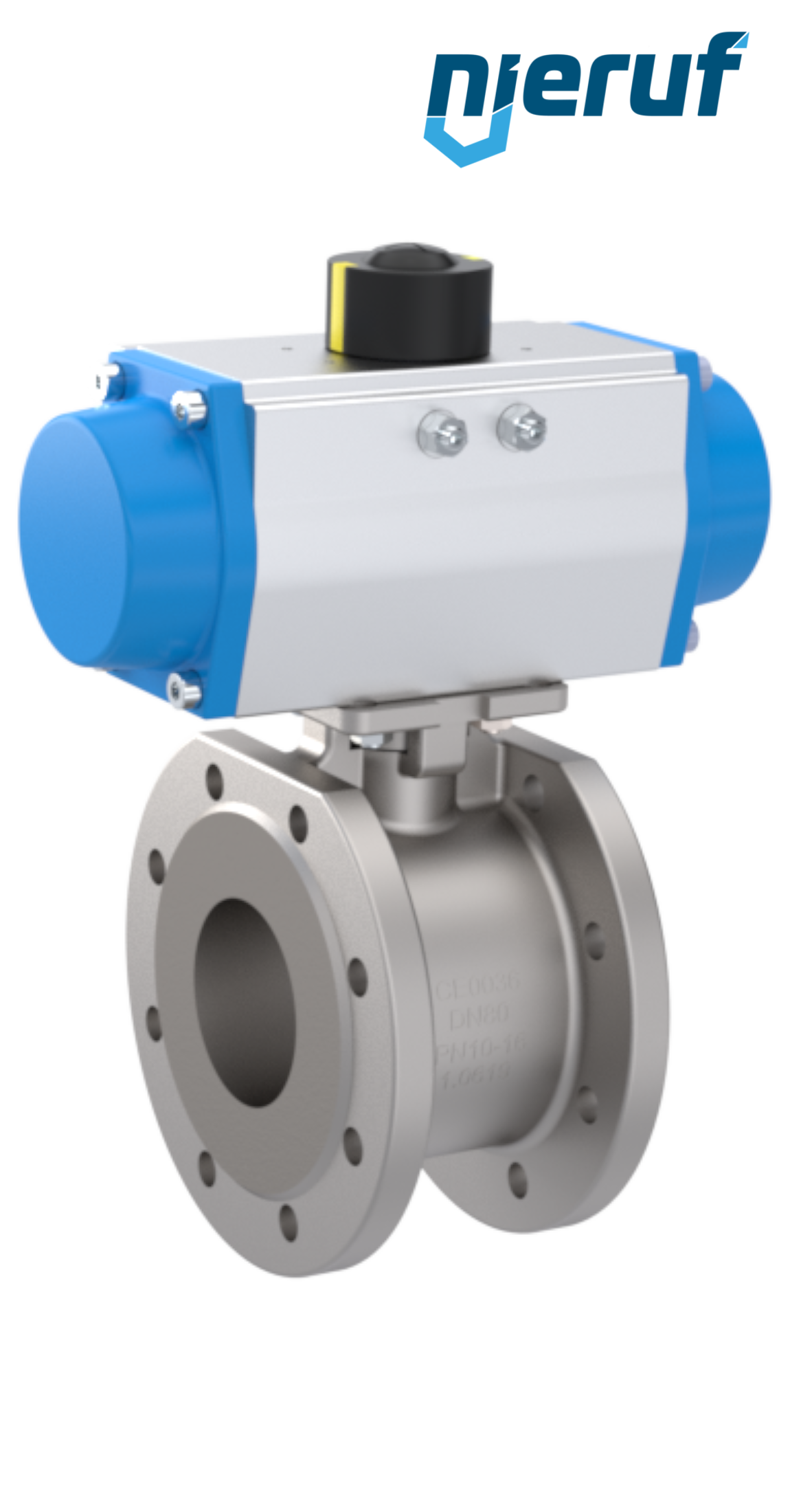

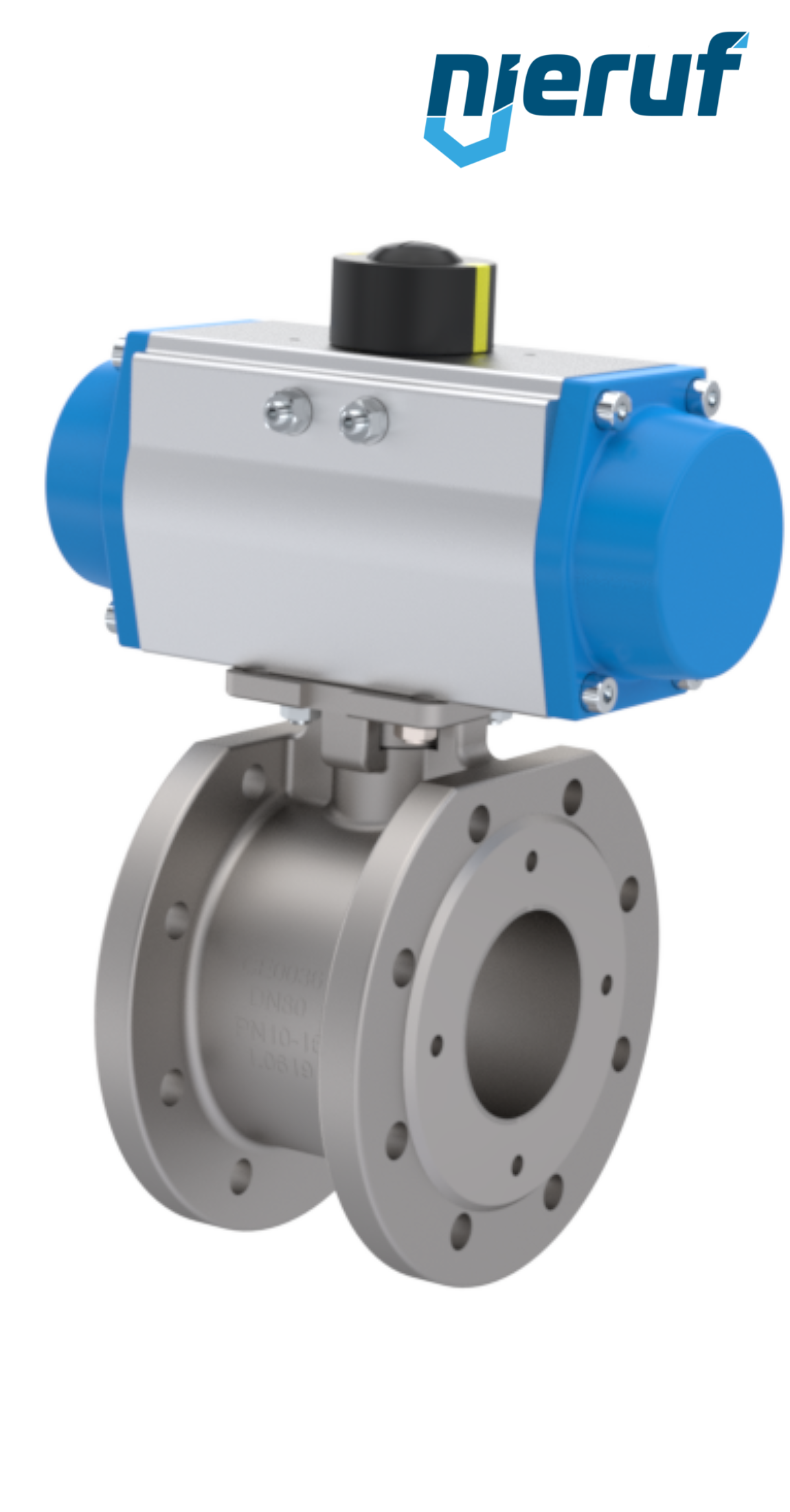

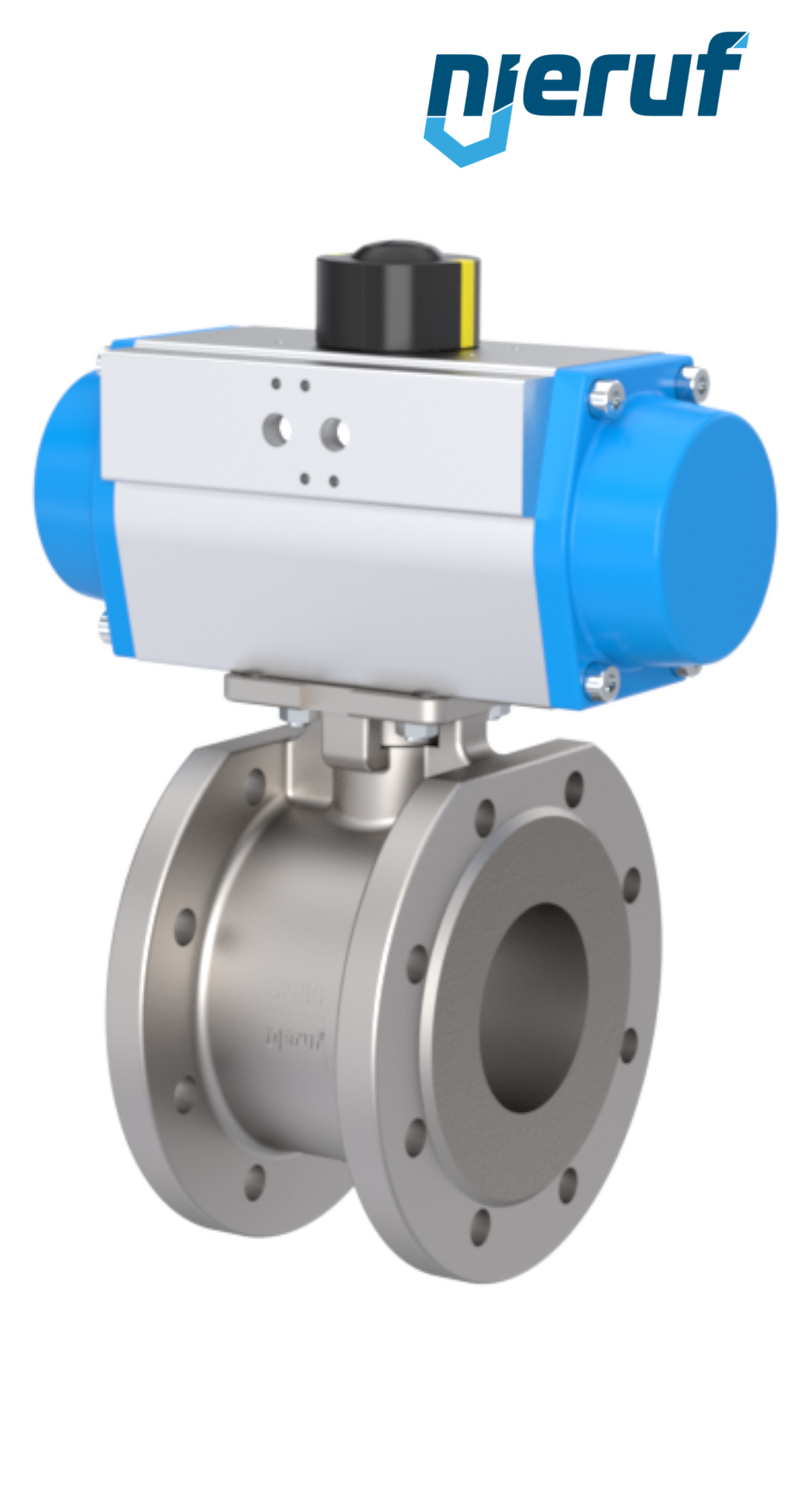

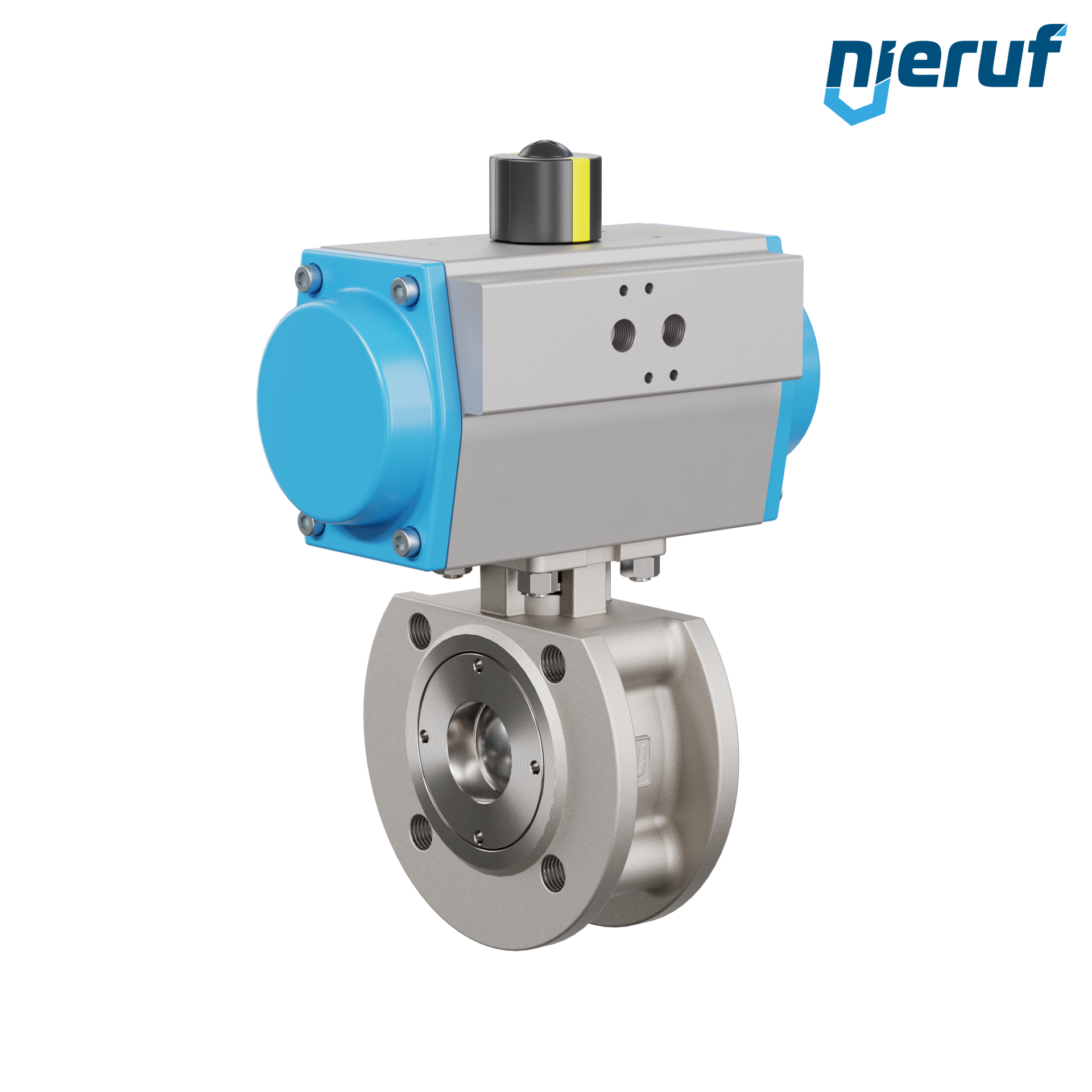

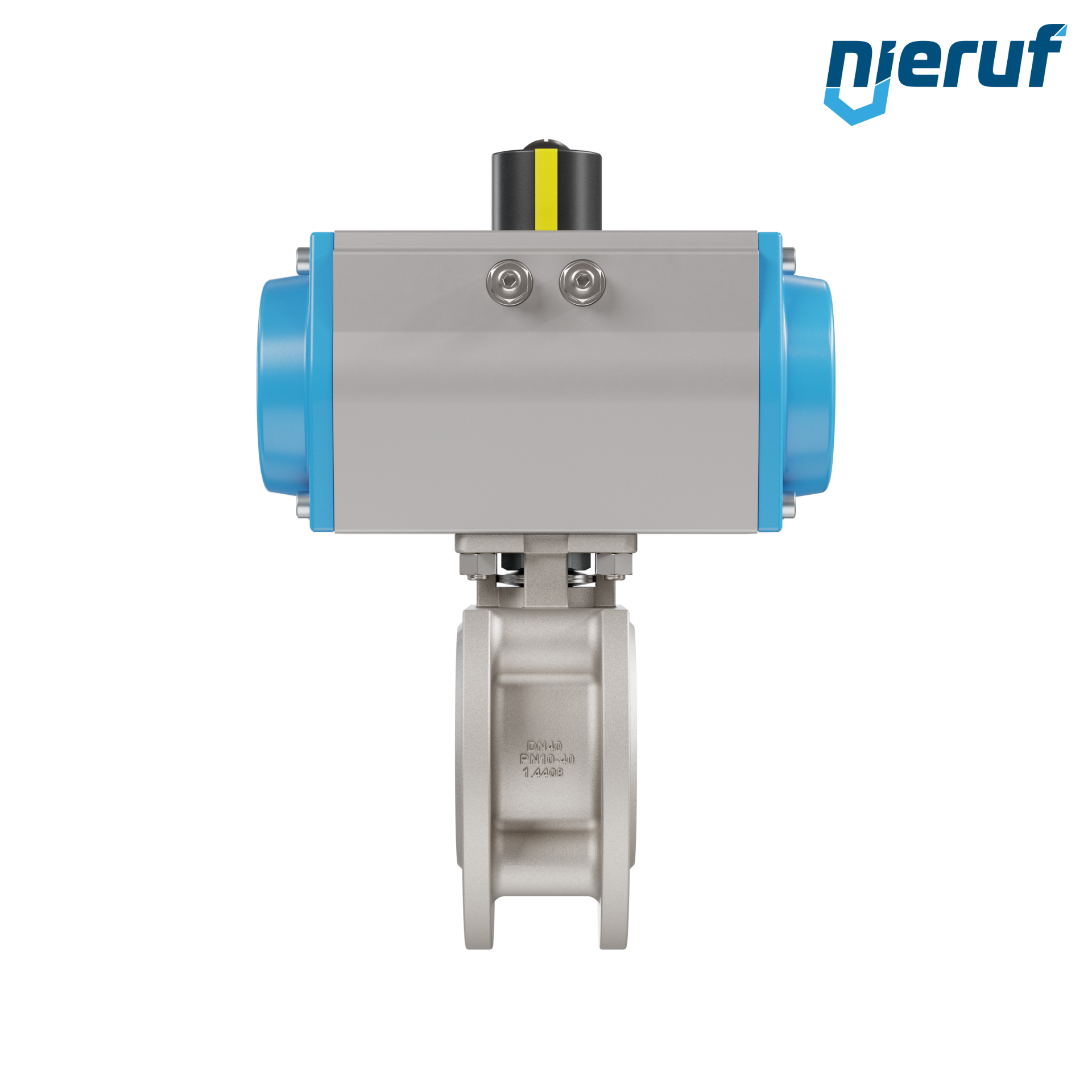

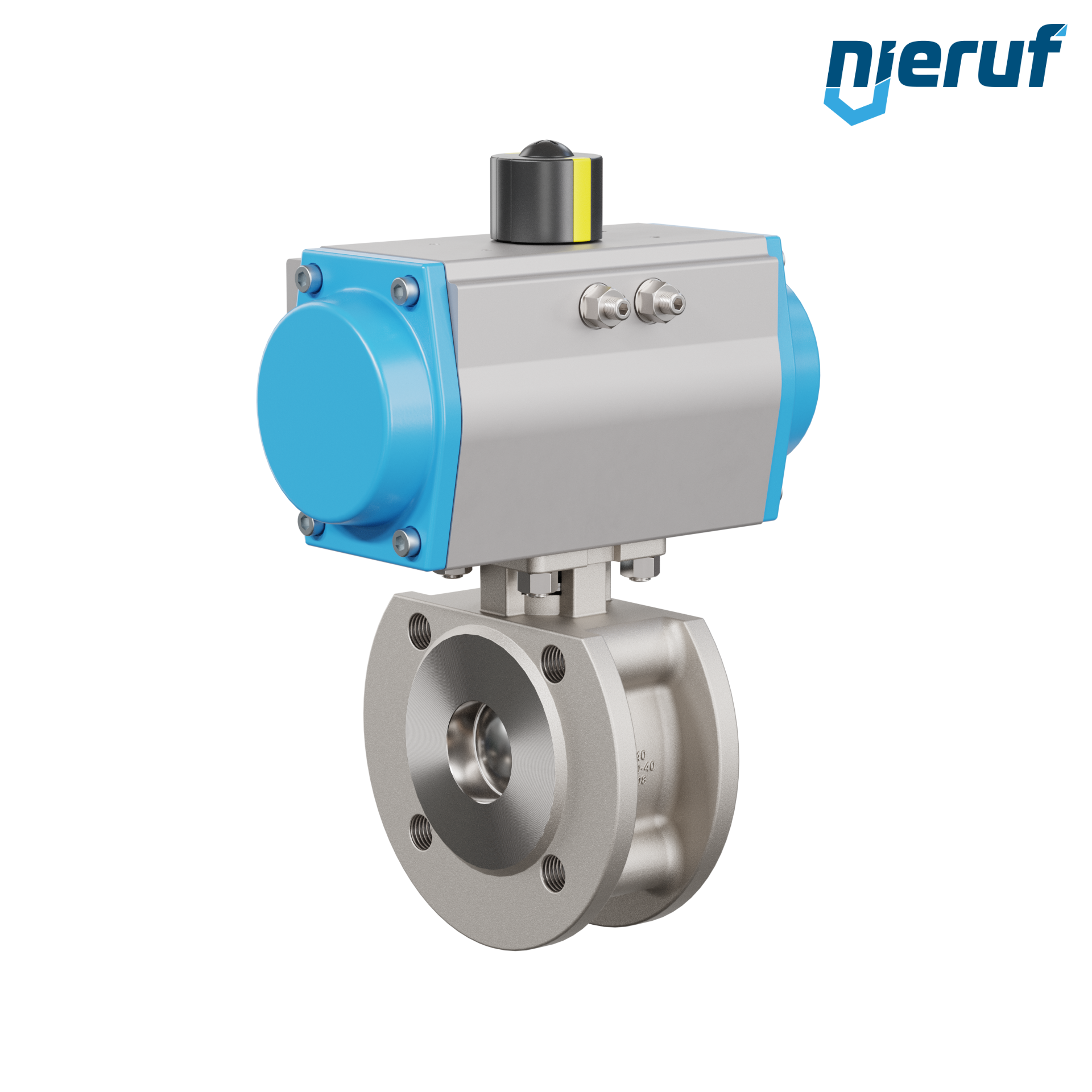

automatic-flange stainless steel ball valve DN40 stainless steel 1.4408 PK07 pneumatic actuator GS88 made of aluminium (mode of function: GS = single acting)
| product | automatic-flange stainless steel ball valve |
|---|---|
| type | PK07 |
| manufacturer | NieRuf |
| diameter | DN40 - 1 1/2" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve: -29°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN16 |
| design | automatic-flange ball valve with pneumatic actuator (single acting normally closed) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE + TFM |
| length | 65mm |
| actuator | pneumatic actuator GS083 made of aluminium (mode of function: GS = single acting - normally closed) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for | TA Luft |
| product description | This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange stainless steel ball valve DN40 PK07 pneumatic actuator single acting
Article no.
: PK07010007
product:
automatic-flange stainless steel ball valve
type:
PK07
manufacturer:
NieRuf
diameter:
DN40 - 1 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -29°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
design:
automatic-flange ball valve with pneumatic actuator (single acting normally closed)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE + TFM
length:
65mm
actuator:
pneumatic actuator GS083 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Delivery time: 3 - 5 working days
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
Delivery time: in stock
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Delivery time: in stock
Complete single swivel banjo EF06 brass FKM G1/4" D6mm
Delivery time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Delivery time: 3 - 5 working days
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
Delivery time: in stock
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Delivery time: in stock
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
Delivery time: 2 - 3 weeks
