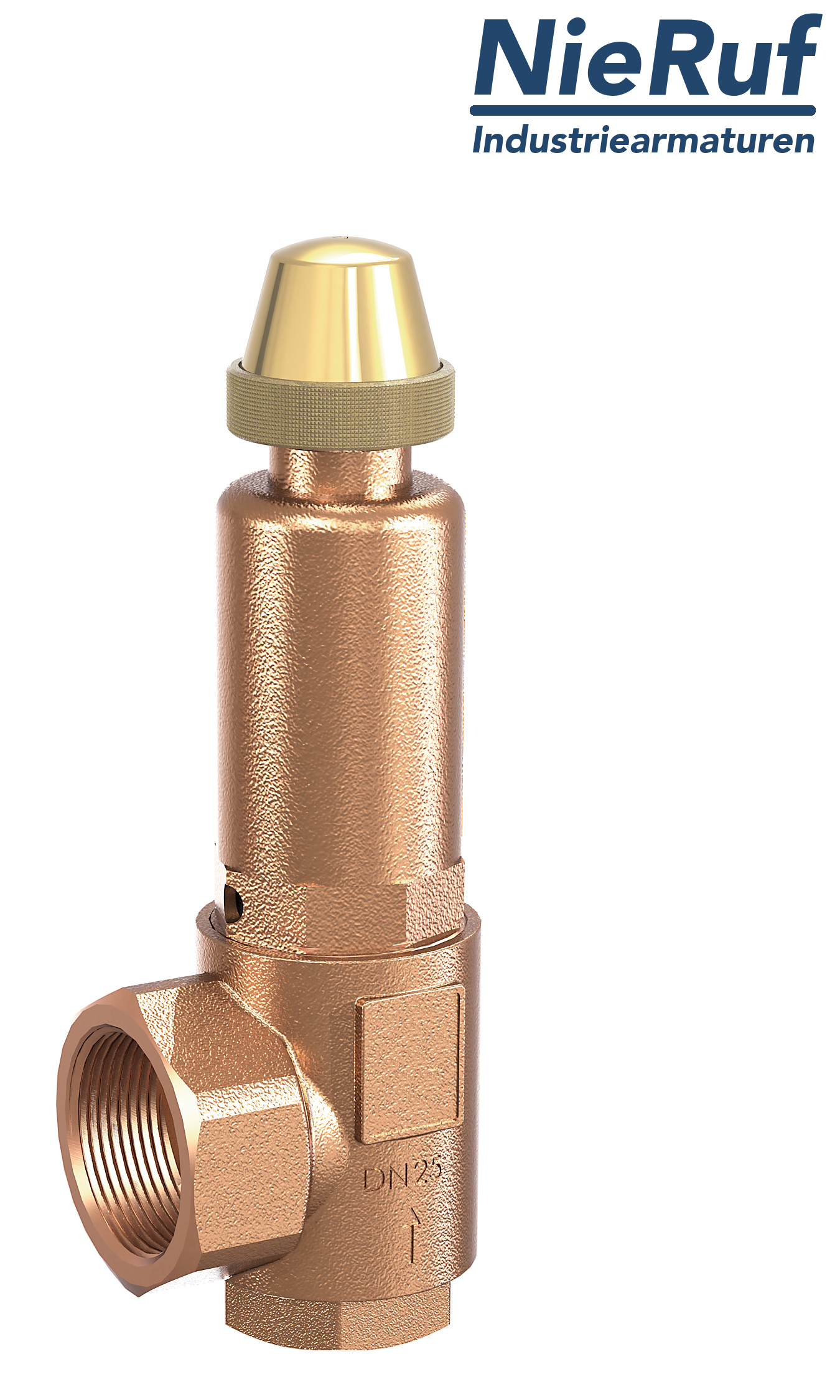

angle-type safety valve 1/2" x 1" fm SV03 neutral liquid media, gunmetal EPDM

SV03000103
quantity (pcs.):
119.60€ * 138.74€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
angle-type safety valve 1/2" x 1" fm SV03 neutral liquid media, gunmetal EPDM
safety-valve for neutral liquid media gunmetal 1/2" x 1" fm female thread EPDM Typ SV03 with twist-type lifting mechanism without bellows
diameter: 1/2" x 1" fm
d0: 15,8 mm
connection: Female screw threaded BSP-P
seal: EPDM
media: neutral liquid media
temperature: -40°C to +170°C
set pressure: 0,5 - 25,0 bar- higher pressures possible in PTFE version
design: angle-type
material: gunmetal
lifting: twist-type lifting mechanism
type test approval: TÜV = F 666 / EG = L
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: without bellows
product feature 2: for neutral media without counter pressure.
angle-type safety valve 1/2" x 1" fm SV03 neutral liquid media, gunmetal EPDM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

angle-type safety valve 1/2" x 1" fm SV03 neutral liquid media, gunmetal EPDM
