actuators

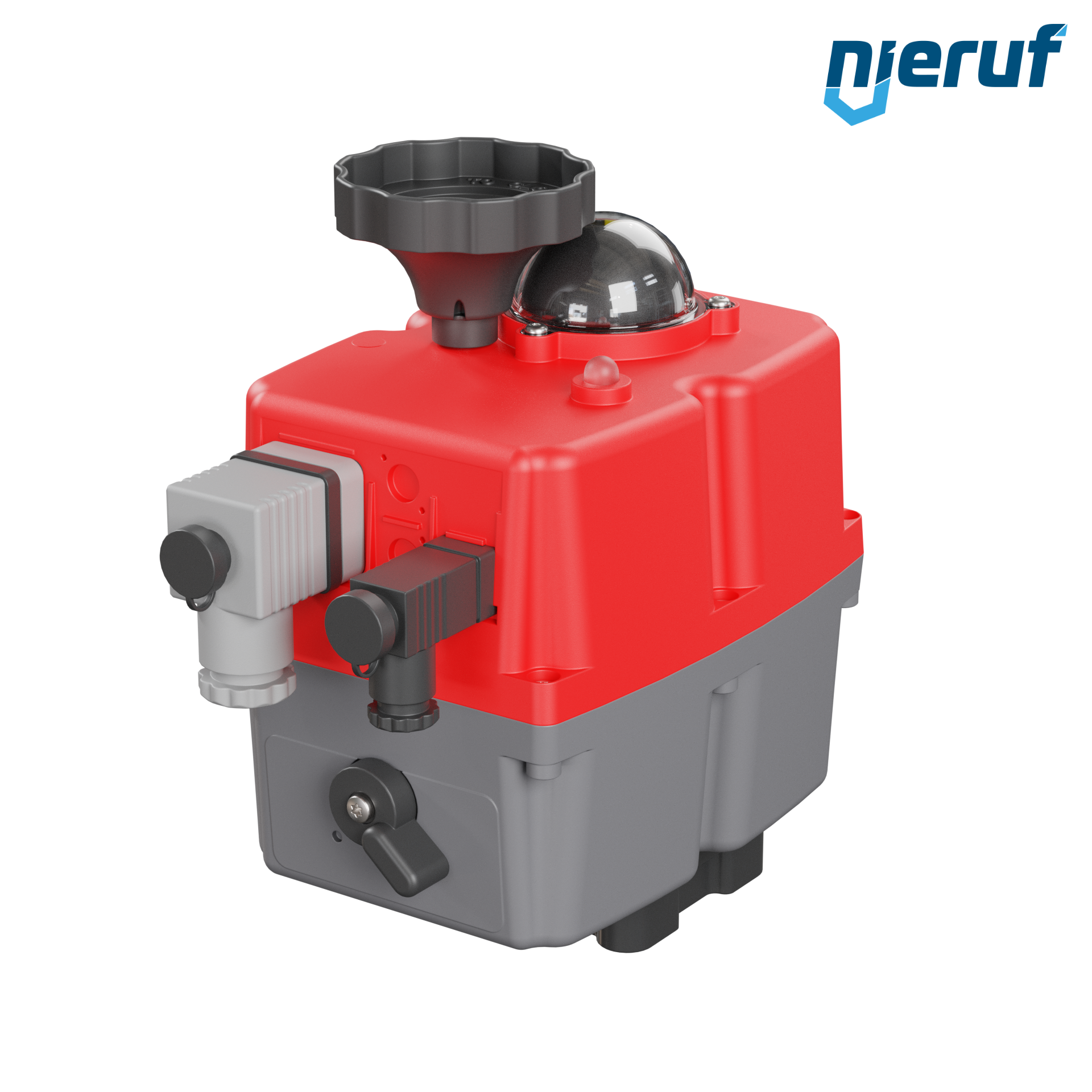

Electronic actuator S55 - 24-240V AC/DC 55Nm torque 75% ED IP67
voltage:
24-240V AC/DC
actuator:
S55 - 24-240V AC/DC
stem intake:
17mm
torque:
55Nm
screw depth:
18mm
Electronic actuator S35 - 24-240V AC/DC 35Nm torque 75% ED IP67
voltage:
24-240V AC/DC
actuator:
S35 - 24-240V AC/DC
stem intake:
14mm
torque:
35Nm
screw depth:
16mm

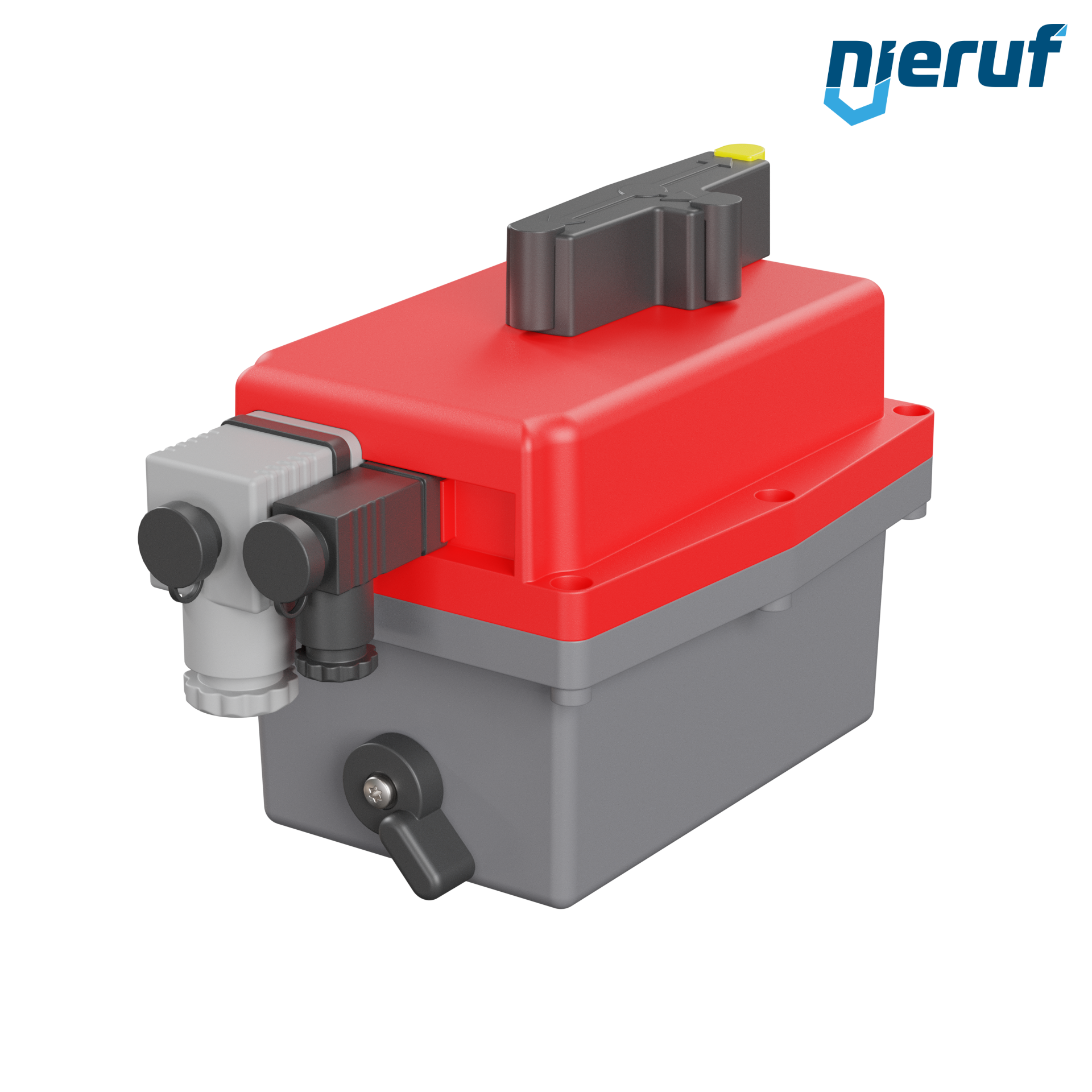

Electronic actuator L10 - series L (low voltage) 24V AC/DC 10Nm torque 75% ED IP65
voltage:
24V AC/DC
actuator:
L10 - Serie L (low voltage) 24V AC/DC
stem intake:
14mm
torque:
10Nm
screw depth:
17mm
Electronic actuator H10 - series H (high voltage) 85-240V AC/DC 10Nm torque 75% ED IP65
voltage:
85-240V AC/DC
actuator:
H10 - Serie H (high voltage) 85-240V AC/DC
stem intake:
14mm
torque:
10Nm
screw depth:
17mm
pneumatic actuator double acting with 90° pan angle GD-040 according to ISO 5211 F03-F05 for control pressure 2 to 8 bar
actuator:
GD-040
stem intake:
11mm
torque:
min. 5Nm up to max. 19Nm
screw depth:
14mm
pneumatic actuator double acting with 90° pan angle GD-063 according to ISO 5211 F05-F07 for control pressure 2 to 8 bar
actuator:
GD-063
stem intake:
14mm
torque:
min. 14Nm up to max. 56Nm
screw depth:
18mm

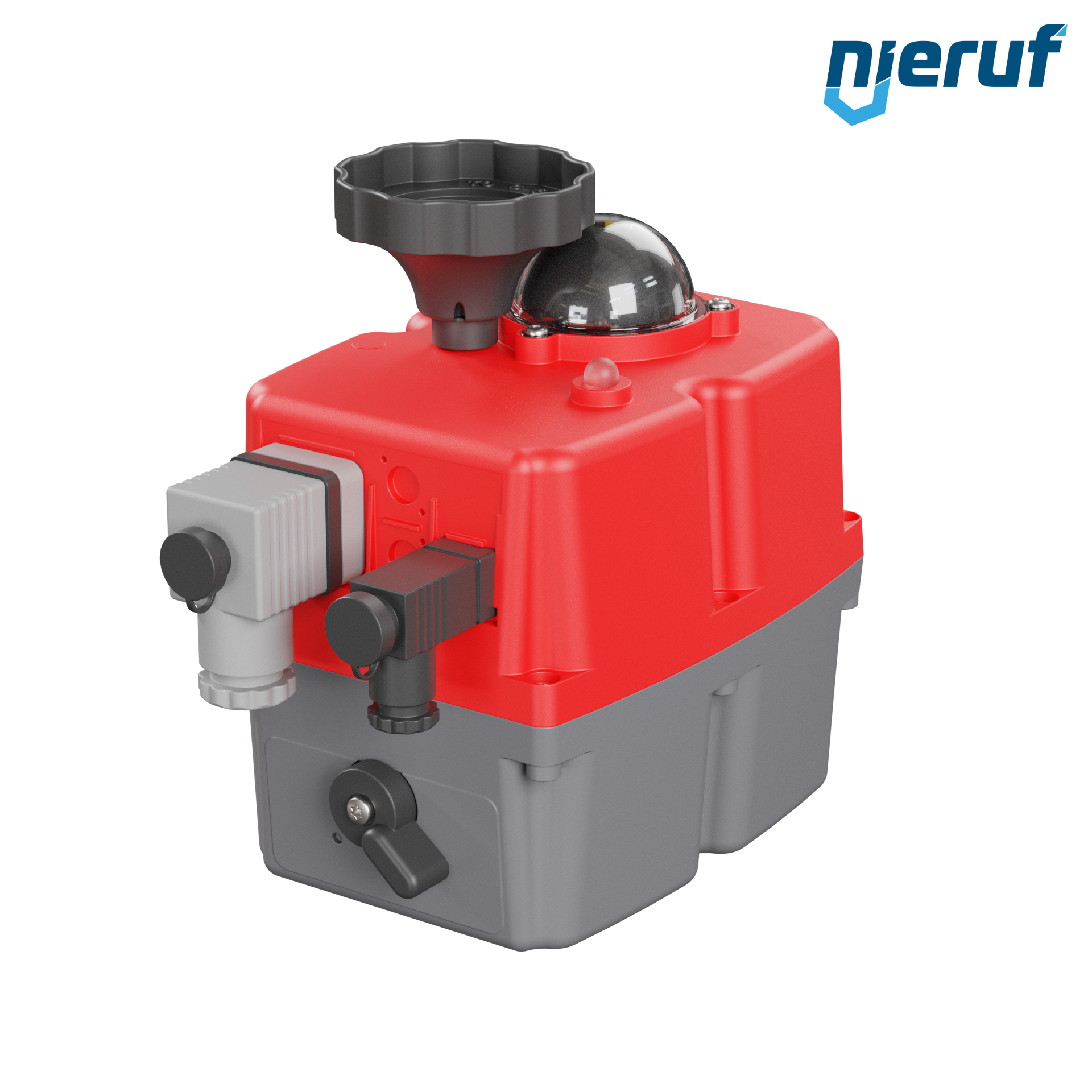

Electronic actuator S20 - 24-240V AC/DC 20Nm torque 75% ED IP67
voltage:
24-240V AC/DC
actuator:
S20 - 24-240V AC/DC
stem intake:
14mm
torque:
20Nm
screw depth:
16mm
pneumatic actuator double acting with 90° pan angle GD-140 according to ISO 5211 F10-F12 for control pressure 2 to 8 bar
actuator:
GD-140
stem intake:
27mm
torque:
min. 174Nm up to max. 694Nm
screw depth:
31mm
Electronic actuator S85 - 24-240V AC/DC 85Nm torque 75% ED IP67
voltage:
24-240V AC/DC
actuator:
S85 - 24-240V AC/DC
stem intake:
17mm
torque:
85Nm
screw depth:
18mm

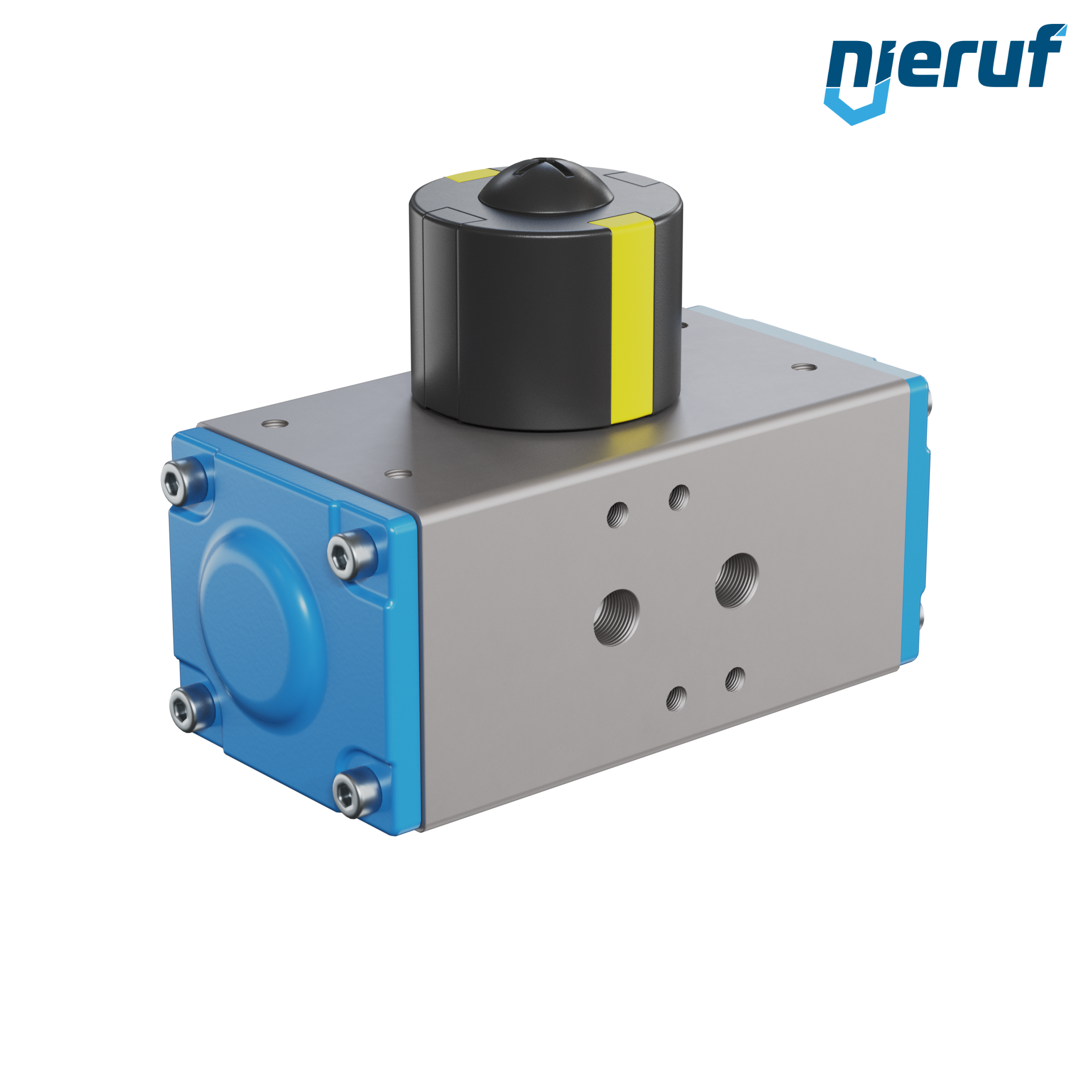

pneumatic actuator double acting with 90° pan angle GD-032 according to ISO 5211 F03 for control pressure 2 to 8 bar
actuator:
GD-032
stem intake:
9mm
torque:
min. 3Nm up to max. 12Nm
screw depth:
11mm
pneumatic actuator double acting with 90° pan angle GD-075 according to ISO 5211 F05-F07 for control pressure 2 to 8 bar
actuator:
GD-075
stem intake:
17mm
torque:
min. 20Nm up to max. 79Nm
screw depth:
19mm
Electronic actuator S300 - 24-240V AC/DC 300Nm torque 75% ED IP67
voltage:
24-240V AC/DC
actuator:
S300 - 24-240V AC/DC
stem intake:
22mm
torque:
300Nm
screw depth:
24mm
pneumatic actuator double acting with 90° pan angle GD-125 according to ISO 5211 F07-F10 for control pressure 2 to 8 bar
actuator:
GD-125
stem intake:
22mm
torque:
min. 101Nm up to max. 406Nm
screw depth:
26mm
pneumatic actuator single acting and spring closing with 90° pan angle GS-063 number of springs 12 according to ISO 5211 F05-F07 for control pressure 2 to 8 bar
actuator:
GS-063
stem intake:
14mm
torque:
min. 3,0Nm up to max. 39,0Nm
screw depth:
18mm
Electronic actuator S140 - 24-240V AC/DC 140Nm torque 75% ED IP67
voltage:
24-240V AC/DC
actuator:
S140 - 24-240V AC/DC
stem intake:
22mm
torque:
140Nm
screw depth:
24mm
pneumatic actuator single acting and spring closing with 90° pan angle GS-075 number of springs 12 according to ISO 5211 F05-F07 for control pressure 2 to 8 bar
actuator:
GS-075
stem intake:
17mm
torque:
min. 4,0Nm up to max. 55,0Nm
screw depth:
19mm
pneumatic actuator double acting with 90° pan angle GD-105 according to ISO 5211 F07-F10 for control pressure 2 to 8 bar
actuator:
GD-105
stem intake:
22mm
torque:
min. 65Nm up to max. 260Nm
screw depth:
26mm
pneumatic actuator double acting with 90° pan angle GD-052 according to ISO 5211 F03-F05 for control pressure 2 to 8 bar
actuator:
GD-052
stem intake:
11mm
torque:
min. 8Nm up to max. 32Nm
screw depth:
14mm
pneumatic actuator single acting and spring closing with 90° pan angle GS-125 number of springs 12 according to ISO 5211 F07-F10 for control pressure 2 to 8 bar
actuator:
GS-125
stem intake:
22mm
torque:
min. 22,0Nm up to max. 281,0Nm
screw depth:
26mm
pneumatic actuator single acting, normally open, high temperature version with 90° pan angle GS-075 with 10 springs ISO 5211 F05-F07 for control pressure 2 to 8 bar
actuator:
GS-075
stem intake:
17mm
torque:
min. 5,0Nm up to max. 59,0Nm
screw depth:
19mm
pneumatic actuator single acting, normally open, high temperature version with 90° pan angle GS-210 with 11 springs ISO 5211 F14 for control pressure 2 to 8 bar
actuator:
GS-210
stem intake:
36mm
torque:
min. 189,0Nm up to max. 1495,0Nm
screw depth:
40mm
pneumatic actuator single acting and normally open with 90° pan angle GS-190 number of springs 4 according to ISO 5211 F14 for control pressure 2 to 8 bar
actuator:
GS-190
stem intake:
36mm
torque:
min. 173,0Nm up to max. 1530,0Nm
screw depth:
40mm
pneumatic actuator single acting, normally closed, high temperature version with 90° pan angle GS-400 with 4 springs ISO 5211 F16-F25 for control pressure 2 to 8 bar
actuator:
GS-400
stem intake:
55mm
torque:
min. 1610,0Nm up to max. 11974,0Nm
screw depth:
60mm
pneumatic actuator single acting, normally closed, high temperature version with 90° pan angle GS-140 with 10 springs ISO 5211 F10-F12 for control pressure 2 to 8 bar
actuator:
GS-140
stem intake:
27mm
torque:
min. 45,0Nm up to max. 534,0Nm
screw depth:
31mm
