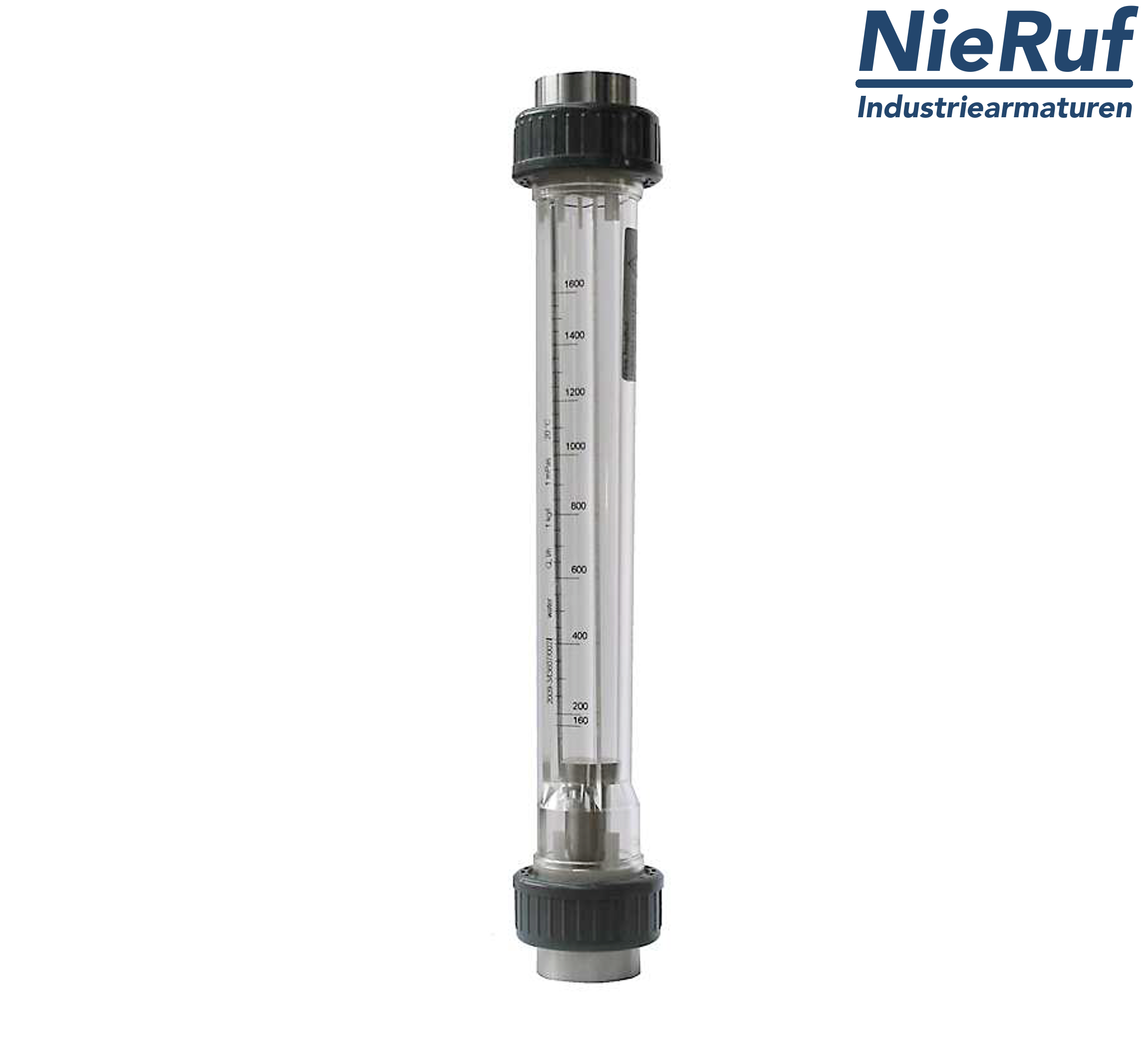

Variable area flowmeter Measuring range 400.0 - 4000 l/h, connection 1 1/2" inch NPT EPDM female thread ANSI B1.20.1 for water
| product | Variable area flowmeter |
|---|---|
| type | SK02 |
| manufacturer | NieRuf |
| diameter | 1 1/2" inch NPT |
| connection | female thread ANSI B1.20.1 |
| connection material | PVC |
| body material | Trogamid plastic |
| seal | EPDM |
| float material | stainless steel 1.4571 |
| float version design | guided |
| media | water |
| mark | Different media are available upon request |
| mark 2 | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| pressure loss float | 25 mbar |
| temperature | max. +60 °C / water max. +50°C |
| Measuring range | 400.0 - 4000 l/h |
| unit of scale | m³/h |
| working pressure | 10 bar |
| accuracy | G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter 1 1/2" inch NPT 400.0 - 4000 l/h water EPDM
Article no.
: SK021000707
product:
Variable area flowmeter
type:
SK02
manufacturer:
NieRuf
diameter:
1 1/2" inch NPT
connection:
female thread ANSI B1.20.1
connection material:
PVC
body material:
Trogamid plastic
seal:
EPDM
float material:
stainless steel 1.4571
float version design:
guided
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float:
25 mbar
temperature:
max. +60 °C / water max. +50°C
Measuring range:
400.0 - 4000 l/h
unit of scale:
m³/h
working pressure:
10 bar
accuracy:
G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
