FK08000006

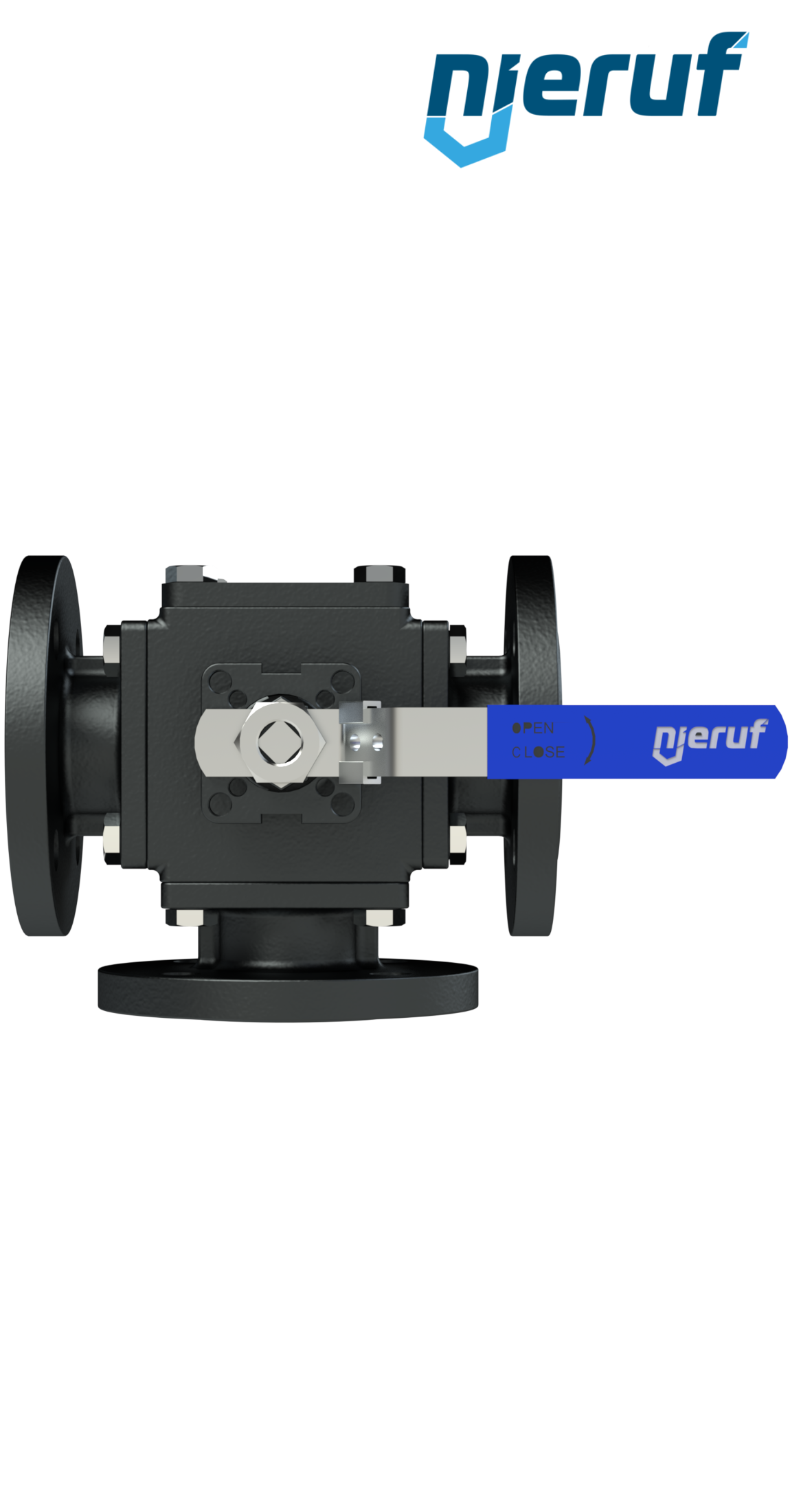

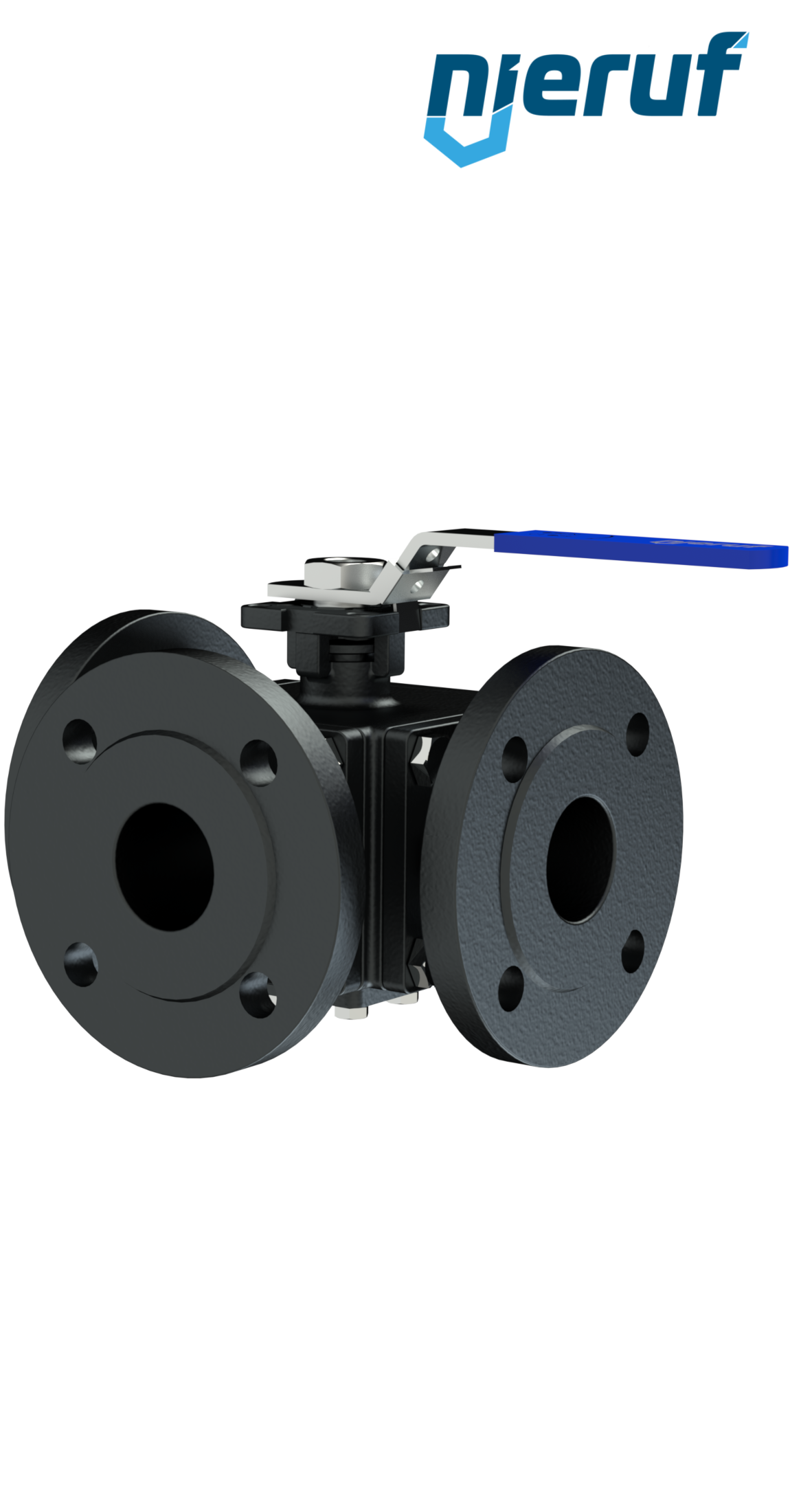

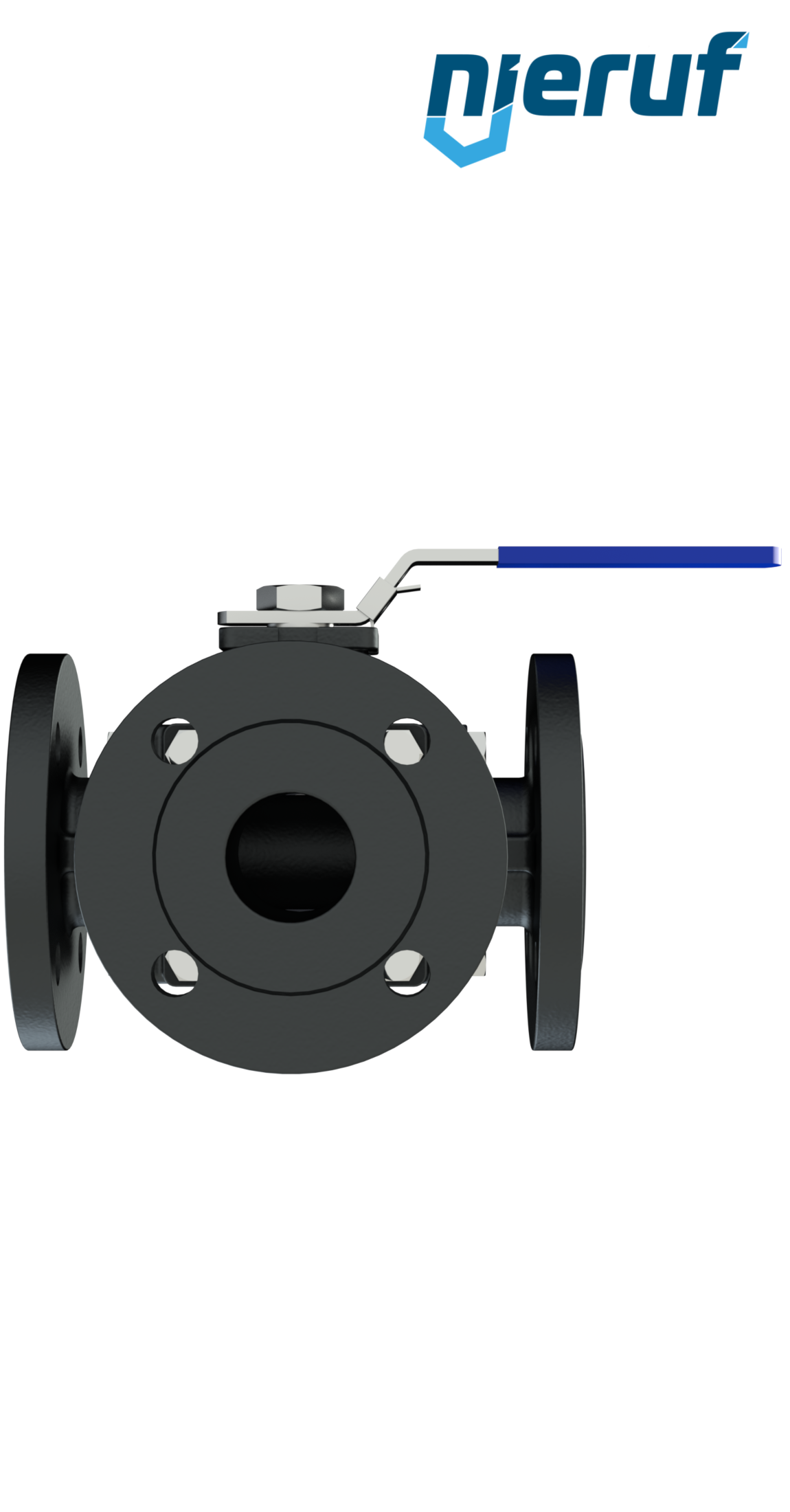

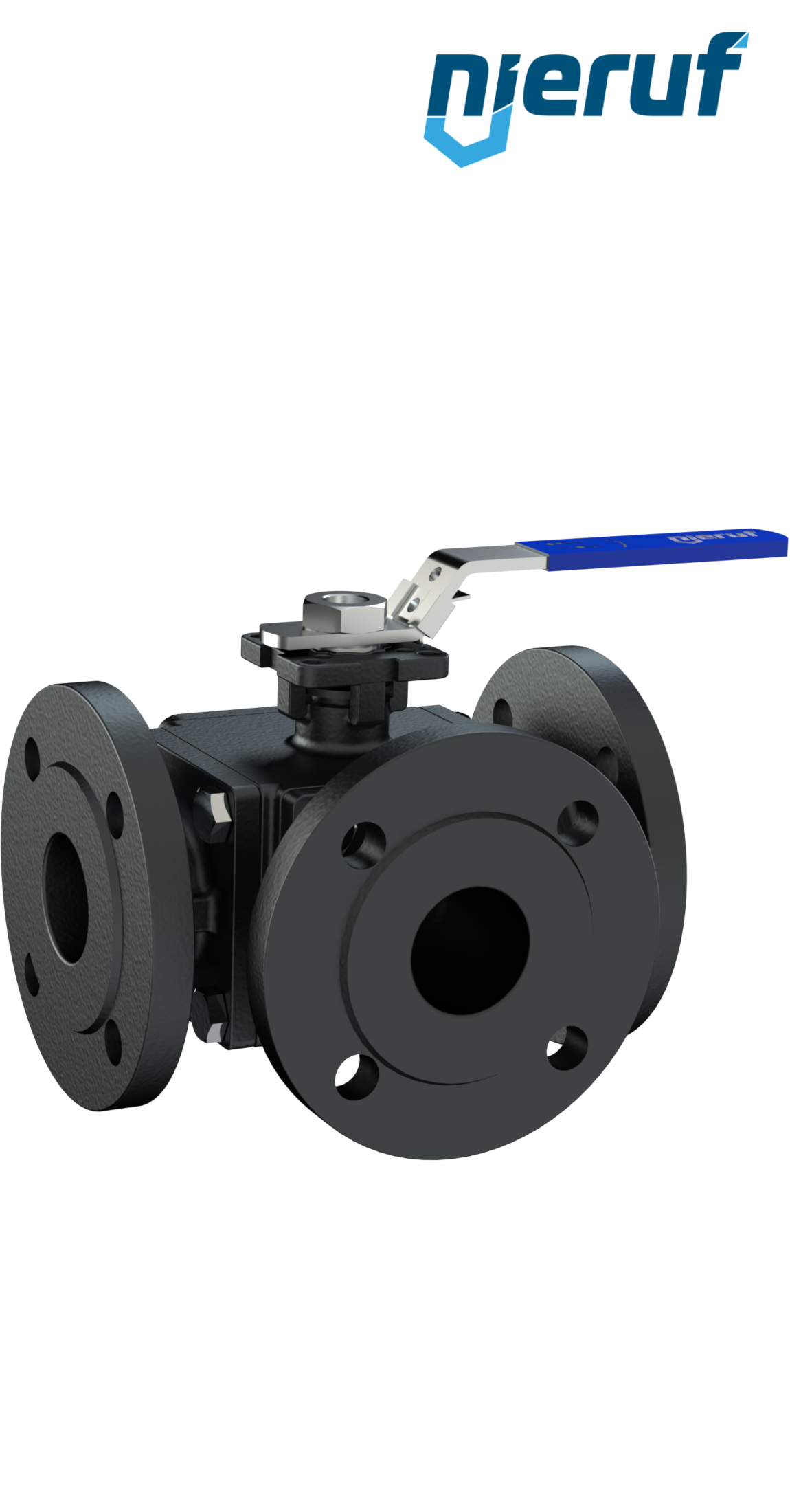

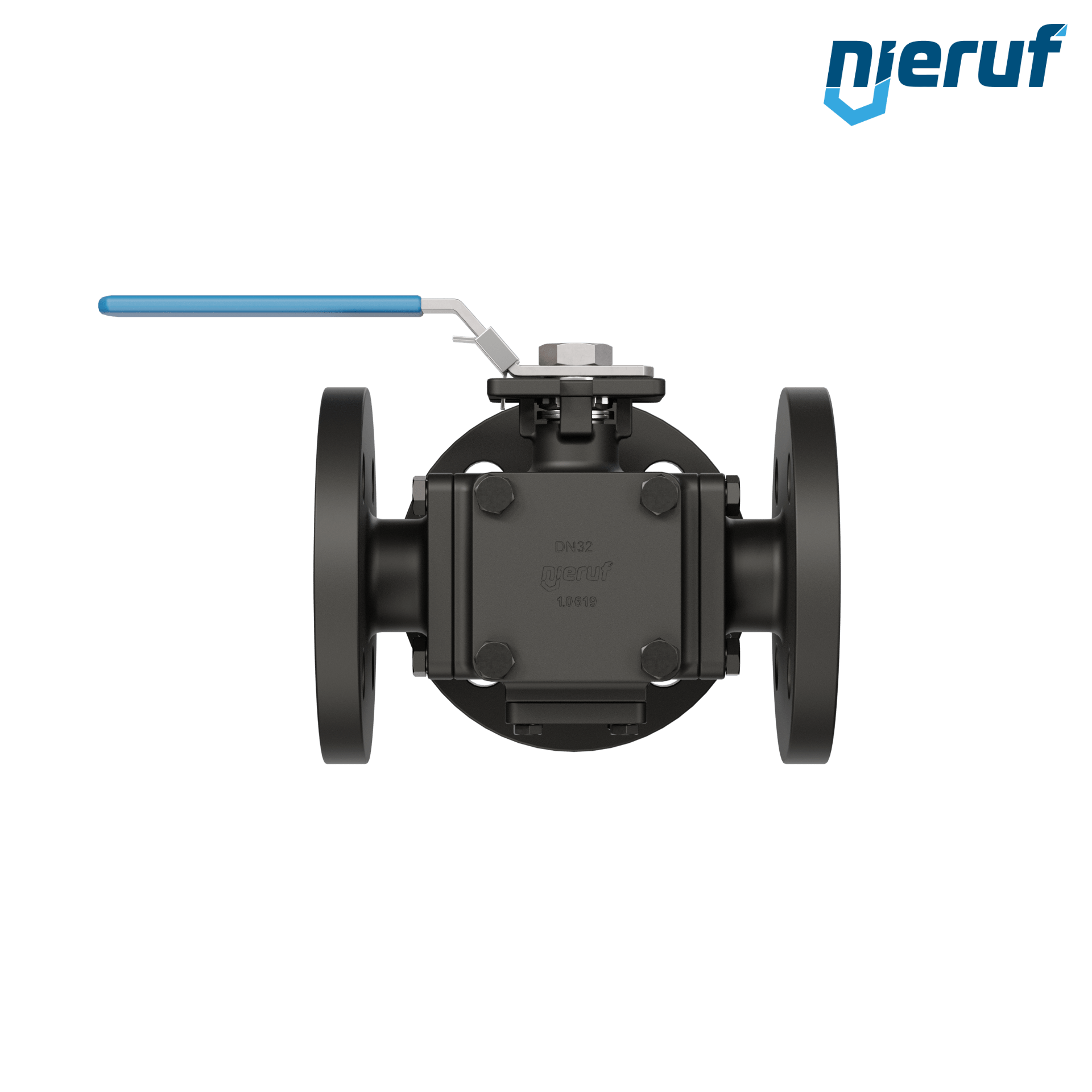

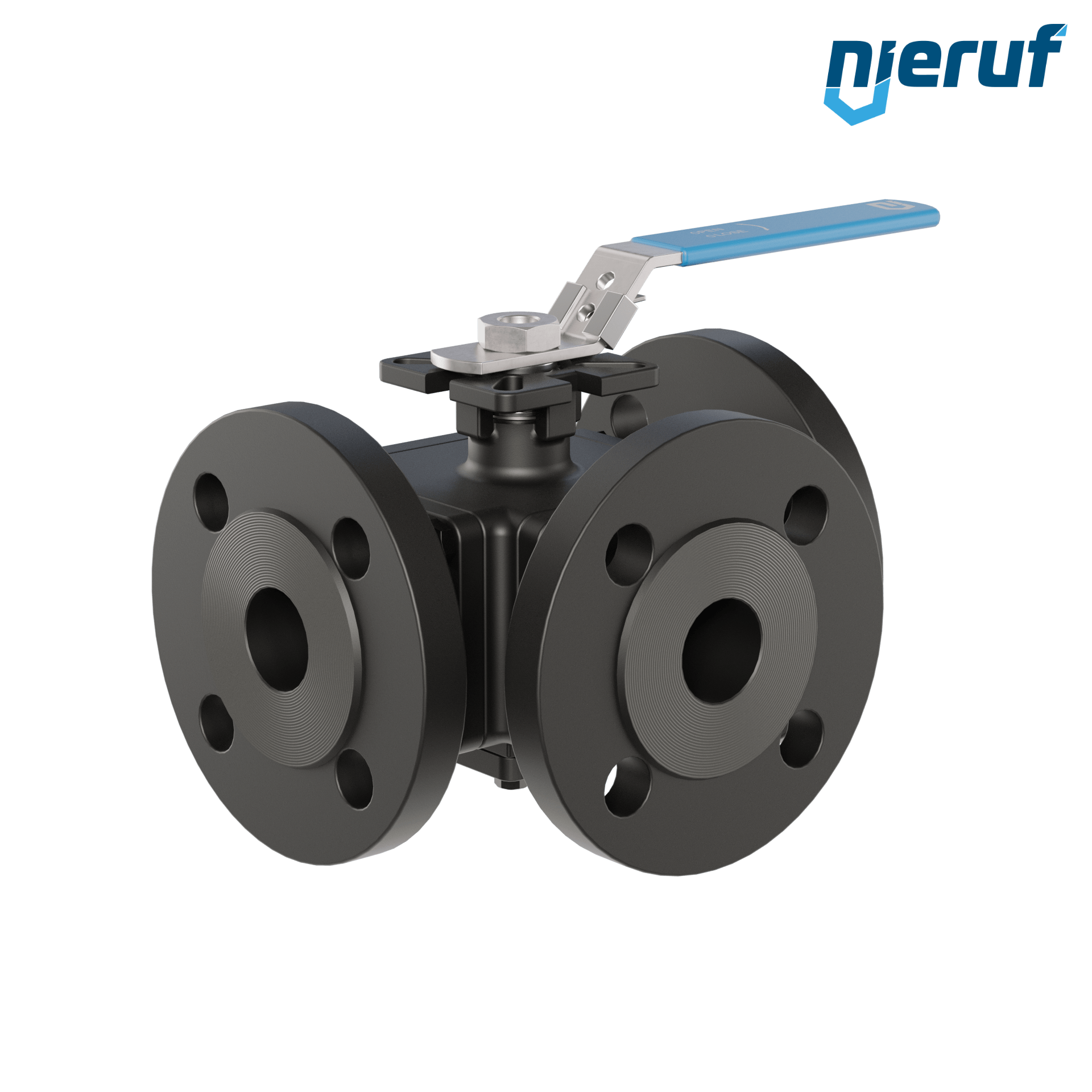

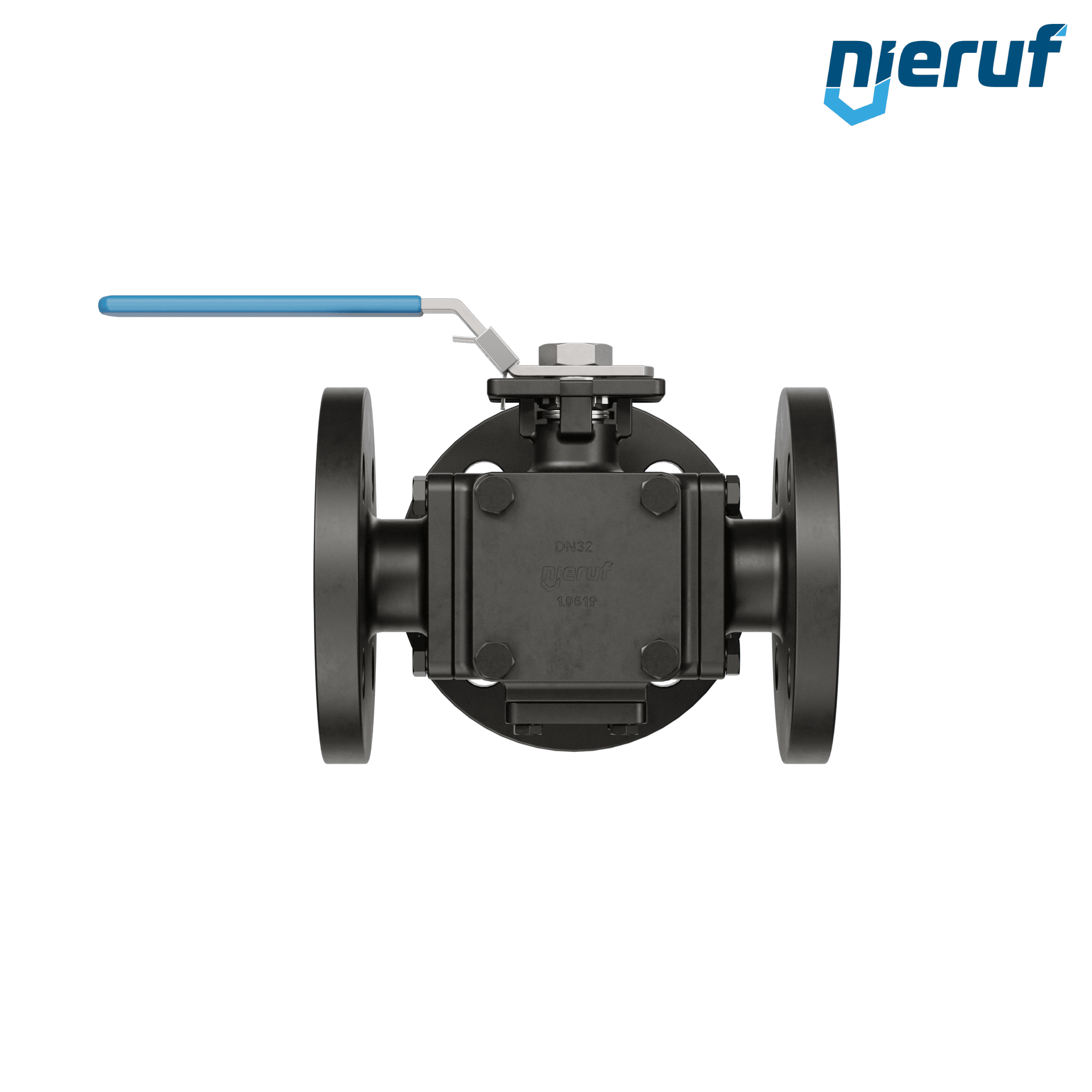

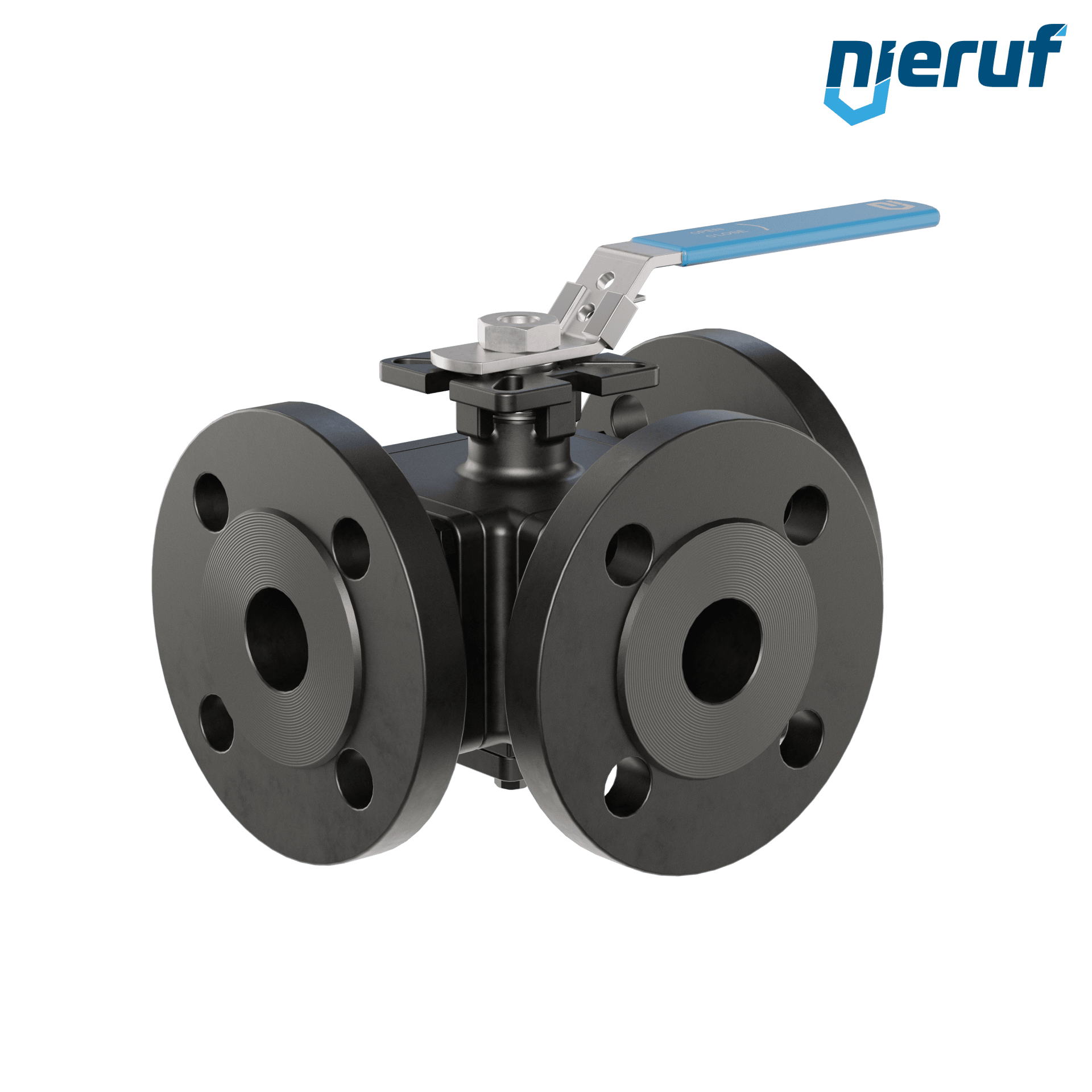

Three-way flange ball valve DN32 FK08 T drilling carbon steel 1.0619

€554.60*

€659.97 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01010106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


FL01020106

Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare

€15.00*

€17.85 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€2.10*

€2.50 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FK08000006
Three-way flange ball valve DN32 FK08 T drilling carbon steel 1.0619

Three-way flange ball valve DN32 PN16/40 FK08 body carbon steel 1.0619 ball carbon steel 1.4308 seal TFM 1600 / PTFE T drilling

product: Three-way flange ball valve
type: FK08
manufacturer: NieRuf
diameter: DN32
connection: flange dimensions acc. to DIN EN 1092-1
Seal steam: O-ring Viton
ball seal: TFM 1600 / PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16/40
design: T drilling
body material: carbon steel 1.0619
ball material: carbon steel 1.4308
length: 190mm
actuator: hand lever with blue plastic cover
installation position: any position
authorized for: TA Luft
product description: This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Three-way flange ball valve DN32 FK08 T drilling carbon steel 1.0619

Article no. : FK08000006
product: Three-way flange ball valve
type: FK08
manufacturer: NieRuf
diameter: DN32
connection: flange dimensions acc. to DIN EN 1092-1
Seal steam: O-ring Viton
ball seal: TFM 1600 / PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16/40
design: T drilling
body material: carbon steel 1.0619
ball material: carbon steel 1.4308
length: 190mm
actuator: hand lever with blue plastic cover
installation position: any position
authorized for: TA Luft
product description: This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3
