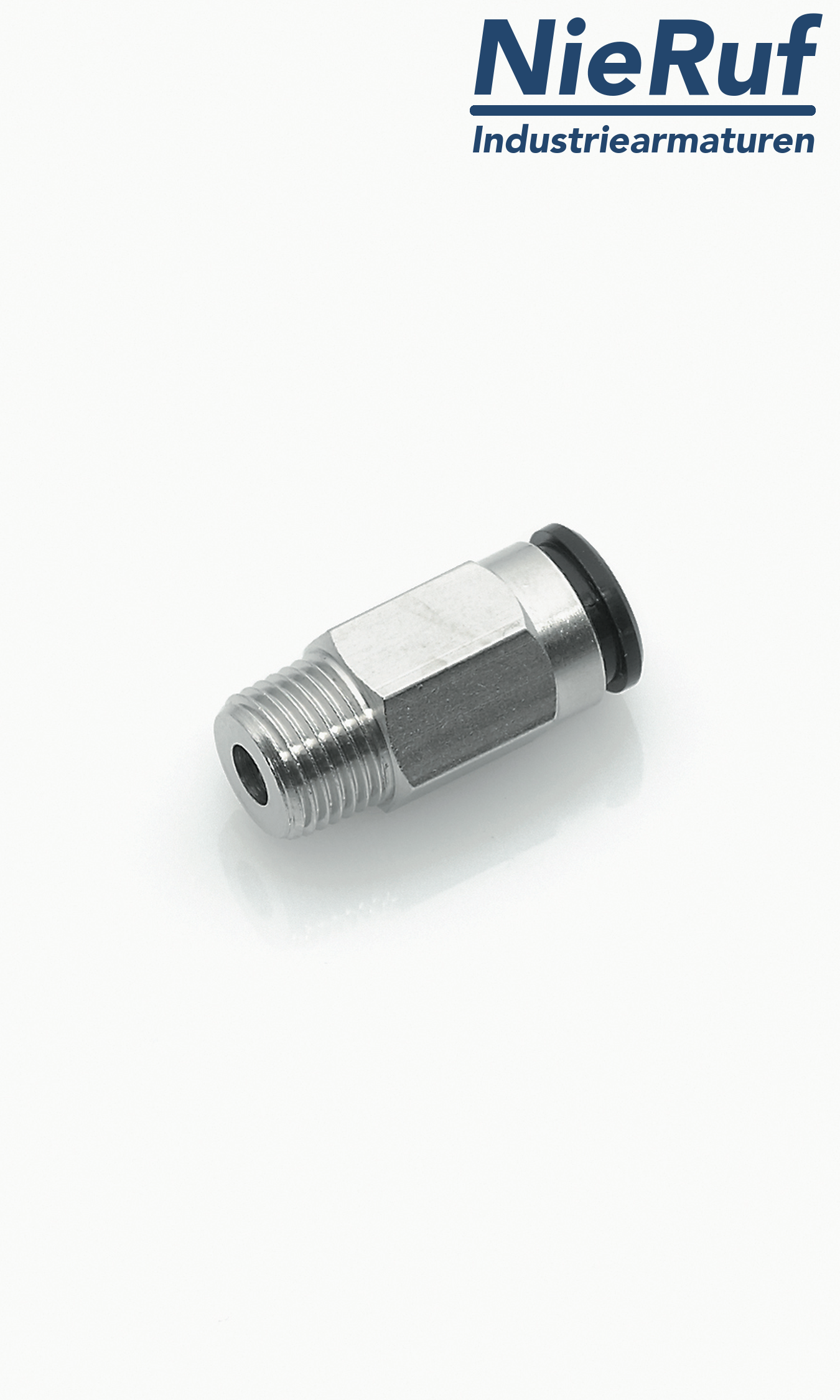

Straight male adaptor EF01 brass NBR R1/4" D10mm

EF0100k110
Flange-Butterfly valve DN 400 PN10 AK04 FPM Worm gear 1
quantity (pcs.):
1.40€ * 1.67€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Straight male adaptor EF01 brass NBR R1/4" D10mm
port connection Straight male adaptor made of brass with NBR-seal R1/4" D10mm for lubricated & non-lubricated compressed air up to 16 bar
design: Straight male adaptor
thread connection: R1/4"
tube connection 1: D10mm
body material: brass Ms58 nickel-plated
seal: NBR
collet: stainless steel 1.4401
pressure ring: black plastic
thread: conic
media: lubricated & non-lubricated compressed air
max. working pressure: up to 16 bar
product feature: Straight male adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
Straight male adaptor EF01 brass NBR R1/4" D10mm

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Straight male adaptor EF01 brass NBR R1/4" D10mm
